Nissan X-Trail 32. Manual - part 1917





SN-124

< SYSTEM DESCRIPTION >

[WITH PARK ASSIST]

SYSTEM

SYSTEM

SONAR SYSTEM

SONAR SYSTEM : System Description

INFOID:0000000010736631

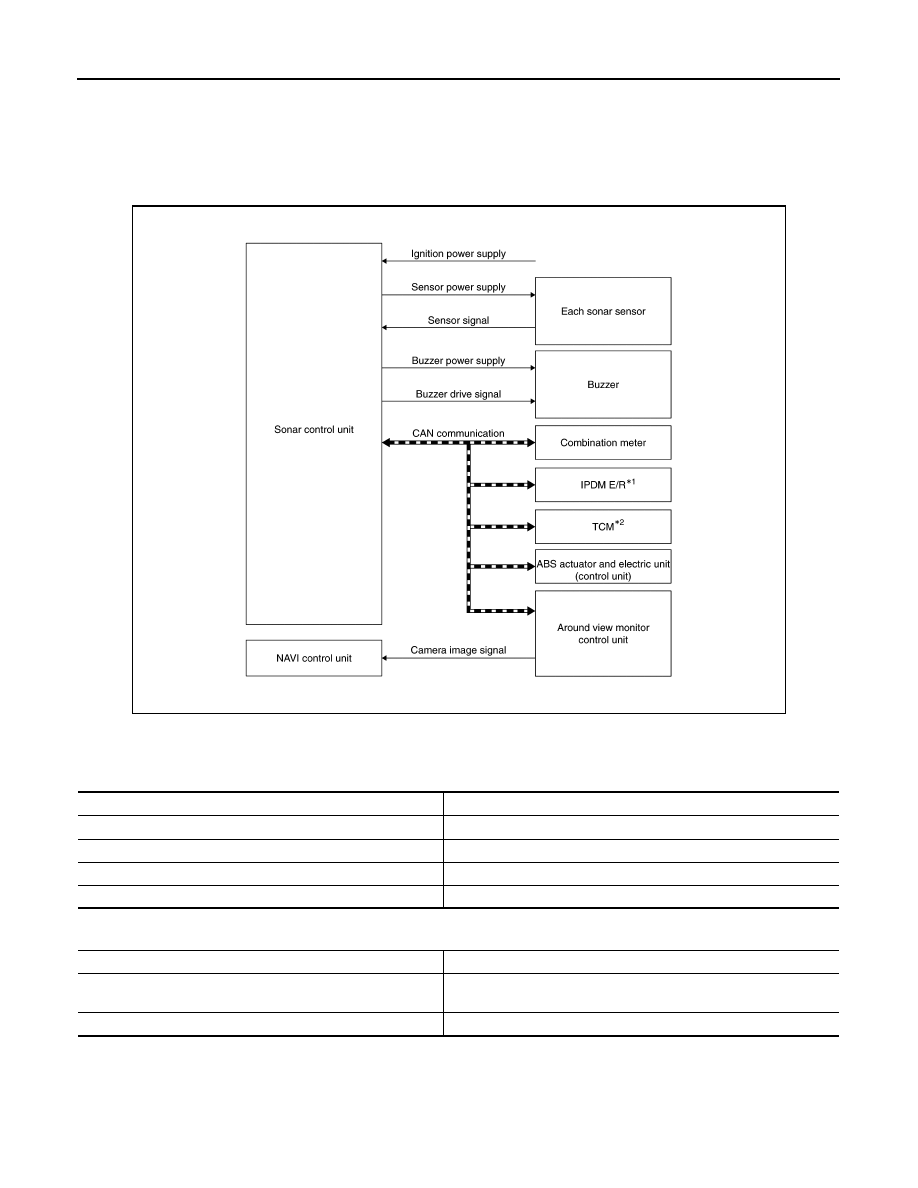

SYSTEM DIAGRAM

*1: M/T models
*2: CVT models

Sonar Control Unit Input Signal (CAN Communication)

Sonar Control Unit Output Signal (CAN Communication)

DESCRIPTION

• The sonar sensor installed to the front bumper and the rear bumper detects obstacles around the bumper.
• The sonar control unit changes the buzzer cycle and the warning of the sonar indicator (combination meter

and NAVI control unit display), according to a distance from an obstacle detected by the sonar sensor.

• The sonar control unit controls the buzzer cycle according to a buzzer drive signal.

JSNIA7285GB

Transmit unit

Signal name

IPDM E/R (M/T models)

Gear position signal

TCM (CVT models)

Shift position signal

ABS actuator and electric unit (control unit)

Vehicle speed signal (ABS)

Combination meter

System setting signal

Receiver unit

Signal name

Combination meter

• Sonar indicator display signal
• Parking sensor error signal

Around view monitor control unit

Sonar indicator display signal

SN

SYSTEM

SN-125

< SYSTEM DESCRIPTION >

[WITH PARK ASSIST]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• The sonar control unit controls the sonar indicator according to a sonar indicator display signal transmitted to

the combination meter and the around view monitor control unit via CAN communication.

• The sonar system is used in Park assist. Refer to

DAS-287, "System Description"

.

SONAR SYSTEM ACTIVATION CONDITION

The sonar system warns the driver of the presence or absence of obstacles by buzzer and the sonar indicator
when the following conditions are satisfied while the ignition switch is turned ON.

×

: Activation

NOTE:
• When a sonar system OFF switch is turned OFF, obstacle detection function stops.
• When an obstacle is detected by the sensor, Buzzer sounds.
• The sonar control unit activates the warning buzzer for approximately 0.5 seconds after detecting the

reverse signal.

• The following items can be set for the sonar system on the settings screen of the combination meter.
- Only ON/OFF/Fr of sonar sensor
- Detection range of sonar sensor
- Buzzer volume

OBSTACLE DETECTION DISTANCE

• The sonar control unit changes a buzzer cycle and a sonar indicator indication according to a distance from

an obstacle.

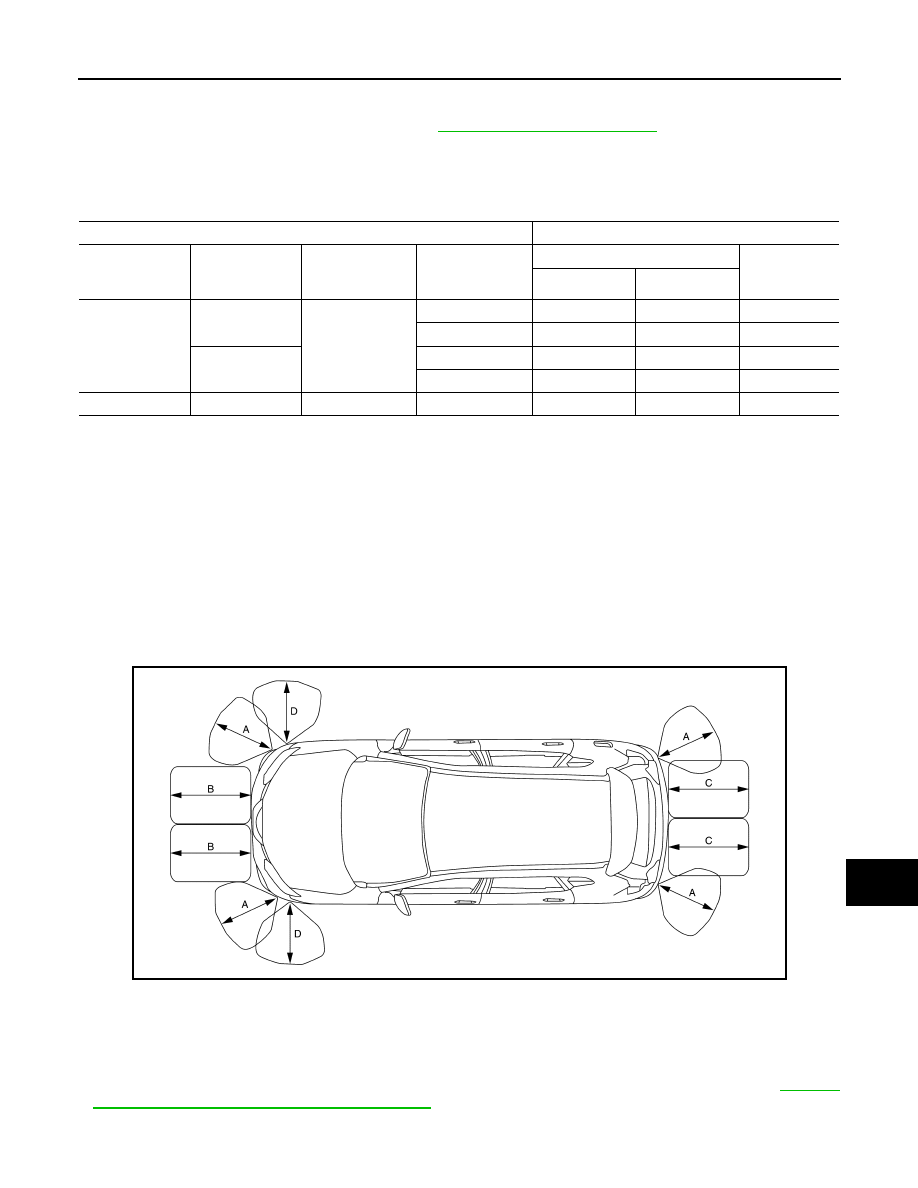

Obstacle detection range image

• Detection distance of an obstacle changes, as shown in the table below, when the detection sensitivity is

changed on the settings screen of the information display of the combination meter. Refer to

MWI-71,

"INFORMATION DISPLAY : System Description"

.

Sonar activation condition

Sonar operation

Sonar system

OFF switch indi-

cator

Shift position

Vehicle speed

Obstacle detect-

ing sensor

Buzzer

Sonar indicator

Front

Rear

ON

R

Approx. 10 km/h

(6.2 MPH) or less

Front sensor

×

×

Rear sensor

×

×

D

Front sensor

×

×

Rear sensor

OFF

JSNIA7286GB

A.

Approx. 60 cm (23.62 in)
(default value)

B.

Approx. 100 cm (39.37 in)
(default value)

C.

Approx. 150 cm (59.06 in)
(default value)

D.

Approx. 45 cm (17.71 in)

SN-126

< SYSTEM DESCRIPTION >

[WITH PARK ASSIST]

SYSTEM

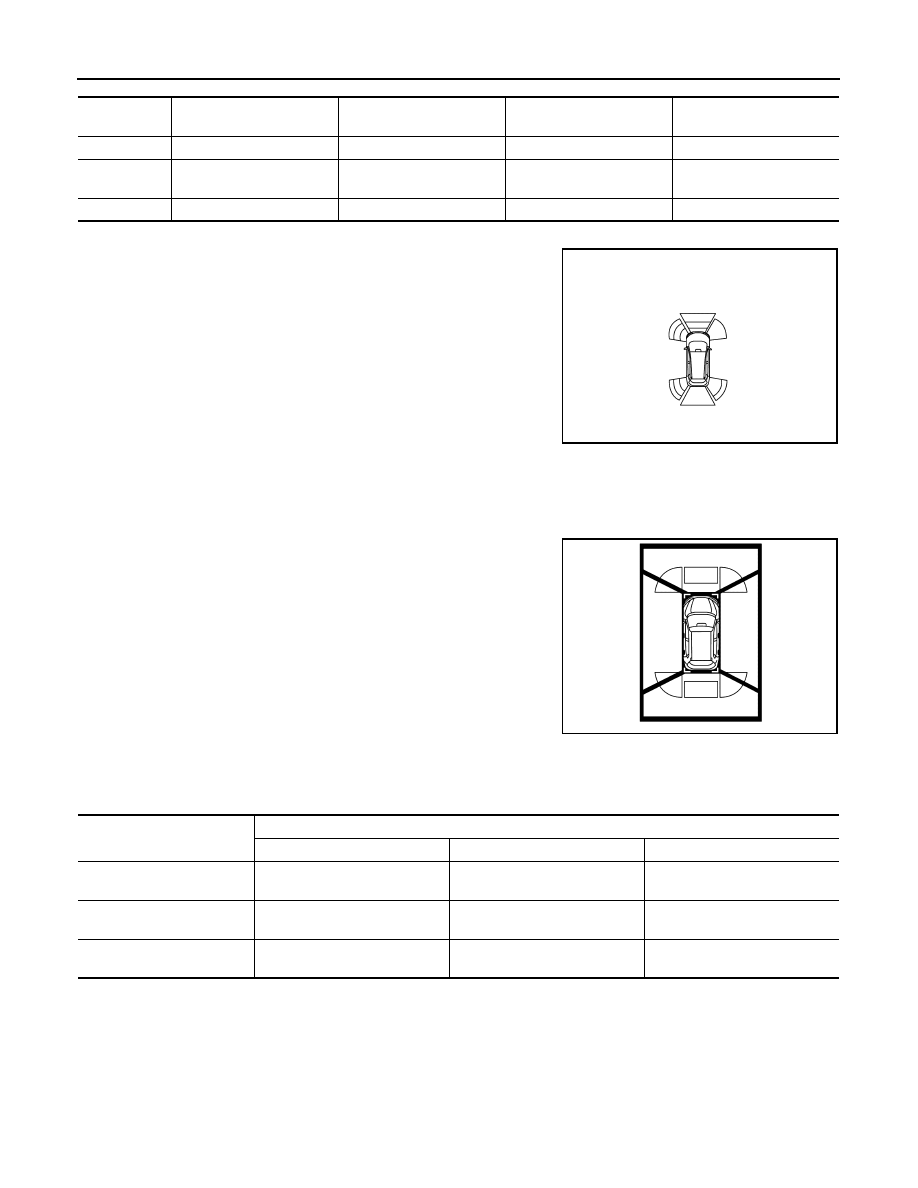

Detection distance

Sonar Indicator

• Sonar indicator is displayed on the information display in combina-

tion meter.

• The sonar control unit displays a warning on sonar indicator in 3 stages (green, yellow, and red), according

to a distance from an obstacle.
NOTE:
• A distance from an obstacle is also displayed on the information display of the combination meter.
• Sonar indicator is displayed also on Bird-Eye view and Front-

side view screen of around view monitor.

• Warning displayed on the sonar indicator and a distance change according to a distance between an obsta-

cle and sensor as shown in the following table.

Detection distance (default value)

Warning Buzzer

• The warning buzzer output frequency changes levels according to the detection distance.
• As the vehicle approaches an obstacle, the buzzer-sounding cycle becomes shorter.
• The nearest sensor from the detected obstacle applies the buzzer output frequency if plural sensors detect

any obstacle simultaneously.

NOTE:
Buzzer stops when the vehicle moves away from an obstacle and the warning level decreases.

Item (detec-

tion range)

Corner sensor

Side sensor

Front center sensor

Rear center sensor

FAR

60 cm (23.62 in) + 10%

Approx. 45 cm (17.71 in)

100 cm (39.37 in) + 10%

150 cm (59.06 in) + 10%

NORMAL (de-
fault value)

Approx. 60 cm (23.62 in)

Approx. 45 cm (17.71 in)

Approx. 100 cm (39.37 in)

Approx. 150 cm (59.06 in)

NEAR

60 cm (23.62 in)

 10%

Approx. 45 cm (17.71 in)

100 cm (39.37 in)

 10%

150 cm (59.06 in)

 10%

JSNIA6831ZZ

JSNIA6832ZZ

Status of warning

Detection distance

Corner sensor and side sensor

Front center sensor

Rear center sensor

Red

0 – 30 cm

(0 in – 11.81 in)

0 – 30 cm

(0 in – 11.81 in)

0 – 30 cm

(0 in – 11.81 in)

Yellow

31 – 50 cm

(12.2 in – 19.69 in)

31 – 60 cm

(12.2 in – 23.62 in)

31 – 60 cm

(12.2 in – 23.62 in)

Green

51 – 60 cm

(20.08 in – 23.62 in)

61 – 100 cm

(24.02 in – 39.37 in)

61 – 150 cm

(24.02 in – 59.06 in)

SN

SYSTEM

SN-127

< SYSTEM DESCRIPTION >

[WITH PARK ASSIST]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Detection distance (default value)

Trailer Hitch Mode

The trailer hitch mode allows the setting that the sonar sensor does not accidentally detect the trailer hitch as
an obstacle when connecting a trailer hitch.

SETTINGS

• Use “Work Support” of CONSULT and enter the distance to trailer hitch. Refer to

SN-131, "CONSULT Func-

tion"

.

• Connect trailer hitch to the vehicle and drive approximately 10 seconds or more at 5 km/h (3.1 MPH).

How To Cancel The Setting

• Disconnect trailer hitch from the vehicle. Turn the ignition switch ON and maintain this state for 10 seconds

or more.

Detection distance

Warning buzzer frequency

 Less than 30 cm

(Less than 11.81 in)

Continuous tone

31 – 40 cm

(12.2 – 15.75 in)

10.0 Hz

41 – 50 cm

(16.14 – 19.69 in)

8.0 Hz

51 – 60 cm

(20.08 – 23.62 in)

6.7 Hz

61 – 70 cm

(24.02 – 27.56 in)

5.7 Hz

71 – 80 cm

(27.95 – 31.5 in)

5.0 Hz

81 – 90 cm

(31.89 – 35.43 in)

4.4 Hz

91 – 100 cm

(35.83 – 39.37 in)

4.0 Hz

101 – 110 cm

(39.76 – 39.37 in)

3.6 Hz

111 – 120 cm

(35.83 – 43.31 in)

3.3 Hz

121 – 130 cm

(47.64 – 51.18 in)

3.1 Hz

131 – 140 cm

(51.57 – 55.12 in)

2.9 Hz

141 – 150 cm

(55.51 – 59.06 in)

2.7 Hz

151 – 160 cm

(59.45 – 62.99 in)

2.5 Hz

161 – 170 cm

(63.39 – 66.93 in)

2.2 Hz

More than 171 cm

(More than 66.93 in)

2.0 Hz
