SYSTEM

SEC-219

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

NOTE:

• To lock/unlock all doors by operating remote controller button of Keyfob for details, refer to

DLK-646, "System Description"

.

Disarmed Phase

VEHICLE SECURITY SYSTEM switches to the DISARMED phase while any doors or hood is open because it
is assumed that the owner is in or nearby the vehicle.

Pre-armed Phase

• VEHICLE SECURITY SYSTEM switches to the PRE-ARMED phase and blinks security indicator lamp

quickly for approximately 20 seconds when all doors are locked by Keyfob, while all doors and hood are
closed.

• VEHICLE SECURITY SYSTEM that is in the PRE-ARMED phase switches to the DISARMED phase when

all doors are unlocked by Keyfob.

• VEHICLE SECURITY SYSTEM does not activate siren when door or hood is open while VEHICLE SECU-

RITY SYSTEM is in the PRE-ARMED phase. When the door or hood is closed again, VEHICLE SECURITY
SYSTEM stays in the PRE-ARMED phase.

Armed Phase

VEHICLE SECURITY SYSTEM switches to the ARMED phase from the PRE-ARMED phase after approxi-
mately 20 seconds, and blinks security indicator lamp slowly.

Alarm Phase

PRE-FULL
ARMED to FULL
ARMED

When all of the following
conditions are satisfied for
20 seconds.

• Ignition switch: OFF
• All doors: Closed
• Hood: Closed

PRE-PARTIAL
ARMED to PAR-
TIAL ARMED

When all of the following
conditions are satisfied for
20 seconds.

• Ignition switch: OFF

PARTIAL to FULL
ARMED

When all of the following
conditions are satisfied for
20 seconds.

• Ignition switch: OFF
• All doors: Closed
• Hood: Closed

FULL ARMED to
DISARMED

When one of the following
condition is satisfied.

• Ignition switch: ON
• UNLOCK button of Keyfob: ON

PARTIAL ARMED
to DISARM

FULL ARMED to
ALARM

When one of the following
condition is detected.

• Any door or hood is opened
• Battery is connect and disconnect
• Movement to enter into passenger room
• Communication between BCM and siren control unit is interrupted
• Communication between siren control unit and intruder sensor is in-

terrupted

PARTIAL ARMED
to ALARM

When one of the following
condition is detected.

• Any door or hood is opened
• Battery is connect and disconnect
• Communication between BCM and siren control unit is interrupted
• Communication between siren control unit and intruder sensor is in-

terrupted

ALARM to
DISARMED

When one of the following
condition is satisfied.

• Ignition switch: ON
• UNLOCK button of Keyfob: ON

ALARM to ALARM
PAUSE

27.5 seconds are passed.

ARM PAUSE to
FULL ARMED

5 seconds are passed after deactivating ALARM.

ARM PAUSE to
PARTIAL ARMED

ALARM PAUSE to
DISARMED

When one of the following
condition is satisfied.

• Ignition switch: ON
• UNLOCK button of Keyfob: ON

No.

System state

Switching condition

SEC-220

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

SYSTEM

• VEHICLE SECURITY SYSTEM activates siren for approximately 27.5 seconds when any of the following

conditions is fulfilled while VEHICLE SECURITY SYSTEM is in the ARMED phase.

- When any door or hood is open
- When intruder sensor detects an attempt to enter into passenger compartment
- When battery connection is disconnected
- Communication between BCM and siren control unit is interrupted
- Communication between siren control unit and intruder sensor is interrupted
• VEHICLE SECURITY SYSTEM deactivates siren when door is unlocked by Keyfob or ignition switch is turn

ON position while siren is activated.

• VEHICLE SECURITY SYSTEM switches to the ARMED phase automatically when approximately 5 sec-

onds pass after deactivating siren.

SENSOR CANCEL FUNCTION

Perform the following procedure to deactivate intruder sensor.

1.

CHECK SENSOR CANCEL FUNCTION

1.

Turn ignition switch OFF.

2.

Press sensor cancel switch, and before 5 minutes pass, close all doors and hood, and lock all doors using
the Keyfob.

3.

Check that VEHICLE SECURY SYSTEM is switched to the PRE-ARMED phase and that the siren sounds
one beep.

NOTE:
Intruder sensor is not cancelled and return to normal operation when any of the following conditions is fulfilled
while the cancellation procedure is being performed.
• When ignition switch turns ON.
• When 5 minutes or more pass after pressing sensor cancel switch.
• When VEHICLE SECURITY SYSTEM switches to the DISARMED phase.

Does security indicator lamp blink quickly?

YES

>> INSPECTION END

NO

>> Check again.

SYSTEM

SEC-221

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

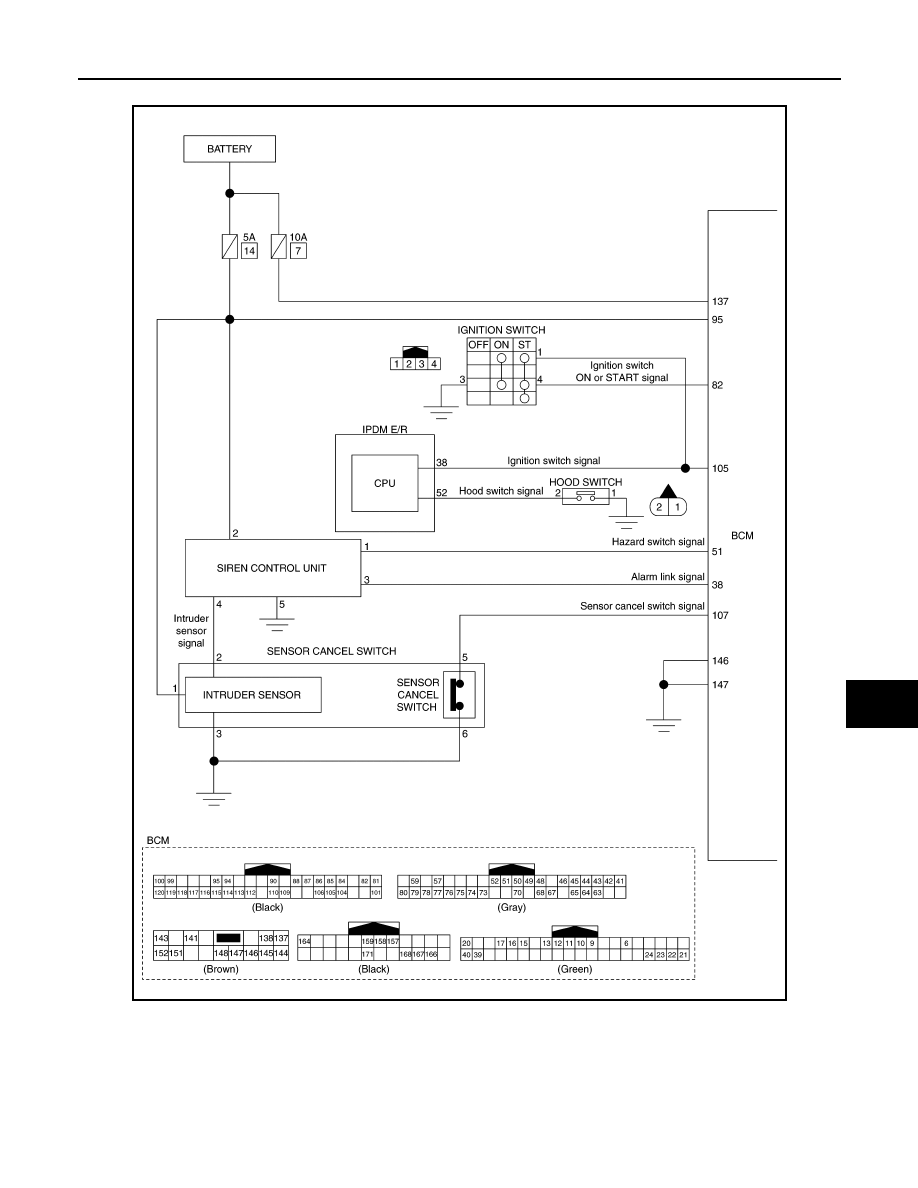

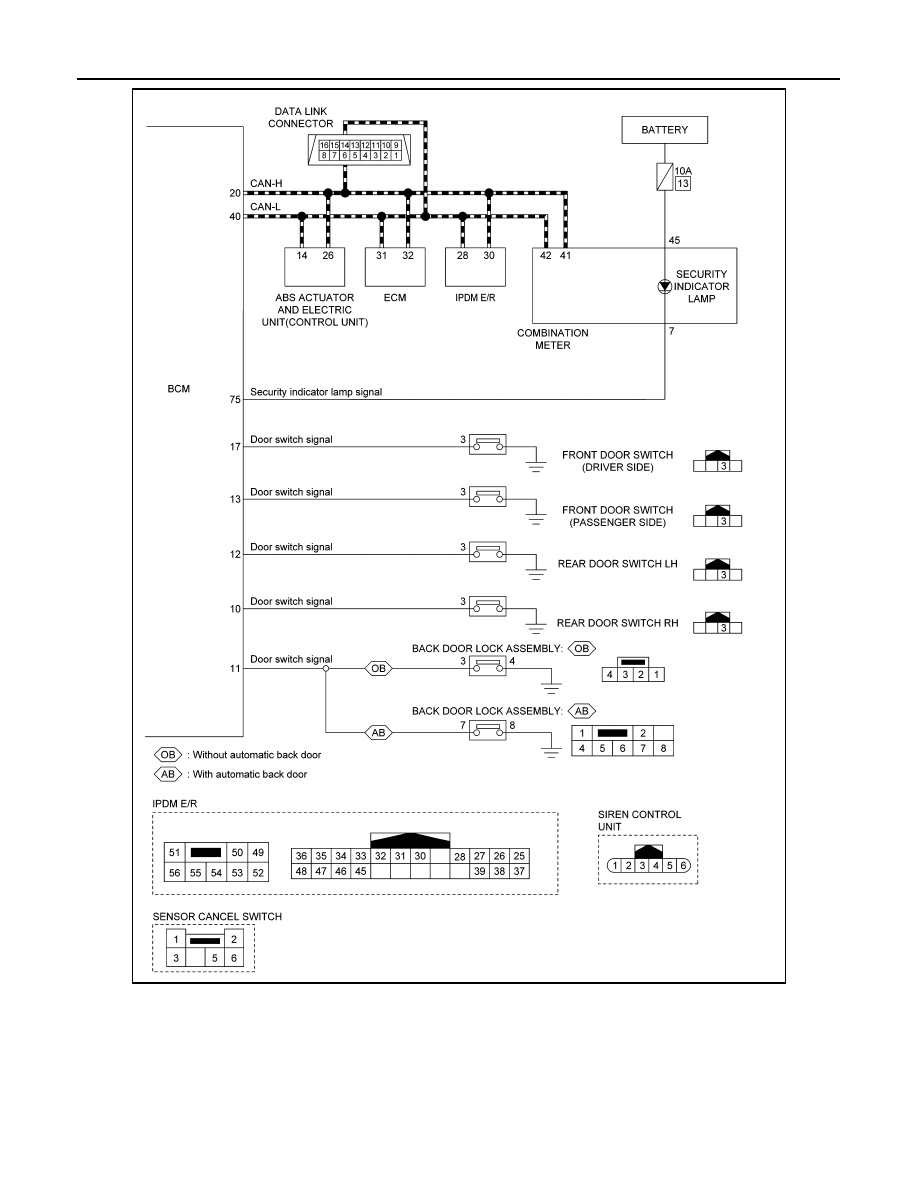

VEHICLE SECURITY SYSTEM : Circuit Diagram

INFOID:0000000011008685

JMKIB3750GB

SEC-222

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

SYSTEM

WARNING/INDICATOR/CHIME LIST

JMKIB3751GB
