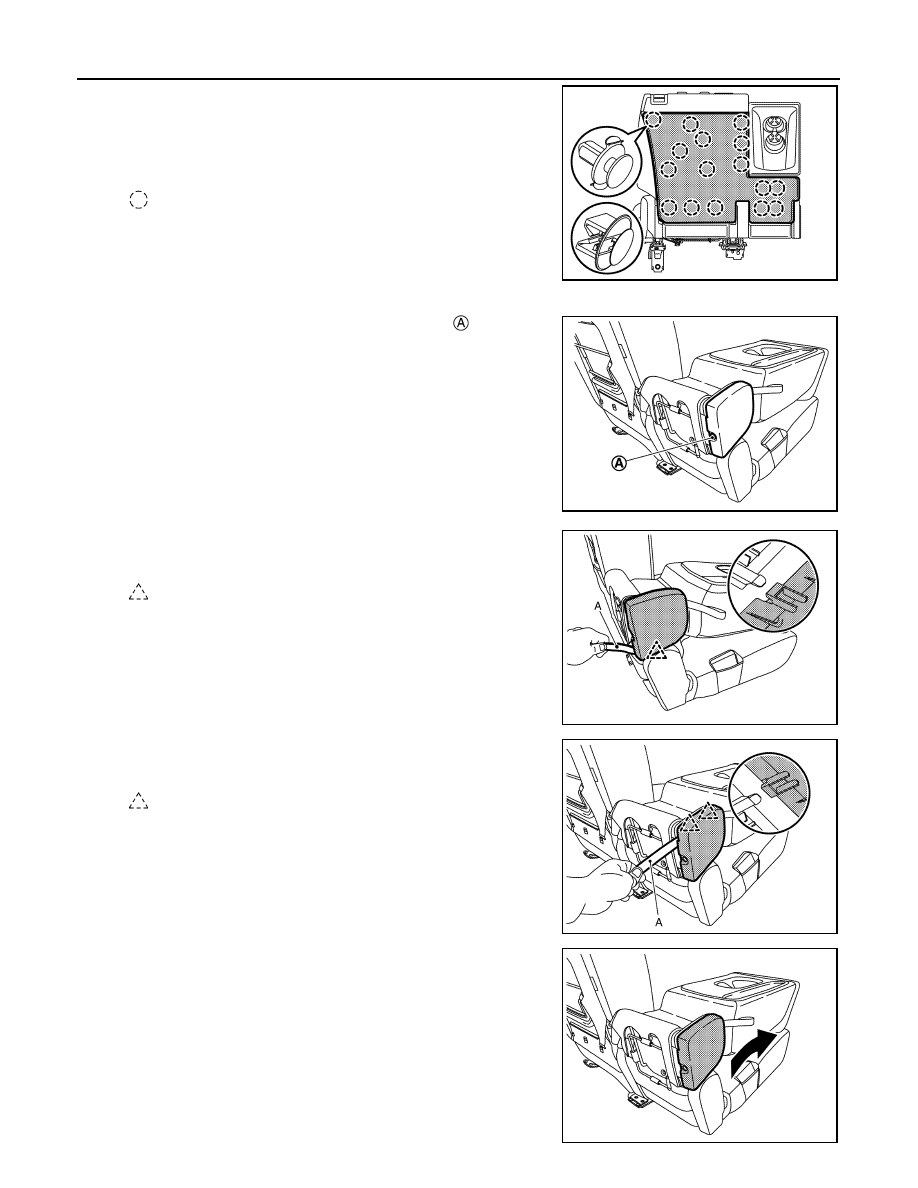

SE-56

< REMOVAL AND INSTALLATION >

SECOND SEAT (SLIDING TYPE)

b.

Disengage seatback board fixing clips, and then remove seat-
back board.

CAUTION:

Before installing the seatback board, check the engaging
direction of clip.

2.

Remove armrest bracket outer cover.

a.

Remove armrest bracket outer cover fixing screw

.

b.

Disengage armrest bracket outer cover fixing pawls using a
remover tool (A).

c.

Disengage armrest bracket outer cover fixing pawl using a
remover tool (A).

d.

Remove armrest bracket outer cover.

: Clip

JMJIA9654ZZ

JMJIA9655ZZ

: Pawl

JMJIA9656ZZ

: Pawl

JMJIA9657ZZ

JMJIA9658ZZ

SECOND SEAT (SLIDING TYPE)

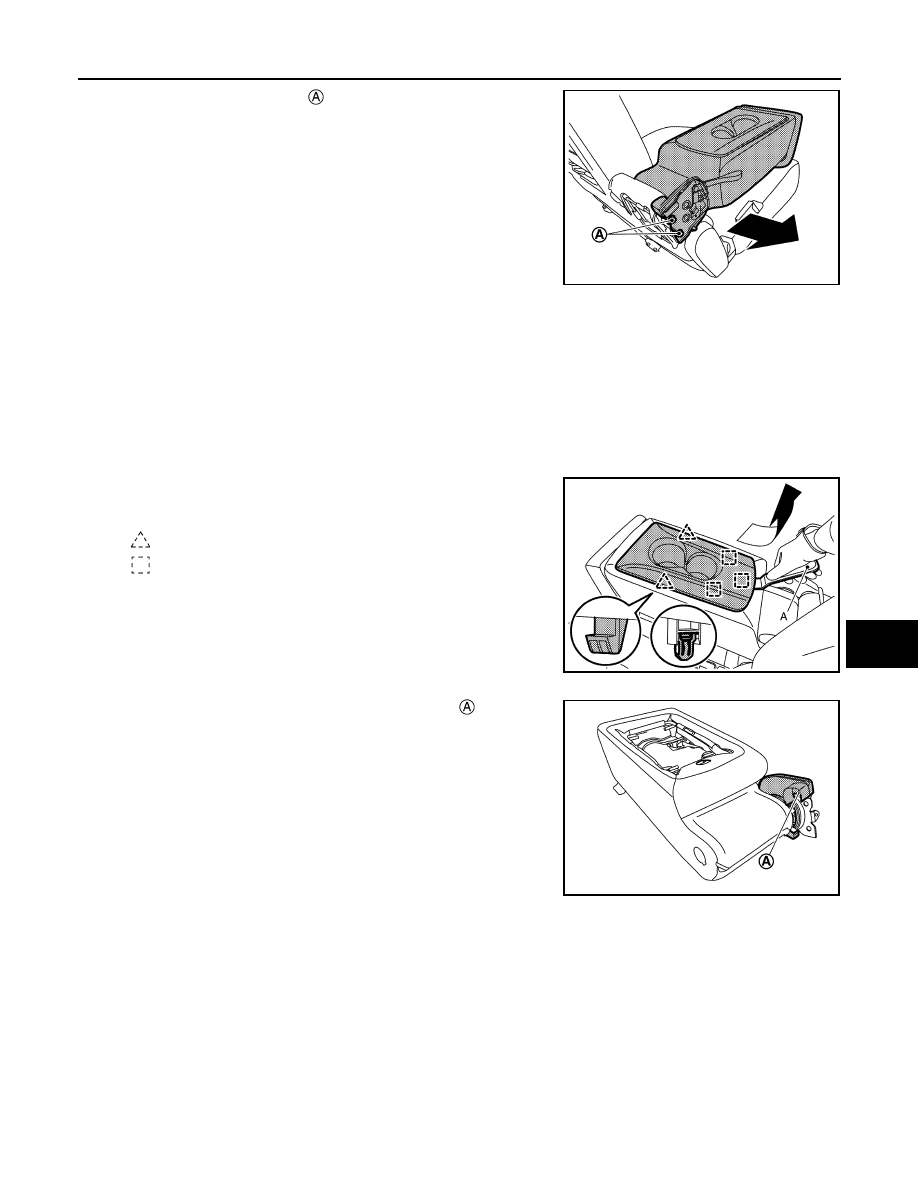

SE-57

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

3.

Remove armrest fixing bolts

, and then remove armrest.

INSTALLATION

Install in the reverse order of removal.

ARMREST : Disassembly and Assembly

INFOID:0000000010713146

DISASSEMBLY

CAUTION:

When disassembly, always use a remover tool that is made of plastic to prevent damage to the parts.

Cup Holder

Disengage cup holder fixing metal clips and pawls using a remover
tool (A), and then remove cup holder.

Armrest Bracket Inner Cover

Remove armrest bracket inner cover fixing screw

, and then

remove armrest bracket inner cover.

Armrest Trim and Armrest Pad

1.

Remove center headrest.

2.

Remove cup holder.

JMJIA9659ZZ

: Pawl

: Metal clip

JMJIA9660ZZ

JMJIA9661ZZ

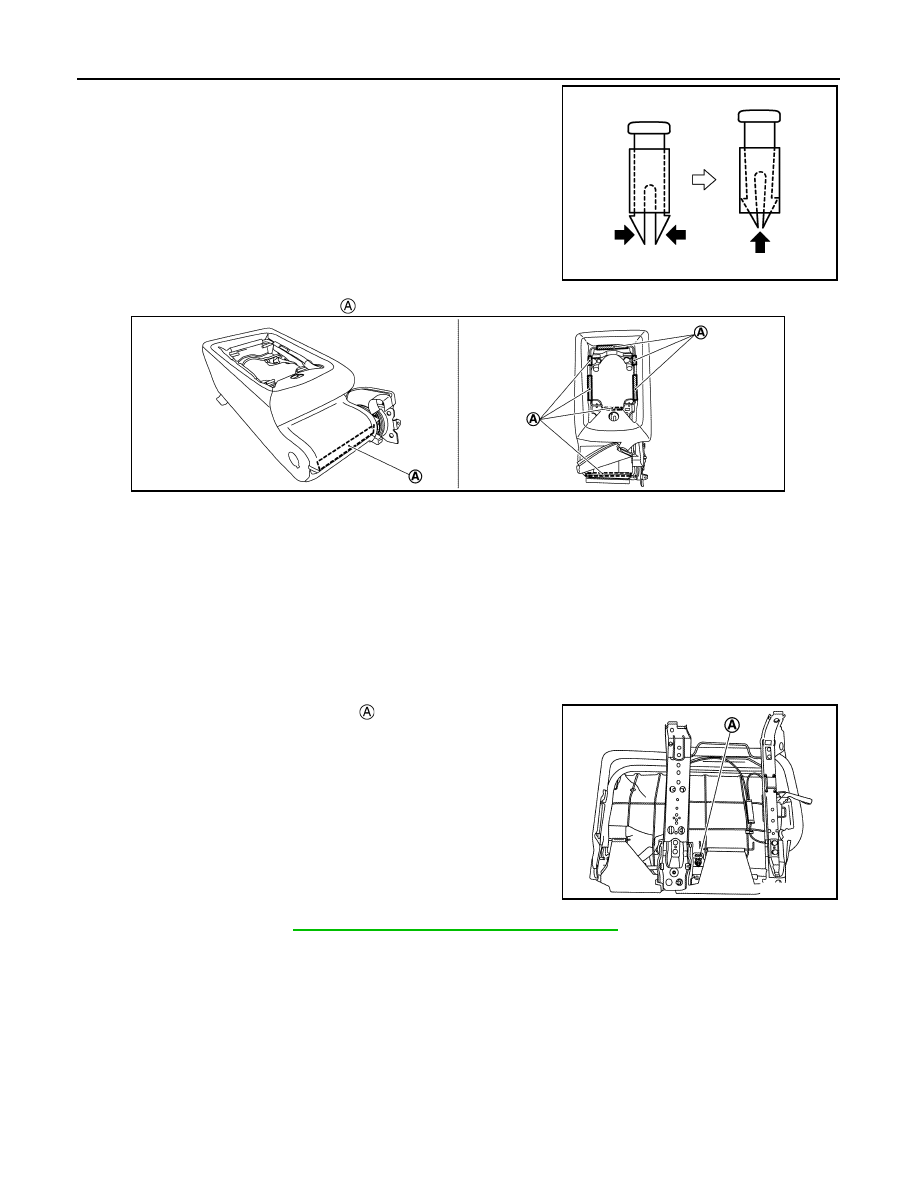

SE-58

< REMOVAL AND INSTALLATION >

SECOND SEAT (SLIDING TYPE)

3.

Remove the headrest holder by raising it while pinching the
pawls from the bottom of the headrest holder.

CAUTION:

Before installing headrest holder, check its orientation
(front/rear and right/left)

4.

Disengage armrest trim retainers

, and then remove armrest trim.

5.

Separate armrest pad and armrest frame.

ASSEMBLY

Assemble in the reverse order of disassembly.

SEATBACK

SEATBACK : Disassembly and Assembly

INFOID:0000000010713147

DISASSEMBLY

CAUTION:

When disassembly, always use a remover tool that is made of plastic to prevent damage to the parts.

1.

Remove center seat belt fixing bolt

, and then pull out center

seat belt.

2.

Remove armrest. Refer to

SE-55, "ARMREST : Removal and Installation"

.

3.

Remove seatback board RH.

PIIB4084J

JMJIA9662ZZ

JMJIA9663ZZ

SECOND SEAT (SLIDING TYPE)

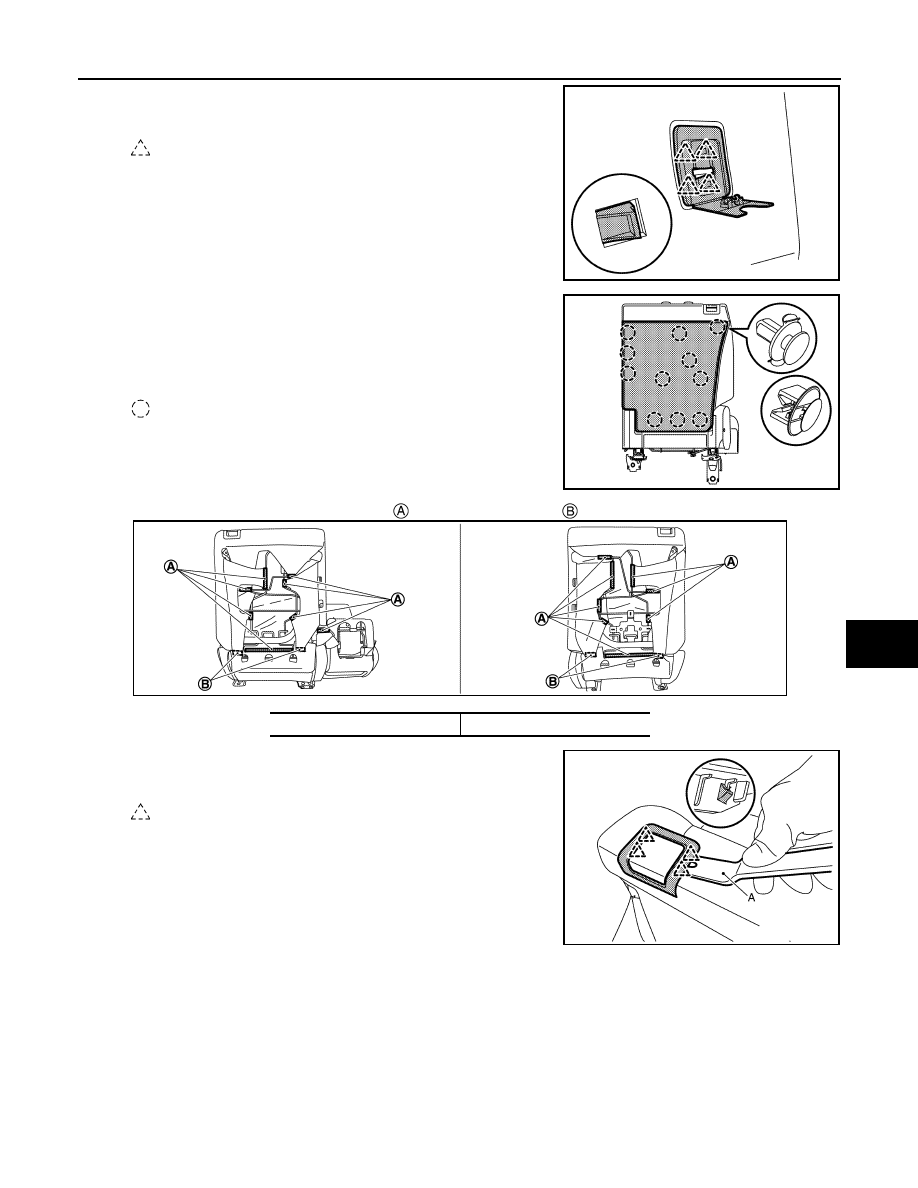

SE-59

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

a.

Disengage tether anchor cover fixing pawls, and then remove
tether anchor (if equipped).

b.

Disengage seatback board fixing clips, and then remove seat-
back board.

CAUTION:

Before installing the seatback board, check the engaging
direction of clip.

4.

Disengage seatback trim fixing retainers

, and magic fasteners

.

5.

Disengage seat control lever escutcheon fixing pawls using a
remover tool (A), and then remove seat control escutcheon.

: Pawl

JMJIA9653ZZ

: Clip

JMJIA9664ZZ

Second seat LH

Second seat RH

JMJIA9665ZZ

: Pawl

JMJIA9666ZZ
