Nissan X-Trail 32. Manual - part 1803





SE-60

< REMOVAL AND INSTALLATION >

SECOND SEAT (SLIDING TYPE)

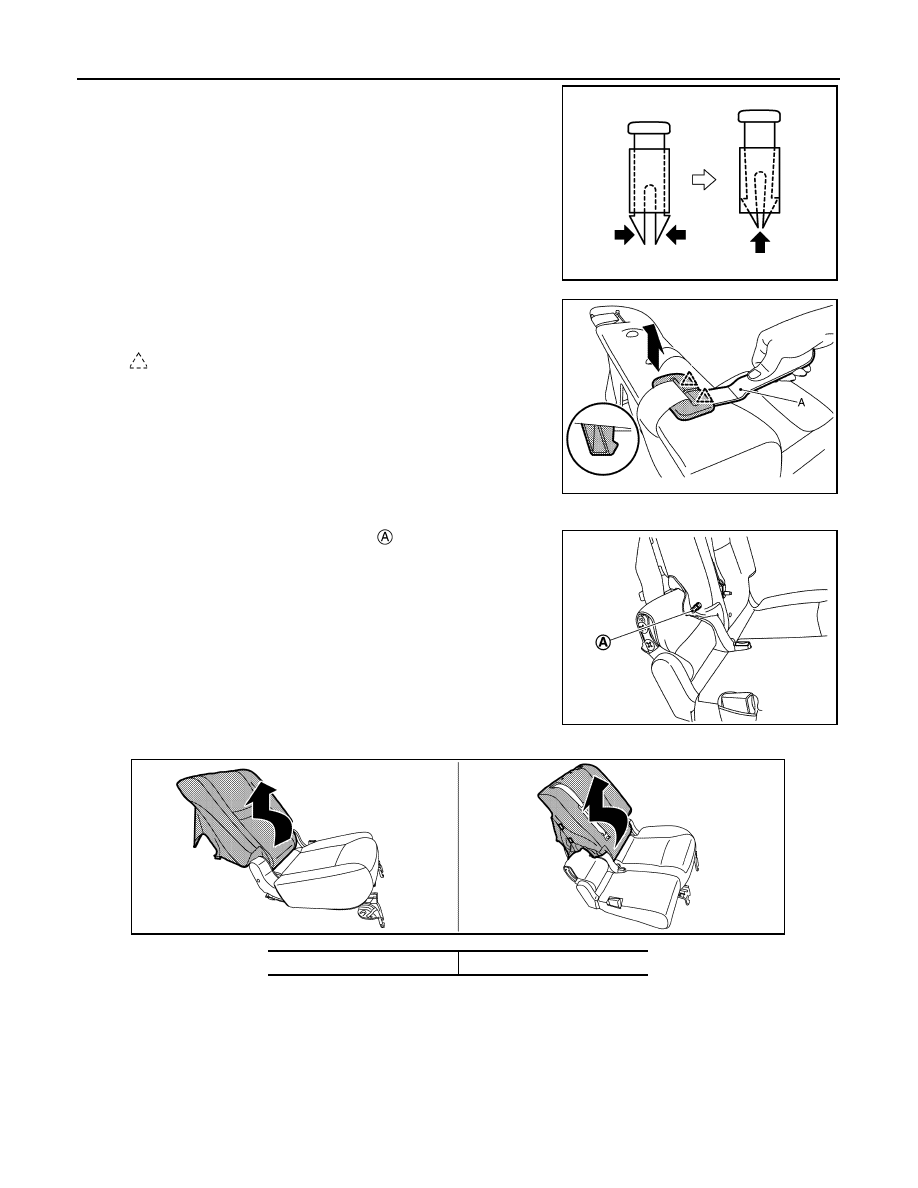

6.

Remove the headrest holder by raising it while pinching the
pawls from the bottom of the headrest holder.

CAUTION:

Before installing headrest holder, check its orientation
(front/rear and right/left)

7.

Disengage seat belt finisher fixing pawls using a remover tool
(A), and then remove seat belt finisher.

8.

Remove seatback trim and seatback pad as a set.

a.

Pull out seatback trim, and avoid shaft

 of armrest.

b.

Remove seatback trim and seatback pad as a set.

9.

Remove seatback silencer.

10. Remove hog rings, and then separate seatback trim and seatback pad.

CAUTION:

Before performing separating operation, check the installation position of hog rings.

11. Remove the following parts after removing seatback trim and pad.

Reclining Device Cover

PIIB4084J

: Pawl

JMJIA9667ZZ

JMJIA9668ZZ

Second seat RH

Second seat LH

JMJIA9669ZZ

SECOND SEAT (SLIDING TYPE)

SE-61

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

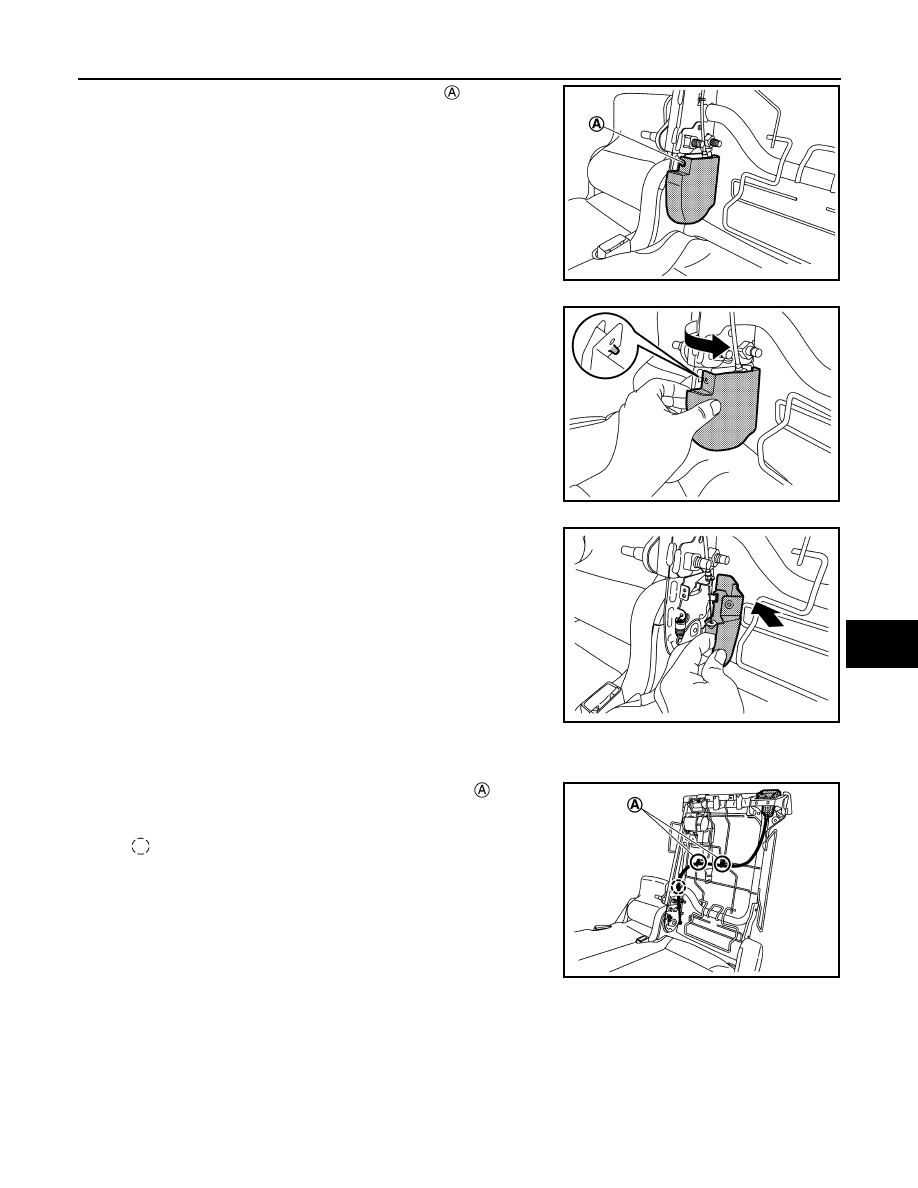

1.

Remove reclining device cover fixing screw

.

2.

Disengage reclining device cover fixing portion of front side.

3.

Disengage reclining device cover fixing portion, and then
remove reclining device cover.

Seat Control Lever

1.

Remove reclining device cover.

2.

Disengage seat control cable 1 fixing portion

 and clip

from seatback frame.

JMJIA9670ZZ

JMJIA9671ZZ

JMJIA9672ZZ

: Clip

JMJIA9673ZZ

SE-62

< REMOVAL AND INSTALLATION >

SECOND SEAT (SLIDING TYPE)

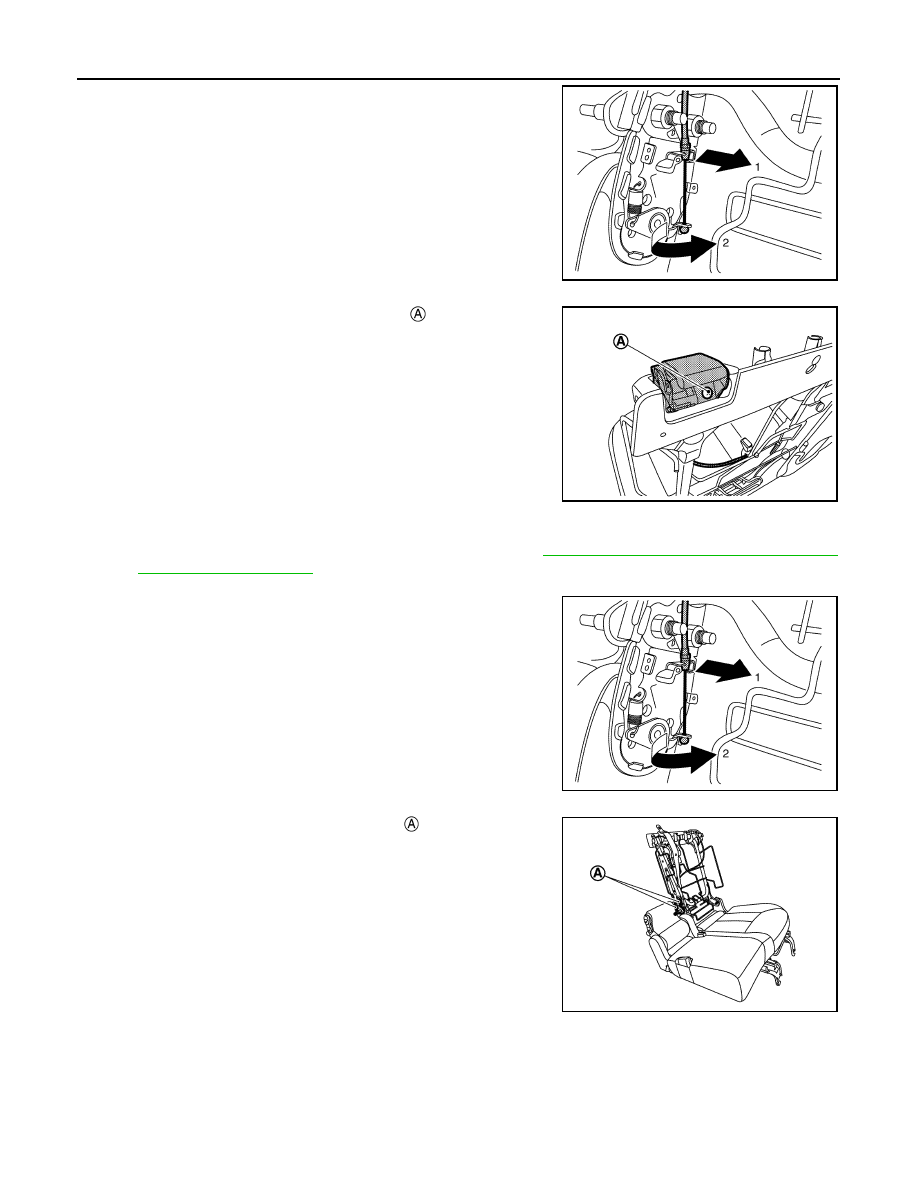

3.

Remove seat control cable 1 according to numerical order
1

2 indicated by arrows as shown in the figure from seat

cushion frame.

4.

Remove seat control lever fixing screw

, and then remove

seat control lever.

Seatback Frame

1.

Remove seat cushion outside finisher outer side. Refer to

SE-65, "SEAT CUSHION FINISHER : Dis-

assembly and Assembly"

.

2.

Remove reclining device cover.

3.

Remove seat control cable 1 according to numerical order
1

2 indicated by arrows as shown in the figure from seat

cushion frame.

4.

Remove armrest bracket fixing bolts

, and then remove

armrest bracket (seatback LH only).

JMJIA9674ZZ

JMJIA9675ZZ

JMJIA9674ZZ

JMJIA9677ZZ

SECOND SEAT (SLIDING TYPE)

SE-63

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

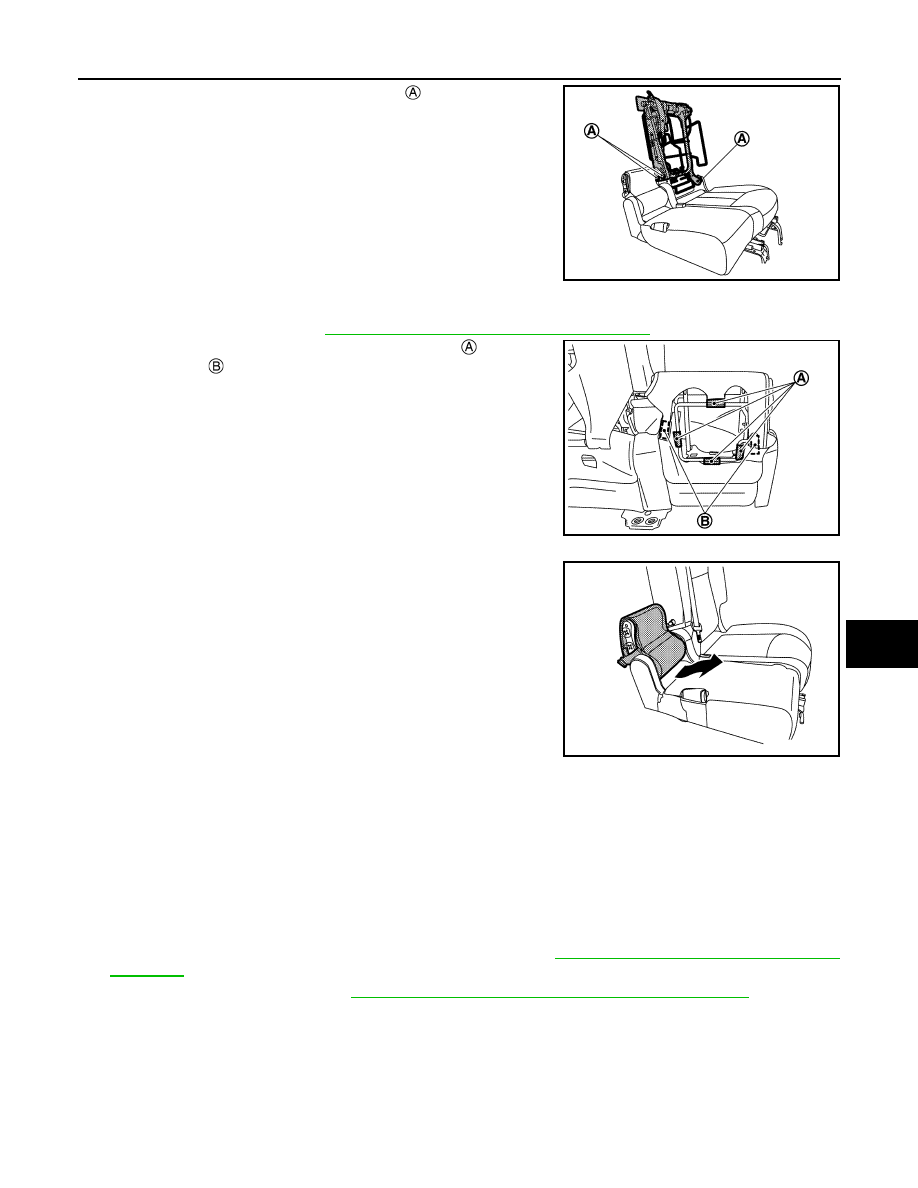

5.

Remove seatback frame fixing bolts

, and then remove

seatback frame.

Seatback Side

1.

Remove armrest. Refer to

SE-55, "ARMREST : Removal and Installation"

.

2.

Disengage seatback side trim fixing retainers

 and magic

fasteners .

3.

Remove seatback side trim and seatback side pad as a set.

4.

Separate seatback side trim and seatback pad.

ASSEMBLY

Assemble in the reverse order of disassembly.

SEAT CUSHION

SEAT CUSHION : Disassembly and Assembly

INFOID:0000000010713148

DISASSEMBLY

1.

Remove seatback trim and seatback pad as a set. Refer to

SE-58, "SEATBACK : Disassembly and

Assembly"

.

2.

Remove seat belt buckle. Refer to

SB-19, "SEAT BELT BUCKLE : Removal and Installation"

.

JMJIA9678ZZ

JMJIA9679ZZ

JMJIA9680ZZ
