SE-48

< REMOVAL AND INSTALLATION >

FRONT SEAT

SEAT CUSHION FINISHER

SEAT CUSHION FINISHER : Disassembly and Assembly

INFOID:0000000010713136

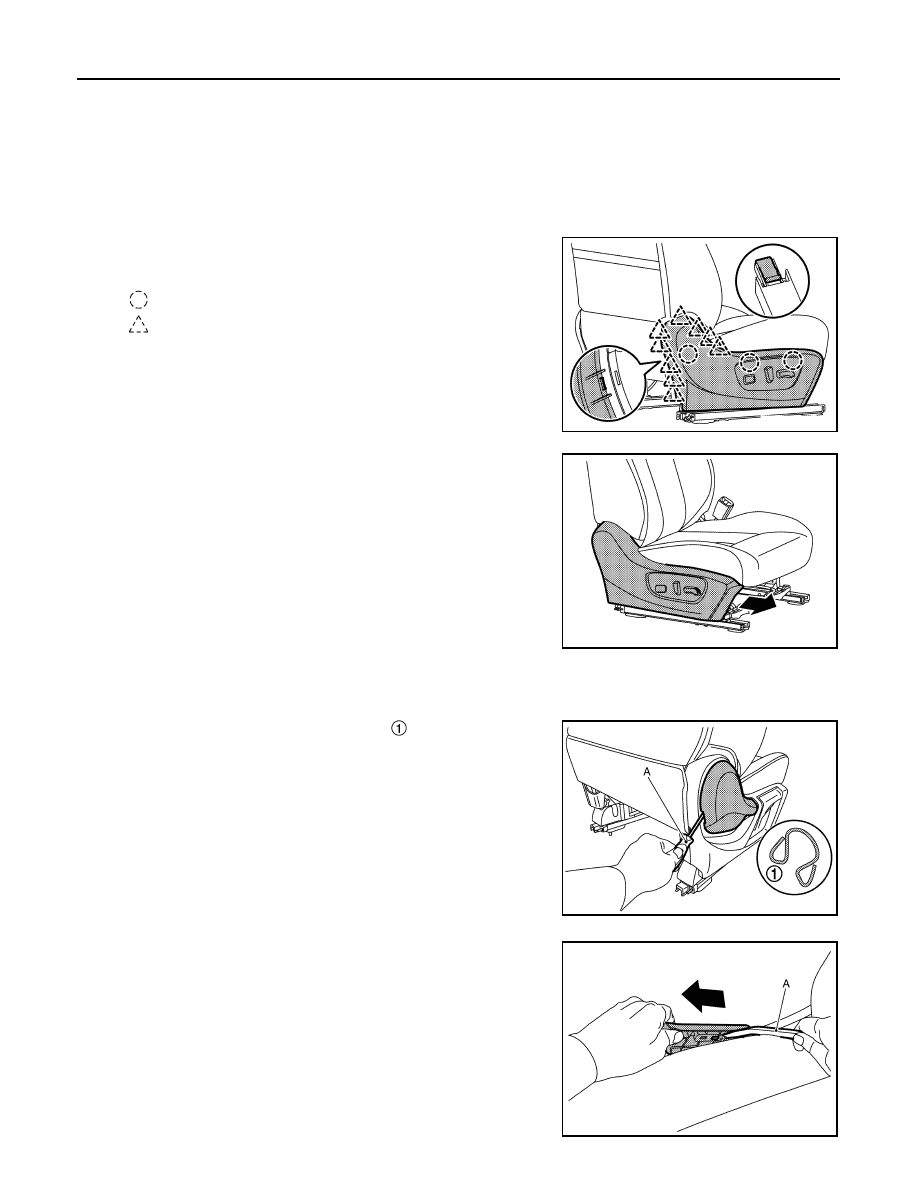

DISASSEMBLY

SEAT CUSHION OUTSIDE FINISHER

Seat Cushion Outside Finisher Outer Side (power seat)

1.

Disengage seat cushion outside finisher outer side fixing clips
and pawls.

2.

Slide the seat cushion outside finisher outer side to vehicle front
side.

3.

Disconnect harness connectors, and then remove seat cushion outside finisher outer side.

Seat Cushion Outside Finisher Outer Side (manual seat)

1.

Remove reclining knob fixing snap ring

 using a pic tool (A),

and then remove reclining knob.

2.

Disengage lifter knob fixing portion using a remover tool (A), and
then remove lifter knob.

: Clip

: Pawl

JMJIB0144ZZ

JMJIB0145ZZ

JMJIA9586ZZ

JMJIA9587ZZ

FRONT SEAT

SE-49

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

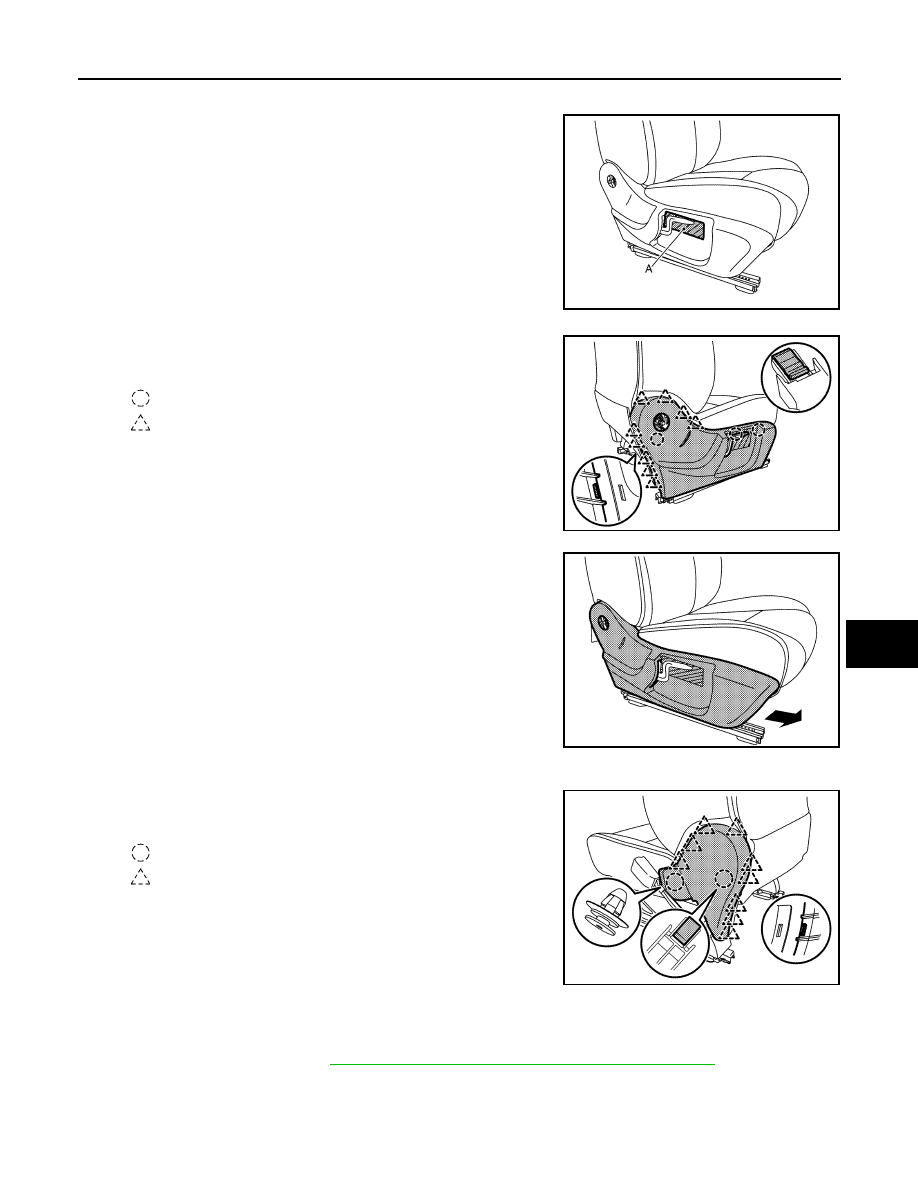

3.

Remove seat cushion outside finisher outer side.

-

Apply protective tape (A) on the parts to protect it from damage.

-

Disengage seat cushion outside finisher outer side fixing clips
and pawls.

-

Slide the seat cushion outside finisher outer side to vehicle front
side, and then remove seat cushion outside finisher outer side.

Seat Cushion Outside Finisher Inner Side

• Disengage seat cushion outside finisher inner side fixing clips,

pawls, and then remove seat cushion outside finisher inner side.

SEAT CUSHION INSIDE FINISHER

Seat Cushion Inside Finisher Outer (Inner) Side Front

1.

Remove seat cushion. Refer to

SE-46, "SEAT CUSHION : Disassembly and Assembly"

.

2.

Remove seat cushion outside finisher inner side (seat cushion inside finisher inner side front only).

3.

Remove seat cushion inside finisher outer (inner) side front.

JMJIA9588ZZ

: Clip

: Pawl

JMJIA9589ZZ

JMJIA9599ZZ

: Clip

: Pawl

JMJIA9590ZZ

SE-50

< REMOVAL AND INSTALLATION >

FRONT SEAT

-

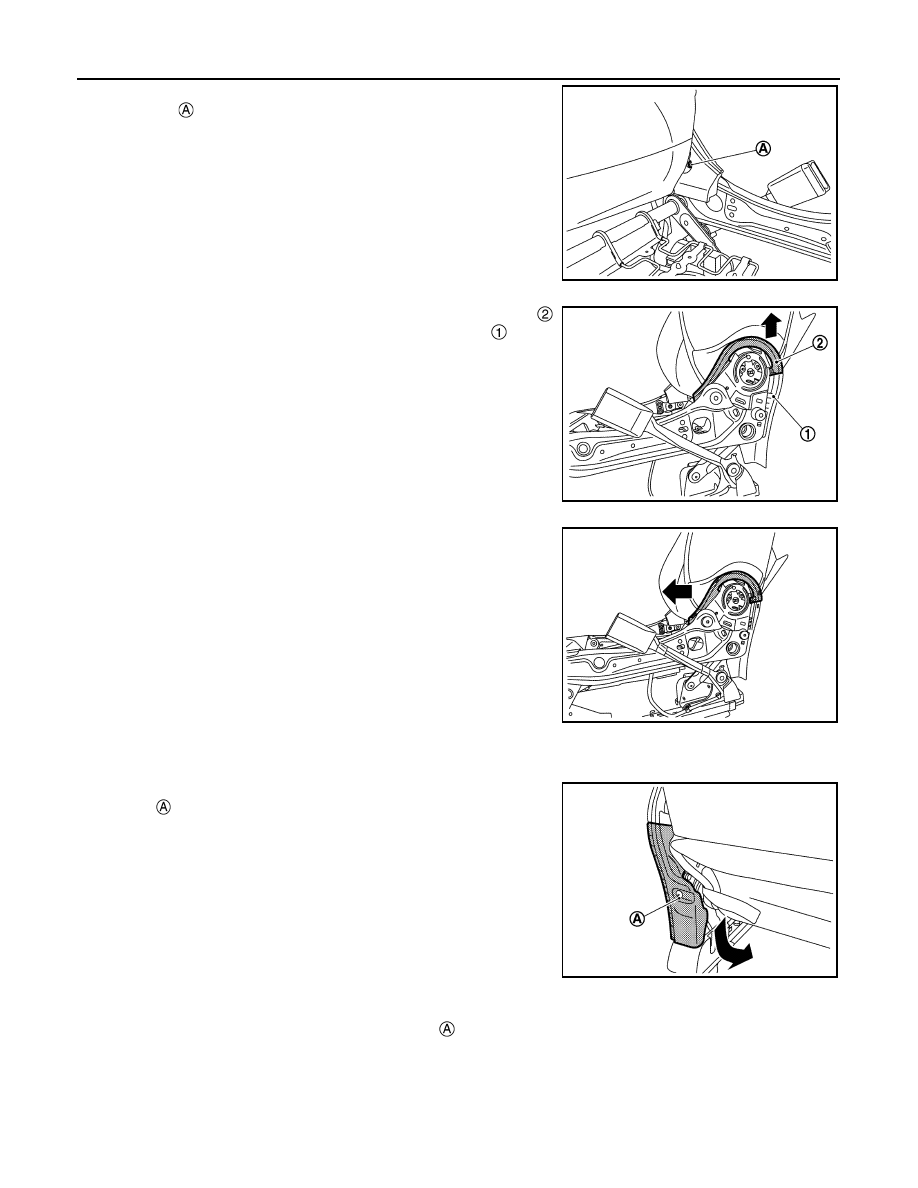

Remove seat cushion inside finisher outer (inner) side front fix-
ing screw

.

-

Pull out seat cushion inside finisher outer (inner) side front
form seat cushion inside finisher outer (inner) side rear

.

-

Remove seat cushion inside finisher outer (inner) side front.

Seat Cushion Inside Finisher Outer (Inner) Side Rear

1.

Remove seat cushion outside finisher outer (inner) side.

2.

Remove seat cushion inside finisher outer (inner) side rear fixing
screw

, and then remove seat cushion inside finisher outer

(inner) side rear.

SEAT CUSHION LOWSIDE FINISHER

Remove seat cushion lowside finisher fixing screws

, and then remove seat cushion lowside finisher.

JMJIA9591ZZ

JMJIA9592ZZ

JMJIA9593ZZ

JMJIA9594ZZ

FRONT SEAT

SE-51

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

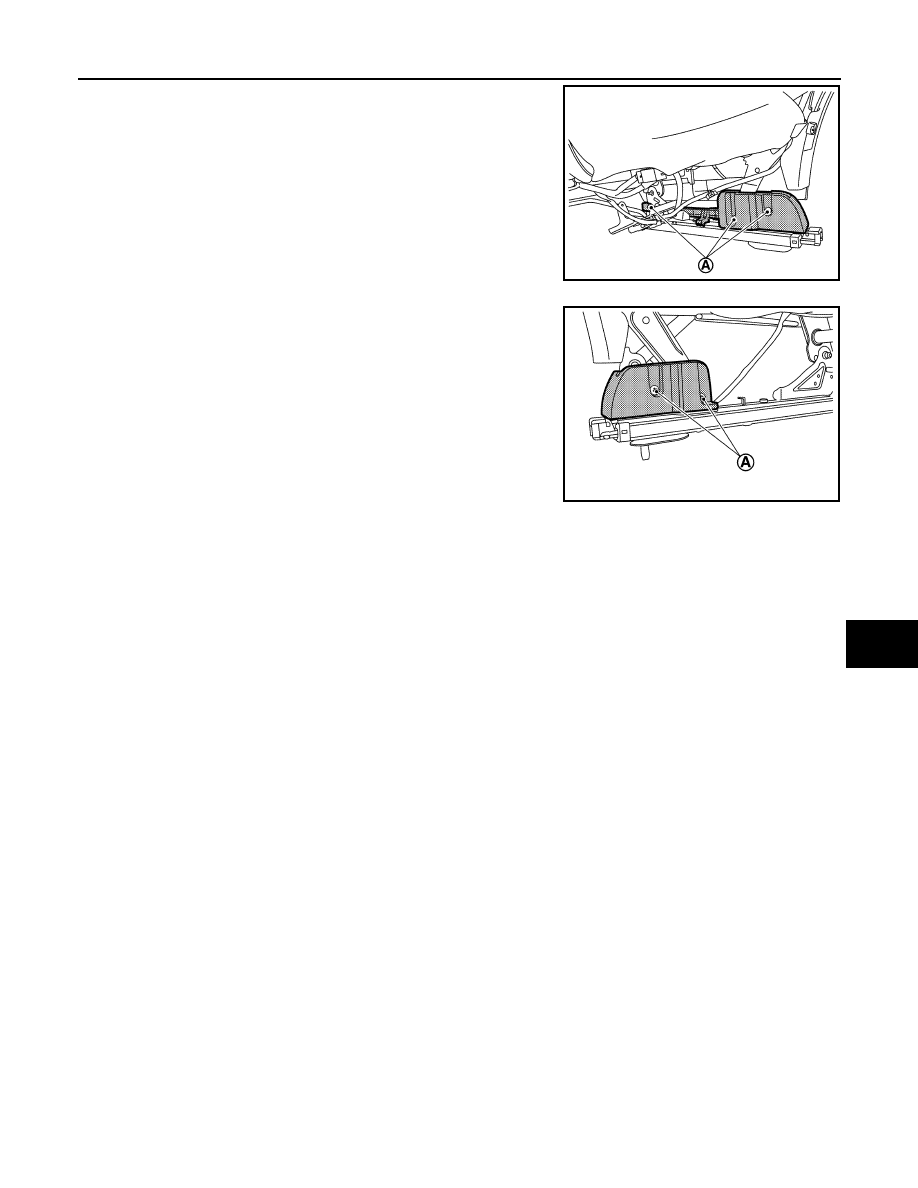

• Seat cushion lowside finisher outer side

• Seat cushion lowside finisher inner side

DISASSEMBLY

Assemble in the reverse order of disassembly.

JMJIA9595ZZ

JMJIA9596ZZ
