Nissan X-Trail 32. Manual - part 1798





SE-40

< REMOVAL AND INSTALLATION >

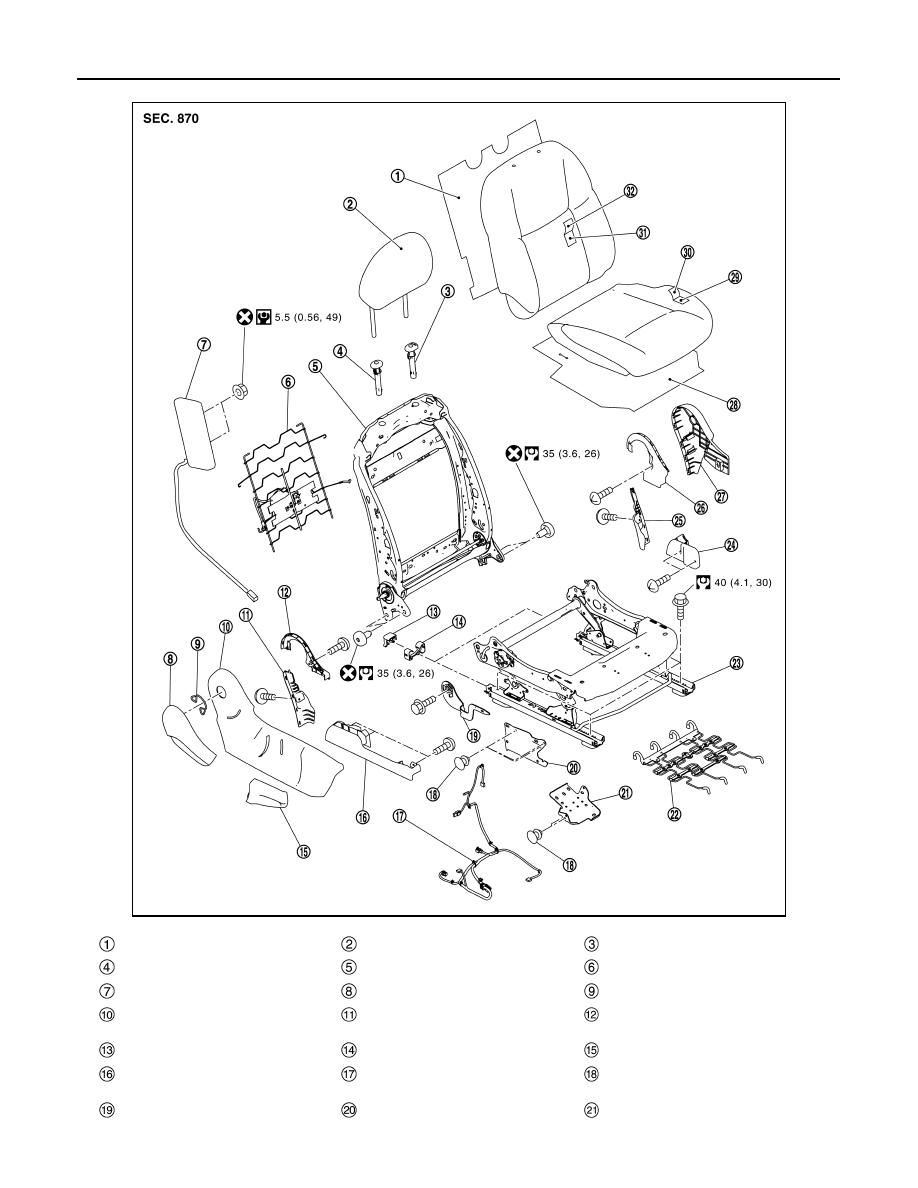

FRONT SEAT

MANUAL SEAT

JMJIB0185GB

Seatback silencer

Headrest

Headrest holder (lock)

Headrest holder (free)

Seatback frame

Seatback suspension

Side air bag module

Reclining knob

Snap ring

Seat cushion outside finisher outer
side

Seat cushion inside finisher outer
side rear

Seat cushion inside finisher outer
side front

Seat slide cover

End cap

Lifter knob

Seat cushion lowside finisher outer
side

Seat harness

Rivet

Lifter lever

Bracket

Connector bracket

FRONT SEAT

SE-41

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

*1

: Never disassemble with heater seat.

*2

: Never disassemble passenger seat side with occupant sensor.

Removal and Installation

INFOID:0000000010713133

WARNING:

• Before servicing, push ignition switch OFF, disconnect battery negative terminal and then wait for at

least 3 minutes (discharges electricity held in the additional power supply circuit of the air bag diag-
nosis sensor unit).

• Never use air tools or electric tools for servicing (prevents the air bag diagnosis sensor unit from

activating unexpectedly due to vibration).

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

REMOVAL

1.

Remove headrest.

2.

Remove seat fixing bolts.

3.

Disengage seat cushion lower harness connector, and harness fixing clips.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

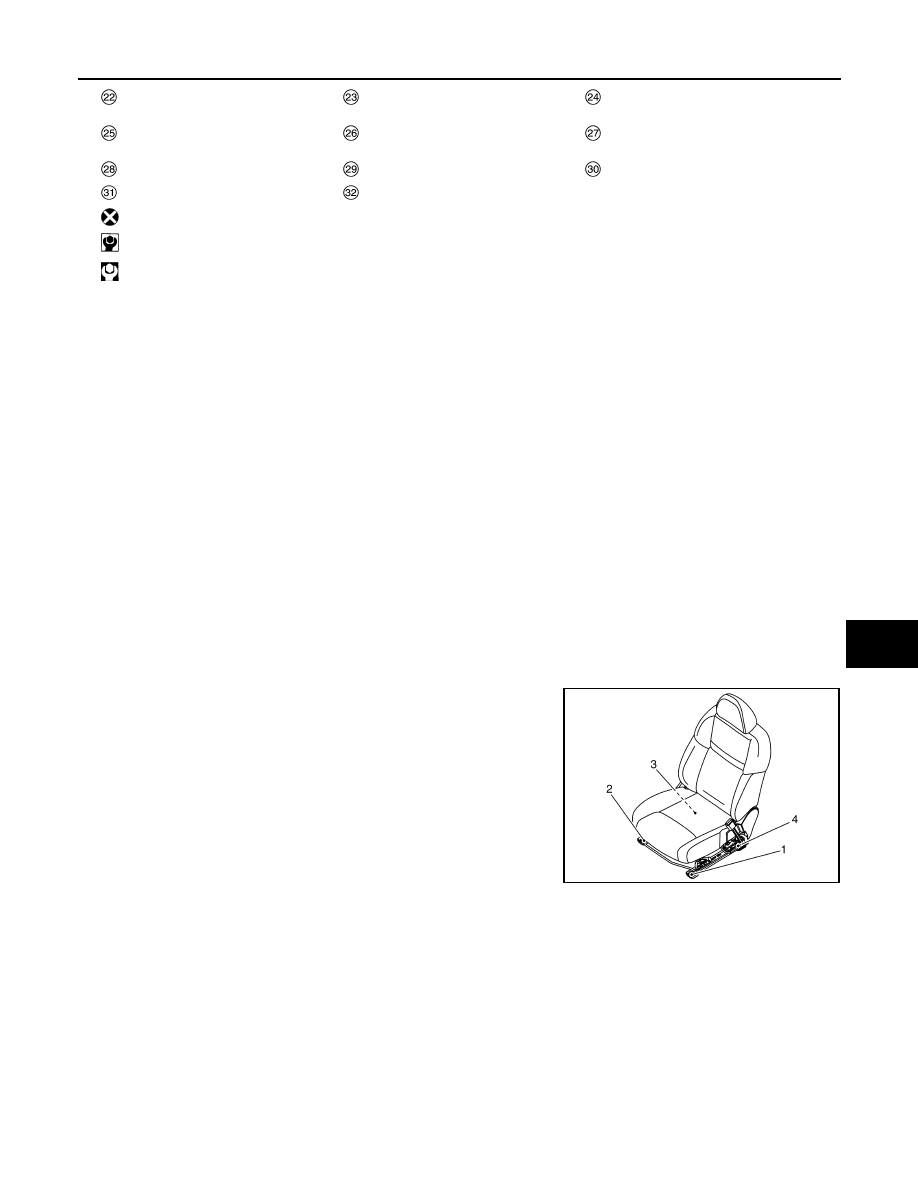

• When installing, tighten fixing bolts according to the numeri-

cal order 1

4 as shown in the figure, starting from front inner

fixing bolt.

• After work is completed, check that on system malfunction is detected by air bag warning lamp.

SEATBACK

SEATBACK : Disassembly and Assembly

INFOID:0000000010713134

CAUTION:

When removing, always use a remover tool that is made of plastic to prevent damage to the parts.

DISASSEMBLY

Seat cushion suspension

Seat cushion frame

Seat cushion lowside finisher inner
side

Seat cushion inside finisher inner
side rear

Seat cushion inside finisher inner
side front

Seat cushion outside finisher inner
side

Seat cushion silencer

Seat cushion pad

*1



*2

Seat cushion trim

*1



*2

Seatback pad

*1

Seatback trim

*1

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

JMJIA9601ZZ

SE-42

< REMOVAL AND INSTALLATION >

FRONT SEAT

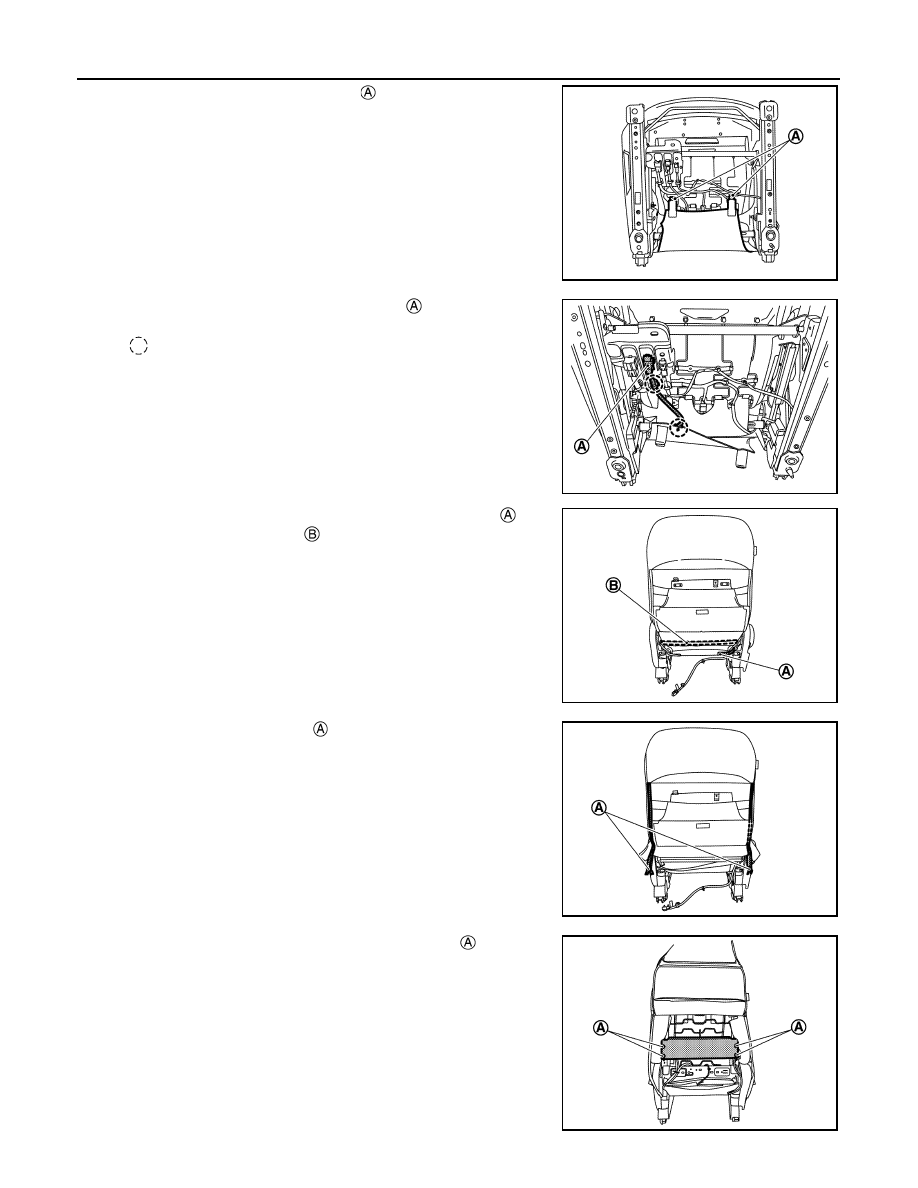

1.

Disengage seatback fixing retainers

.

2.

Disengage side air bag harness connector

 and harness clips.

3.

Disengage side air bag harness fixing magic fastener

, and

seatback trim fixing retainer

.

4.

Open the seatback fasteners

.

5.

Remove lumber support protector fixing screws

, and then

remove lumber support protector (if equipped).

JMJIA9572ZZ

: Clip

JMJIA9573ZZ

JMJIA9574ZZ

JMJIA9575ZZ

JMJIB0140ZZ

FRONT SEAT

SE-43

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

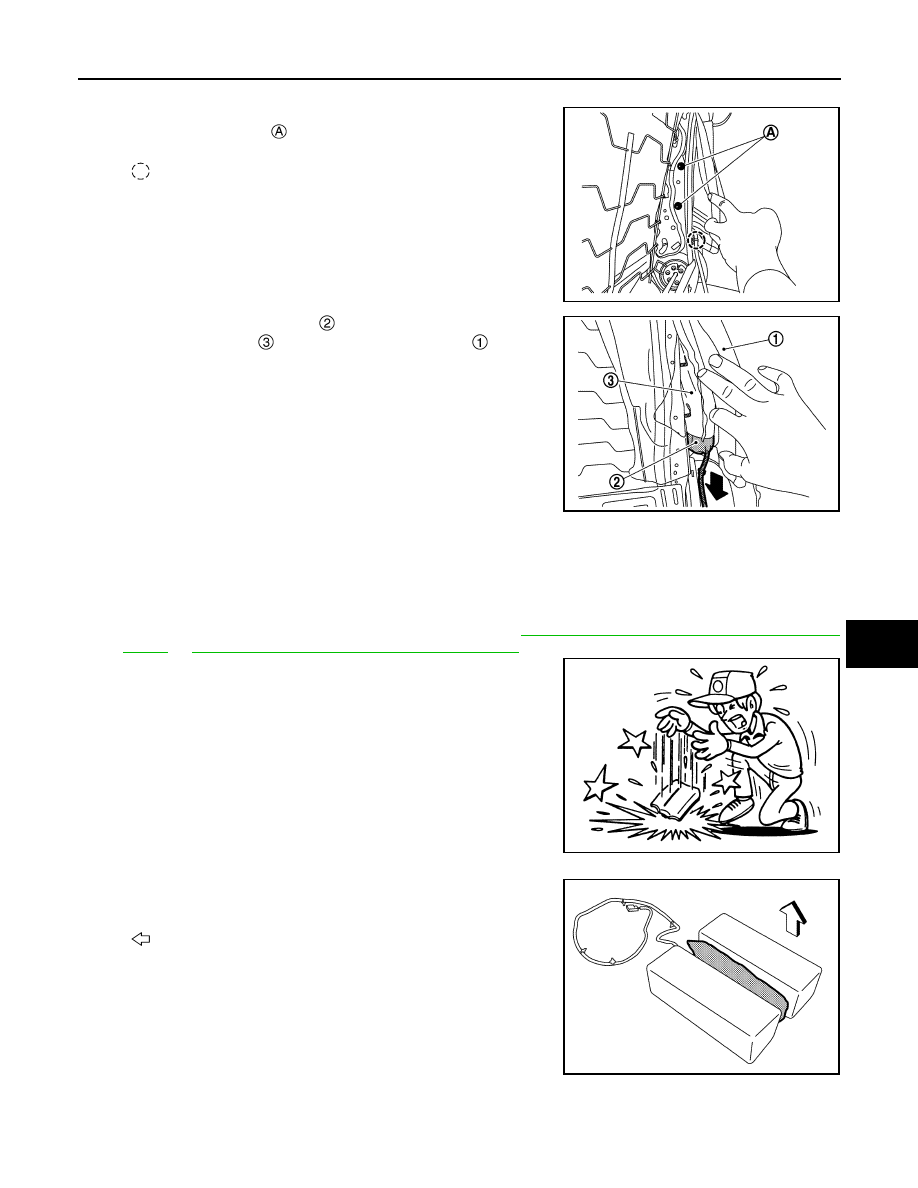

6.

Remove side air bag module.

a.

Disengage side air bag harness clip, and then remove side air
bag module fixing nuts

.

b.

Pull out side air bag module

 form seatback trim inner cloth

(reinforcement cloth)

, while rotated seatback pad

.

CAUTION:

• Check the mounting condition for at assembly.
• Never damage the seatback trim and seatback trim inner cloth (reinforcement cloth).
• Note the following when handling the removed side air bag module.
- To prevent accidental explosion, never disassemble the side air bag module.
- When disposing of the side air bag module, refer to

SR-42, "SIDE AIR BAG MODULE : Deploy-

ment"

 or

SR-43, "SIDE AIR BAG MODULE : Disposal"

.

- To prevent damage to the parts, never impact the side air

bag module. Replace the side air bag module if it is
dropped or sustains an impact.

- Always place the side air bag module alone with deploy-

ing direction facing upward.

- Never expose the air bag module to temperatures exceeding 90

°

C (194

°

F).

- Never allow oil, grease, detergent, or water to come in contact with the side air bag module.

: Clip

JMJIA9576ZZ

JMJIA9577ZZ

PHIA1183J

: Deploying direction

JMHIA1748ZZ
