Seat belt warning is displayed on information display for approxi-
mately 35 seconds when the following conditions.
• Ignition switch is ON and engine starts running.
• Rear seat belt buckle switch is turned ON (rear seat belt is not fas-

tened) and vehicle speed is 15 km/h (9.3 MPH) or more.

Seat belt warning is canceled when the following conditions.
• Ignition switch is turned OFF.
• Approximately 35 seconds are passed since rear seat belt warning

is displayed.

Seat belt warning chime

INFOID:0000000010927768

• Front seat belt warning chime sounds for approximately 90 seconds when the vehicle speed is approxi-

mately 15 km/h (9.3 MPH) or more while front seat belts are not fastened. Front seat belt warning chime
stops when front seat belt is fastened.

• Rear seat belt warning chime sounds for approximately 0.05 seconds after rear seat belt warning is dis-

played.When any of the rear seat belt buckle (LH,RH or center) is unfastened from the fastened status at a
vehicle speed of 15 km/h (9.3 MPH) or more, a chime integrated in the seat belt warning unit sounds for 0.05
seconds.

JMHIA2936ZZ

SB-8

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

WARNING/INDICATOR/CHIME LIST

WARNING/INDICATOR/CHIME LIST : Warning Lamp/Indicator Lamp

INFOID:0000000010927769

WARNING/INDICATOR/CHIME LIST : Warning Chime

INFOID:0000000010927770

WARNING/INDICATOR/CHIME LIST : Warning Lamp/Indicator (Information Display)

INFOID:0000000010927771

Item

Design

Reference

Seat belt warning lamp

For layout, refer to

MWI-10, "METER SYSTEM : Design"

.

For function, refer to

MWI-54, "WARNING LAMPS/INDICATOR LAMPS : Seat Belt

Warning Lamp"

.

Rear seat belt warning lamp

For layout, refer to

SBC-8, "INFORMATION DISPLAY (COMBINATION METER) : Rear

Seat Belt Warning"

.

For function, refer to

SBC-7, "SEAT BELT WARNING LAMP CONTROL SYSTEM :

System Description"

.

Item

Reference

Seat belt warning

Refer to

WCS-17, "WARNING CHIME : Seat Belt Warning"

.

Item

Reference

Rear seat belt warning

Refer to

SBC-7, "SEAT BELT WARNING LAMP CONTROL SYSTEM : System Description"

FRONT SEAT BELT

SB-9

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

REMOVAL AND INSTALLATION

FRONT SEAT BELT

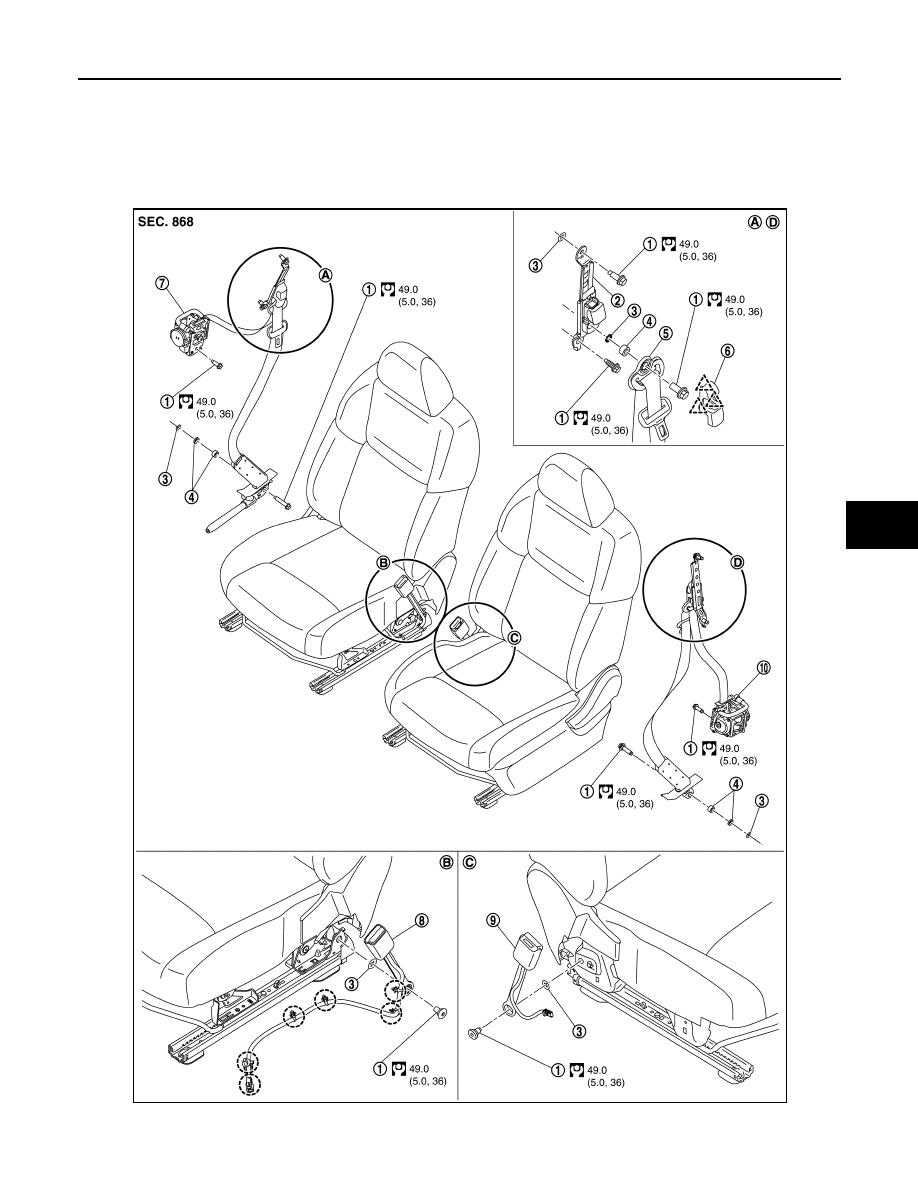

Exploded View

INFOID:0000000010927772

JMHIA2928GB

SB-10

< REMOVAL AND INSTALLATION >

FRONT SEAT BELT

SEAT BELT RETRACTOR

SEAT BELT RETRACTOR : Removal and Installation

INFOID:0000000010927773

WARNING:

Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait for 3 minutes
or more (discharges electricity held in the additional power supply circuit of the air bag diagnosis sen-
sor unit).

CAUTION:

When removing, always use a remover tool that is made of plastic to prevent damage to the parts.

REMOVAL

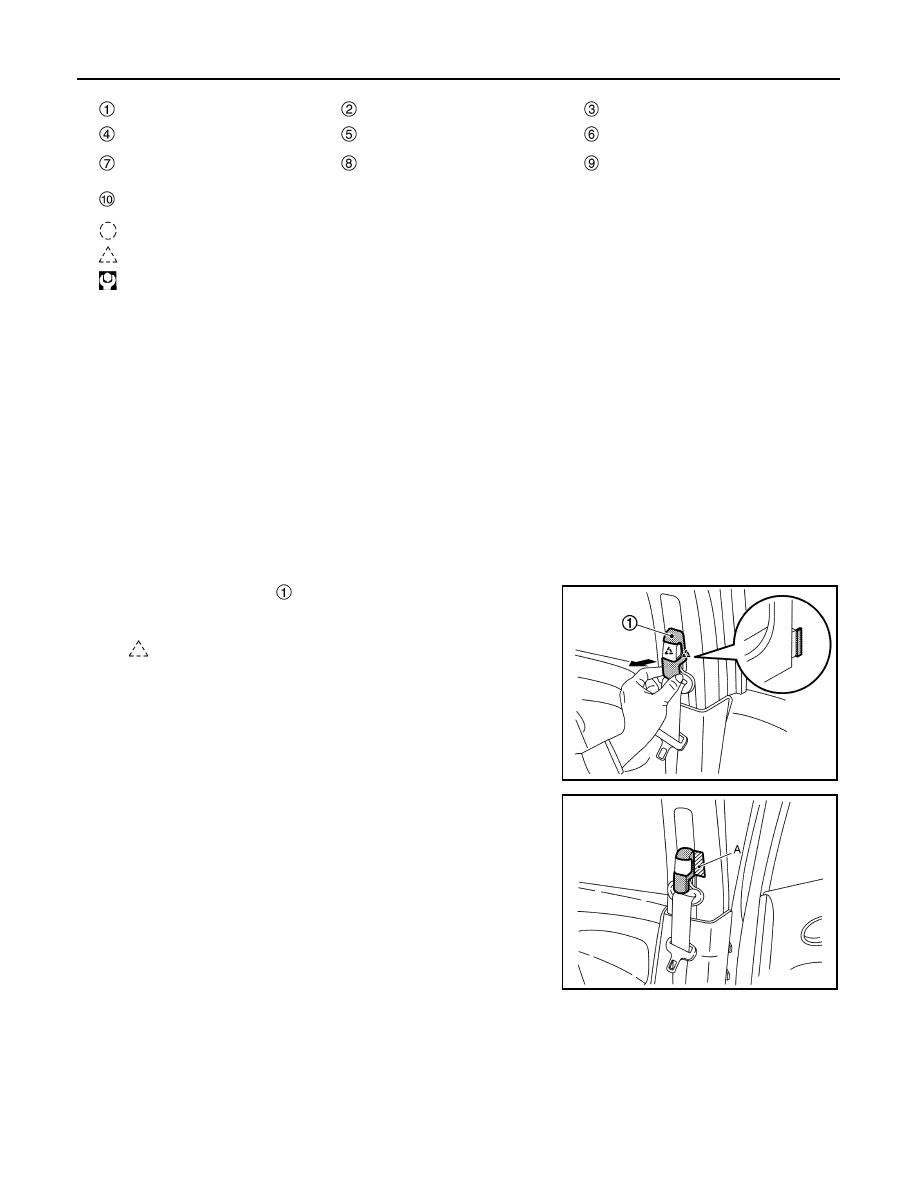

1.

Remove shoulder anchor.

a.

Slide the front seat to front most position.

b.

Remove adjuster cover.

i.

Pull the adjuster cover

 lower side, and then disengage the

adjuster cover lower side fixing pawls.

ii.

Apply protective tape (A) on the parts to protect it from damage.

Anchor bolt

Seat belt adjuster

Retaining washer

Spacer

Shoulder anchor

Adjuster cover

Seat belt pre-tensioner retractor as-
sembly (Driver side)

Seat belt buckle (Driver side)

Seat belt buckle (Passenger side)

Seat belt pre-tensioner retractor as-
sembly (Passenger side)



: Clip

: Pawl

: N·m (kg-m, ft-lb)

: Pawl

JMHIA2261ZZ

JMHIA2262ZZ
