RF-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

SUNROOF SYSTEM

SUNROOF SYSTEM : Component Description

INFOID:0000000010735389

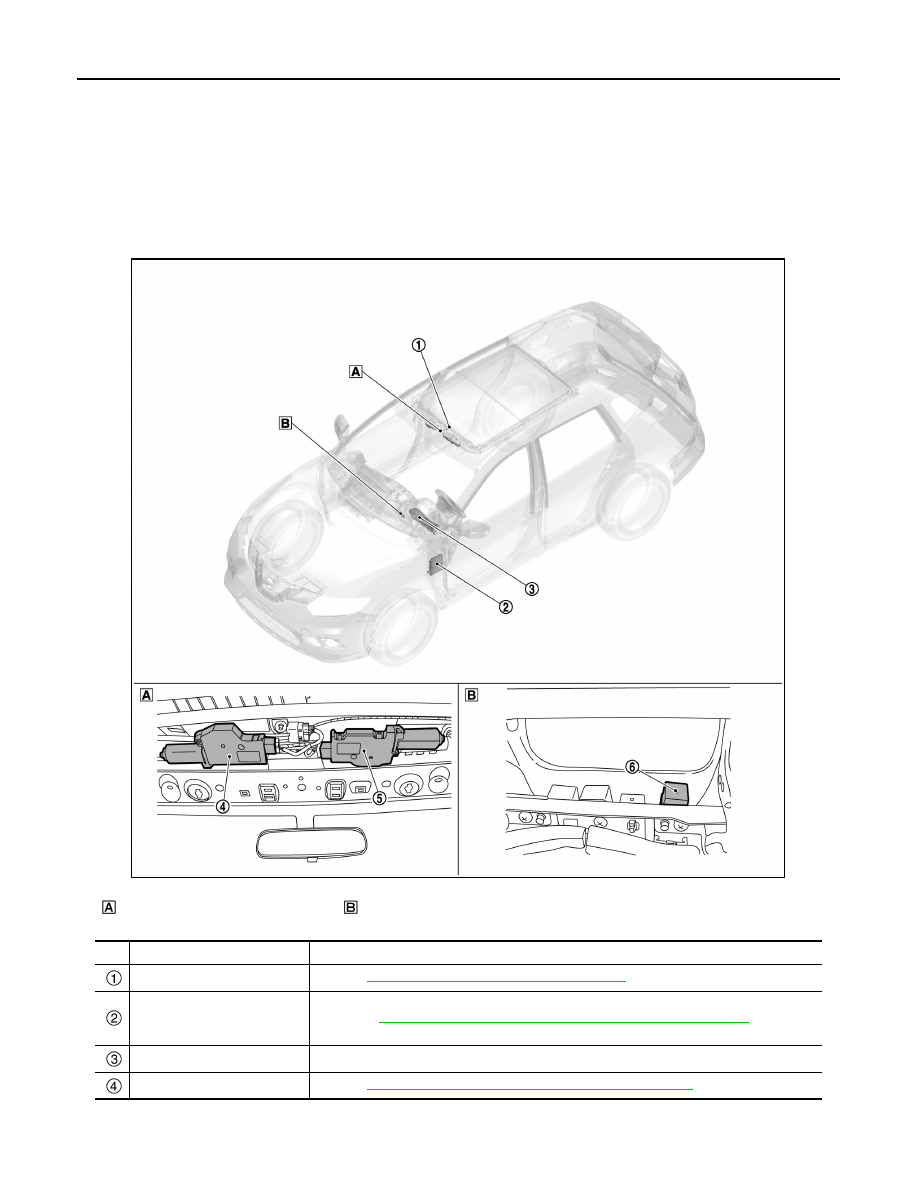

LHD MODELS

View with headlining removed

Behind A/C control

No.

Component

Function

Sunroof switch

Refer to

RF-8, "SUNROOF SYSTEM : Sunroof Switch"

BCM

• Controls power window relay
• Refer  to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

 for detailed

installation location

Combination meter

Transmits vehicle speed signal to sunroof motor assembly

Sunshade motor assembly

Refer to

RF-8, "SUNROOF SYSTEM : Sunshade Motor Assembly"

JMKIB3538ZZ

COMPONENT PARTS

RF-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

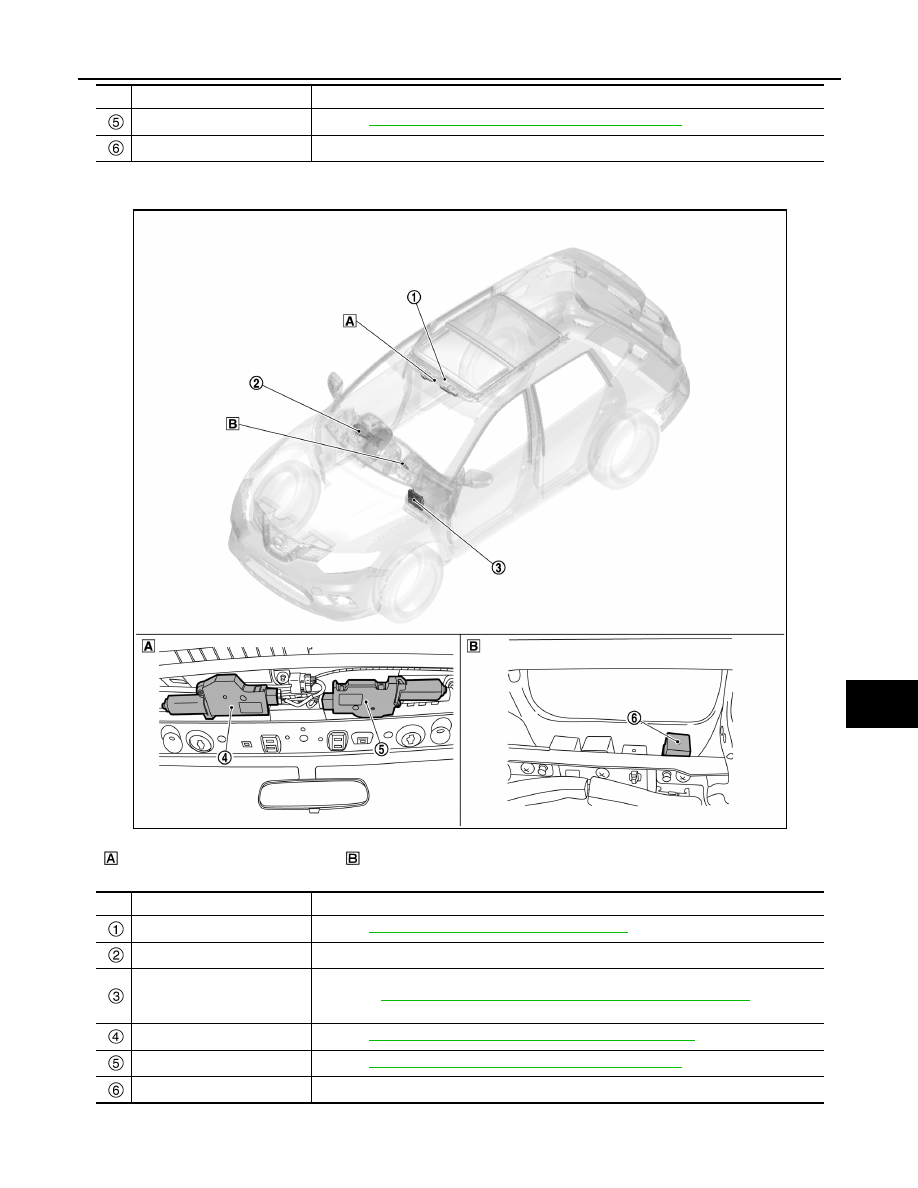

RHD MODELS

Sunroof motor assembly

Refer to

RF-8, "SUNROOF SYSTEM : Sunroof Motor Assembly"

Power window relay

Supplies power supply to sunroof motor assembly and sunshade motor assembly

No.

Component

Function

View with headlining removed

Behind A/C control

No.

Component

Function

Sunroof switch

Refer to

RF-8, "SUNROOF SYSTEM : Sunroof Switch"

Combination meter

Transmits vehicle speed signal to sunroof motor assembly

BCM

• Controls power window relay
• Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

 for detailed

installation location

Sunshade motor assembly

Refer to

RF-8, "SUNROOF SYSTEM : Sunshade Motor Assembly"

Sunroof motor assembly

Refer to

RF-8, "SUNROOF SYSTEM : Sunroof Motor Assembly"

Power window relay

Supplies power supply to sunroof motor assembly and sunshade motor assembly

JMKIB3960ZZ

RF-8

< SYSTEM DESCRIPTION >

COMPONENT PARTS

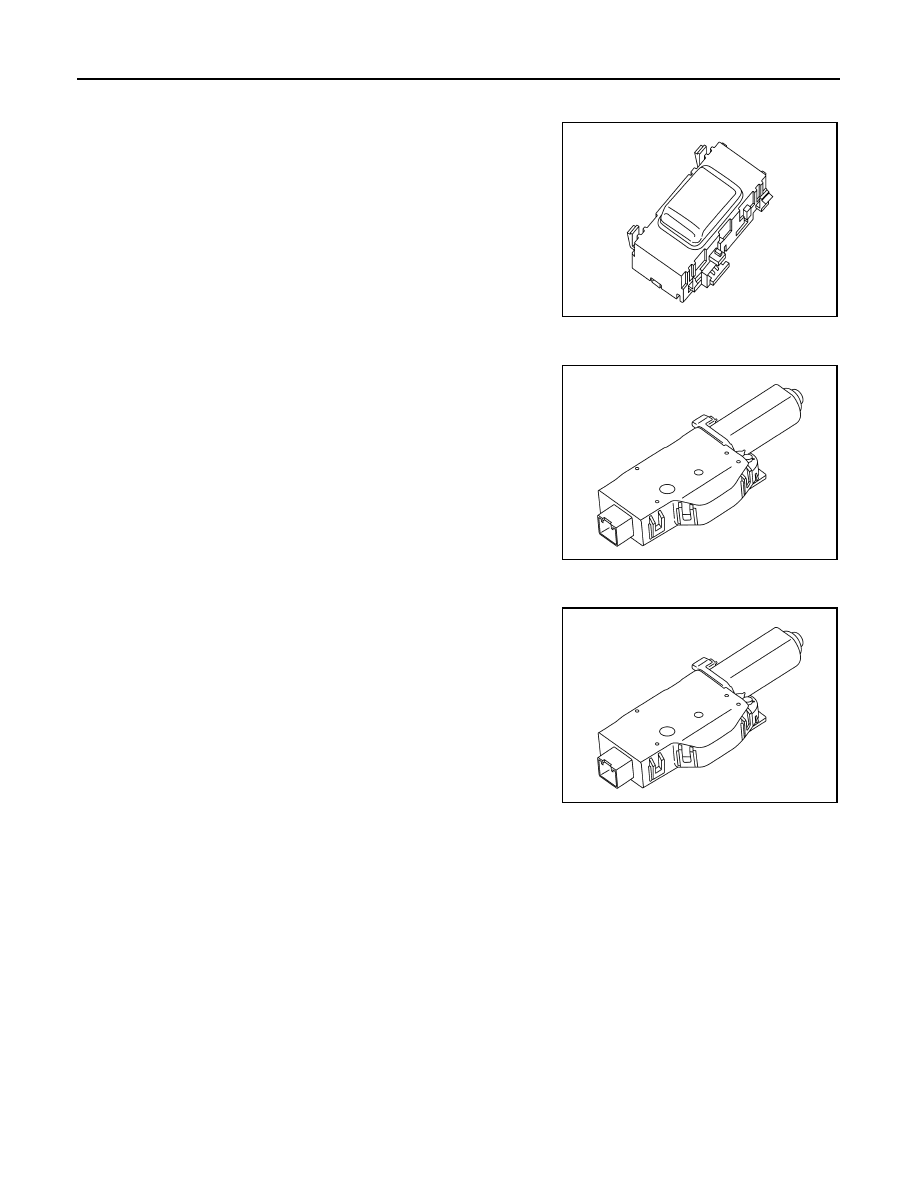

SUNROOF SYSTEM : Sunroof Switch

INFOID:0000000010735390

Transmits operation signal to sunroof motor assembly.

SUNROOF SYSTEM : Sunroof Motor Assembly

INFOID:0000000010735391

The sunroof motor and CPU integrated type enable tilt up/down and
open/close sunroof operation by sunroof switch operation. And send
sunroof switch signal to sunshade motor assembly via communica-
tion line.

SUNROOF SYSTEM : Sunshade Motor Assembly

INFOID:0000000010735392

The sunshade motor and CPU integrated type enable open/close
sunshade operation by sunroof switch operation.

JMKIB2502ZZ

JMKIA9876ZZ

JMKIA9876ZZ

SYSTEM

RF-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SYSTEM

System Description

INFOID:0000000010735393

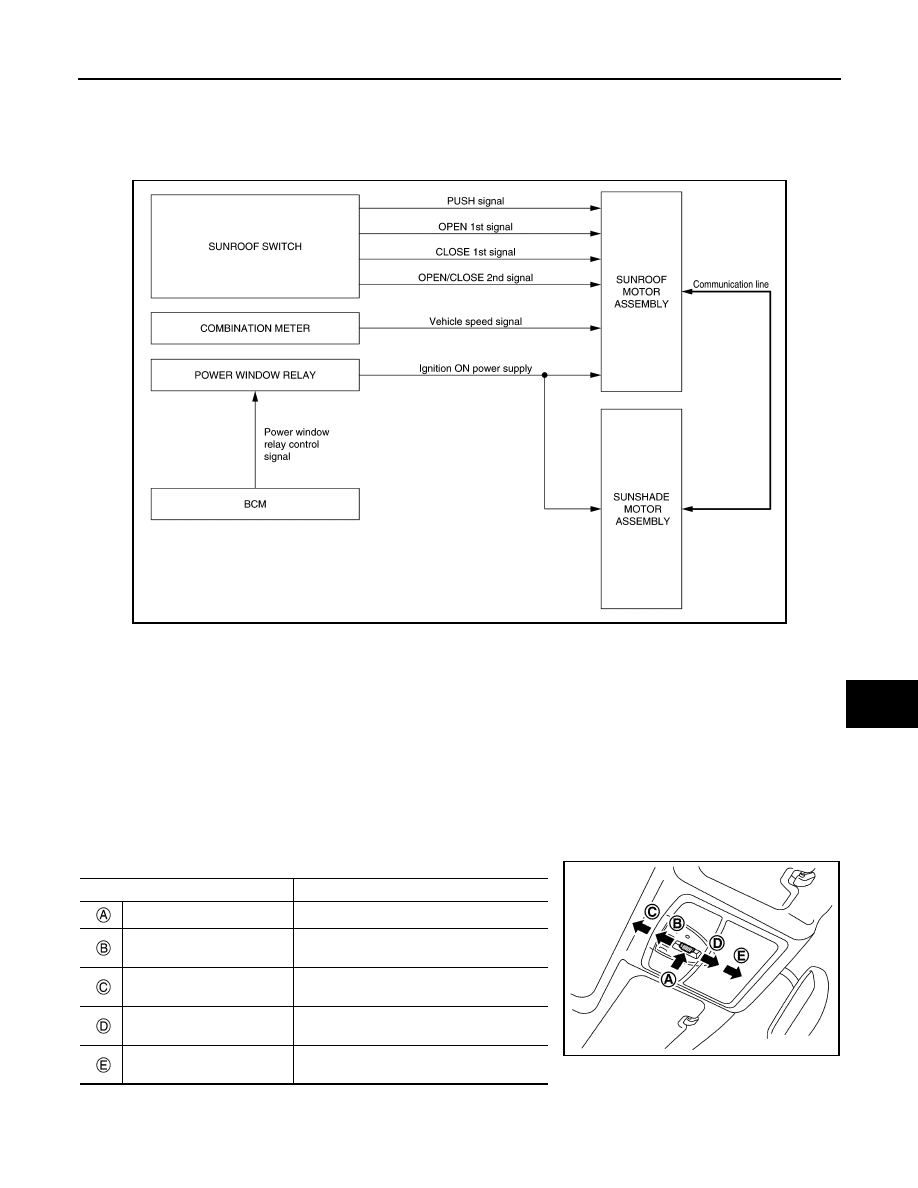

SYSTEM DIAGRAM

SUNROOF SYSTEM

• BCM controls the power window relay, and controls the ignition ON power source supplied to sunroof motor

assembly and sunshade motor assembly.

• Sunroof motor assembly receive a vehicle speed signal from combination meter, and control the sunroof

motor assembly.

• The sunroof motor assembly receives the signal from the sunroof switch to operate the sunroof, and trans-

mits the signal from the sunroof switch to the sunshade motor assembly via communication line.

• The sunshade motor assembly operates the sunshade with the operation signal received from the sunroof

motor assembly.

OPERATION DESCRIPTION

The sunroof switch can be operated in the directions of PUSH, OPEN (1st, 2nd) and CLOSE (1st, 2nd). It can
operate the sunroof and sunshade by one switch.

The sunroof and sunshade operate as per the following by operating the sunroof switch operation.

JMKIB3539GB

Sunroof switch operation

Sunroof and sunshade action

PUSH

Tilt up/down

OPEN 1st

• The sunshade opens during the 1st slide
• The sunroof opens during the 2nd slide

OPEN 2nd

The sunshade opens, and then the sunroof
opens

CLOSE 1st

• The sunroof closes during the 1st slide
• The sunshade closes during the 2nd slide

CLOSE 2nd

The sunroof closes, and then the sunshade
closes
