CAUTION:

• If the boot installation length exceeds the standard, it may cause breakage in boot.
• Be careful not to touch the inside of the boot with the tip of tool.

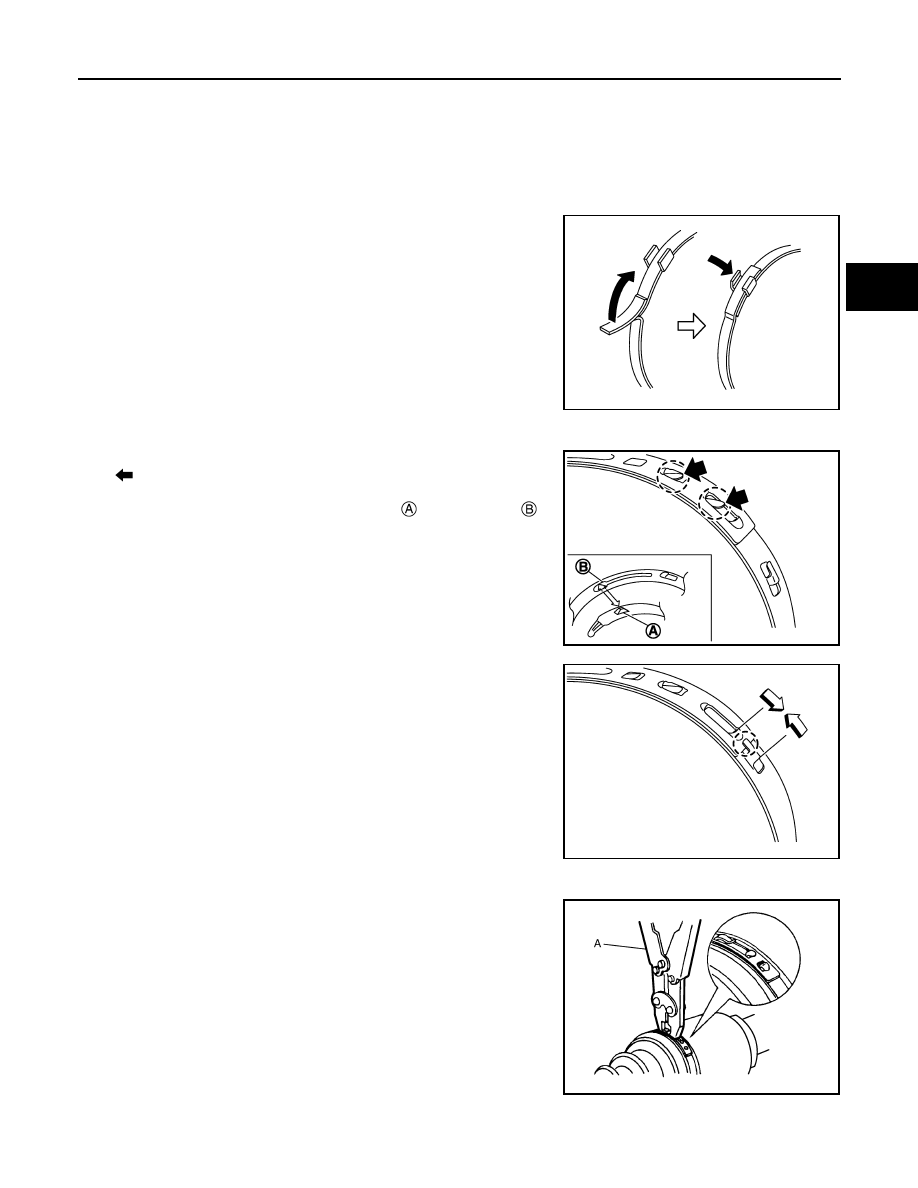

11. Secure large and small ends of boot with new boot bands as shown in the figure.

CAUTION:

Never reuse boot band.

a.

For one-touch clamp band
• Secure the large and small ends of boot with new boot bands

as shown in the figure.

b.

For low profile type band

i.

Put boot band in the groove on drive shaft boot. Then fit pawls
(

) into holes to temporary installation.

NOTE:
For the large diameter side, fit projection

 and guide slit

 at

first.

ii.

Pinch projection on the band with suitable pliers to tighten band.

iii.

Insert tip of band below end of the pawl.

c.

For omege type band

i.

Secure the boot bands using the boot band crimping tool (A)
(SST: KV40107300).

CAUTION:

Never reuse boot band.

NOTE:

PDIA1188J

SDIA3557E

SDIA3558E

JPDIF0012ZZ

RAX-30

< REMOVAL AND INSTALLATION >

[4WD]

REAR DRIVE SHAFT

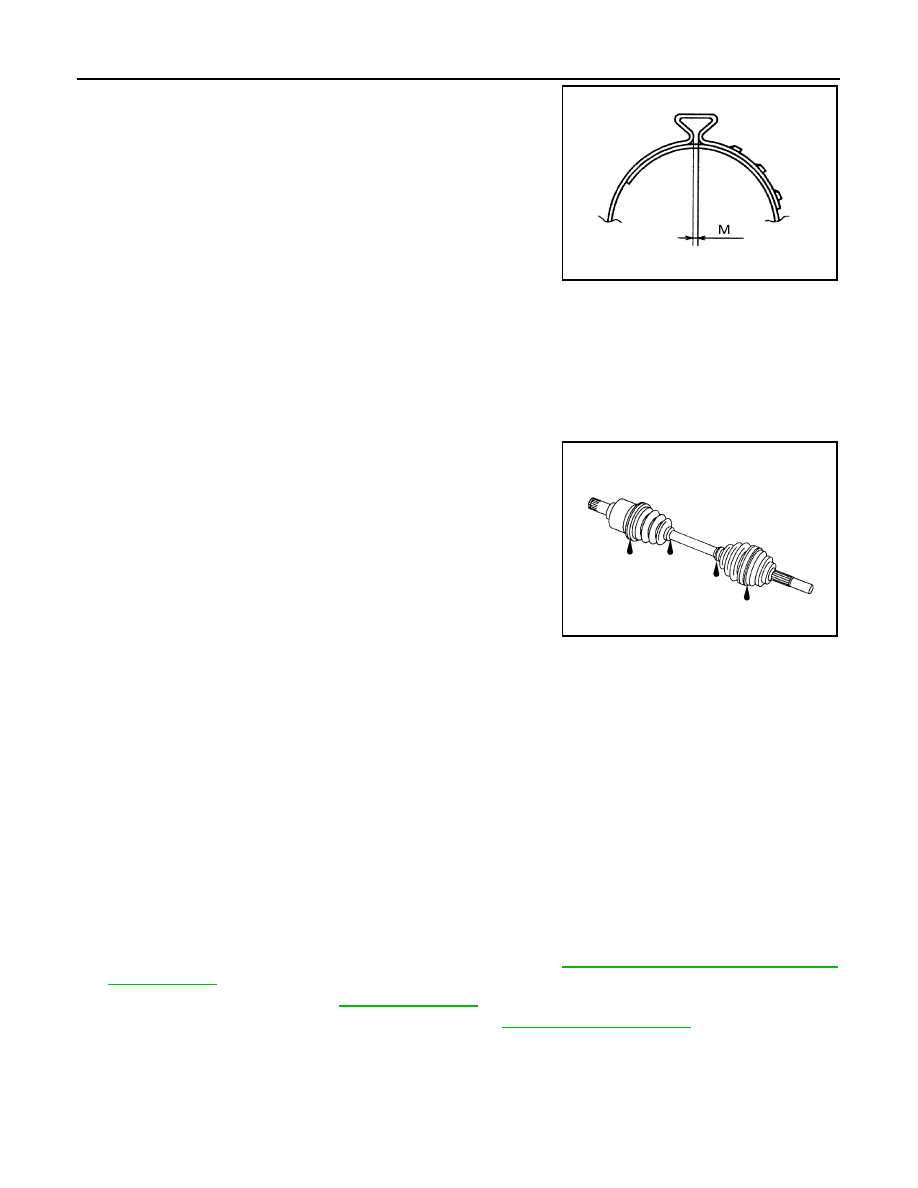

Secure boot band so that dimension (M) meets the specification
as shown in the figure.

12. Secure housing and shaft, and then make sure that they are in the correct position when rotating boot.

Install them with new boot band when the mounting positions become incorrect.

Inspection

INFOID:0000000010828173

INSPECTION AFTER REMOVAL

• Move joint up/down, left/right, and in the axial direction. Check for motion that is not smooth and for signifi-

cant looseness.

• Check boot for cracks or other damage, and also for grease leak-

age.

• If a malfunction is found, disassemble drive shaft, and then replace

with new one.

INSPECTION AFTER DISASSEMBLY

Shaft

Check shaft for runout, cracks, or other damage. Replace if there are any abnormal condition.

Joint Sub-Assembly (Wheel Side)

Check the following:
• Joint sub-assembly for rough rotation and excessive axial looseness.
• The inside of the joint sub-assembly for entry of foreign material.
• Joint sub-assembly for compression scars, cracks, and fractures inside of joint sub-assembly.
Replace joint sub-assembly if there are any non-standard conditions of components.

Housing and Spider assembly (Final Drive Side)

Replace housing and spider assembly if there is scratching or wear of housing roller contact surface or spider
roller contact surface.
NOTE:
Housing and spider assembly are used in a set.

INSPECTION AFTER INSTALLATION

1.

Check wheel sensor harness for proper connection. Refer to

BRC-213, "REAR WHEEL SENSOR :

Exploded View"

.

2.

Check wheel alignment. Refer to

RSU-7, "Inspection"

.

3.

Adjust neutral position of steering angle sensor. Refer to

BRC-99, "Work Procedure"

.

M

: 1.0 – 4.0 mm (0.039 – 0.157 in)

DSF0047D

SDIA1163J

SERVICE DATA AND SPECIFICATIONS (SDS)

RAX-31

< SERVICE DATA AND SPECIFICATIONS (SDS)

[4WD]

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Bearing

INFOID:0000000010828174

Drive Shaft

INFOID:0000000010828175

*: For measuring position. Refer to

RAX-24, "Disassembly and Assembly"

.

Axial end play

0.05 mm (0.002 in) or less

Item

Standard

Grease quantity

Wheel side

35 – 45 g (1.24 – 1.58 oz)

Final drive side

40 – 50 g (1.42 – 1.76 oz)

Boots installed length

*

Wheel side

90.2 – 92.2 mm (3.551 – 3.630 in)

Final drive side

151.55 – 153.55 mm (5.97 – 6.05 in)
