< SYSTEM DESCRIPTION >

SYSTEM

Before operation

Sunroof switch

operation

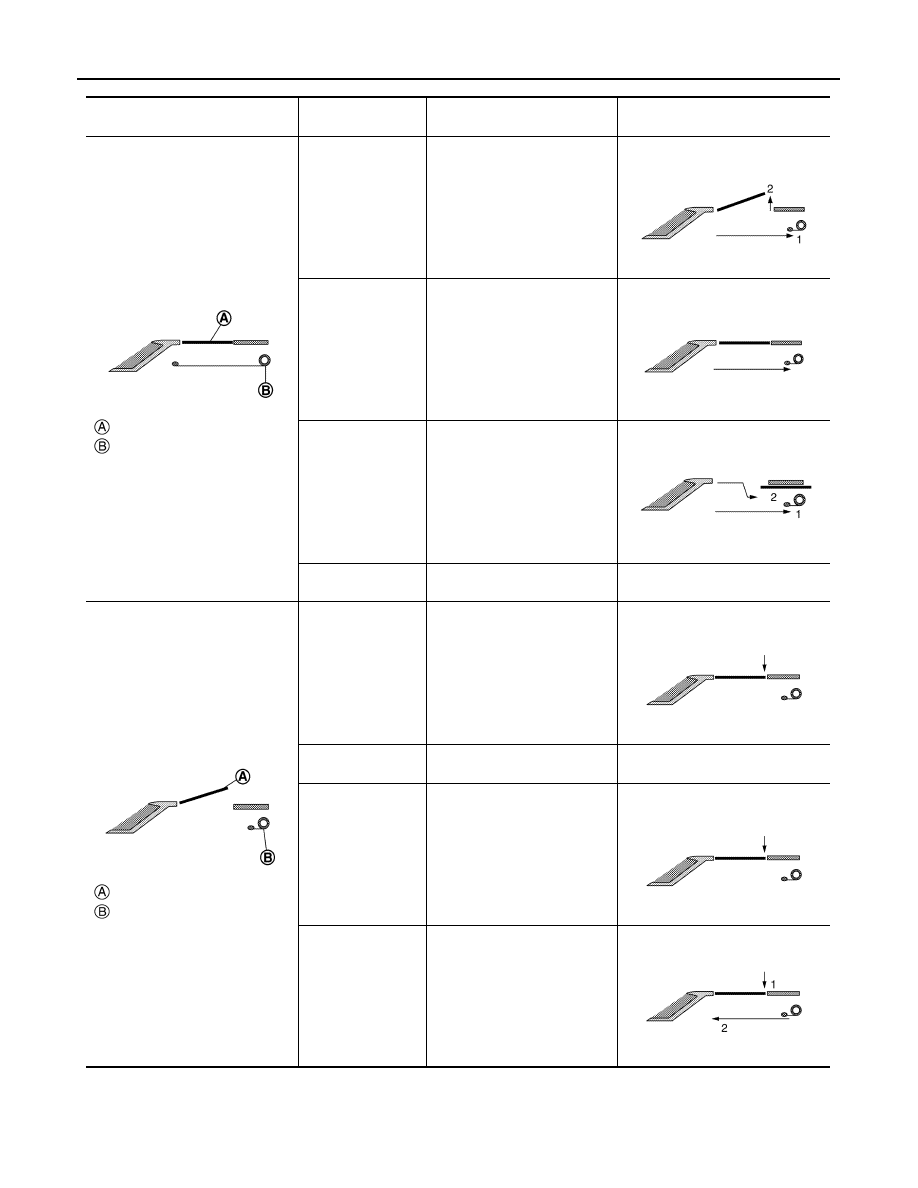

Sunroof and sunshade action

After operation

Fully-closed

: Sunroof

: Sunshade

PUSH

1.

Sunshade: Open

2.

Sunroof: Tilt up

OPEN 1st

Sunshade: Open

OPEN 2nd

1.

Sunshade: Open

2.

Sunroof: Open
(Comfort position)

• CLOSE 1st
• CLOSE 2nd

Not action

—

Tilt up

: Sunroof

: Sunshade

PUSH

Sunroof: Tilt down

• OPEN  1st
• OPEN  2nd

Not action

—

CLOSE 1st

Sunroof: Tilt down

CLOSE 2nd

1.

Sunroof: Tilt down

2.

Sunshade: Close

JMKIB2714ZZ

JMKIB2703ZZ

JMKIB2704ZZ

JMKIB2705ZZ

JMKIB2717ZZ

JMKIB2709ZZ

JMKIB2709ZZ

JMKIB2710ZZ

SYSTEM

RF-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

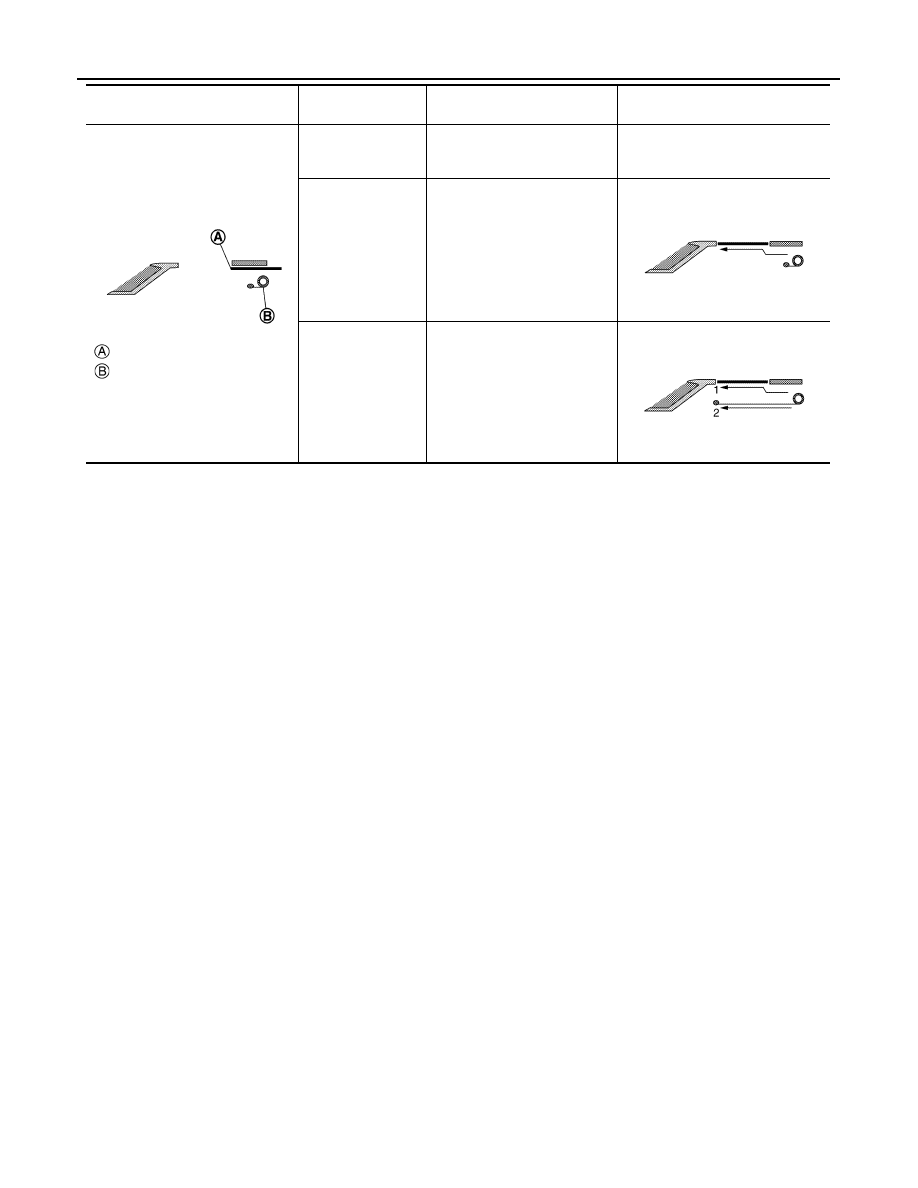

Fully-open (sunshade only)

: Sunroof

: Sunshade

PUSH

Sunroof: Tilt up

• OPEN 1st
• OPEN 2nd

Sunroof: Open
(Comfort position)

• CLOSE 1st
• CLOSE 2nd

Sunshade: Close

Comfort position

: Sunroof

: Sunshade

PUSH

Not action

—

• OPEN 1st
• OPEN 2nd

Sunroof: Open
(Fully-open)

CLOSE 1st

Sunroof: Close

CLOSE 2nd

1.

Sunroof: Close

2.

Sunshade: Close

Before operation

Sunroof switch

operation

Sunroof and sunshade action

After operation

JMKIB2718ZZ

JMKIB2711ZZ

JMKIB2712ZZ

JMKIB2713ZZ

JMKIB2715ZZ

JMKIB2706ZZ

JMKIB2707ZZ

JMKIB2708ZZ

RF-12

< SYSTEM DESCRIPTION >

SYSTEM

AUTO OPERATION

The sunroof and sunshade operates automatically by operating the sunroof switch.
NOTE:
• If initialization setting is not performed, the automatic function does not operate.
• During automatic operation, when the sunroof switch is operated, automatic operation can be stopped.

ANTI-PINCH FUNCTION

• The CPU of sunroof motor assembly monitors the sunroof condition using the signals from sunroof motor.

When sunroof motor assembly detects an interruption during auto operation (close or tilt down operation),
sunroof motor will tilt up or open [150 mm (5.91 in) or more] sunroof.

• The CPU of sunshade motor assembly monitors the sunshade condition using the signals from sunshade

motor. When sunshade motor assembly detects an interruption during auto close operation, sunshade motor
will open [150 mm (5.91 in) or more] sunshade.

CAUTION:

There are some small distances immediately before the closed position which cannot be detected.
NOTE:
• If initialization setting is not performed, the anti-pinch function does not operate.
• When the distance between pinching position and fully-open position is less than 150 mm (5.91 in), sunroof

or sunshade reverses to fully-open position.

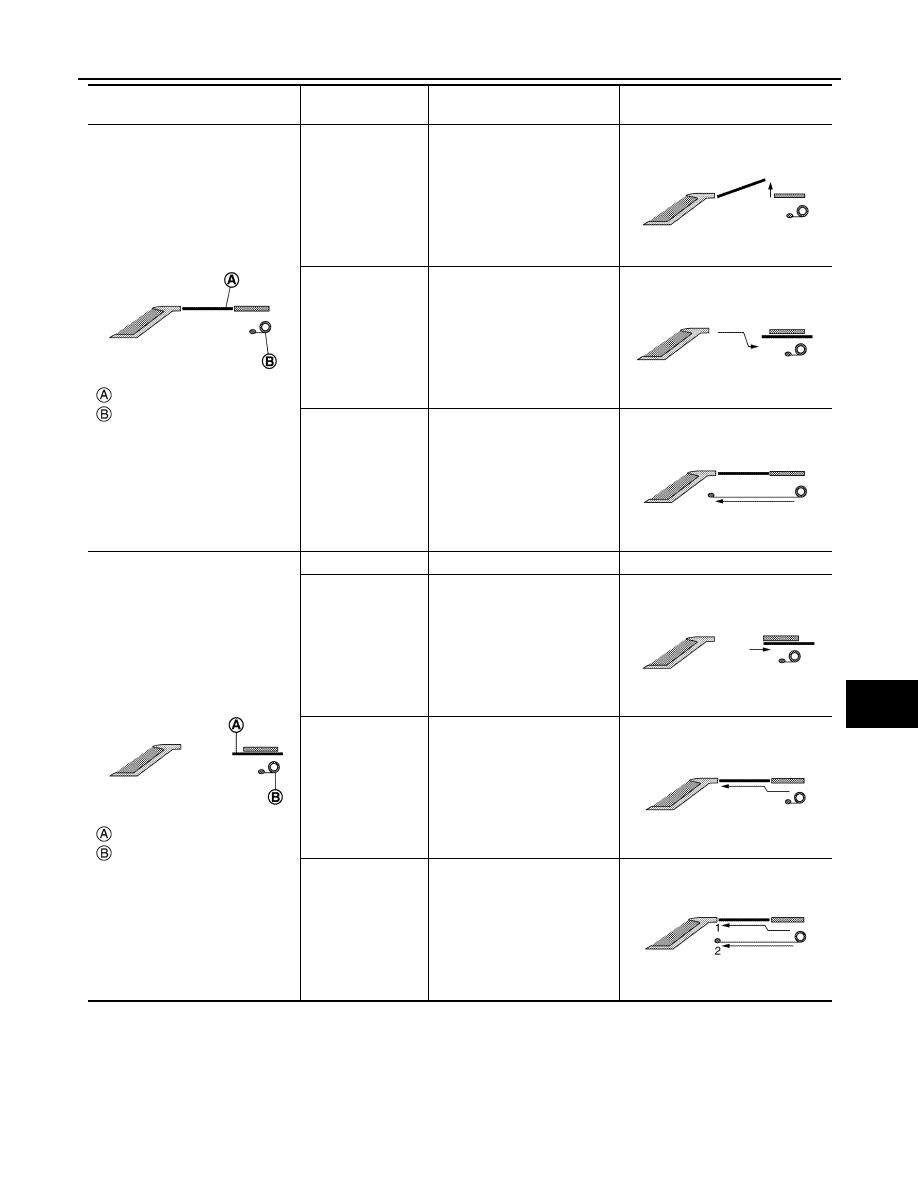

Fully-open

: Sunroof

: Sunshade

• PUSH
• OPEN  1st
• OPEN  2nd

Not action

—

CLOSE 1st

Sunroof: Close

CLOSE 2nd

1.

Sunroof: Close

2.

Sunshade: Close

Before operation

Sunroof switch

operation

Sunroof and sunshade action

After operation

JMKIB2716ZZ

JMKIB2707ZZ

JMKIB2708ZZ

SYSTEM

RF-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

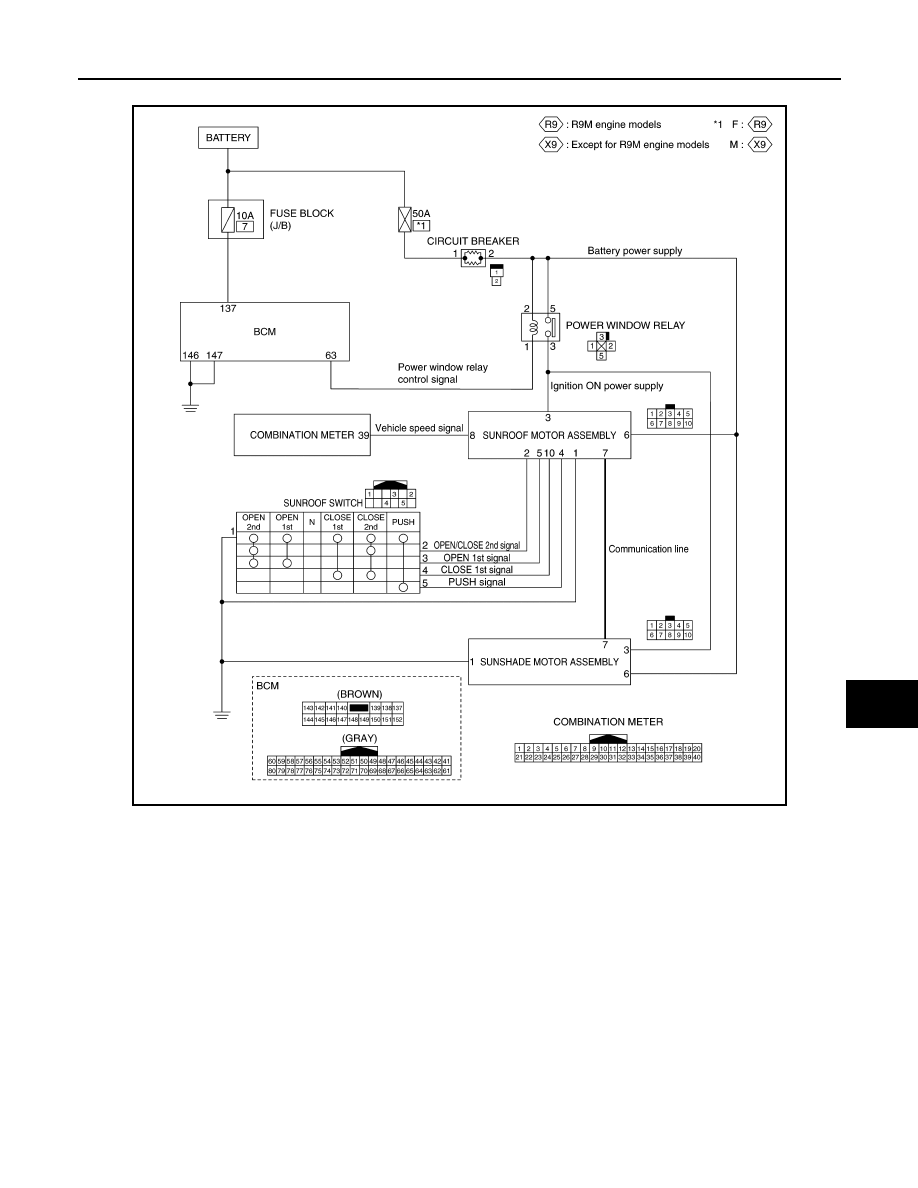

Circuit Diagram

INFOID:0000000010735394

JMKIB3745GB
