PG-138

< REMOVAL AND INSTALLATION >

BATTERY

REMOVAL AND INSTALLATION

BATTERY

R9M

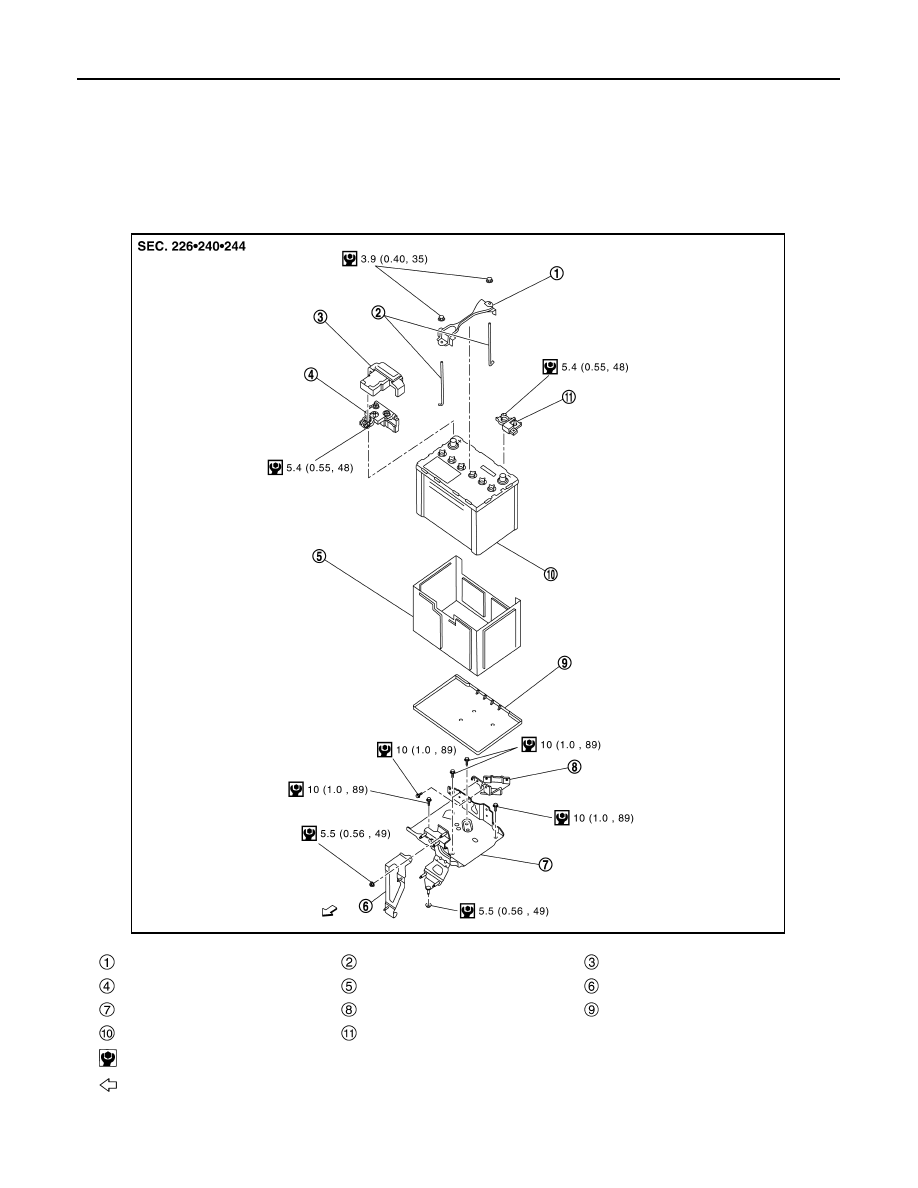

R9M : Exploded View

INFOID:0000000010763259

Battery fix frame

Battery fix rod

  Battery positive terminal cover

Battery terminal with fusible link

Battery cover

TCM mounting bracket

Battery tray

Starter relay bracket

Battery under cover

Battery

Battery current sensor

: N·m (kg-m, in-lb)

: Vehicle front

JSMIA1778GB

PG

BATTERY

PG-139

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

R9M : Removal and Installation

INFOID:0000000010763260

REMOVAL

1.

Disconnect the battery cable from the negative terminal.

CAUTION:

To prevent damage to the parts, disconnect the battery cable from the negative terminal first.

2.

Remove cover of battery positive terminal.

3.

Disconnect the battery cable from the positive terminal.

4.

Remove battery fix frame mounting nuts and battery fix frame.

5.

Remove battery.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

To install the battery, carefully read the following instructions.

• To prevent damage to the parts, connect the battery cable to the positive terminal first.
• After connecting battery cables, to securely supply battery voltage, ensure that they are tightly

clamped to battery terminals for good contact.

• To securely supply battery voltage, check battery terminal for poor connection caused by corrosion.
Reset electronic systems as necessary. Refer to

GI-61, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Required Procedure After Battery Disconnection"

.

EXCEPT FOR R9M

PG-140

< REMOVAL AND INSTALLATION >

BATTERY

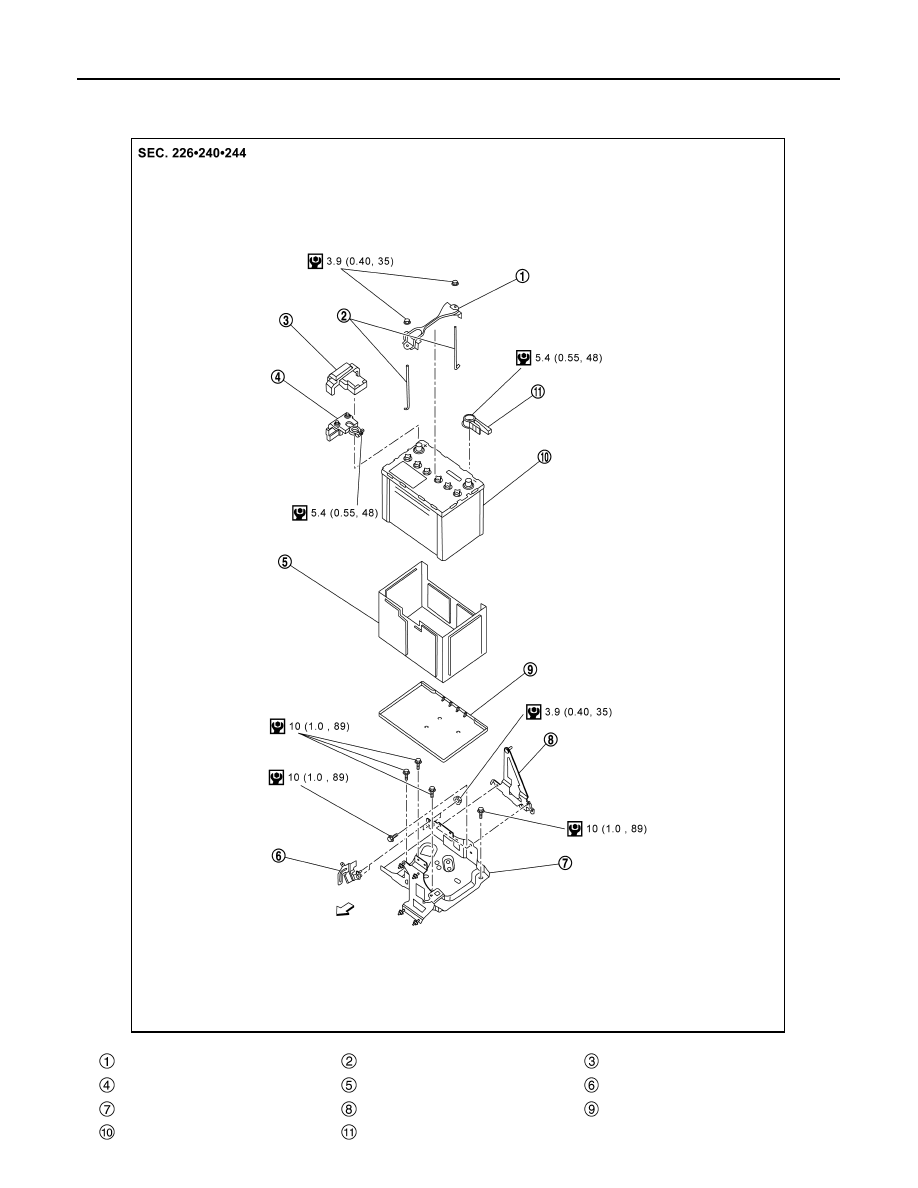

EXCEPT FOR R9M : Exploded View

INFOID:0000000010709236

MR20DD engine models

Battery fix frame

Battery fix rod

  Battery positive terminal cover

Battery terminal with fusible link

Battery cover

Battery tray harness clamp

Battery tray

TCM mounting bracket

Battery under cover

Battery

Battery negative terminal

JSMIA1856GB

PG

BATTERY

PG-141

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

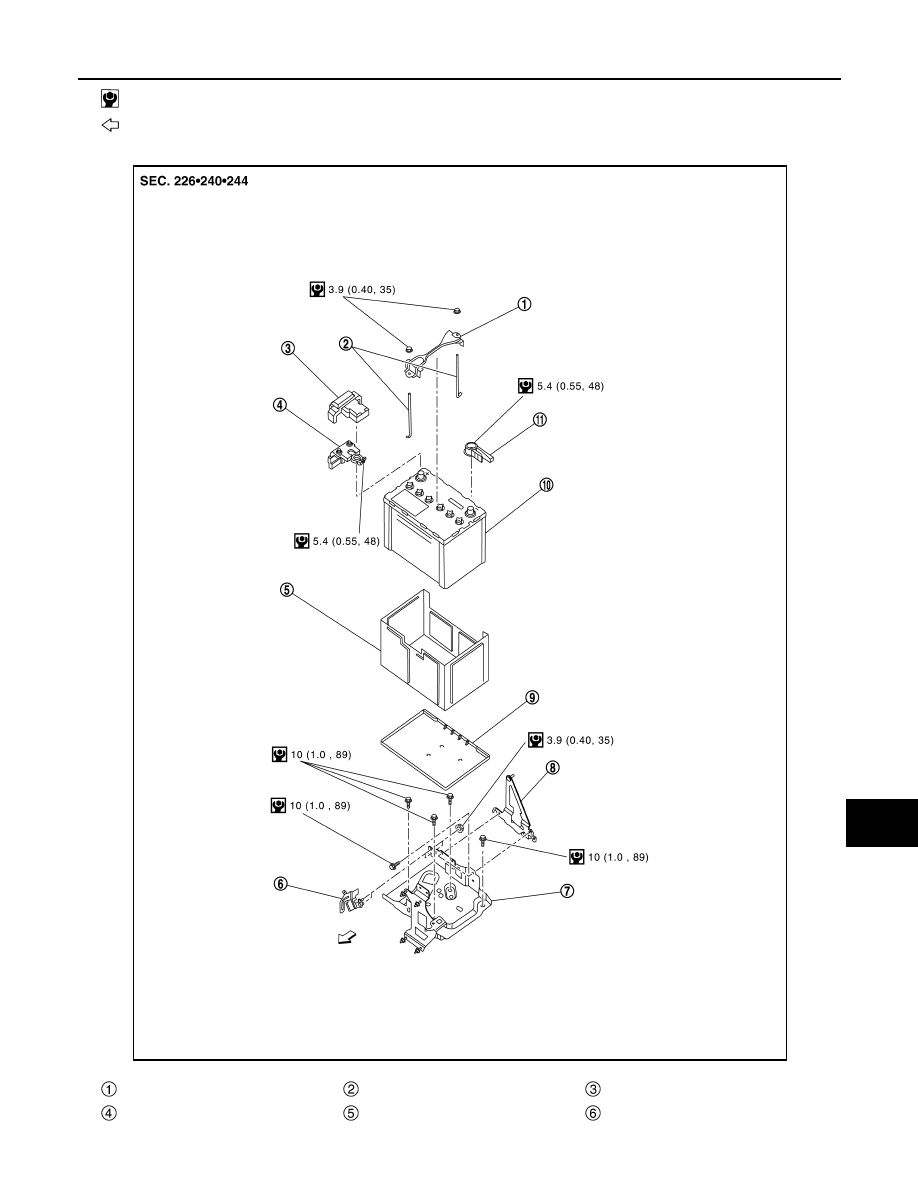

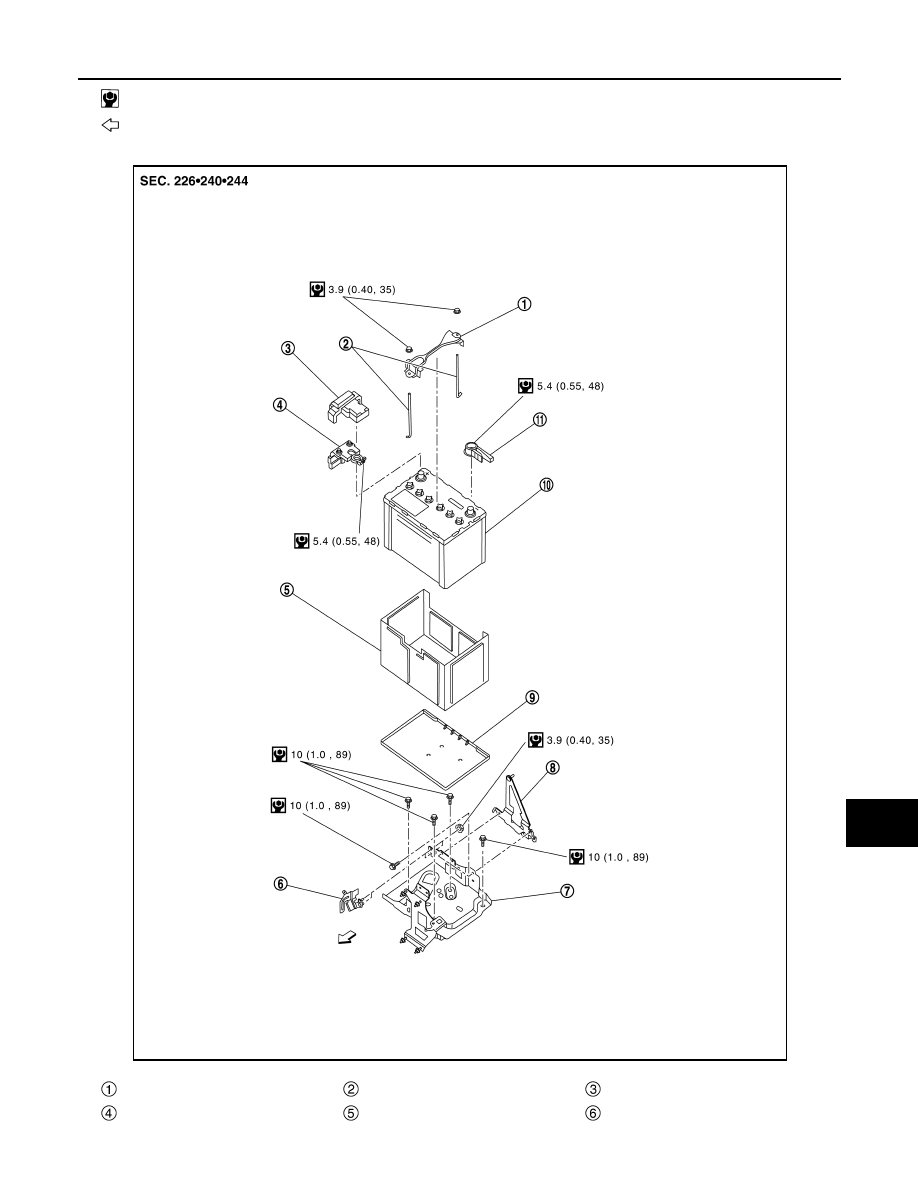

QR25DE engine models

: N·m (kg-m, in-lb)

: Vehicle front

Battery fix frame

Battery fix rod

  Battery positive terminal cover

Battery terminal with fusible link

Battery cover

Battery tray harness clamp

JSMIA1723GB
