PG-130

< BASIC INSPECTION >

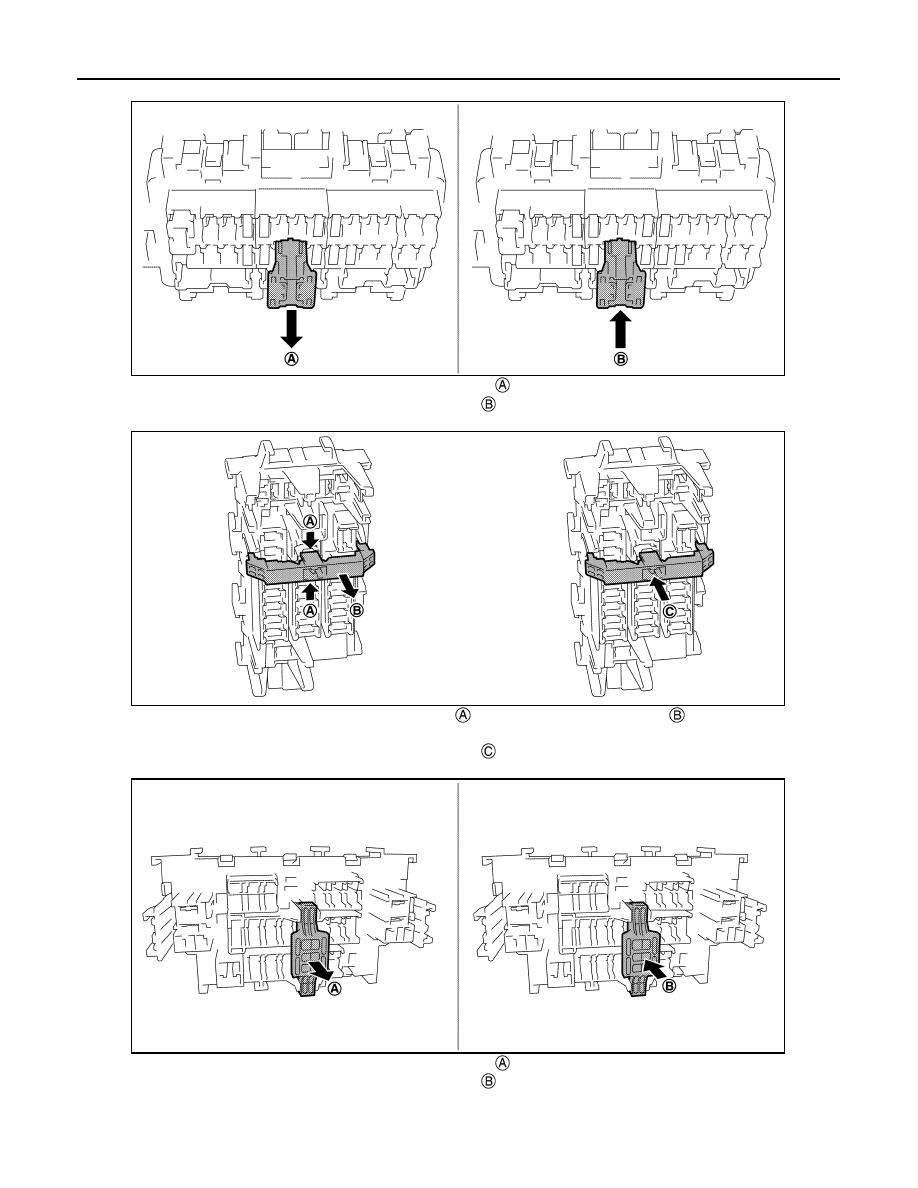

FUSE INSPECTION

• Type A

- To turn the extended storage fuse switch OFF, pull it up in

 direction as shown in the figure.

- To turn the extended storage fuse switch ON, press it in

 direction as shown in the figure.

• Type B

- To turn the extended storage fuse switch OFF, hold

 of the switch and pull up in

 direction as shown in

the figure.

- To turn the extended storage fuse switch ON, press it in

 direction as shown in the figure.

• Type C

- To turn the extended storage fuse switch OFF, pull it up in

 direction as shown in the figure.

- To turn the extended storage fuse switch ON, press it in

 direction as shown in the figure.

How To Remove Extended Storage Fuse Switch

Type A

JSMIA0472ZZ

JSMIA0473ZZ

JSMIA0794ZZ

PG

FUSE INSPECTION

PG-131

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

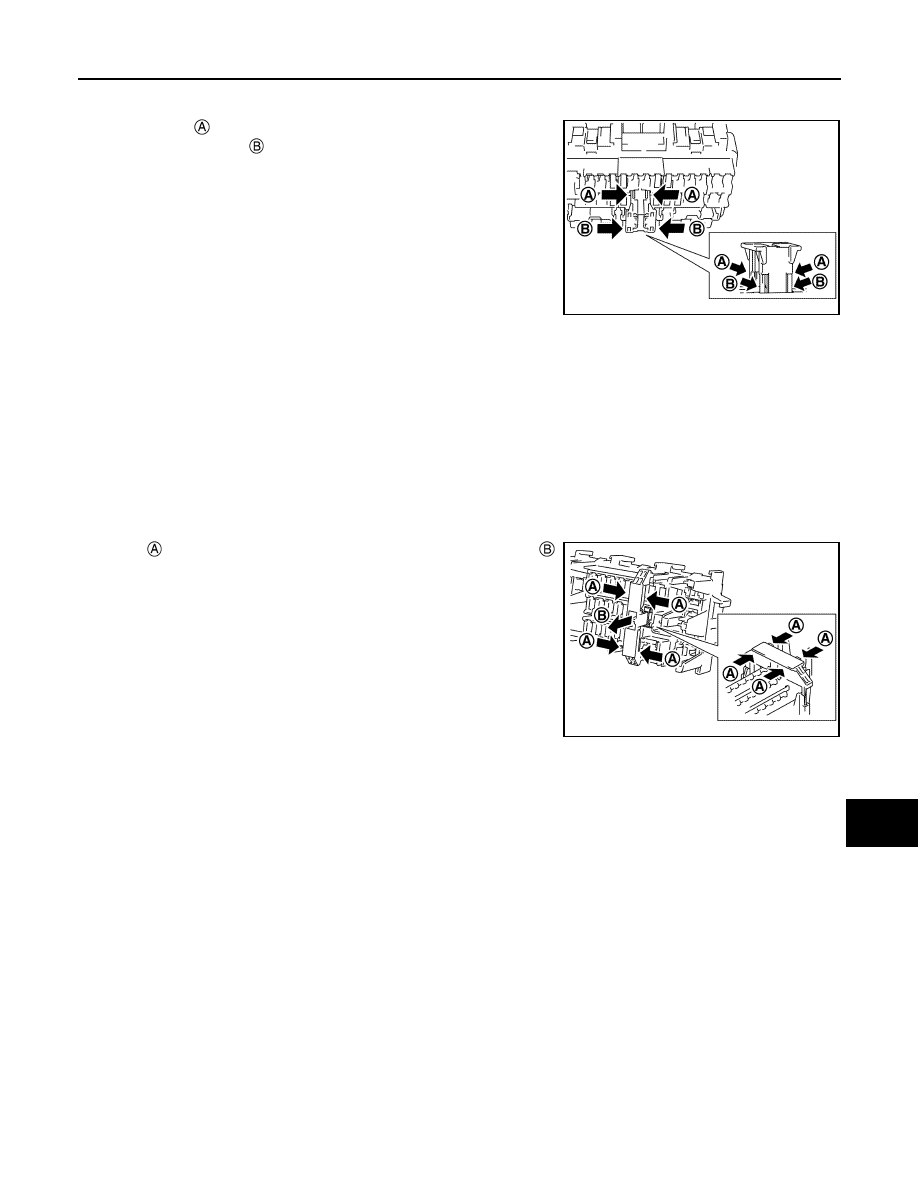

1.

Turn the ignition switch OFF.

2.

Turn the extended storage fuse switch OFF.

3.

Press pawl

 and tilt to disengage the extended storage fuse

switch. Press pawl

 and tilt to remove the extended storage

fuse switch.

CAUTION:

Never use fuse for bus bar.
NOTE:
• Extended storage fuse switch and bus bar are removed together. Remove bus bar from extended stor-

age fuse switch, if necessary.

• Install removed bus bar to fuse block.
• Extended storage fuse switch is for transportation and storage. Reinstallation is not required after the

removal.

Type B

1.

Turn the ignition switch OFF.

2.

Turn the extended storage fuse switch OFF.

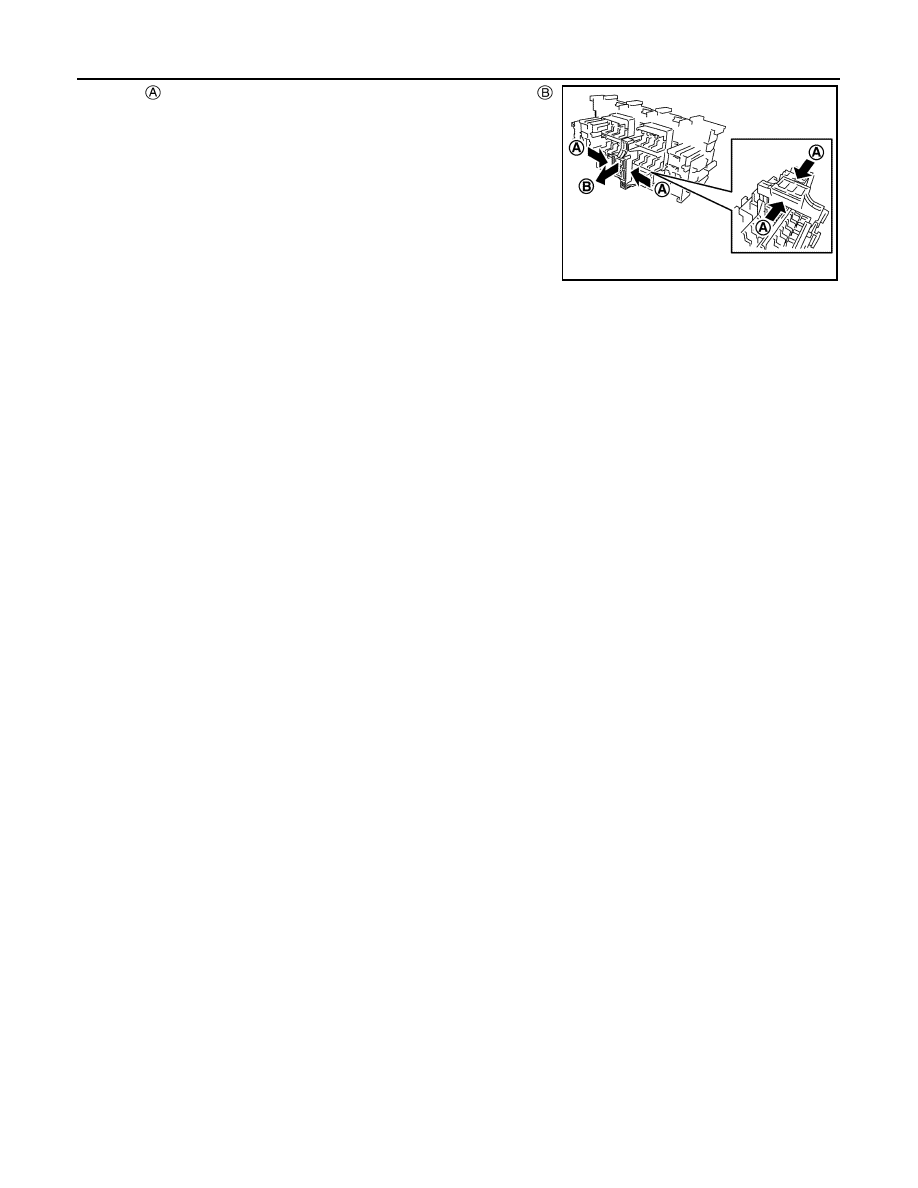

3.

Hold

 and pull up the extended storage fuse switch hard in

direction.

CAUTION:

Never use fuse for bus bar.
NOTE:
• Extended storage fuse switch and bus bar may be removed together. Remove bus bar from extended

storage fuse switch, if necessary.

• Install removed bus bar to fuse block.
• Extended storage fuse switch is for transportation and storage. Reinstallation is not required after the

removal.

Type C

1.

Turn the ignition switch OFF.

2.

Turn the extended storage fuse switch OFF.

JSMIA0476ZZ

JSMIA0477ZZ

PG-132

< BASIC INSPECTION >

FUSE INSPECTION

3.

Hold

 and pull up the extended storage fuse switch hard in

direction.

CAUTION:

Never use fuse for bus bar.
NOTE:
• Extended storage fuse switch and bus bar are removed together. Remove bus bar from extended stor-

age fuse switch, if necessary.

• Install removed bus bar to fuse block.
• Extended storage fuse switch is for transportation and storage. Reinstallation is not required after the

removal.

JSMIA0795ZZ

PG

FUSIBLE LINK INSPECTION

PG-133

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

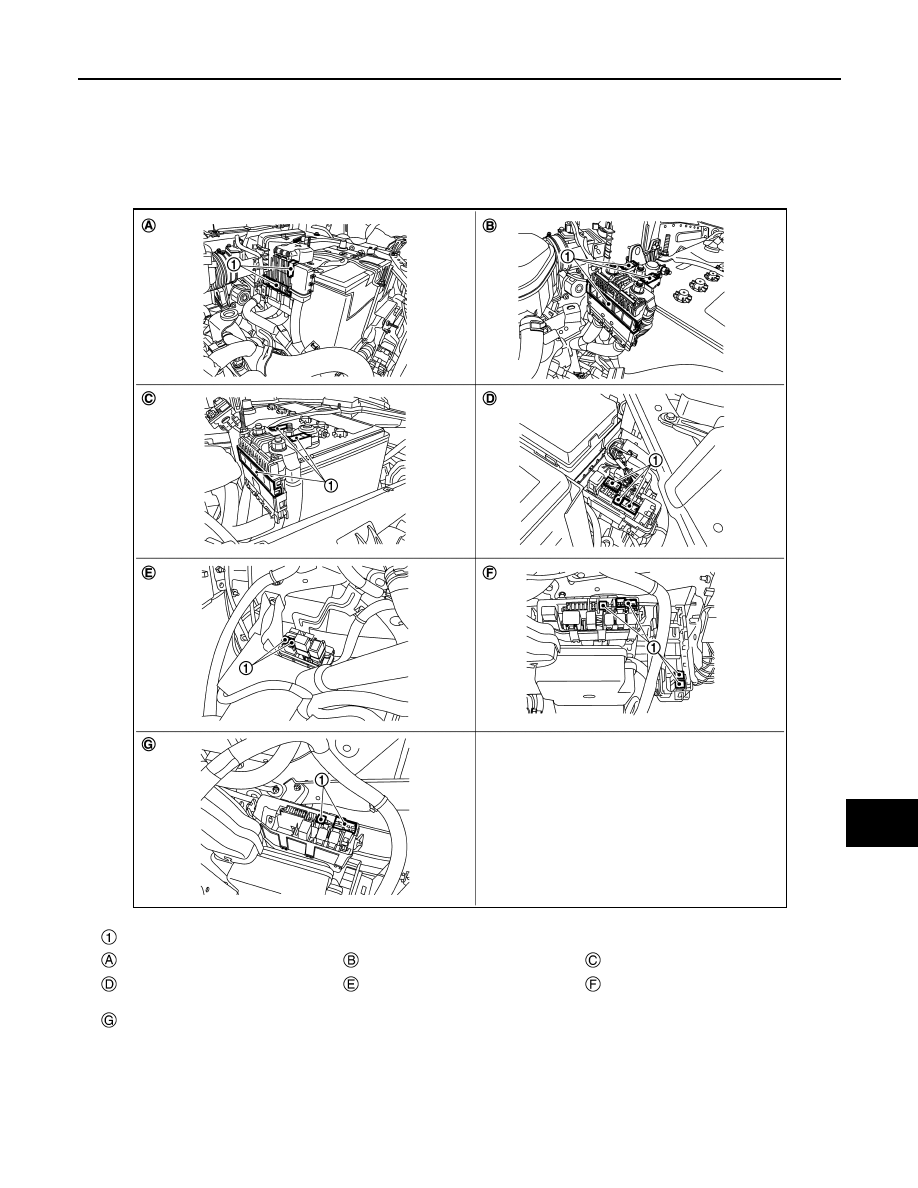

FUSIBLE LINK INSPECTION

How To Check

INFOID:0000000010709232

A melted fusible link can be detected either by visual inspection or by feeling with finger tip. If its condition is
questionable, use circuit tester or test lamp.

CAUTION:

• If fusible link should melt, it is possible that critical circuit (power supply or large current carrying

circuit) is shorted. In such a case, carefully check and eliminate cause of malfunction.

• Never wrap outside of fusible link with vinyl tape. Important: Never let fusible link touch any other

wiring harness, vinyl or rubber parts.

Fusible link

Battery - QR25DE engine models

Battery - MR20DD engine models

Battery - R9M engine models

Engine room fuse box

Under the headlamp right - R9M en-
gine models

Under the headlamp left- R9M en-
gine models

Under the headlamp - Except for
R9M engine models

JSMIA1831ZZ
