Nissan X-Trail 32. Manual - part 1710

PG-94

< WIRING DIAGRAM >

HARNESS LAYOUT

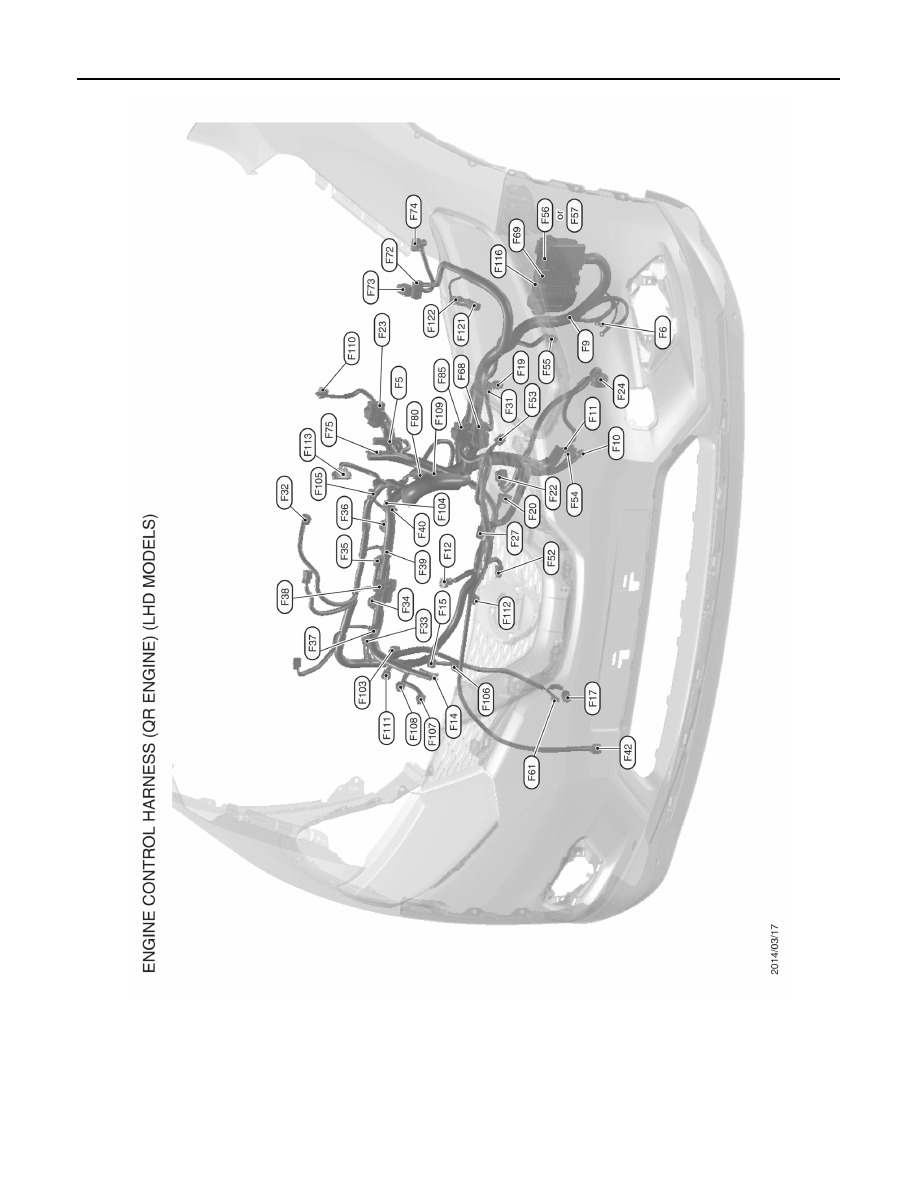

QR ENGINE

JRMIC4444GB

PG

HARNESS LAYOUT

PG-95

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

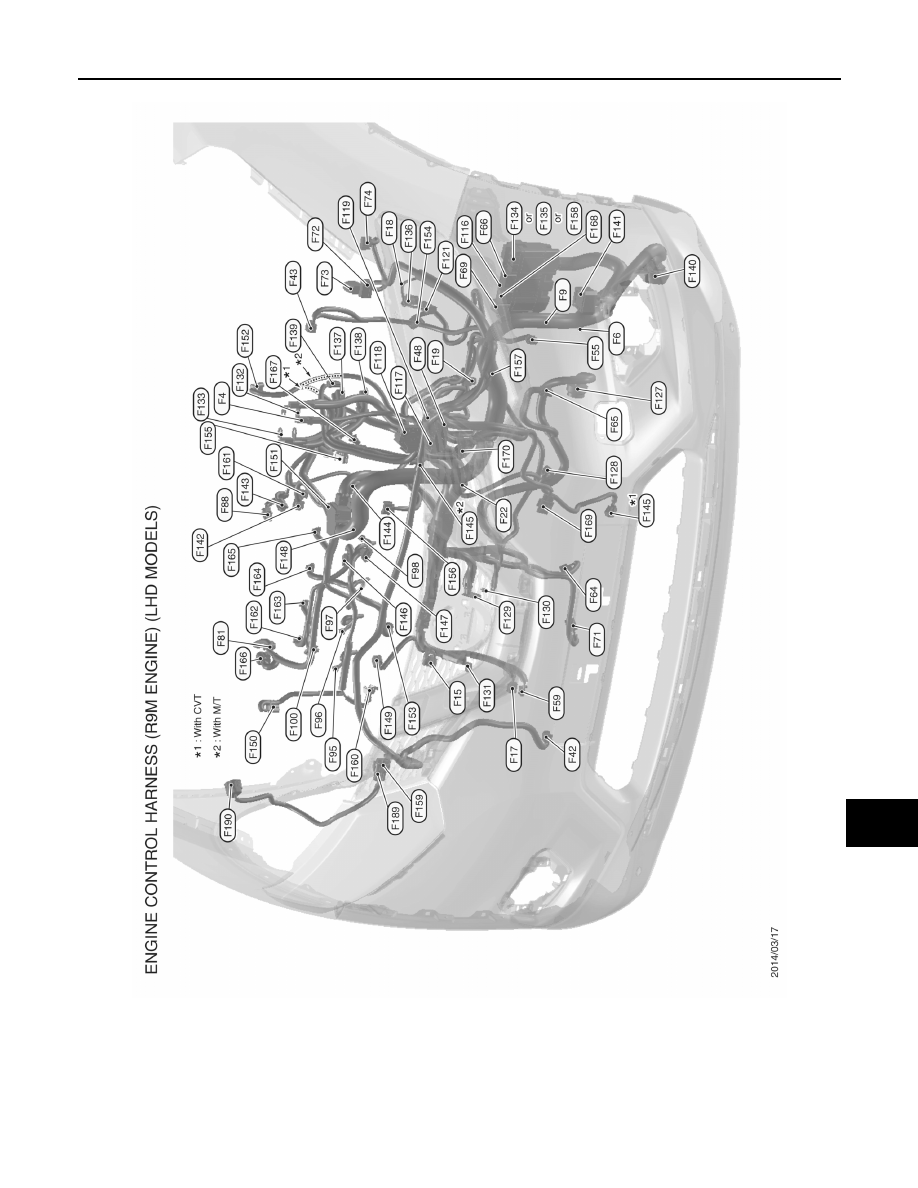

R9M ENGINE

JRMIC4445GB

PG-96

< WIRING DIAGRAM >

HARNESS LAYOUT

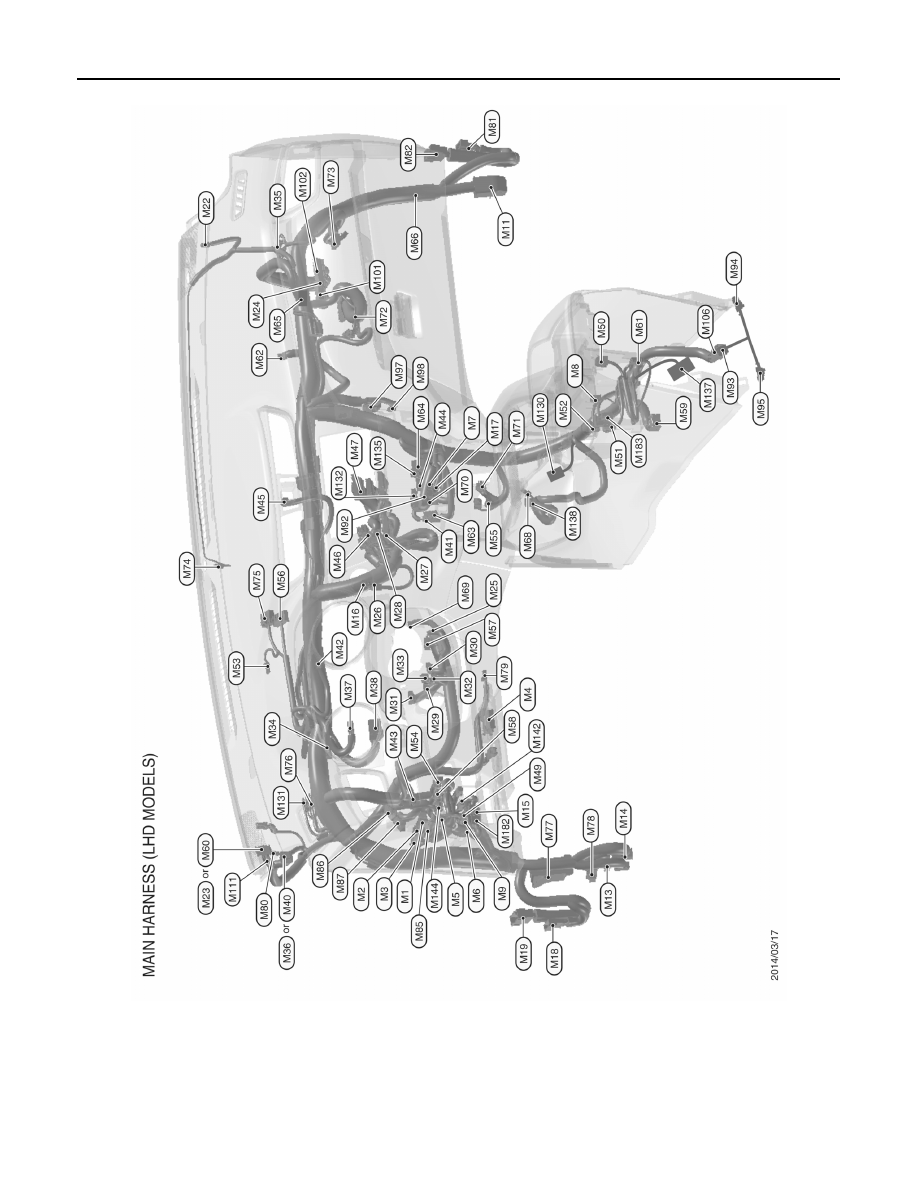

LHD : Main Harness

INFOID:0000000010709216

JRMIC4446GB

PG

HARNESS LAYOUT

PG-97

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

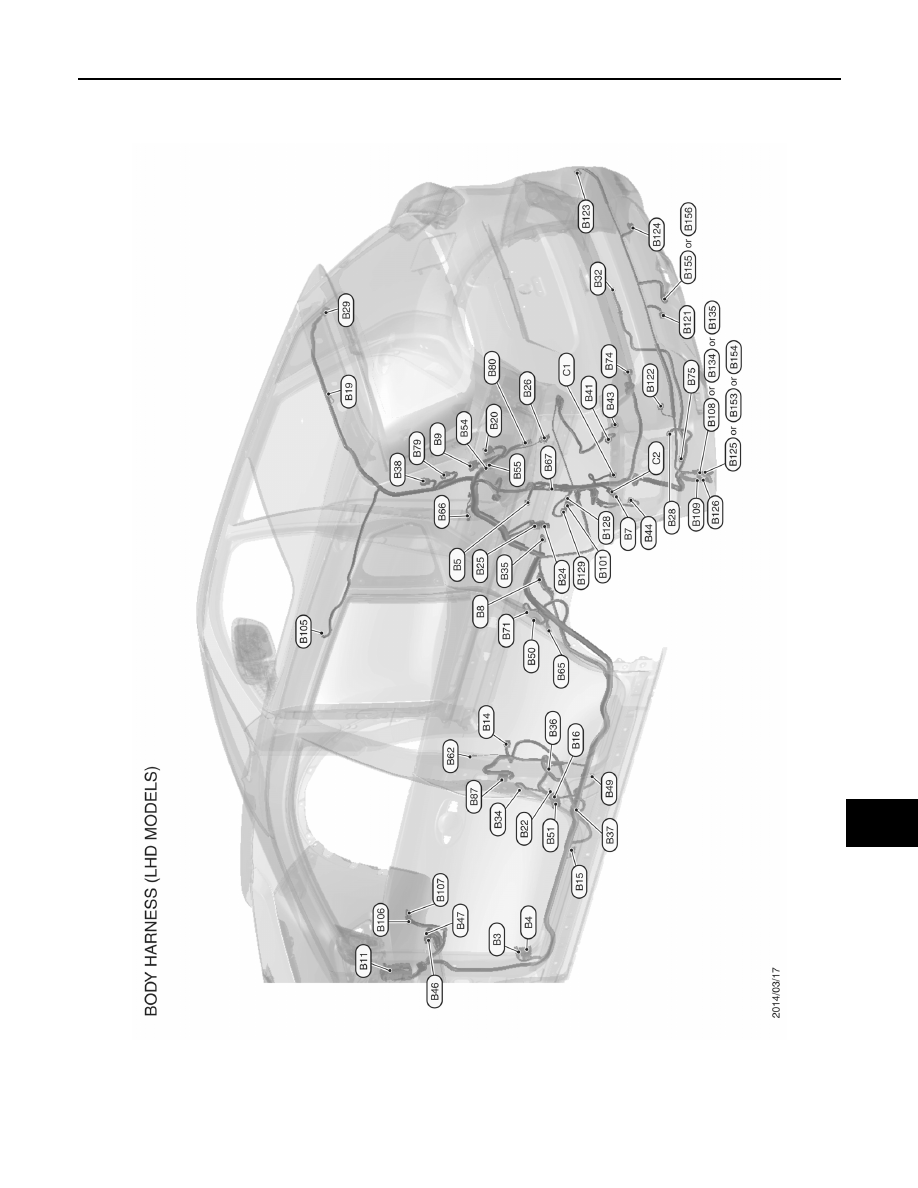

LHD : Body Harness

INFOID:0000000010709217

BODY HARNESS

JRMIC4447GB
