PG-86

< WIRING DIAGRAM >

FUSE, FUSIBLE LINK AND RELAY BOX

FUSE, FUSIBLE LINK AND RELAY BOX

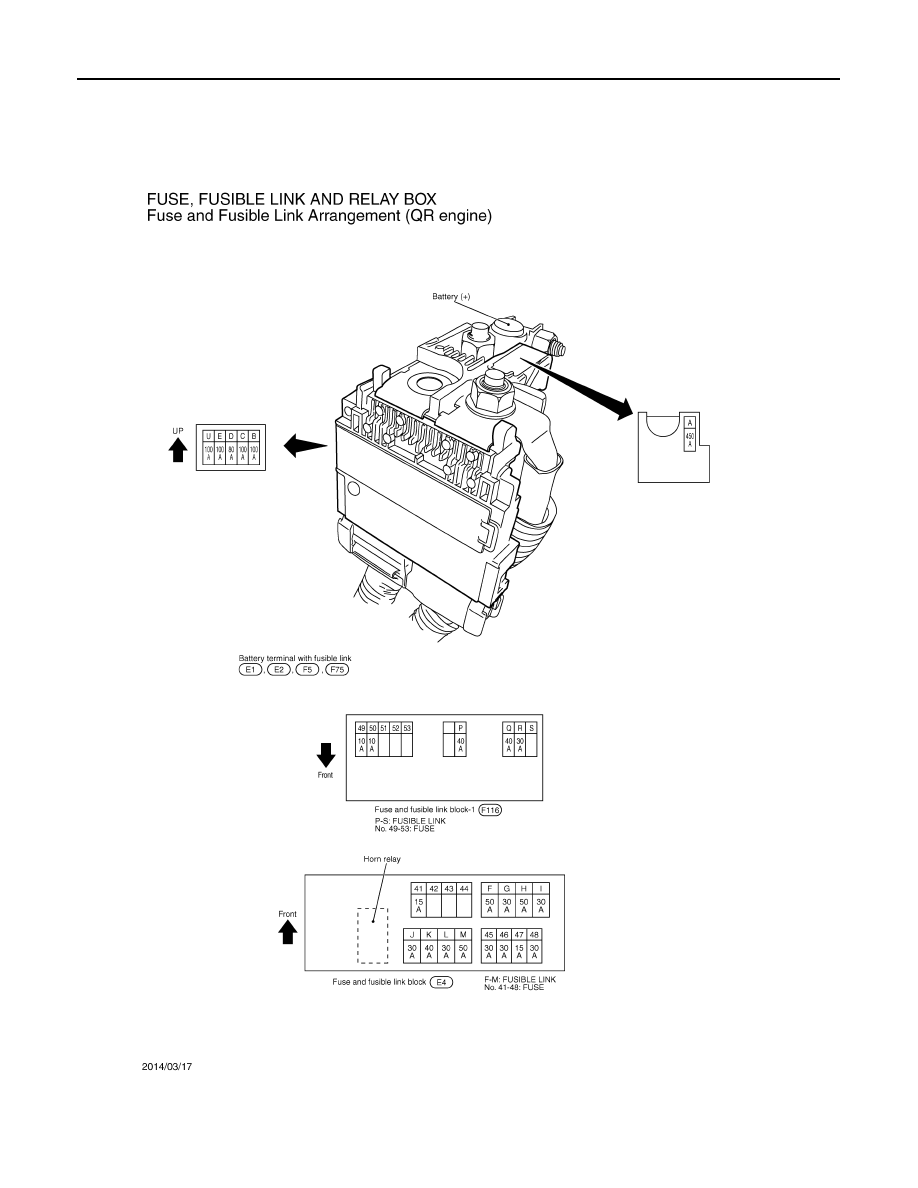

Fuse and Fusible Link Arrangement

INFOID:0000000010709211

QR ENGINE

JRMWF4173GB

PG

FUSE, FUSIBLE LINK AND RELAY BOX

PG-87

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

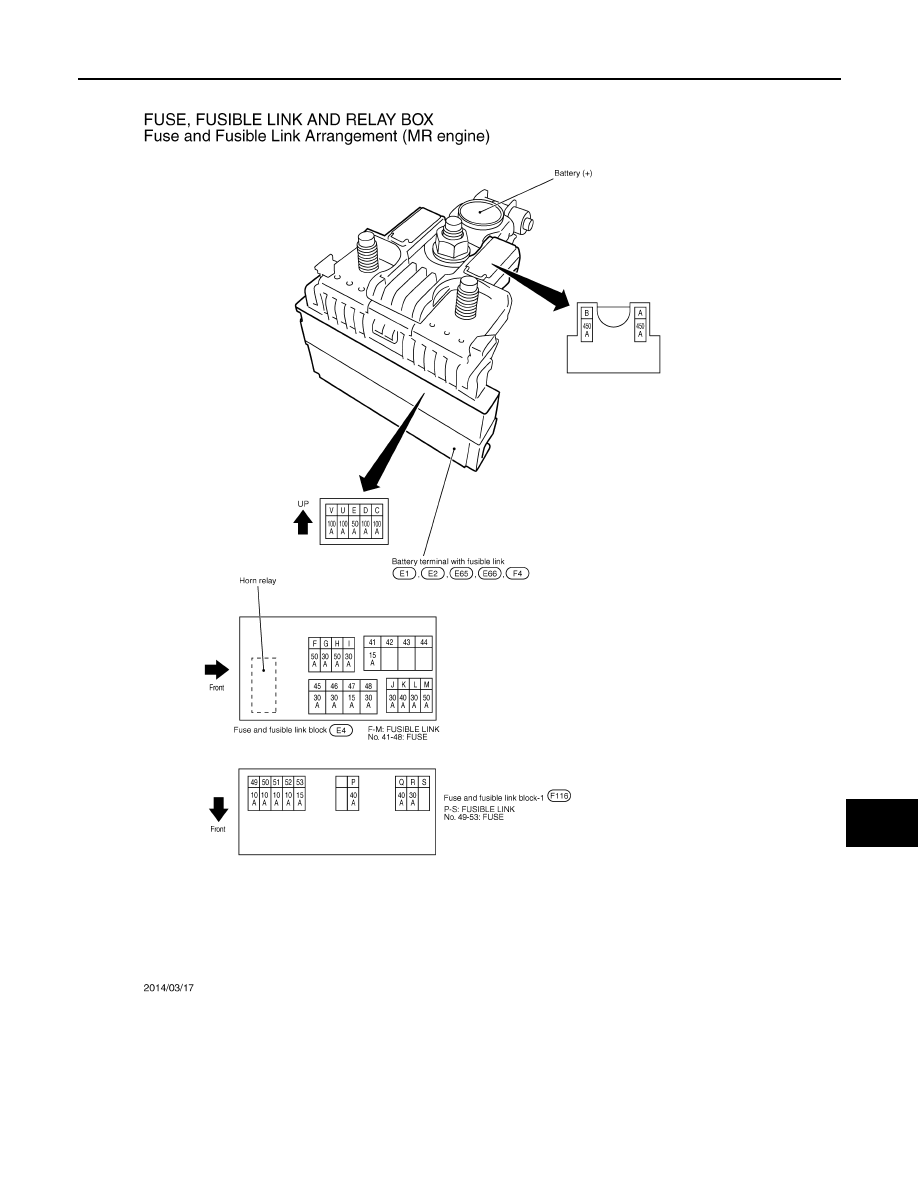

MR ENGINE

JRMWF4174GB

PG-88

< WIRING DIAGRAM >

FUSE, FUSIBLE LINK AND RELAY BOX

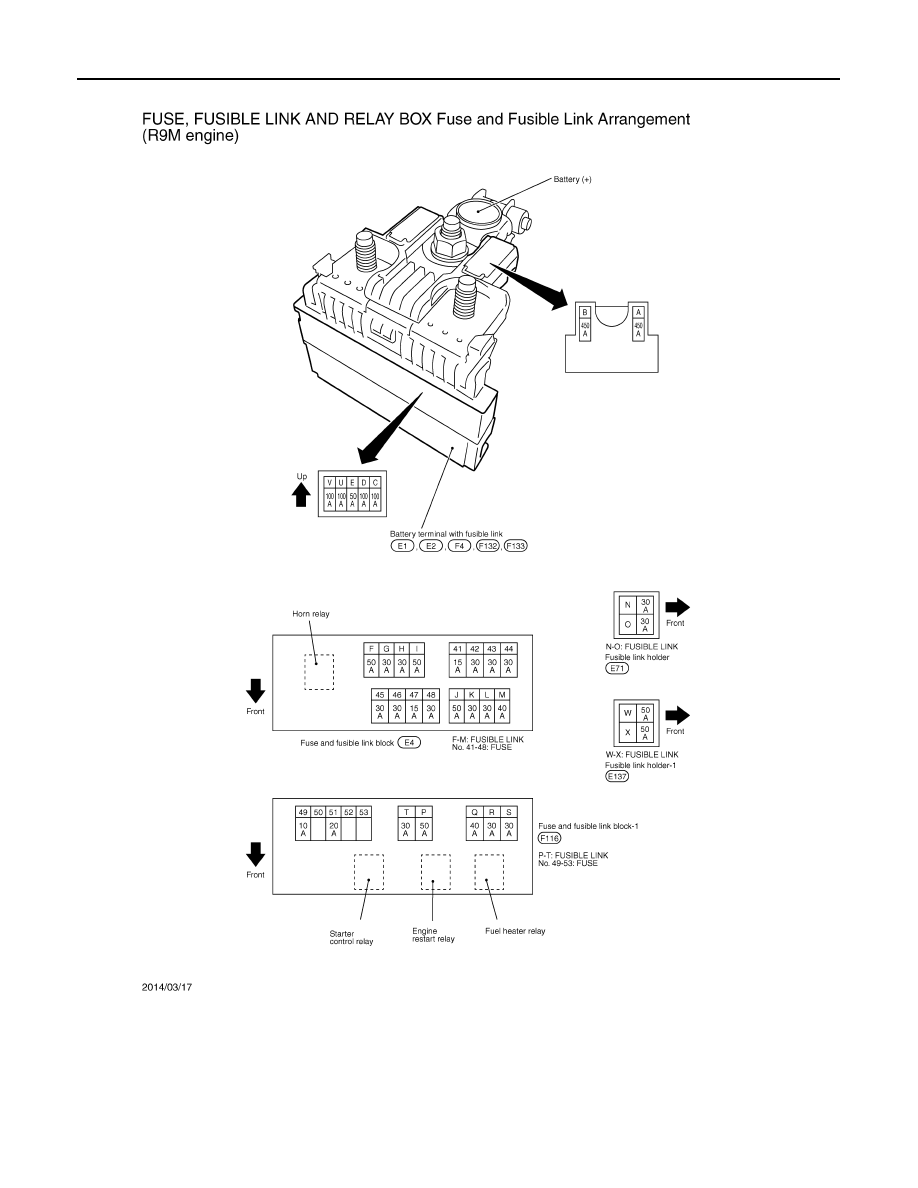

R9M ENGINE

JRMWF4175GB

PG

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PG-89

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

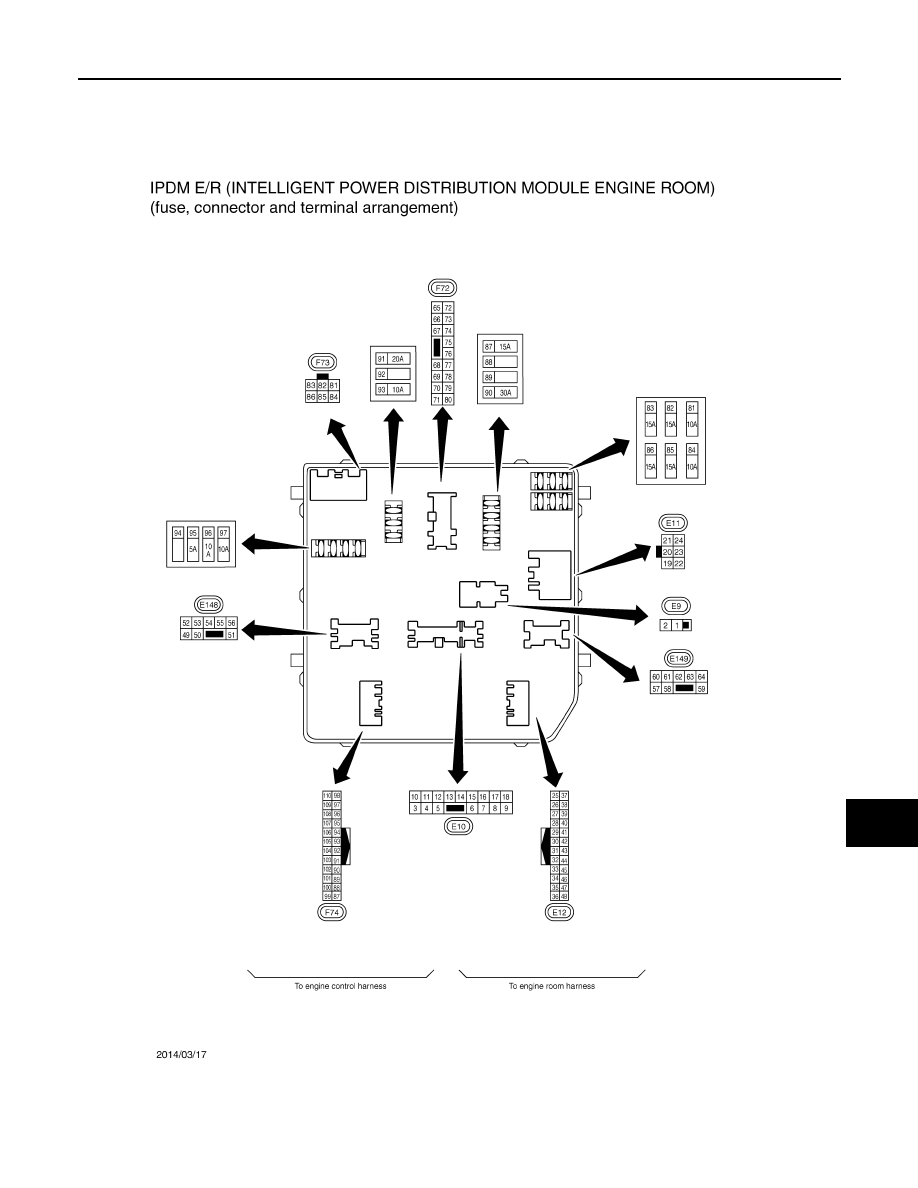

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

Fuse, Connector and Terminal Arrangement

INFOID:0000000010709212

JRMWF4176GB
