Nissan X-Trail 32. Manual - part 1709

PG-90

< WIRING DIAGRAM >

HARNESS LAYOUT

HARNESS LAYOUT

LHD

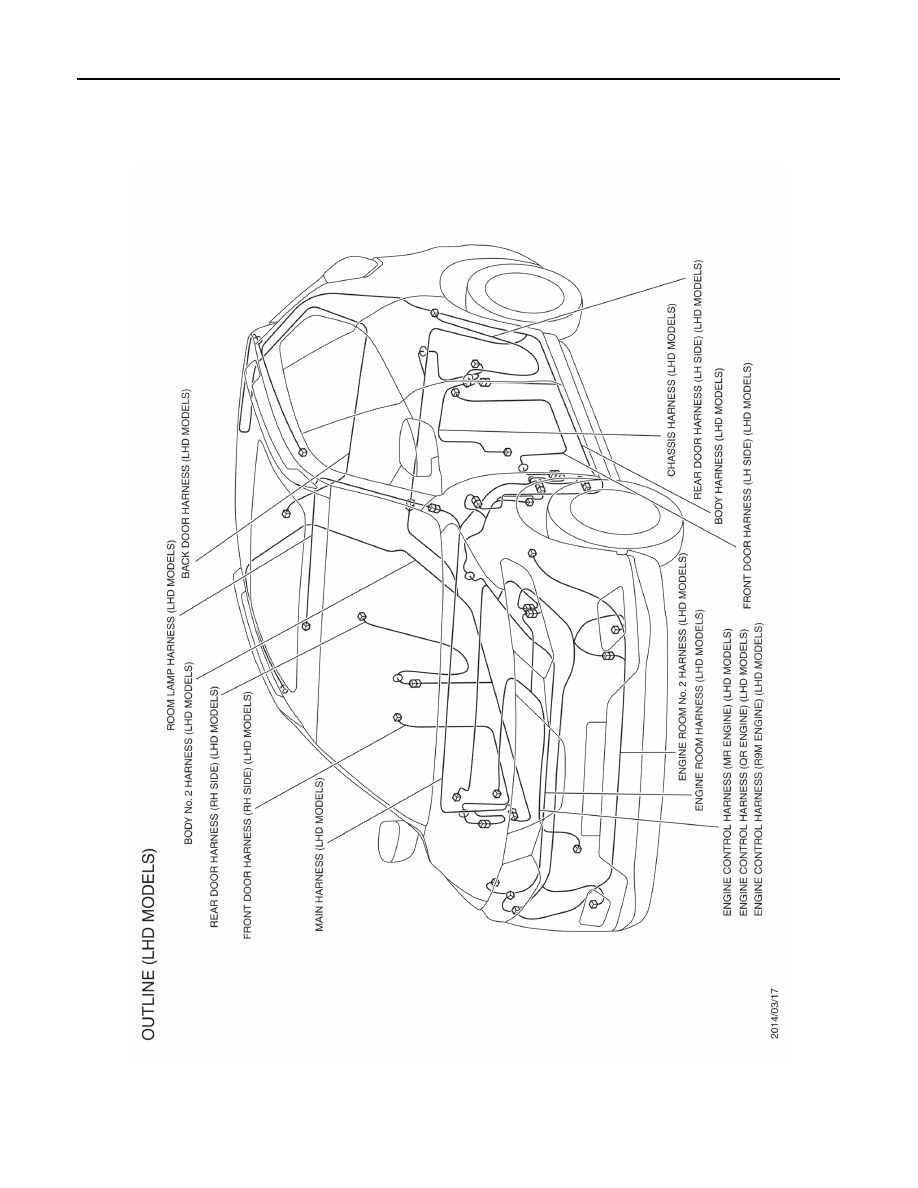

LHD : Outline

INFOID:0000000010709213

JRMIC4440GB

PG

HARNESS LAYOUT

PG-91

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

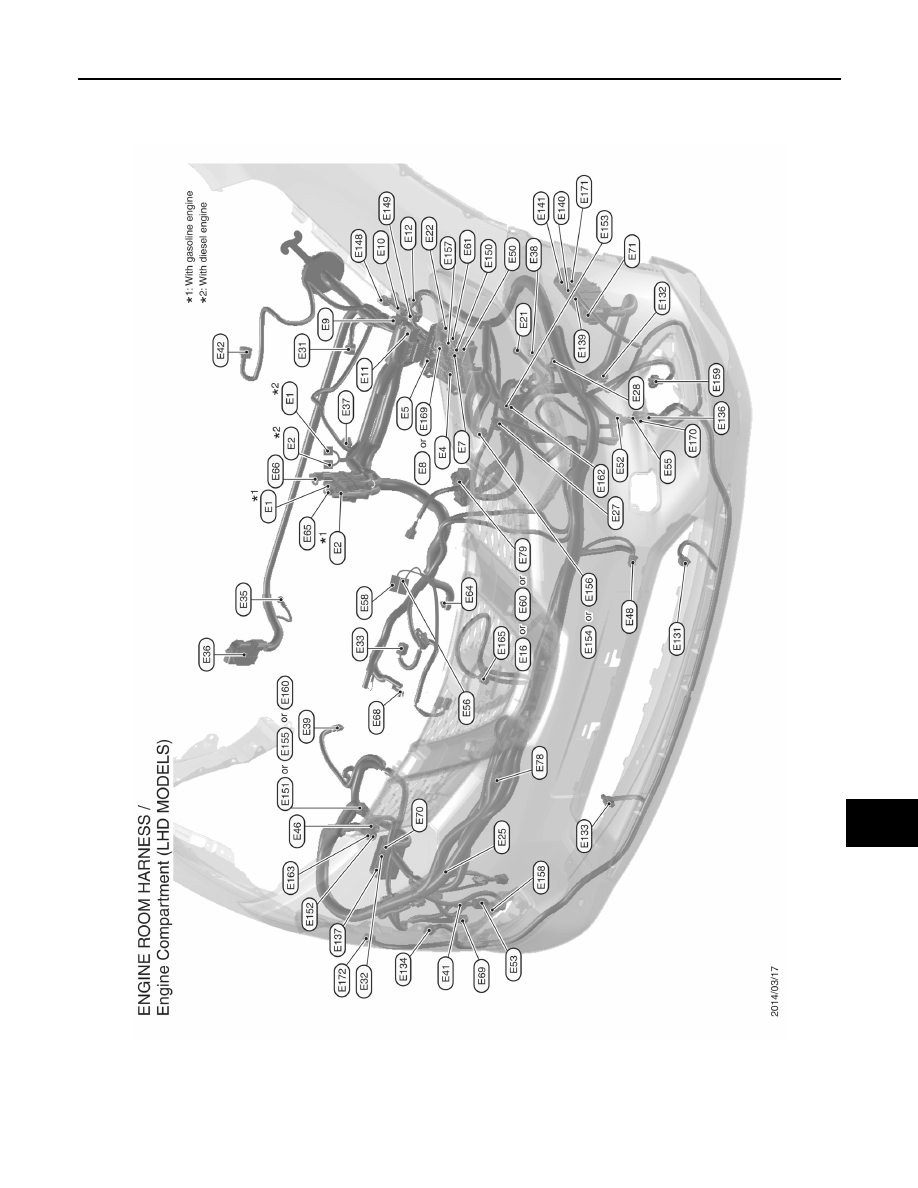

LHD : Engine Room Harness

INFOID:0000000010709214

ENGINE COMPARTMENT

JRMIC4441GB

PG-92

< WIRING DIAGRAM >

HARNESS LAYOUT

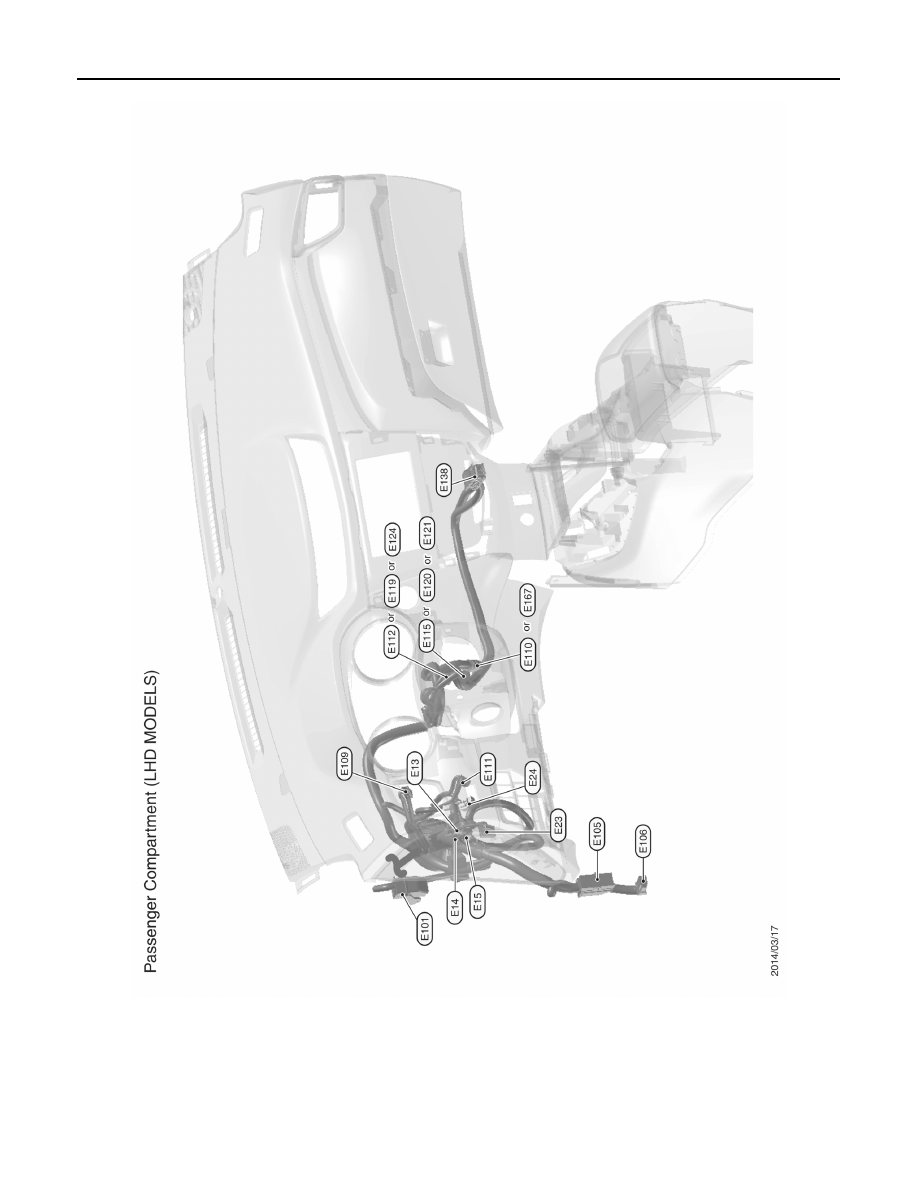

PASSENGER COMPARTMENT

JRMIC4442GB

PG

HARNESS LAYOUT

PG-93

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

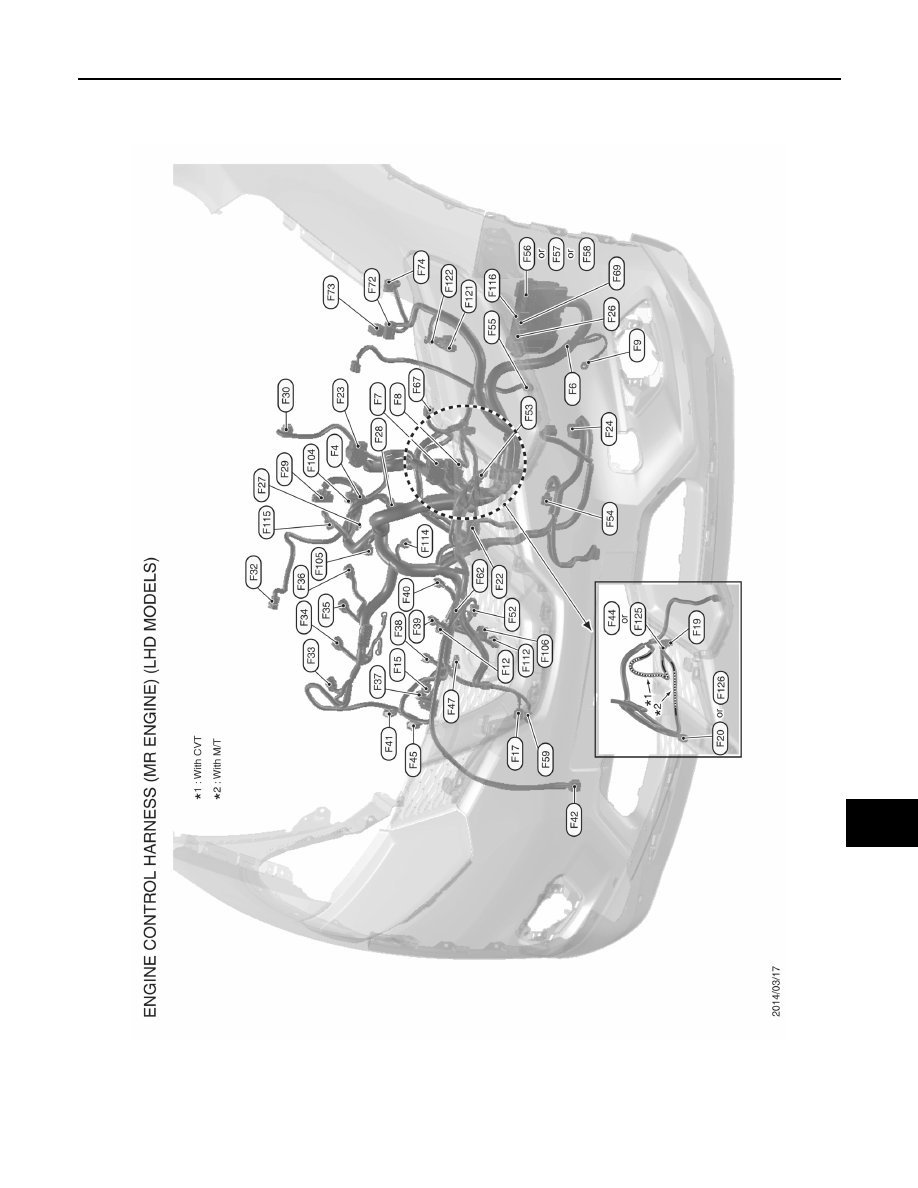

LHD : Engine Control Harness

INFOID:0000000010709215

MR ENGINE

JRMIC4443GB
