PG-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

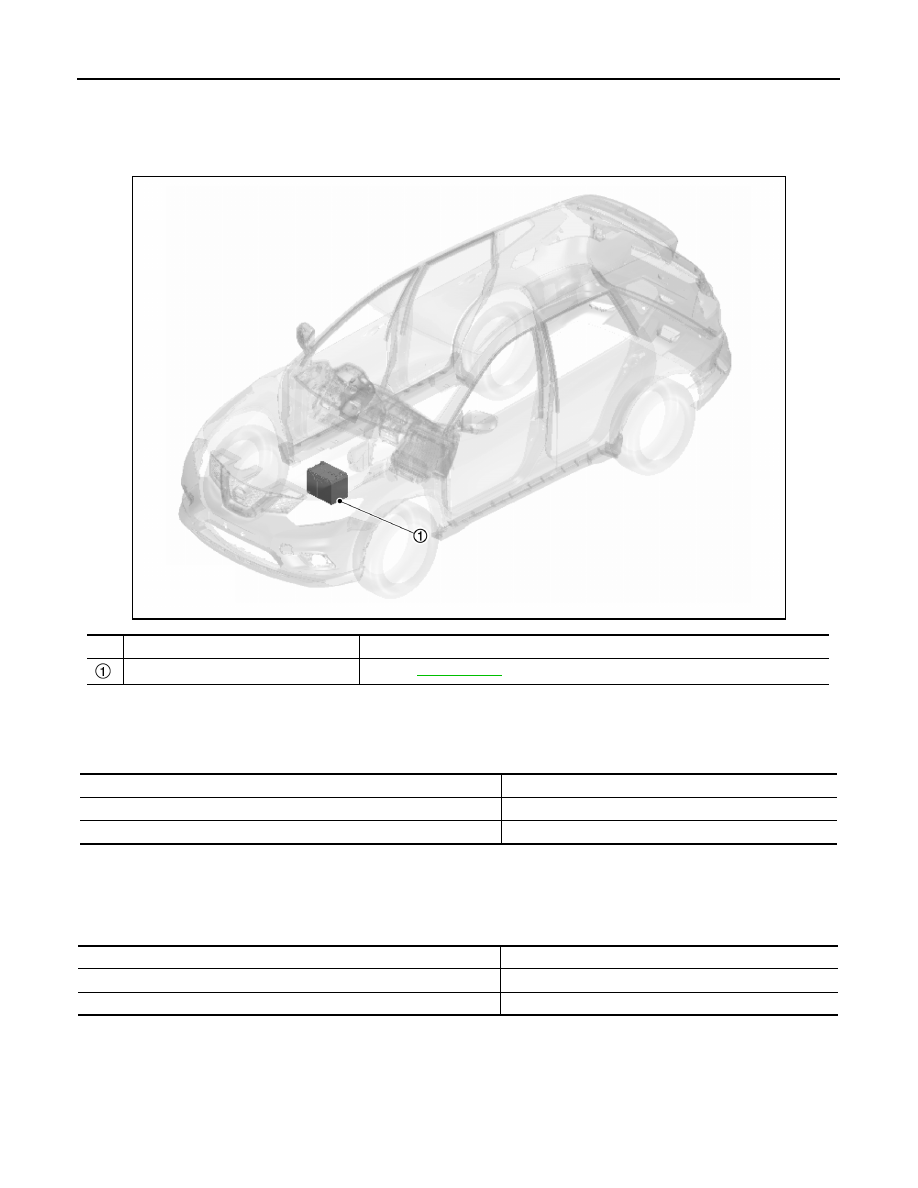

Component Parts Location

INFOID:0000000010709193

Battery

INFOID:0000000010709194

R9M

CAUTION:

It is mandatory to always use a battery designed for the stop/start system. Failure to do this causes
early deterioration or system malfunction.

EXCEPT FOR R9M

JSMIA1677ZZ

No.

Component

Function

Battery

Refer to

PG-6, "Battery"

.

Type

S-95

20 hour rate capacity

[V – Ah]

12 – 75

Cold cranking current (For reference value)

[A]

660

Type

80D23L

20 hour rate capacity

[V – Ah]

12 – 62

Cold cranking current (For reference value)

[A]

582

PG

COMPONENT PARTS

PG-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

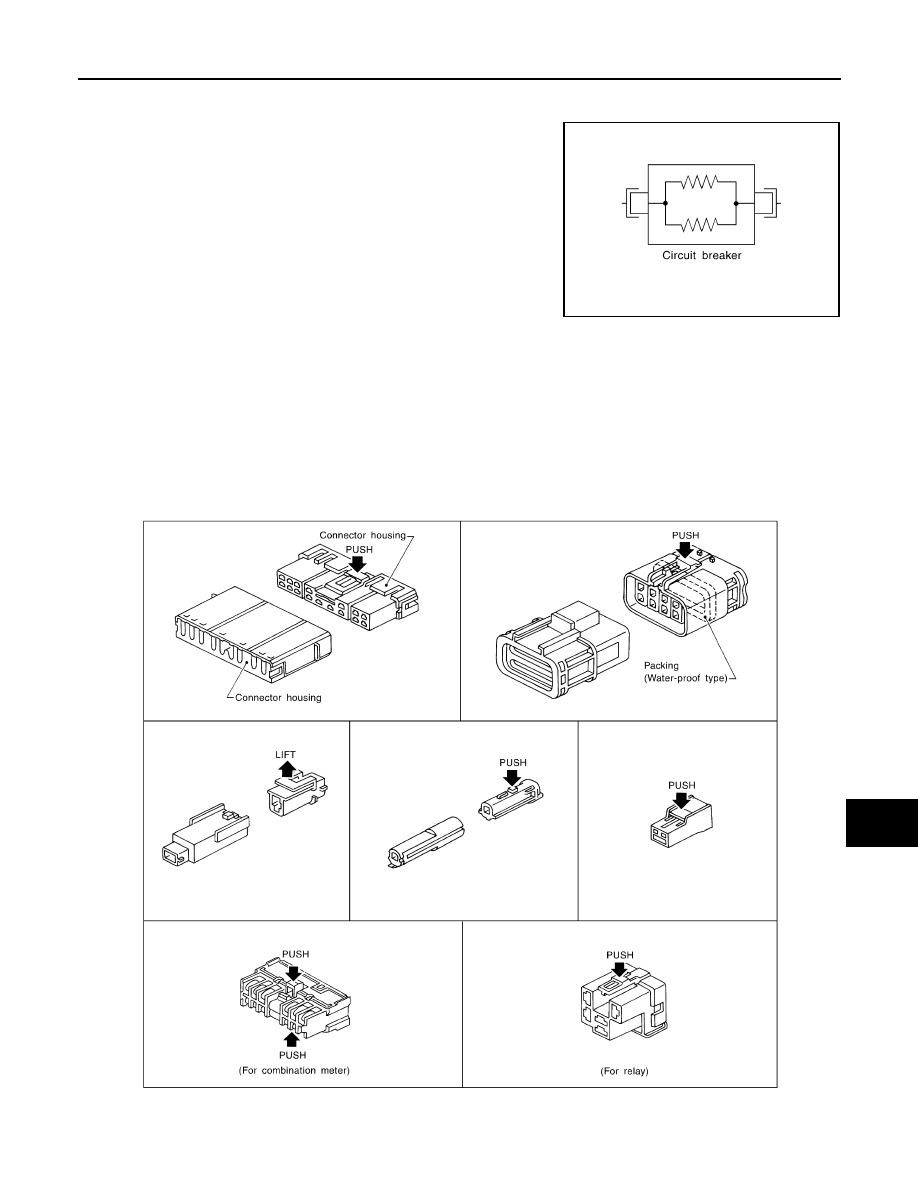

Circuit Breaker

INFOID:0000000010709195

The PTC thermistor generates heat in response to current flow. The
temperature (and resistance) of the thermistor element varies with
current flow. Excessive current flow will cause the element's temper-
ature to rise. When the temperature reaches a specified level, the
electrical resistance will rise sharply to control the circuit current.
Reduced current flow will cause the element to cool. Resistance falls
accordingly and normal circuit current flow is allowed to resume.

Harness Connector

INFOID:0000000010709196

HARNESS CONNECTOR (TAB-LOCKING TYPE)

• The tab-locking type connectors help prevent accidental looseness or disconnection.
• The tab-locking type connectors are disconnected by pushing or lifting the locking tab(s). Refer to the figure

below.

CAUTION:

To prevent damage to the parts, never pull the harness or wires when disconnecting the connector.

[Example]

SEL109W

SEL769DA

PG-8

< SYSTEM DESCRIPTION >

COMPONENT PARTS

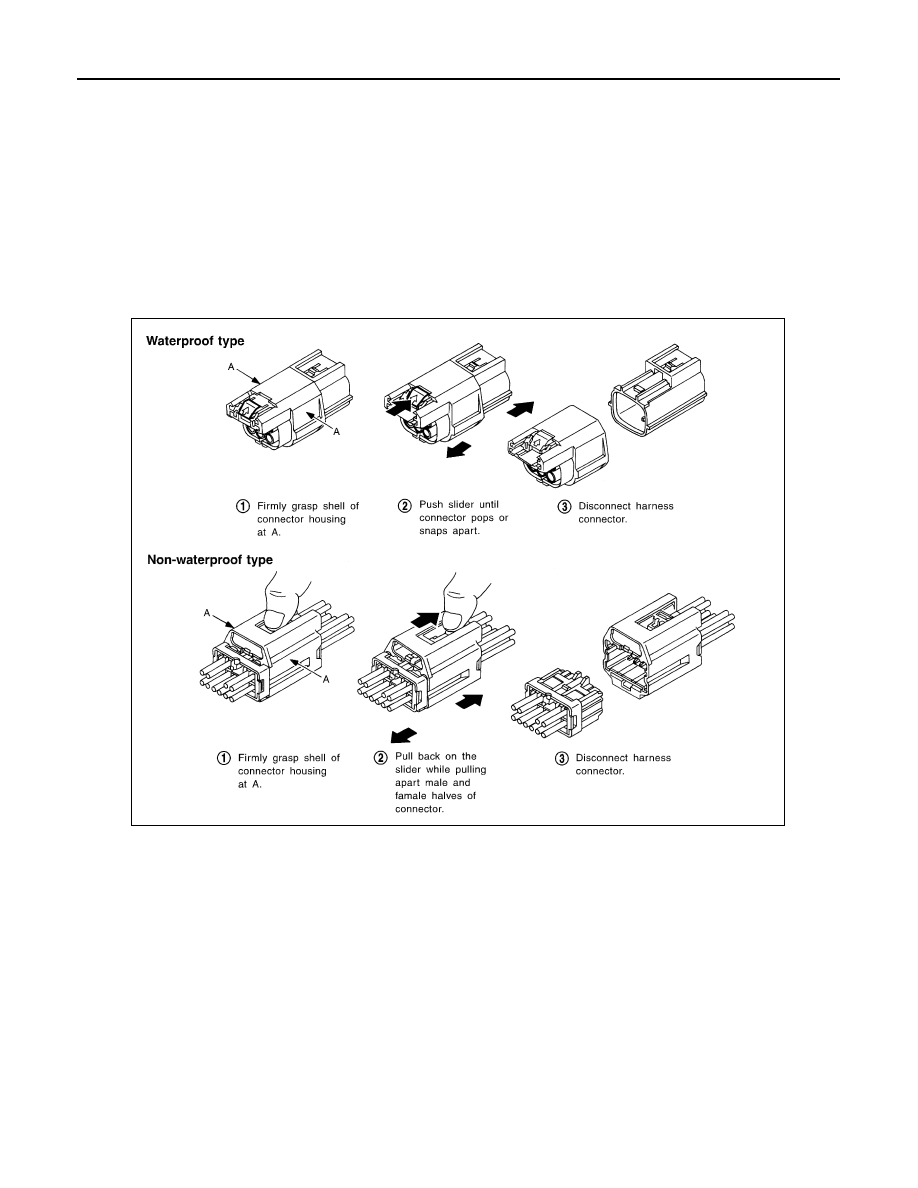

HARNESS CONNECTOR (SLIDE-LOCKING TYPE)

• A new style slide-locking type connector is used on certain systems and components, especially those

related to OBD.

• The slide-locking type connectors help prevent incomplete locking and accidental looseness or disconnec-

tion.

• The slide-locking type connectors are disconnected by pushing or pulling the slider. Refer to the figure

below.

CAUTION:

• To prevent damage to the parts, never pull the harness or wires when disconnecting the connector.
• To prevent damage to the parts, be careful not to damage the connector support bracket when dis-

connecting the connector.

[Example]

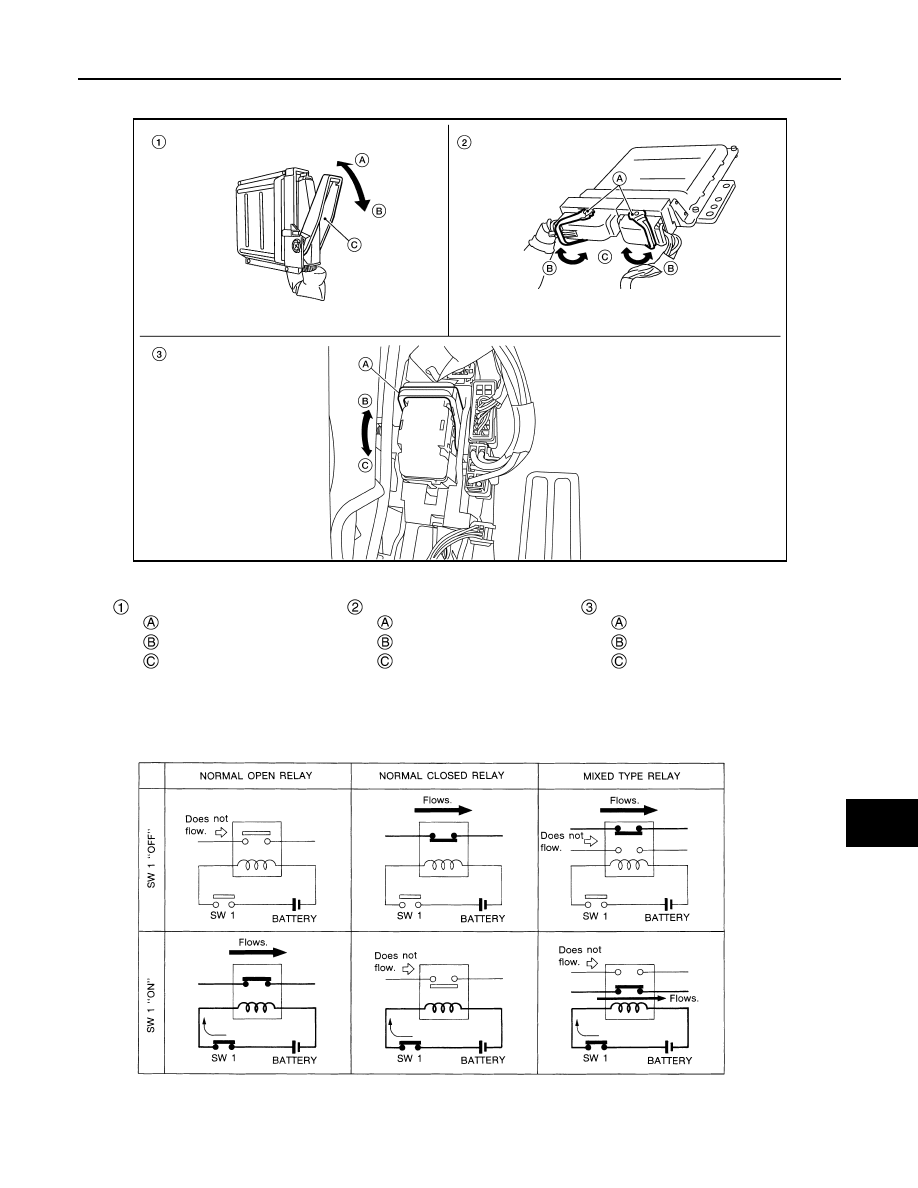

HARNESS CONNECTOR (LEVER LOCKING TYPE)

• Lever locking type harness connectors are used on certain control units and control modules such as ECM,

ABS actuator and electric unit (control unit), etc.

• Lever locking type harness connectors are also used on super multiple junction (SMJ) connectors.
• Always confirm the lever is fully locked in place by moving the lever as far as it will go to ensure full connec-

tion.

CAUTION:

SEL769V

PG

COMPONENT PARTS

PG-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Always confirm the lever is fully released (loosened) before attempting to disconnect or connect these
connectors to avoid damage to the connector housing or terminals.

Standardized Relay

INFOID:0000000010709197

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS

Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.

TYPE OF STANDARDIZED RELAYS

LKIA0670E

Control unit with single lever

 Fasten

 Loosen

 Lever

Control unit with dual levers

 Levers

 Fasten

 Loosen

SMJ connector

 Lever

 Fasten

 Loosen

SEL881H
