PG-10

< SYSTEM DESCRIPTION >

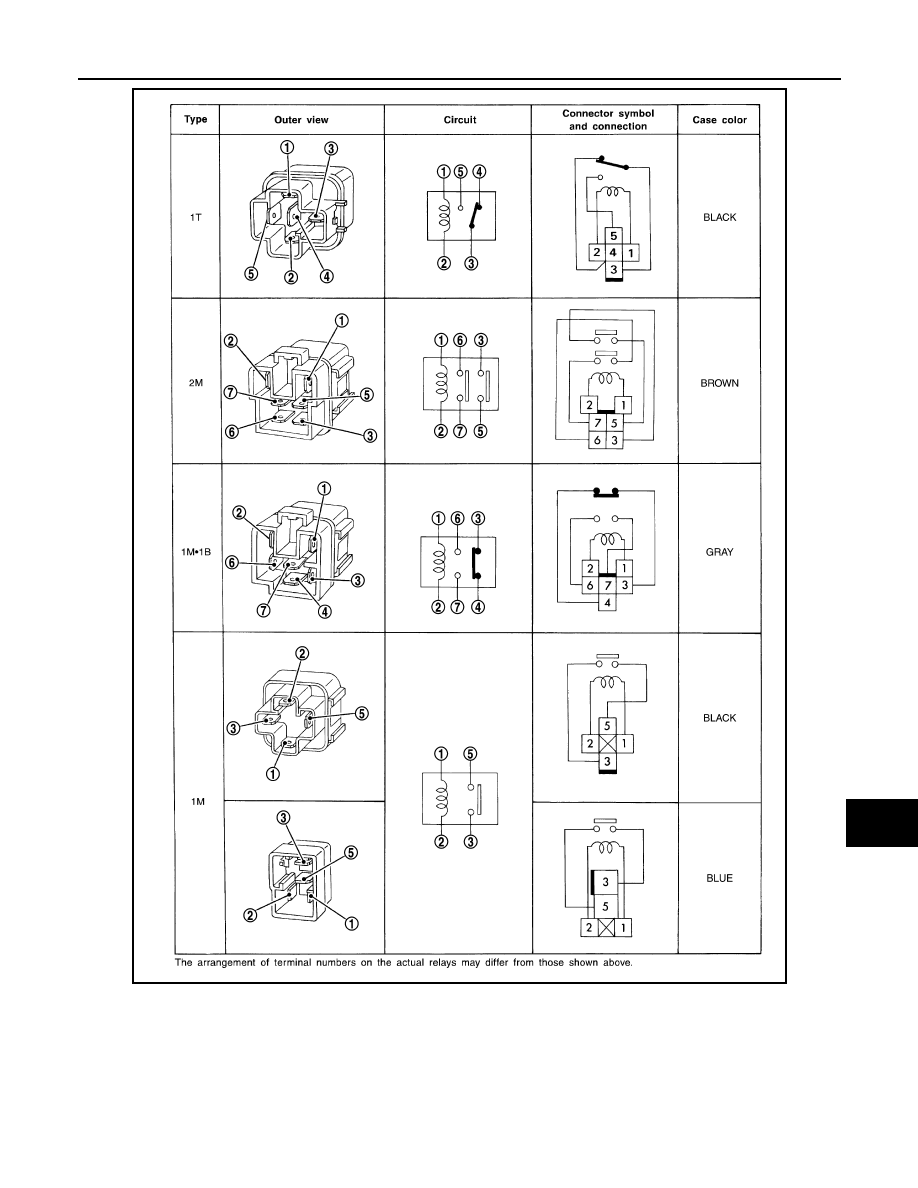

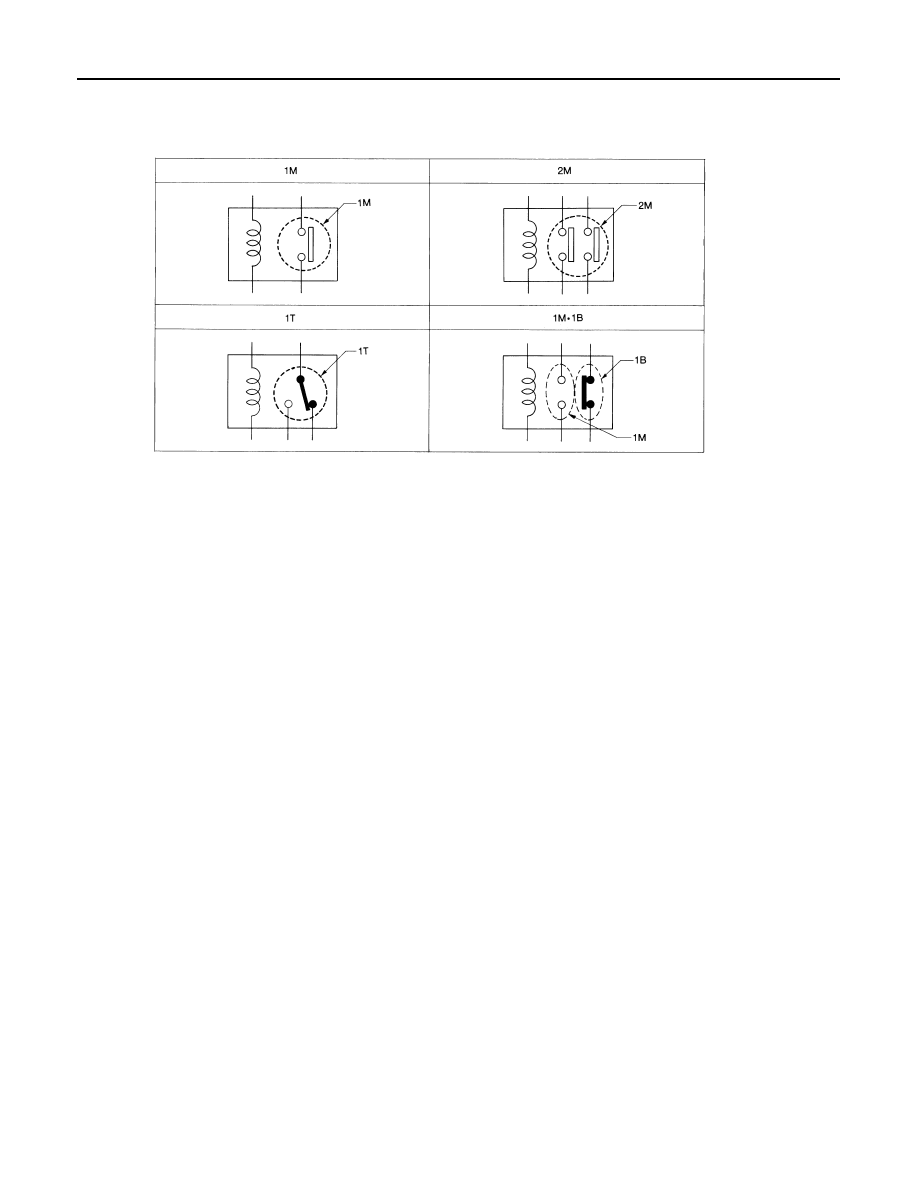

COMPONENT PARTS

1M ···················· 1 Make

2M      ···················· 2 Make

1T ···················· 1 Transfer

1M·1B ···················· 1 Make 1 Break

SEL882H

PG

COMPONENT PARTS

PG-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JSMIA1499GB

PG-12

< WIRING DIAGRAM >

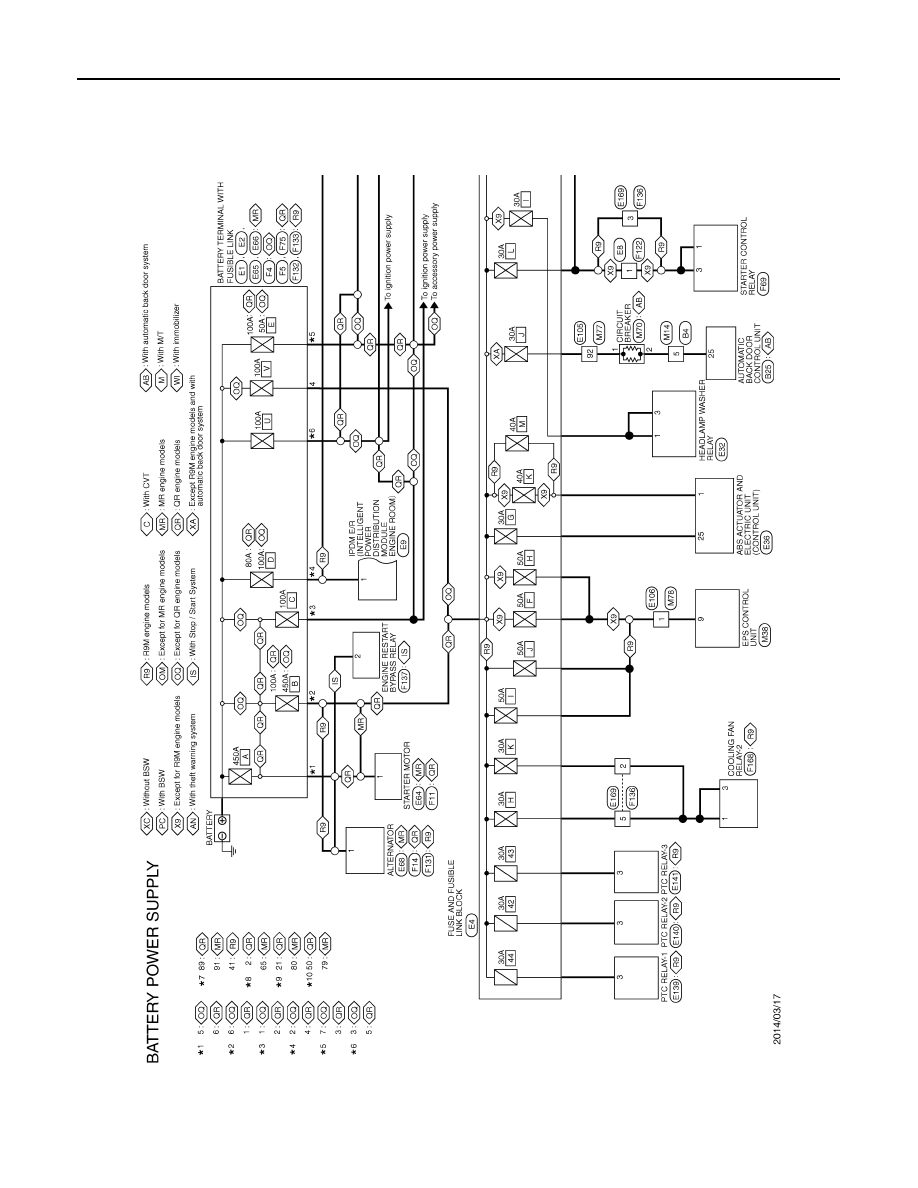

POWER SUPPLY ROUTING CIRCUIT

WIRING DIAGRAM

POWER SUPPLY ROUTING CIRCUIT

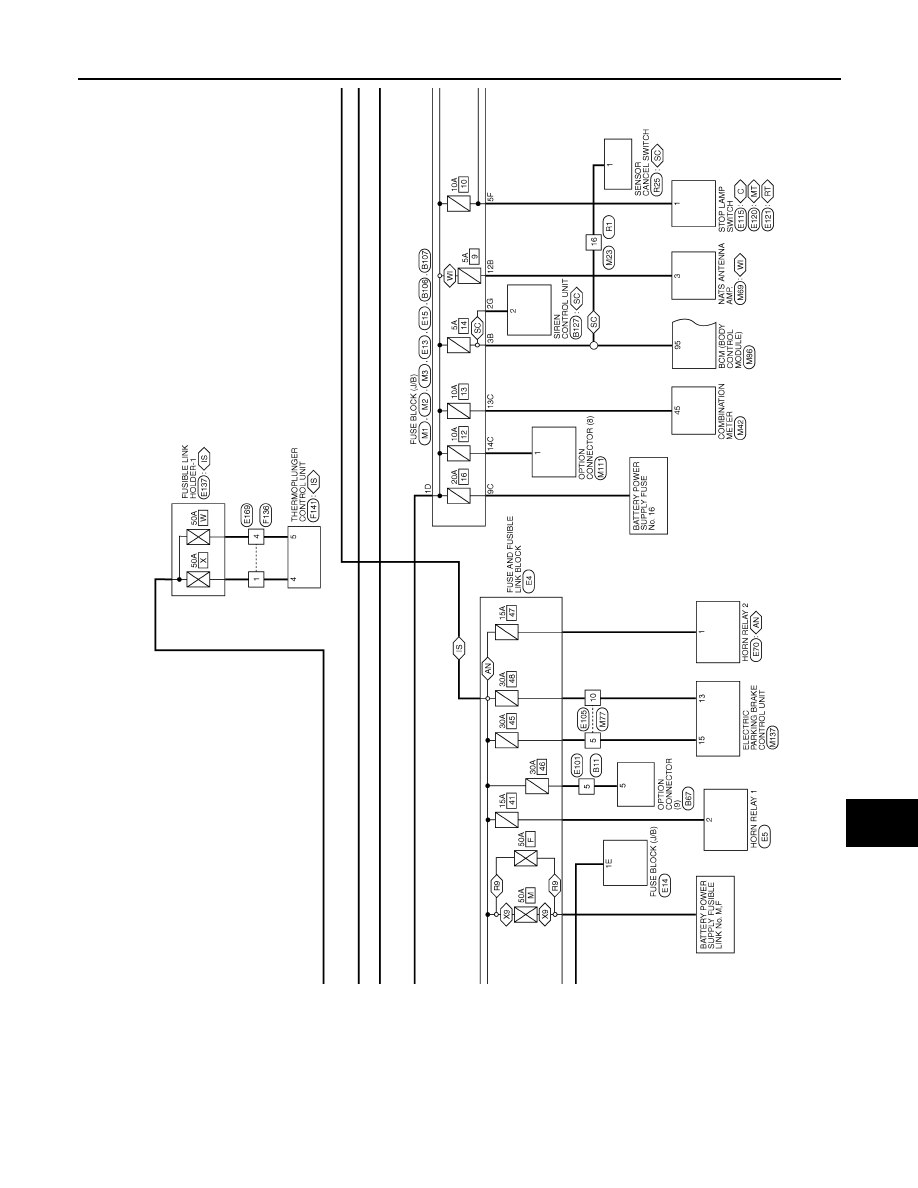

Wiring Diagram - BATTERY POWER SUPPLY -

INFOID:0000000010709198

JRMWF4101GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-13

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JRMWF4102GB
