PCS-114

< SYMPTOM DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

ACCESSORY POWER SUPPLY IS NOT SUPPLIED EVEN IF DOOR IS UN-

LOCKED BY KEY

ACCESSORY POWER SUPPLY IS NOT SUPPLIED EVEN IF DOOR IS UN-
LOCKED BY KEY

ALL SWITCHES AND UNITS

ALL SWITCHES AND UNITS : Diagnosis Procedure

INFOID:0000000010741760

1.

CHECK ACCESSORY RELAY

Check accessory relay
Refer to

PCS-107, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK AUTO ACC 2 POWER SUPPLY

Check auto ACC 2 power supply.
Refer to

PCS-109, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

REPLACE BCM

Replace BCM. Refer to

BCS-121, "Removal and Installation"

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

EXCEPT AUDIO/NAVIGATION

EXCEPT AUDIO/NAVIGATION : Diagnosis Procedure

INFOID:0000000010741761

1.

CHECK ACCESSORY RELAY

Check accessory relay
Refer to

PCS-107, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE BCM

Replace BCM. Refer to

BCS-121, "Removal and Installation"

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

AUDIO/NAVIGATION ONLY

AUDIO/NAVIGATION ONLY : Diagnosis Procedure

INFOID:0000000010741762

1.

CHECK AUTO ACC 2 POWER SUPPLY

Check auto ACC 2 power supply.
Refer to

PCS-109, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE BCM

Replace BCM. Refer to

BCS-121, "Removal and Installation"

PCS

ACCESSORY POWER SUPPLY IS NOT SUPPLIED EVEN IF DOOR IS UN-

LOCKED BY KEY

PCS-115

< SYMPTOM DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

PCS-116

< REMOVAL AND INSTALLATION >

[POWER DISTRIBUTION SYSTEM]

PUSH-BUTTON IGNITION SWITCH

REMOVAL AND INSTALLATION

PUSH-BUTTON IGNITION SWITCH

Removal and Installation

INFOID:0000000010741763

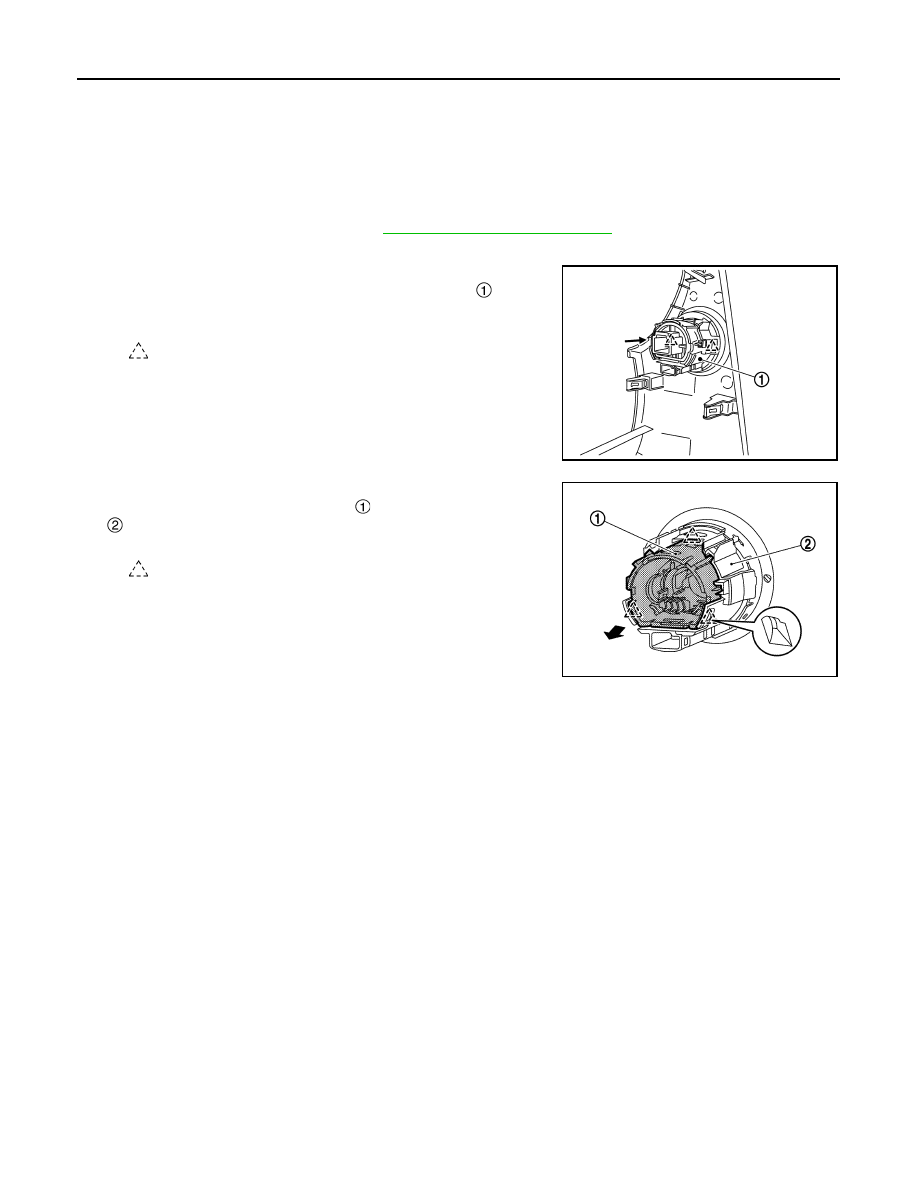

REMOVAL

1.

Remove instrument finisher E. Refer to

IP-41, "Removal and Installation"

.

2.

Disconnect push-button ignition switch connector and NATS antenna amp. connector.

3.

Disengage NATS antenna amp. fixing pawls and then remove
NATS antenna amp. and push-button ignition switch

 as a set

from instrument finisher E.

4.

Disengage push-button ignition switch fixing pawl and then
remove push-button ignition switch

 from NATS antenna amp.

.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMMIA1607JP

: Pawl

JMMIA1435ZZ

PG

PG-1
