OPERATION

OPERATION

Switch Name and Function

INFOID:0000000010714995

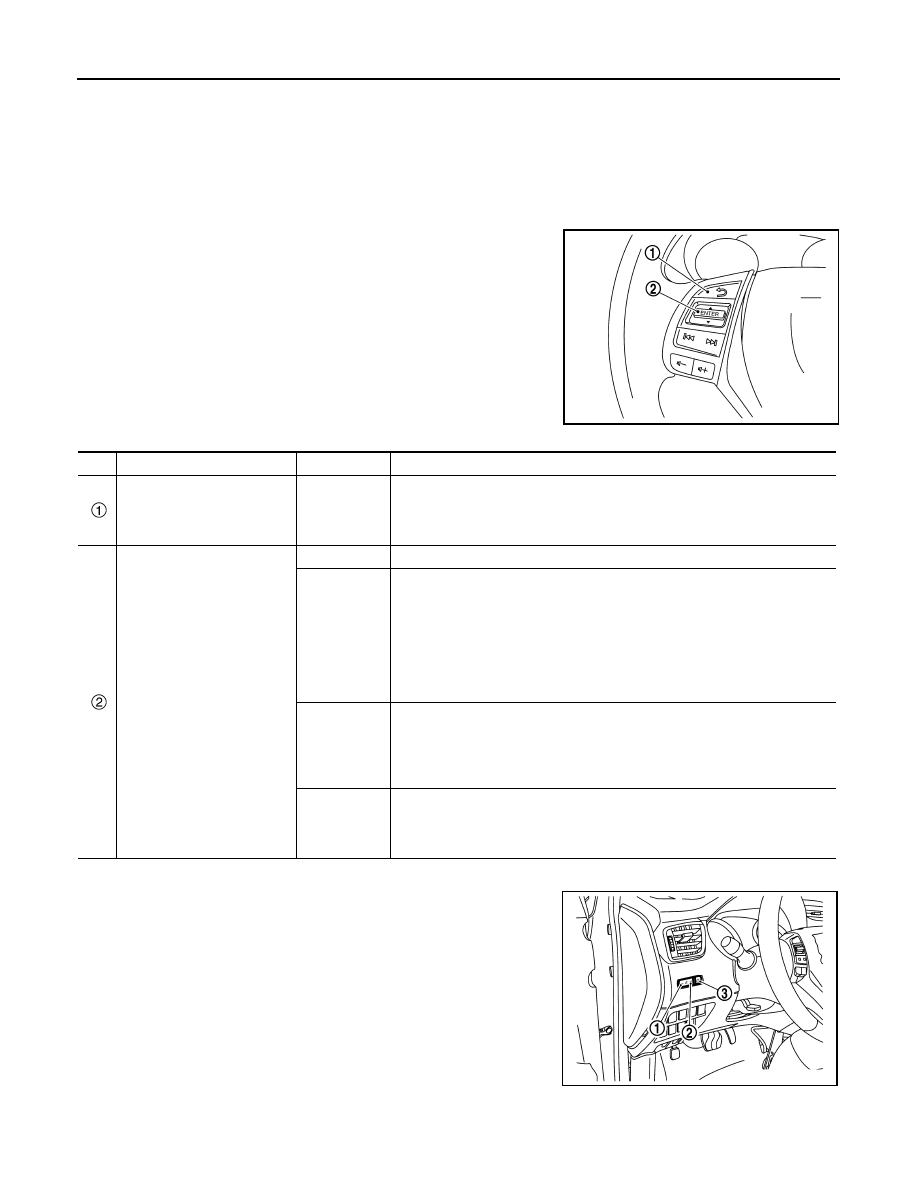

STEERING SWITCH

• The steering switch is located on the steering wheel.
• Transmits the steering switch signal to the combination meter.

METER CONTROL SWITCH

• The illumination control switch is located on the instrument finisher

A.

• Transmits the following signals to the combination meter.
- Trip reset switch signal
- Illumination control switch signal (+)
- Illumination control switch signal (

−

)

JSNIA7195ZZ

No.

Switch name

Operation

Description

Back switch

Press

• Switches the screen shown on the information display to the previous

screen.

• Switches the screen shown on the information display to the previous

screen.

ENTER switch

Press

Confirms each item displayed on the information display.

Press and
hold

• When pressed for 1 second or more with an average vehicle speed or fuel

economy (average fuel consumption, ECO pedal guide) displayed on the in-
formation display, the displayed value (average vehicle speed or average
fuel consumption) can be reset.

• When pressed for 3 second or more with an average vehicle speed or fuel

economy (average fuel consumption, ECO pedal guide) displayed on the in-
formation display, a new screen appears and average  vehicle speed and
average fuel consumption can be simultaneously reset.

Push up

• Switches the screen shown on the information display to the previous

screen.

• Moves up the item selected on the information display.
• Increases the set value displayed on the settings screen of the information

display.

Push down

• Switches the screen shown on the information display to the next screen.
• Moves down the item selected on the information display.
• Decreases the set value displayed on the settings screen of the information

display.

JSNIA7197ZZ

MWI

OPERATION

MWI-83

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

No.

Switch name

Operation

Description

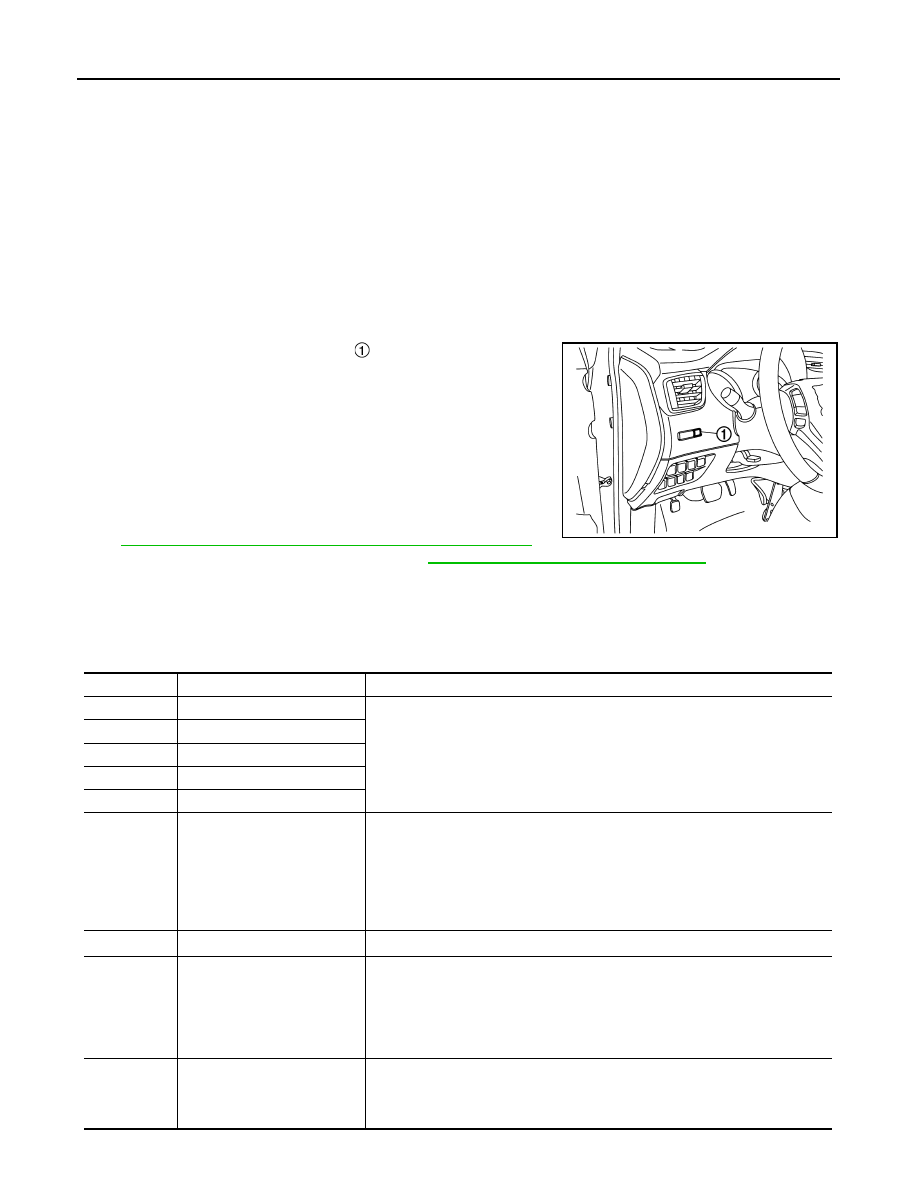

Illumination control switch (

−

)

Press

An illuminance level of the back light of the combination meter can be adjusted.

Illumination control switch (+)

Trip reset switch

Press

• The trip meter can be switched between A and B.
• Trip meter A/B can be reset by pressing and holding the trip reset switch.

MWI-84

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (COMBINATION METER)

DIAGNOSIS SYSTEM (COMBINATION METER)

On Board Diagnosis Function

INFOID:0000000010714996

COMBINATION METER SELF-DIAGNOSIS MODE

The following meter functions can be checked during Combination Meter Self-Diagnosis Mode:
• Pointer sweep of speedometer, tachometer and gauges.
• Illumination of LCD color patterns for meter displays.
• Illumination of all lamps/LEDs that are controlled by the combination meter.
• Error code

STARTING COMBINATION METER SELF-DIAGNOSIS MODE

How to Initiate Self-Diagnosis Mode

1.

Turn ignition switch OFF.

2.

While pressing the trip reset switch

, turn ignition switch ON.

3.

Keep the trip reset switch for 1 seconds or more.

4.

Press the trip reset switch at least 3 times. (Within 7 seconds
after the ignition switch is turned ON.)

5.

“Work instruction code” is indicated in the top portion of informa-
tion display and self-diagnosis is started.
NOTE:
When on-board diagnosis does not start, check the following
items and replace combination meter if the check results are
normal.
• Combination meter power supply and ground circuits. Refer to

MWI-129, "COMBINATION METER : Diagnosis Procedure"

.

• Meter control switch signal circuits. Refer to

MWI-134, "Component Function Check"

.

6.

The mode switches in the order shown below each time the trip reset switch is pressed.
NOTE:
If the trip reset switch is not operated for 20 seconds or more, the self-diagnosis mode is automatically
cancelled.

JSNIA7183ZZ

Test order

Test item

Description

1

Work instruction code

This item is displayed, but not used.

2

Software code

3

EEPROM code

4

Hardware code

5

P.C.B code

6

Circuit check

The pointer of the following items moves from 0 to MAX twice.
• Speedometer
• Tachometer
• Engine coolant temperature gauge
• Fuel gauge
NOTE:
If any one of the pointers does not sweep, replace combination meter.

7

Color check

*1

Performs the color check of the information display.

8

Error code

*2

Displays the error code of the following items.
• Speedometer
• Tachometer
• Engine coolant temperature gauge
• Fuel gauge
• Meter control switch

9

Warning/indicator lamp check

All warning/indicator lamp illuminate.
NOTE:
• When either one of them does not turn ON, replace combination meter.
• SRS air bag warning lamp and security indicator lamp are not illuminate.

MWI

DIAGNOSIS SYSTEM (COMBINATION METER)

MWI-85

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

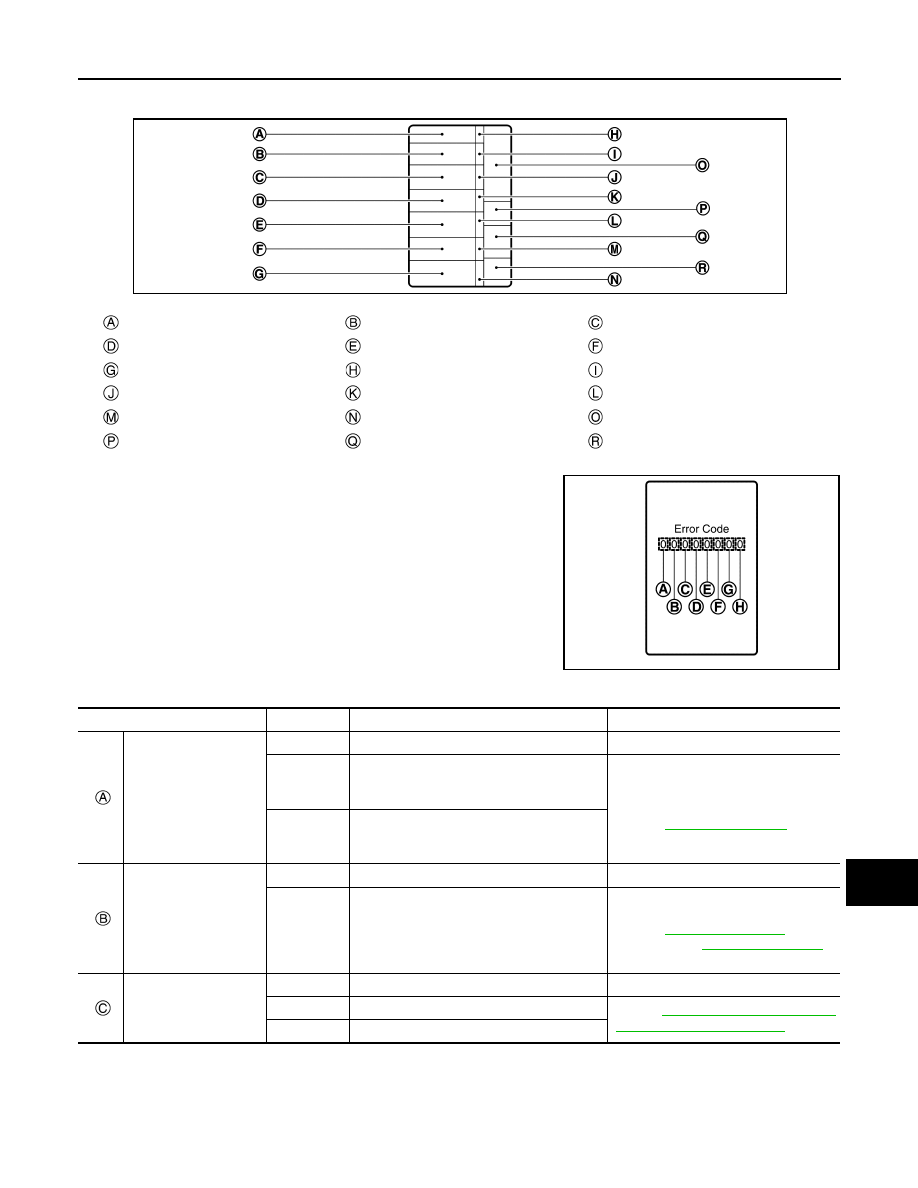

*1: Color Check

*2: Error Code

Blue

Red

Pink

Green

Light blue

Yellow

White

White

Black

Light blue

Black

Pink

Black

Blue

Black

Dark blue

White

Blue

JSNIA5944ZZ

JSNIA5945ZZ

Item

Code

Description

Action to take/Reference

Speedometer

0

Normal

—

1

A vehicle speed signal cannot be received
from ABS actuator and electric unit (control
unit).

Perform “Self Diagnostic Result” of
“ABS.”
Refer to

BRC-84, "DTC Index"

.

2

A vehicle speed signal received from the
ABS actuator and electric unit (control unit)
is abnormal.

Tachometer

0

Normal

—

1

An engine speed signal cannot be received
from TCM.

Perform “Self Diagnostic Result” of
“TCM.”
Refer to

TM-288, "DTC Index"



(RE0F10D), or

TM-529, "DTC Index"



(RE0F10G)

Fuel gauge

0

Normal

—

1

Fuel gauge circuit is short.

Refer to

MWI-136, "EXCEPT FOR R9M

: Component Function Check"

.

2

Fuel gauge circuit is open.
