ODO/TRIP METER

The combination meter calculates mileage, based on the following signals and displays the mileage on the
information display.

WARNING CONFIRMATION

• The combination meter can cause an interrupt on the information display to indicate a warning, based on

signals received from each unit and switch.

• The indicated warning can be checked with “WARNING” during the satisfaction of an interrupt indication

condition for each warning.

SETTINGS

The condition of following items can be set.
• Driver assistance
• Clock
• Meter settings
• Vehicle settings
• Maintenance
• Alarm
• Tire Pressures
• Unit
• Language
• Factory  Reset

TRIP COMPUTER

Current Fuel Consumption

The combination meter calculates current fuel consumption based on the following signals, and the calculated
value is displayed on the information display.
Current fuel consumption can be compared with average fuel consumption.

NOTE:
• Current fuel consumption on the information display is updated approximately every 0.1 seconds.
• Current fuel consumption on the information display shows 0 l/100km (0 mpg) when vehicle speed is 0 km/h

(0 MPH).

ECO Pedal Guide

Stop/Start switch status

EC-864, "INFORMATION DISPLAY (COMBINATION
METER) : Indicator/Information"

Stop/Start system indicator

EC-864, "INFORMATION DISPLAY (COMBINATION
METER) : Indicator/Information"

Indicator

Reference

Signal name

Signal path

Ignition signal

—

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

Signal name

Signal source

Ignition signal

—

Fuel consumption monitor signal

ECM

 Combination meter

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

Steering switch signal

Steering switch

 Combination meter

MWI-76

< SYSTEM DESCRIPTION >

SYSTEM

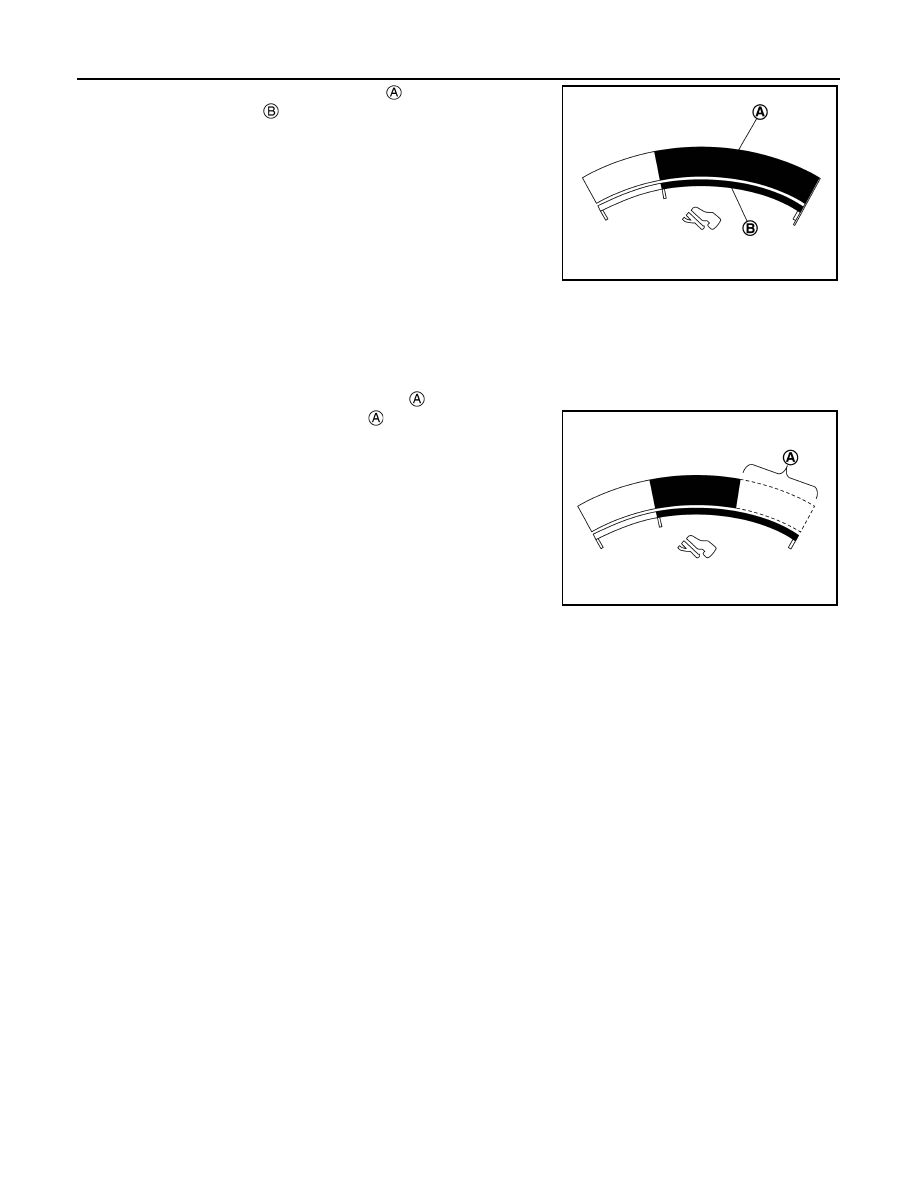

The ECO pedal guide consists of Gauge 1

 (displays accelerator

pedal angle) and Gauge 2

 (displays the guideline of ECO driving).

GAUGE1

• ECM corrects the accelerator pedal angle to the maximum angle for ECO driving, according to vehicle

speeds.
The maximum accelerator pedal angle increases/decreases as the vehicle speed increases/decrease.
The maximum accelerator angle corrected by ECM is the limitation of ECO driving. The ECO driving is pos-
sible only when the number of unlit segments

 of the indicator bar is equal to or less than that of Gauge 2.

The less the number of unlit segments

 of the indicator bar, the

more the degree of ECO driving is. And the more the number of
unlit segments, the less the degree of ECO driving is.

ECM judges the number of lighting segments according to the accelerator pedal angle and vehicle speed
and transmits a CAN communication signal to the combination meter via CAN communication.
The combination meter indicates the number of segments necessary for the ECO pedal guide, according to
an ECO pedal guide signal.
NOTE:
The combination meter corrects the number of lighting segments according to a vehicle speed signal.

GAUGE2

JSNIA5878ZZ

JSNIA5879ZZ

MWI

SYSTEM

MWI-77

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

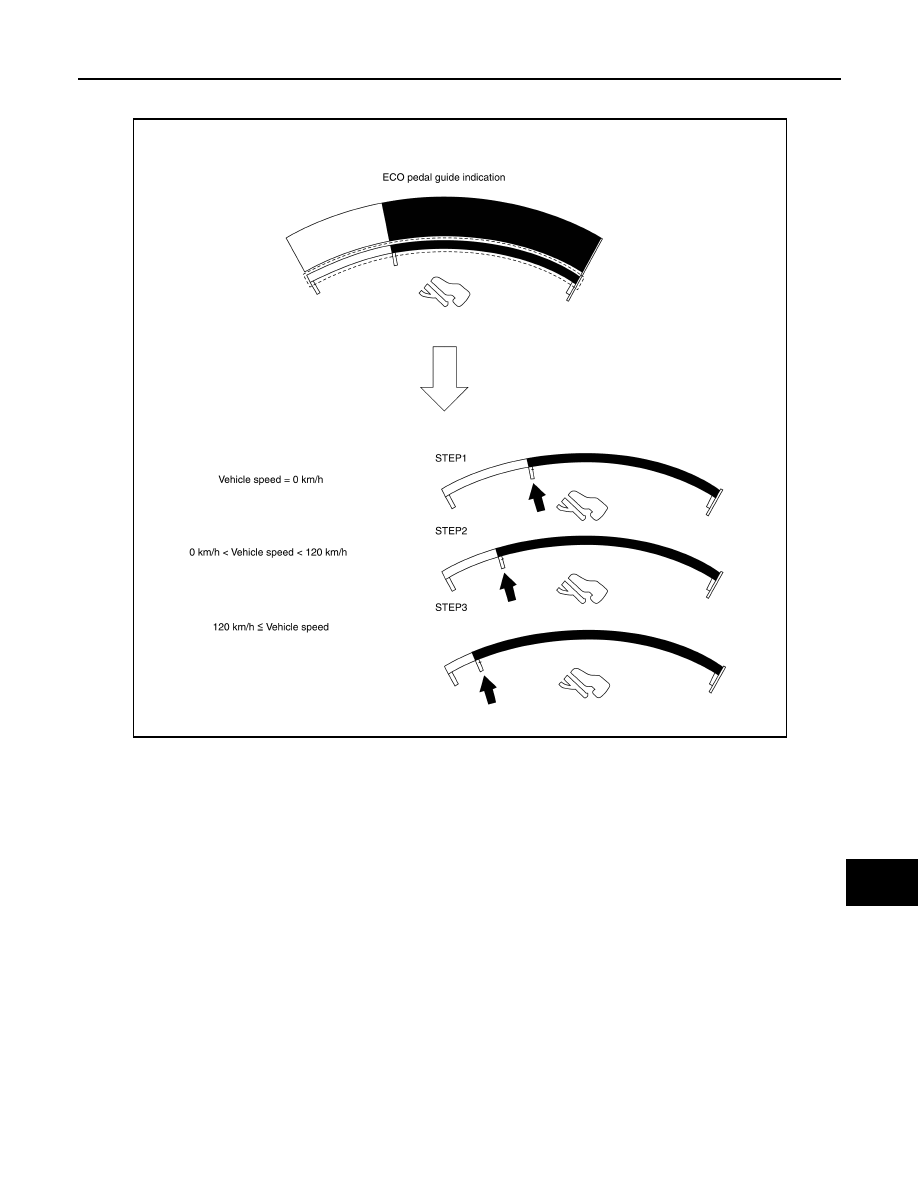

• The combination meter turns ON/OFF the Gauge 2 (guide line for ECO driving) according to a vehicle speed

signal.

ECO DRIVE INDICATOR

JSNIA6510GB
