MWI-70
< SYSTEM DESCRIPTION >
SYSTEM
*: Close the driver side door with the intelligent key left inside the vehicle.
Signal Path
The combination meter judges “driver welcome”, according to the following signals and activates the driver
welcome function.
NOTE:
The driver welcome function ends if any one of the above conditions is lost during the activation of this function.
Engine-start Effect Function
When recognizing an engine start, the combination meter controls the following items for producing the effect.
• Speedometer
• Tachometer
• Information display
• Meter illumination
Meter and Illumination Operations During Engine-start Effect
The combination meter controls the following items during the engine-start effect.
NOTE:
• *1: When the dial effect is deactivated on the settings screen of the information display, the speedometer
and tachometer do not sweep.
• *2: When the display effect is deactivated on the settings screen of the vehicle information display, animation
is not shown.
Engine Start Judgement
The combination meter judges “engine-start” and activates the engine-start effect only once when the follow-
ing operational conditions are all satisfied.
NOTE:
The engine-start effect exits when any of the above operational conditions is cancelled during the engine-start
effect.

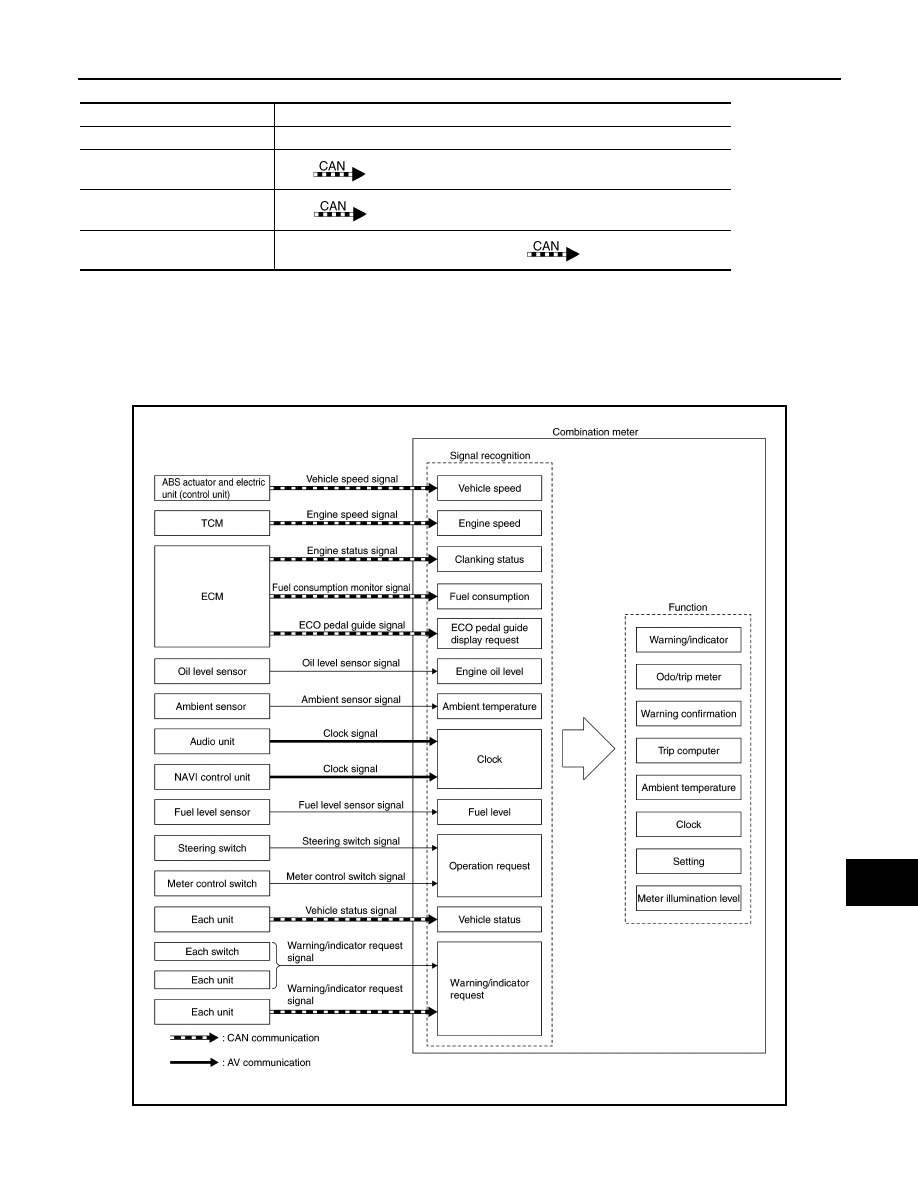

Signal Path
The combination meter judges “engine-start”, according to the following signals and activates the engine-start
effect function.
Operational condition
Ignition switch
LOCK position
Driver side door
Open
→
Close
*
Signal name
Signal source
Ignition signal
—
Meter effect signal
BCM
Combination meter
Control item
Operation
Speedometer
*1
Sweeps the pointer.
Tachometer
*1
Sweeps the pointer.
Dial illumination
Increases the brightness to the effect level in stages.
Pointers
Turns on the illumination at the effect level.
Information display
*2
Display the animation.
Operational condition
Ignition switch
ON position
Vehicle speed
Less than 1 km/h (0.6 MPH)
Engine state
Other than the time of cranking the engine
Engine speed
500 rpm or more
