< SYSTEM DESCRIPTION >

SYSTEM

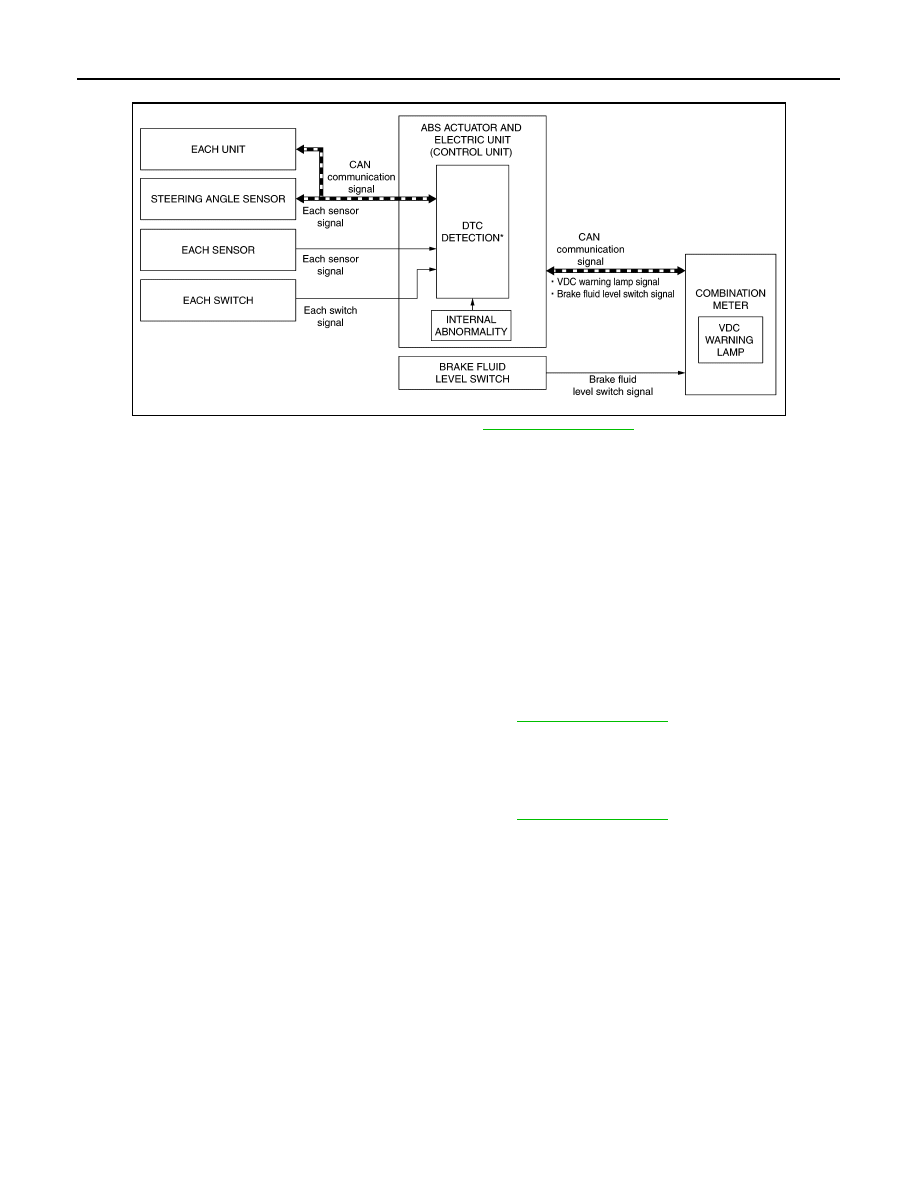

SYSTEM DIAGRAM

*: For DTCs that the VDC warning lamp turns ON, refer to

BRC-84, "DTC Index"

.

SIGNAL PATH

When Operating VDC Function, TCS Function, Brake Limited Slip Differential (BLSD) Function

• The ABS actuator and electric unit (control unit) transmits a VDC warning lamp signal to the combination

meter via CAN communication when operating in the VDC function, TCS function, or brake limited slip differ-
ential (BLSD) function.

• The combination meter blinks the VDC warning lamp when receiving a VDC warning lamp signal.

When VDC Function, TCS Function, ABS Function, EBD Function, Brake Limited Slip Differential (BLSD) Function,
Brake Assist Function, Brake Force Distribution Function, hill start assist Function, advanced hill decent control Func-
tion Are In Abnormal State

• The ABS actuator and electric unit (control unit) transmits a VDC warning lamp signal to the combination

meter via CAN communication when detecting a malfunction in the VDC function, TCS function, brake lim-
ited slip differential (BLSD) function, brake assist function, hill start assist function or brake force distribution
function

• The combination meter turns ON the VDC warning lamp when receiving a VDC warning lamp signal.
• For the relationship between warning lamp and DTC, refer to

BRC-84, "DTC Index"

.

LIGHTING CONDITION

• A malfunction is detected in the VDC function, TCS function, ABS function, EBD function, brake limited slip

differential (BLSD) function, brake assist function, brake force distribution function, hill start assist function or
advanced hill decent control function of the ABS actuator and electric unit (control unit).

• For the relationship between warning lamp and DTC, refer to

BRC-84, "DTC Index"

.

BLINKING CONDITION

When VDC function, TCS function, or brake limited slip differential (BLSD) function is under operating condi-
tions.

SHUTOFF CONDITION

• When the condition listed below is satisfied while the ignition switch ON:
- Erase  DTC
• When VDC function, TCS function, or brake limited slip differential (BLSD) function is not under operating

conditions.

• The ignition switch is in a position other than ON.

JSFIA1754GB

MWI

SYSTEM

MWI-63

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

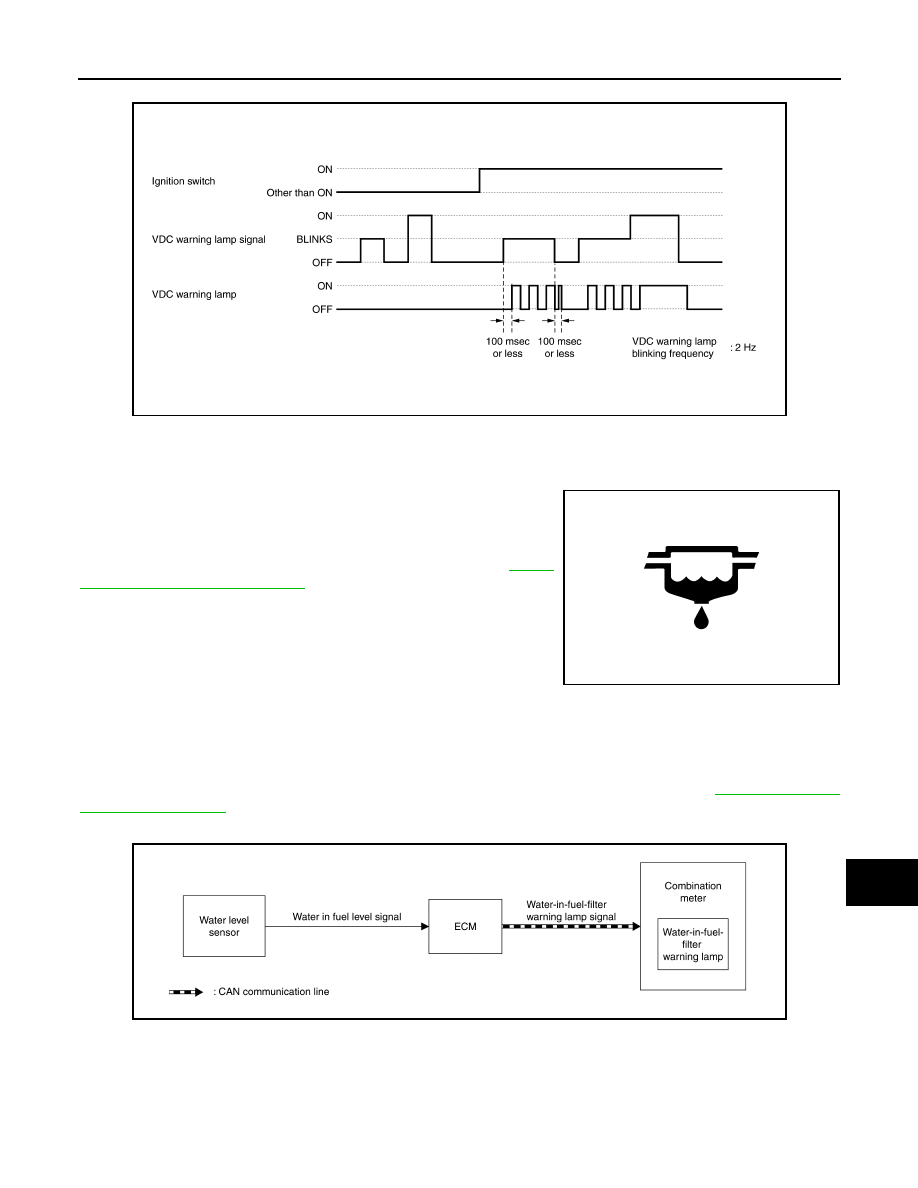

TIMING CHART

WARNING LAMPS/INDICATOR LAMPS : Water-in-fuel-filter warning lamp

INFOID:0000000010775881

DESIGN/PURPOSE

When water is accumulated in the fuel filter, the water-in-fuel-filter
warning lamp turns ON to warn the driver that water must be
drained.
NOTE:
For the method of draining water from fuel filter, refer to

FL-38,

"Draining Water from Fuel Filter"

.

BULB CHECK

Not required.

OPERATION AT COMBINATION METER CAN COMMUNICATION CUT-OFF OR UNUSUAL SIG-
NAL

For the operation for CAN communications blackout or abnormal signal reception, refer to

MWI-19, "METER

SYSTEM : Fail-Safe"

.

SYSTEM DIAGRAM

SIGNAL PATH

• ECM reads a signal transmitted from the water level sensor and transmits the signal to the combination

meter via CAN communication.

• The combination meter turns ON the water-in-fuel-filter warning lamp, according to a water-in-fuel-filter

warning lamp signal received from ECM via CAN communication.

LIGHTING CONDITION

JSFIA1755GB

JPNIA1924ZZ

JSBIA5133GB

MWI-64

< SYSTEM DESCRIPTION >

SYSTEM

When all of the following conditions are satisfied:
• Ignition switch ON
• Fuel filter water level is the approximately 50 ml (1.8 Imp fl oz) or more. (Water-in-fuel-filter warning lamp

signal: ON)

SHUTOFF CONDITION

When any of the following condition is satisfied:
• Ignition switch OFF
• Fuel filter water level is less than the approximately 50 ml (1.8 Imp fl oz). (Water-in-fuel-filter warning lamp

signal: OFF)

WARNING/INDICATOR (ON INFORMATION DISPLAY)

WARNING/INDICATOR (ON INFORMATION DISPLAY) : Alert

INFOID:0000000010714989

DESIGN/PURPOSE

To warn the driver when driving the vehicle more than set value time.

SYNCHRONIZATION WITH MASTER WARNING LAMP

Not applicable

SYSTEM DIAGRAM

SIGNAL PATH

Combination meter will operate the timer after turned ignition switch ON.

WARNING/INDICATOR OPERATING CONDITION

When all of the following conditions are satisfied:
• Ignition switch ON
• When time exceeds a set value

WARNING/INDICATOR CANCEL CONDITION

• Ignition switch OFF
• Press the back switch or press the enter switch downward

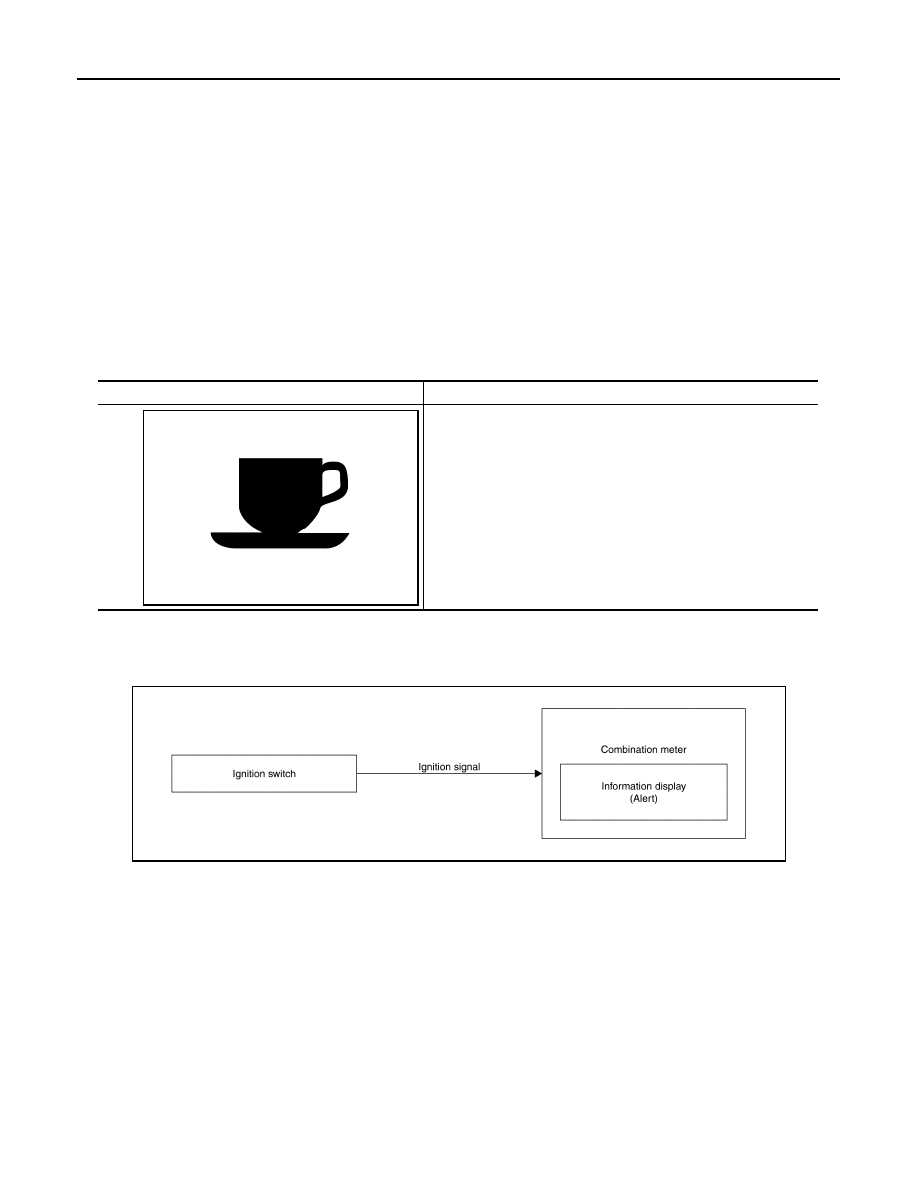

Symbol

Massage

Time for a driver break?

JSNIA5774ZZ

JSNIA7297GB

MWI

SYSTEM

MWI-65

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

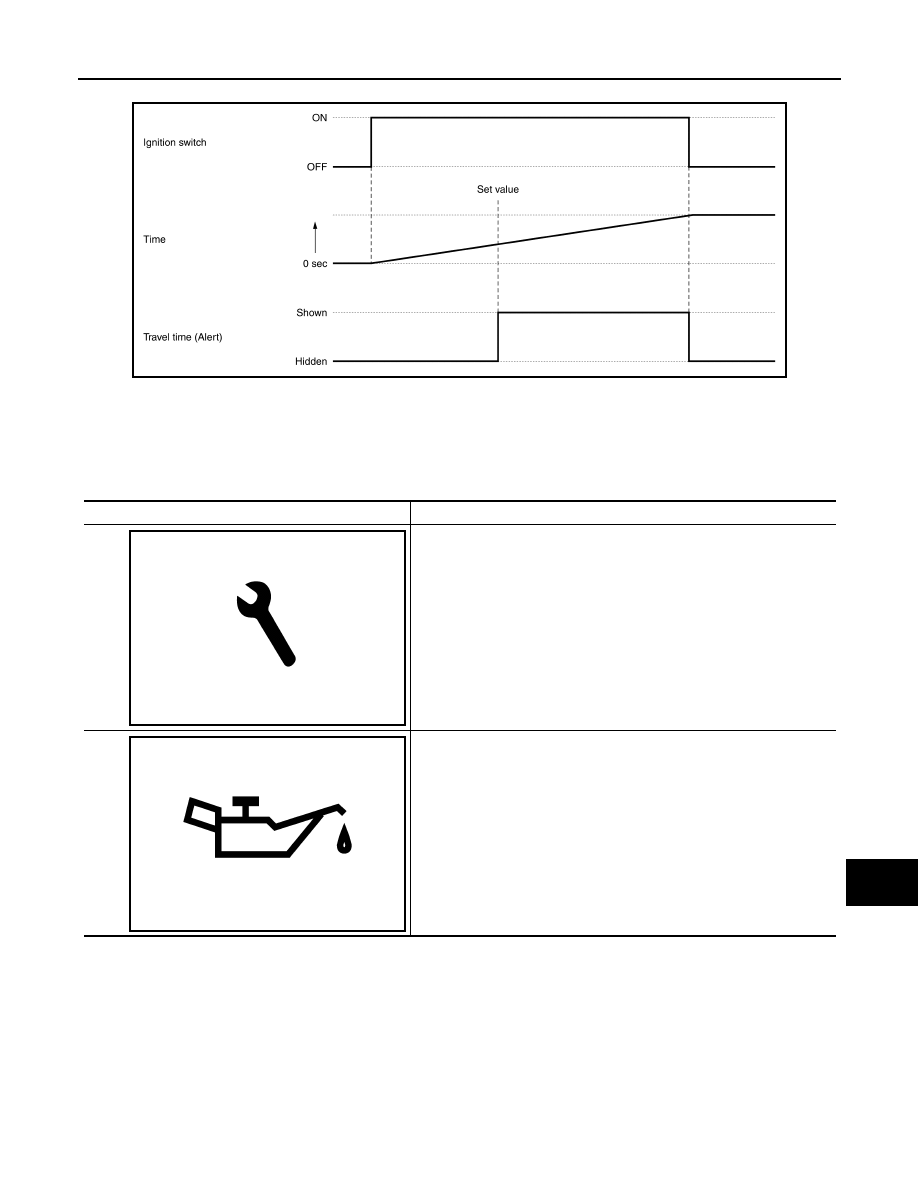

TIMING CHART

WARNING/INDICATOR (ON INFORMATION DISPLAY) : Maintenance

INFOID:0000000010714990

DESIGN/PURPOSE

The combination meter alerts the driver maintenance items (engine oil, oil filter, tires or other) when mileage
exceeds a set value.

JSNIA5802ZZ

Symbol

Message

Oil and Filler

*1

Filler

*2

JSNIA5884ZZ

JPNIA1881ZZ
