When rear fog lamp is turned ON.

SHUTOFF CONDITION

When rear fog lamp is turned OFF.

WARNING LAMPS/INDICATOR LAMPS : Seat Belt Warning Lamp

INFOID:0000000010743088

DESIGN/PURPOSE

Seat belt warning lamp warns the driver that driver seat belt is not
fastened.

BULB CHECK

Not applicable.

SYNCHRONIZATION WITH MASTER WARNING LAMP

Not applicable.

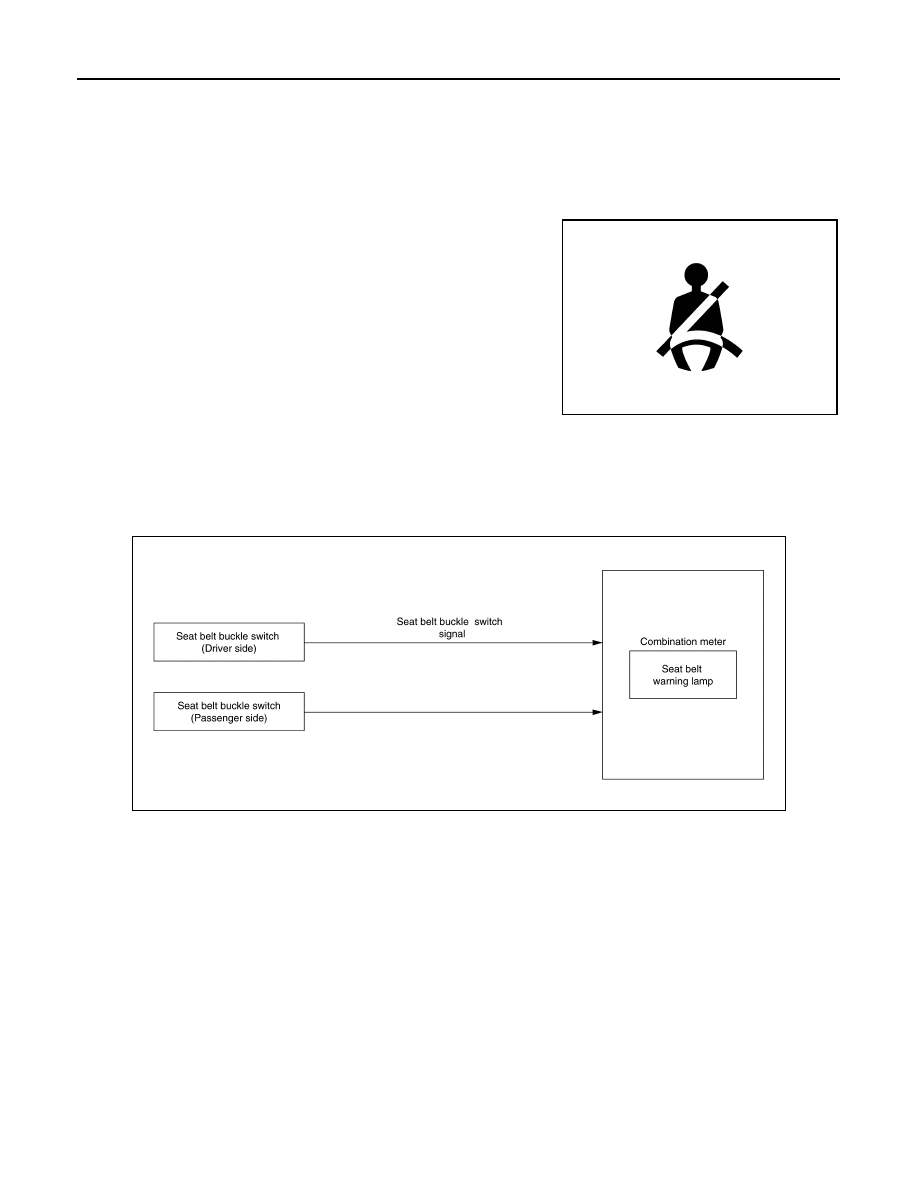

SYSTEM DIAGRAM

SIGNAL PATH

Combination meter turns seat belt warning lamp ON according to driver seat belt buckle switch signal.

LIGHTING CONDITION

Combination meter turns seat belt warning lamp ON when all of the following conditions are satisfied.
• Ignition switch is ON.
• Driver seat belt is not fastened. (Driver seat belt buckle switch is ON.)
• Passenger seat belt is not fastened. (Passenger seat belt buckle switch is ON.)

SHUTOFF CONDITION

• Ignition switch is ON.
• Driver seat belt is not fastened. (Driver seat belt buckle switch is ON.)
• Passenger seat belt is not fastened. (Passenger seat belt buckle switch is ON.)
• Vehicle speed 15km/h (9.3 MPH) or more.

JPNIA1874ZZ

JMNIA0420GB

MWI

SYSTEM

MWI-55

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

TIMING CHART

WARNING LAMPS/INDICATOR LAMPS : Security Indicator Lamp (Turn ON)

INFOID:0000000010743992

DESIGN/PURPOSE

The warning lamp warns the driver that INFINITI VEHICLE IMMOBI-
LIZER SYSTEM is not normal.

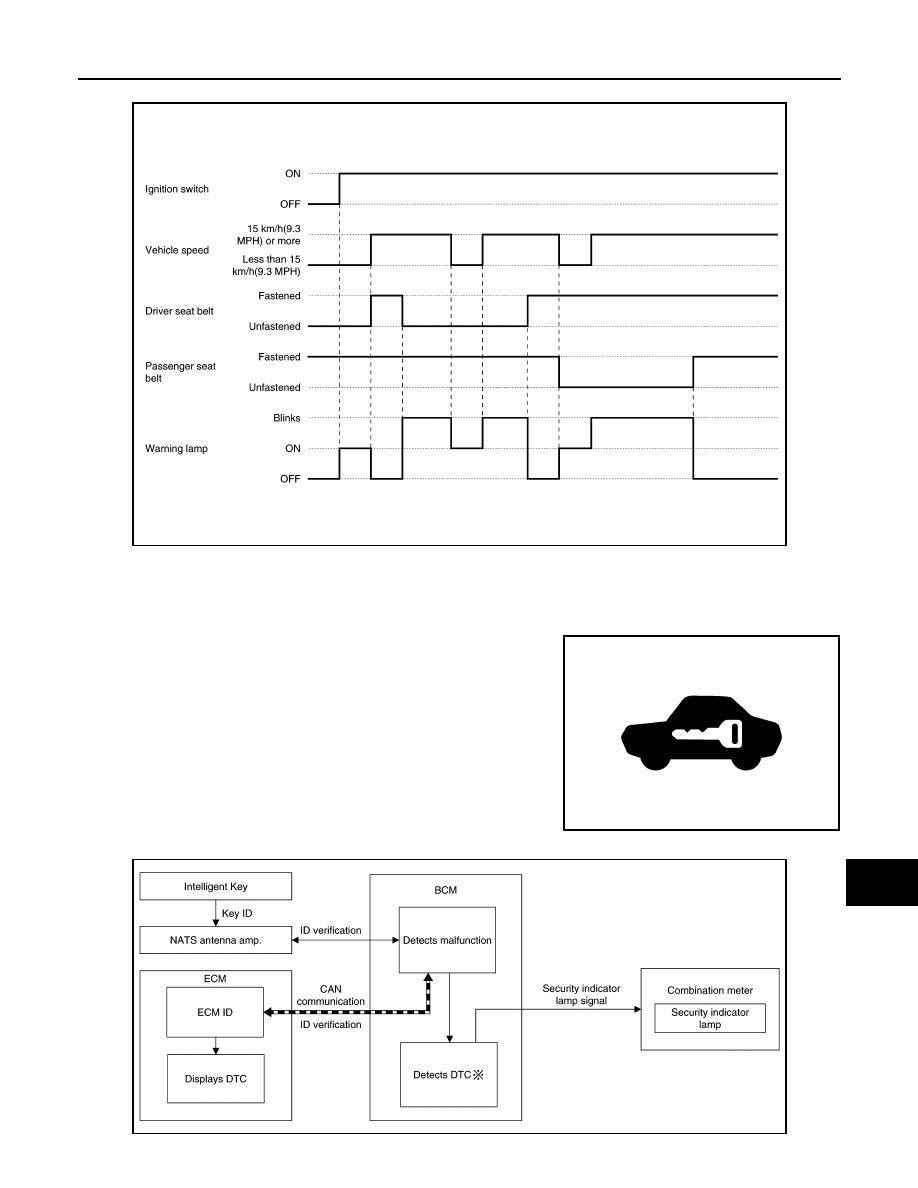

SYSTEM DIAGRAM

JMNIA0421GB

JPNIA1906ZZ

JMKIB0130GB

MWI-56

< SYSTEM DESCRIPTION >

SYSTEM

*: For DTCs that allow security indicator lamp to turn ON when detected, refer to

BCS-78, "DTC Index"

.

SIGNAL PATH

• BCM transmits security indicator lamp signal to combination meter when a malfunction of INFINITI VEHICLE

IMMOBILIZER SYSTEM is detected.

• Combination meter turns security indicator lamp ON, according to security indicator lamp signal.

LIGHTING CONDITION

When all of the following conditions are satisfied.
• Ignition switch: ON position
• A malfunction of INFINITI VEHICLE IMMOBILIZER SYSTEM is detected

SHUTOFF CONDITION

Erase DTC

TIMING CHART

WARNING LAMPS/INDICATOR LAMPS : Security Indicator Lamp (Blinks)

INFOID:0000000010743993

DESIGN/PURPOSE

The indicator lamp warns externally that the vehicle is equipped with
INFINITI VEHICLE IMMOBILIZER SYSTEM.

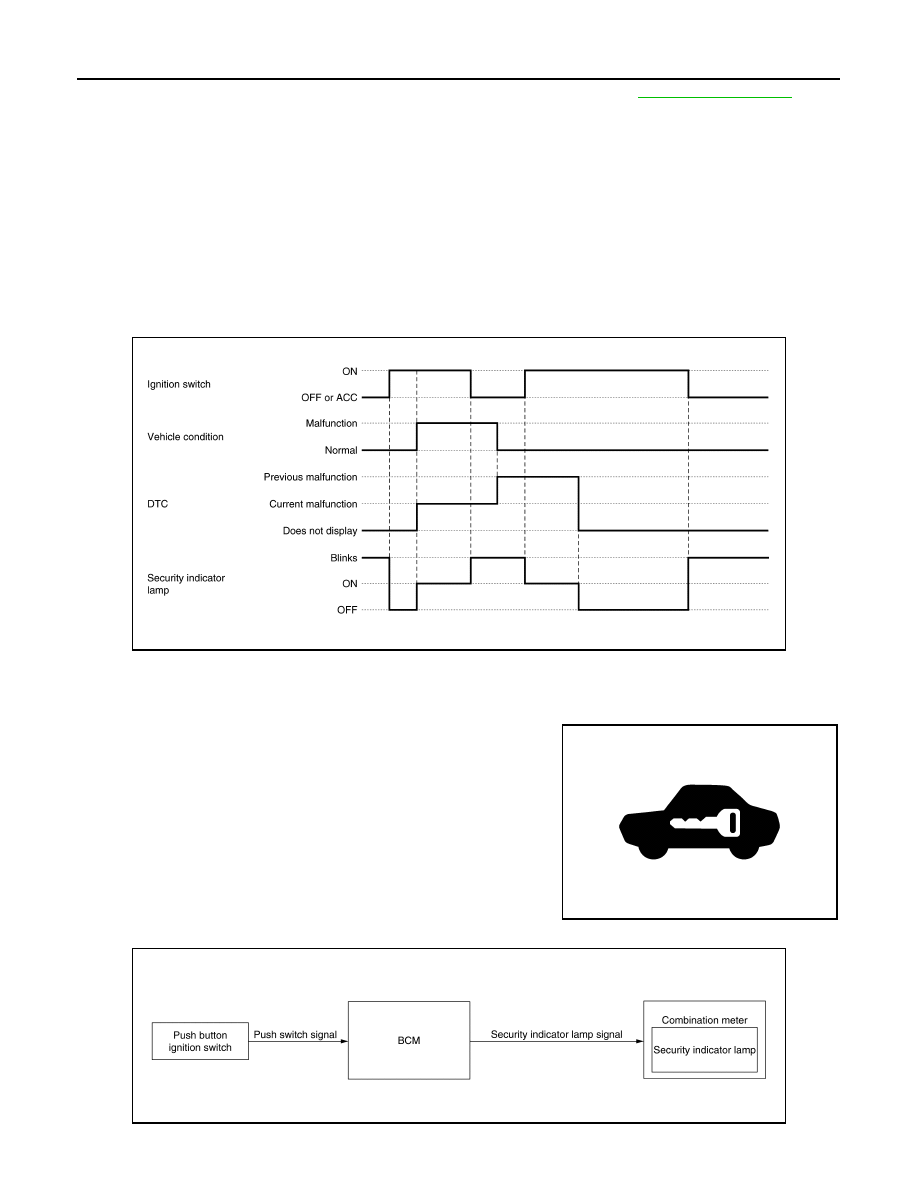

SYSTEM DIAGRAM

JMKIB0131GB

JPNIA1906ZZ

JMKIB0132GB

MWI

SYSTEM

MWI-57

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SIGNAL PATH

• BCM transmits security indicator lamp signal to combination meter when ignition switch is turned OFF
• Combination meter blinks security indicator lamp, according to security indicator lamp signal.

LIGHTING CONDITION

Ignition switch: OFF position

SHUTOFF CONDITION

Ignition switch: Except OFF position

TIMING CHART

WARNING LAMPS/INDICATOR LAMPS : SRS Air Bag Warning Lamp

INFOID:0000000010688218

DESIGN/PURPOSE

The warning lamp warns the driver that SRS air bag system is not
normal.

BULB CHECK

For seven seconds after the ignition switch is turned ON.

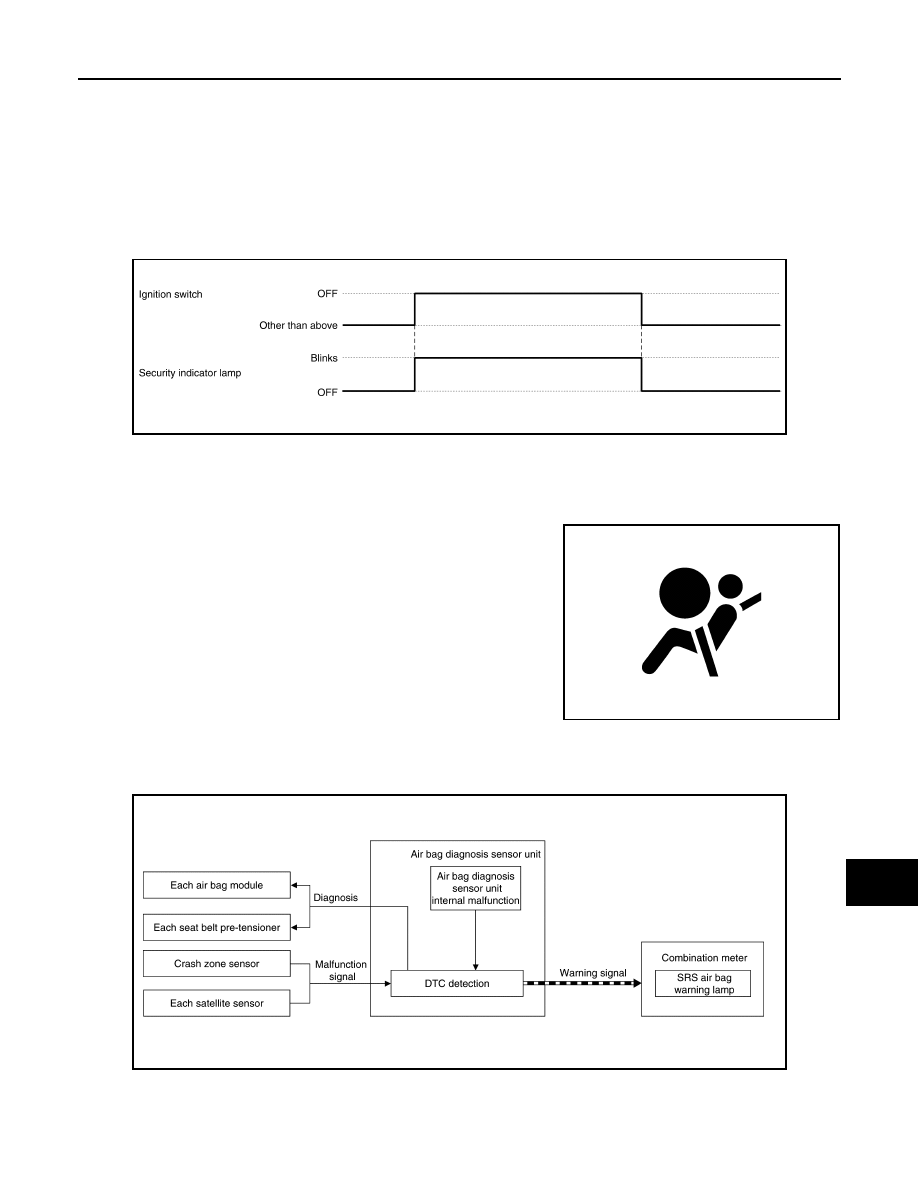

SYSTEM DIAGRAM

SIGNAL PATH

• When a malfunction is detected, air bag diagnosis sensor unit transmits the warning signal to combination

meter.

JMKIB0133GB

JPNIA1904ZZ

JMHIA2940GB
