Nissan X-Trail 32. Manual - part 1591





MWI-46

< SYSTEM DESCRIPTION >

SYSTEM

BULB CHECK

Turns ON for 1second, then turns OFF.

SYNCHRONIZATION WITH MASTER WARNING

Applicable
For master warning, refer to

MWI-47, "WARNING LAMPS/INDICATOR LAMPS : Master Warning Lamp"

.

OPERATION AT COMBINATION METER CAN COMMUNICATION CUT-OFF OR UNUSUAL SIG-
NAL

For the operation for CAN communication blackout in the combination meter, refer to

MWI-19, "METER SYS-

TEM : Fail-Safe"

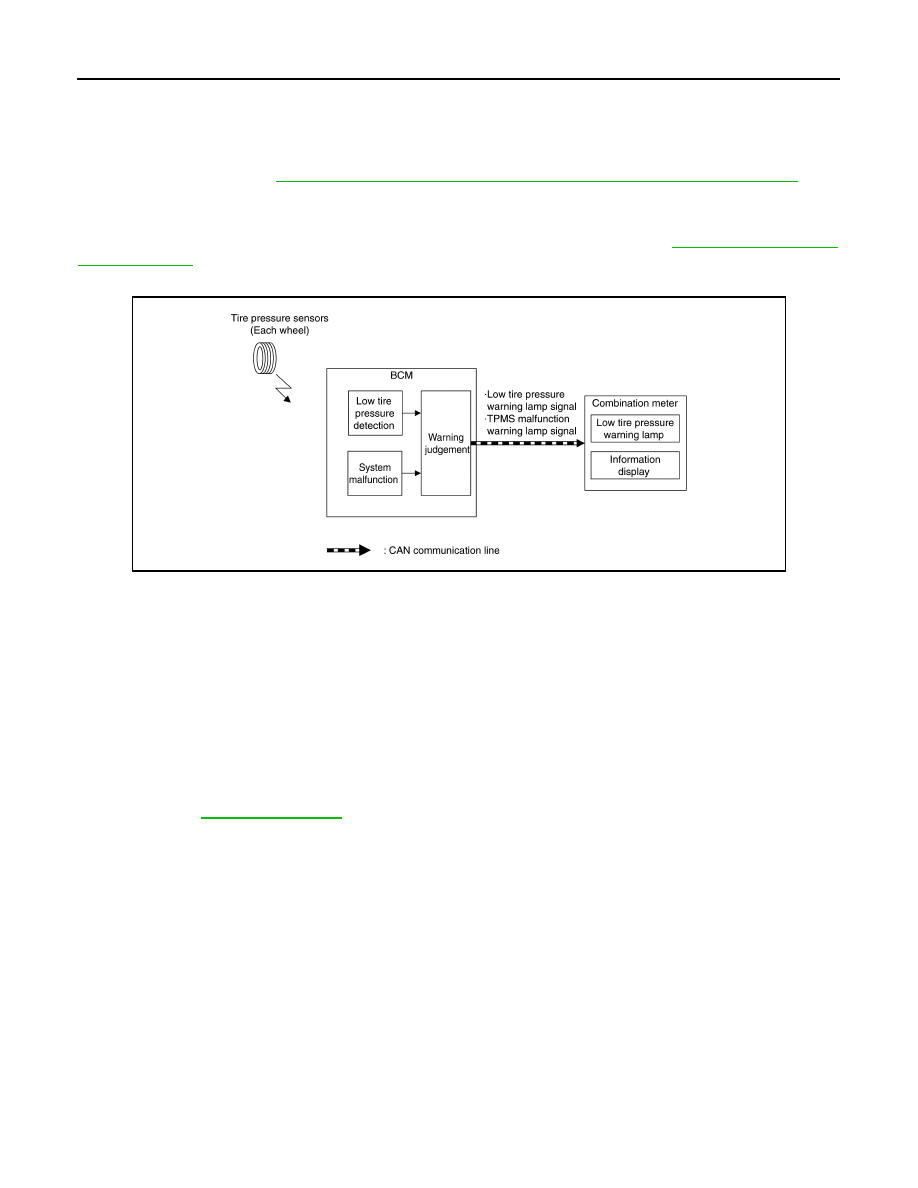

SYSTEM DIAGRAM

SIGNAL PATH

• BCM receives a signal transmitted from the tire pressure sensors/transmitters installed in each wheel.
• If BCM detects following condition, it sends the signal to the combination meter via CAN communication.
- Tire pressure is low
- System malfunction is detected
• Combination meter turns the low tire pressure warning lamp ON according to the signal. In addition, warning

message will be displayed in the vehicle information display.

LIGHTING CONDITION

When any of the following conditions is satisfied:
• Tire pressure is low.
• System malfunction is detected.
• CAN communication line malfunction is detected.
For DTC, refer to

WT-21, "DTC Index"

.

SHUTOFF CONDITION

When any of the following conditions is satisfied:
• Ignition switch is not in ON position.
• All tire pressures are normal.
• System malfunction is not detected.

JSEIA0865GB

MWI

SYSTEM

MWI-47

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

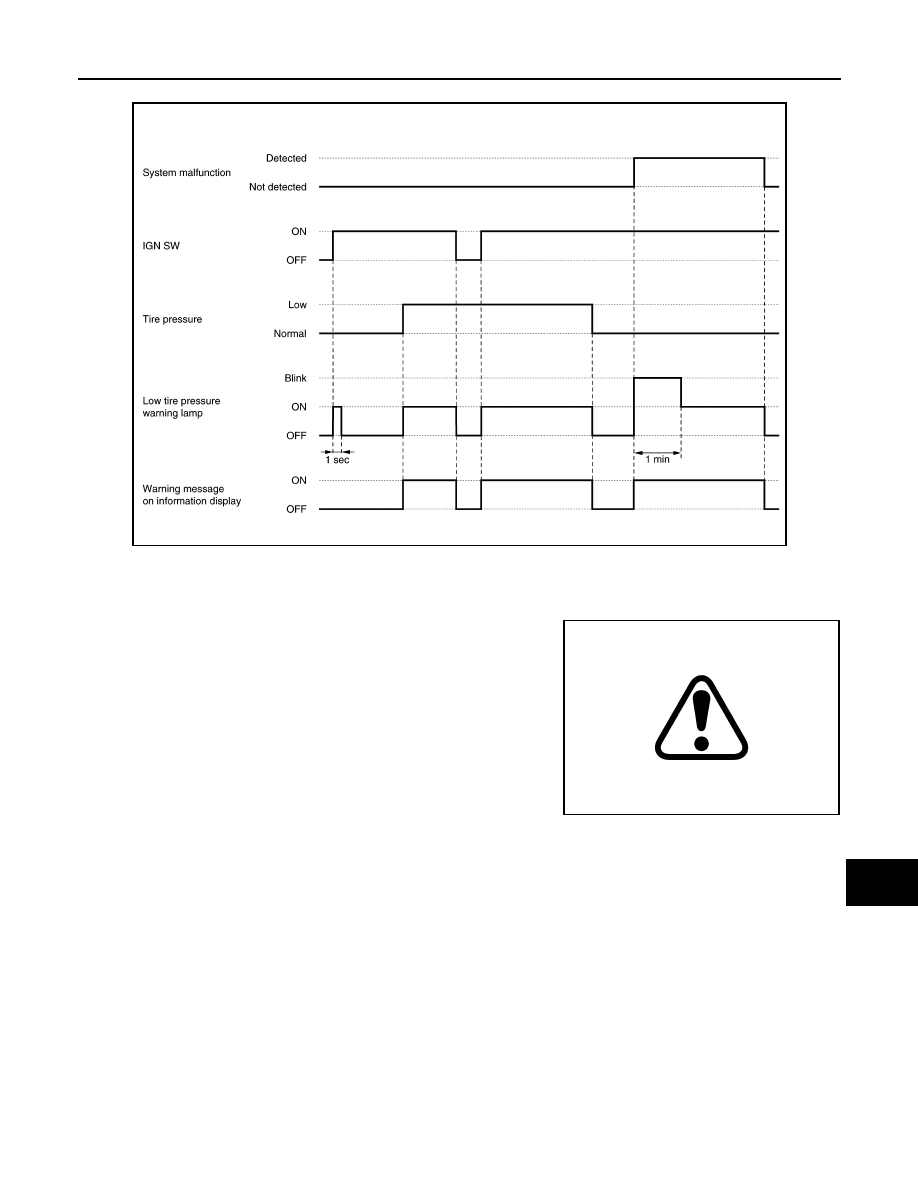

TIMING CHART

WARNING LAMPS/INDICATOR LAMPS : Master Warning Lamp

INFOID:0000000010714994

DESIGN/PURPOSE

The master warning lamp warns to driver when information display
warning displayed.

JSEIA0653GB

JPNIA1925ZZ

MWI-48

< SYSTEM DESCRIPTION >

SYSTEM

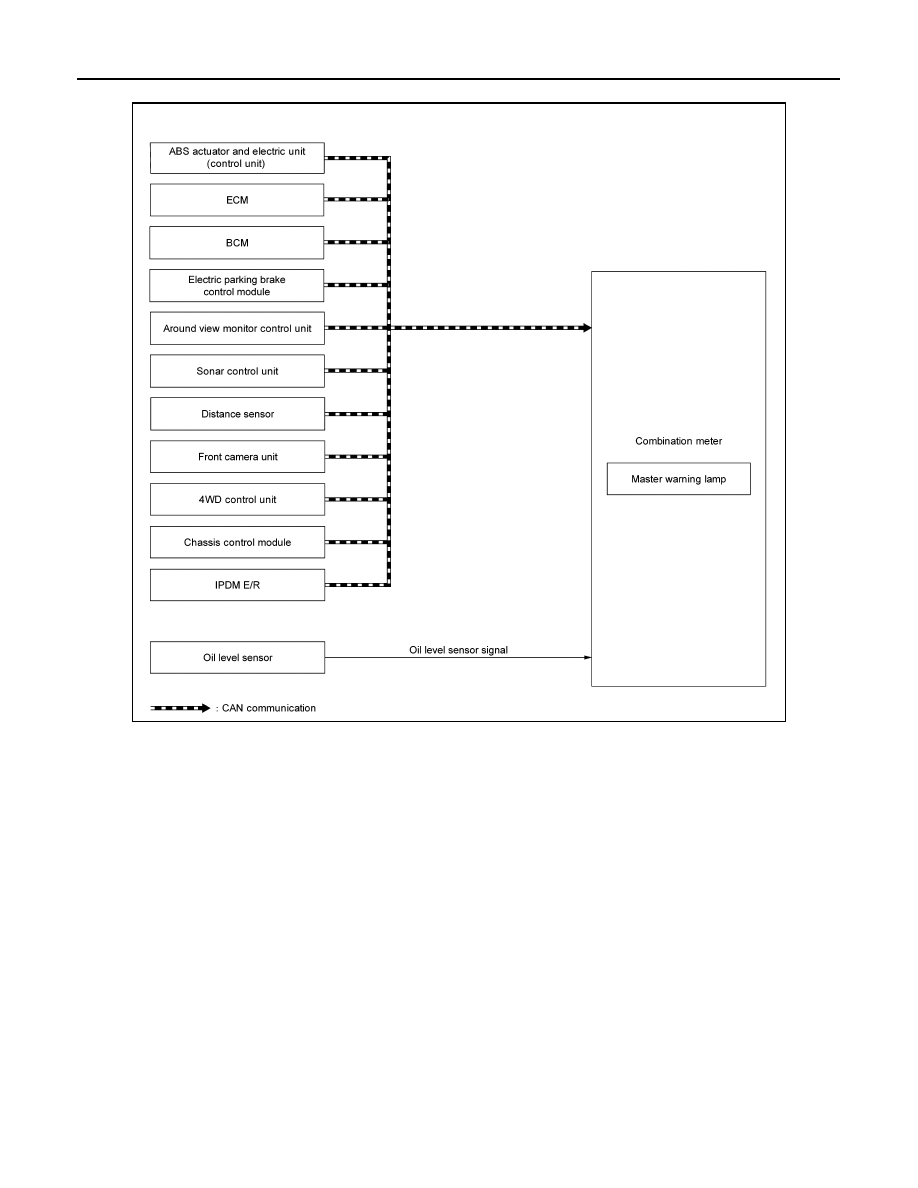

SYSTEM DIAGRAM

DESCRIPTION

The master warning lamp (red) and master warning lamp (yellow) turn ON/OFF in coordination with warning
on the information display.

JSNIA7301GB

MWI

SYSTEM

MWI-49

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

X: Applicable

Information display warning item

Master warning lamp

Reference

Red

Yellow

Door open warning (While driving)

X

DLK-50, "INFORMATION DISPLAY (COMBINA-
TION METER) : Door Open Warning"

 (TYPE1),

DLK-359, "INFORMATION DISPLAY (COMBINA-
TION METER) : Door Open Warning"

 (TYPE2),

DLK-652, "INFORMATION DISPLAY (COMBINA-
TION METER) : Door Open Warning"

 (TYPE3), or

DLK-804, "INFORMATION DISPLAY (COMBINA-
TION METER) : Door Open Warning"

 (TYPE4)

NOTE:
To identify vehicle type, refer to

DLK-22, "Informa-

tion"

.

Door open warning (While not driving)

X

DLK-50, "INFORMATION DISPLAY (COMBINA-
TION METER) : Door Open Warning"

 (TYPE1),

DLK-359, "INFORMATION DISPLAY (COMBINA-
TION METER) : Door Open Warning"

 (TYPE2),

DLK-652, "INFORMATION DISPLAY (COMBINA-
TION METER) : Door Open Warning"

 (TYPE3), or

DLK-804, "INFORMATION DISPLAY (COMBINA-
TION METER) : Door Open Warning"

 (TYPE4)

NOTE:
To identify vehicle type, refer to

DLK-22, "Informa-

tion"

.

Engine oil pressure warning

X

EC-67, "INFORMATION DISPLAY (COMBINA-
TION METER) : Engine Oil Pressure Warining"



(MR20DD),

EC-474, "INFORMATION DISPLAY

(COMBINATION METER) : Engine Oil Pressure
Warning"

 (QR25DE), or

EC-865, "INFORMATION

DISPLAY (COMBINATION METER) : Engine Oil
Pressure Warning"

 (R9M)

Parking brake warning

X

PB-24, "INFORMATION DISPLAY (COMBINA-
TION METER) : Parking Brake Warning"

Intelligent Key system malfunction

X

DLK-54, "INFORMATION DISPLAY (COMBINA-
TION METER) : Intelligent Key System Malfunc-
tion"

 (TYPE1), or

DLK-363, "INFORMATION

DISPLAY (COMBINATION METER) : Intelligent
Key System Malfunction"

 (TYPE2)

NOTE:
To identify vehicle type, refer to

DLK-22, "Informa-

tion"

.

Key system malfunction

X

DLK-653, "INFORMATION DISPLAY (COMBINA-
TION METER) : Key System Malfunction"



(TYPE3), or

DLK-805, "INFORMATION DISPLAY

(COMBINATION METER) : Key System Malfunc-
tion"

 (TYPE4)

NOTE:
To identify vehicle type, refer to

DLK-22, "Informa-

tion"

.

Key ID warning

X

DLK-56, "INFORMATION DISPLAY (COMBINA-
TION METER) : Key ID Warning"

 (TYPE1), or

DLK-365, "INFORMATION DISPLAY (COMBINA-
TION METER) : Key ID Warning"

 (TYPE2)

NOTE:
To identify vehicle type, refer to

DLK-22, "Informa-

tion"

.
