MWI-38

< SYSTEM DESCRIPTION >

SYSTEM

• The ignition switch is in a position other than ON.

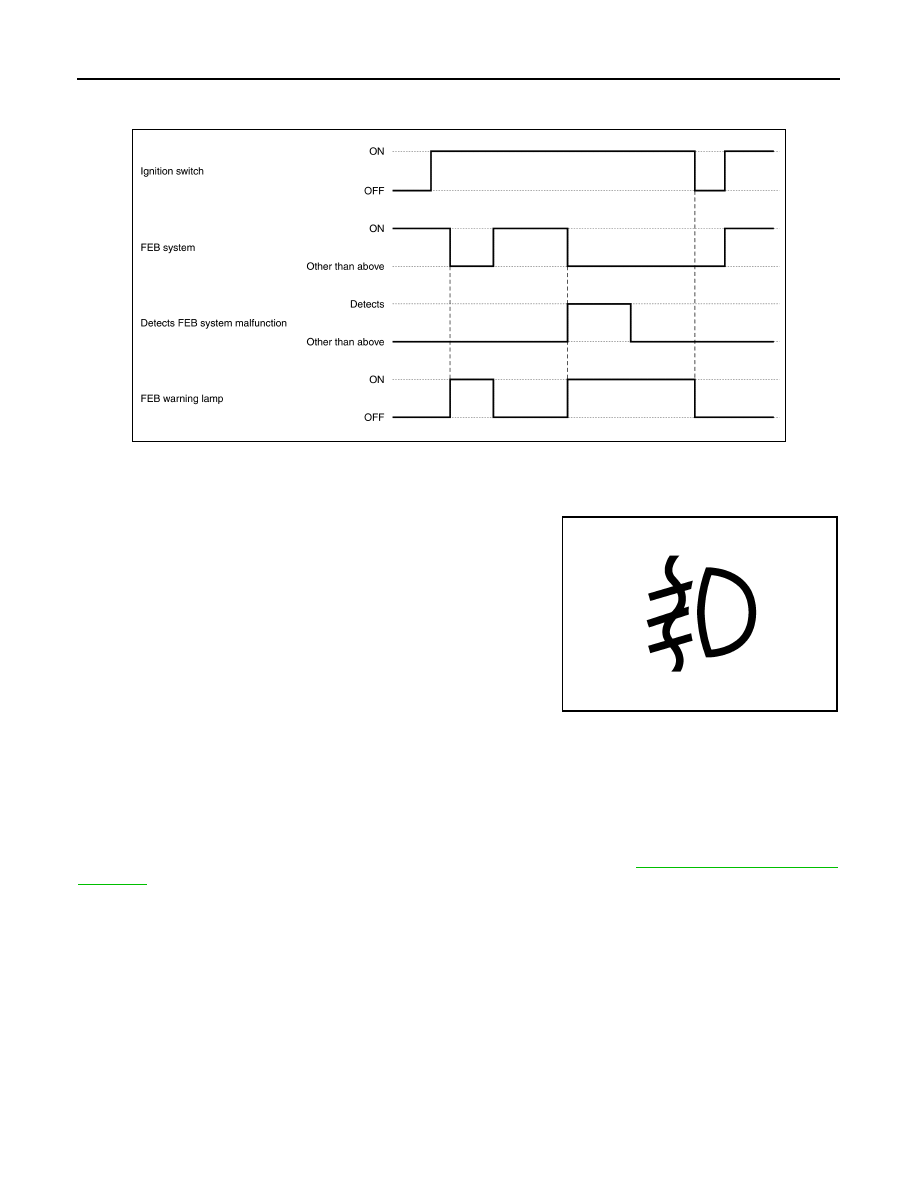

TIMING CHART

WARNING LAMPS/INDICATOR LAMPS : Front Fog Lamp Indicator Lamp

INFOID:0000000010782906

DESIGN/PURPOSE

Front fog lamp indicator lamp informs the driver that front fog lamp is
in ON status.

BULB CHECK

Not applicable

SYNCHRONIZATION WITH MASTER WARNING LAMP

Not applicable

OPERATION AT COMBINATION METER CAN COMMUNICATION CUT-OFF OR UNUSUAL SIG-
NAL

For actions on CAN communications blackout in the combination meter, refer to

MWI-19, "METER SYSTEM :

Fail-Safe"

.

JSOIA0862GB

JPNIA1878ZZ

MWI

SYSTEM

MWI-39

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

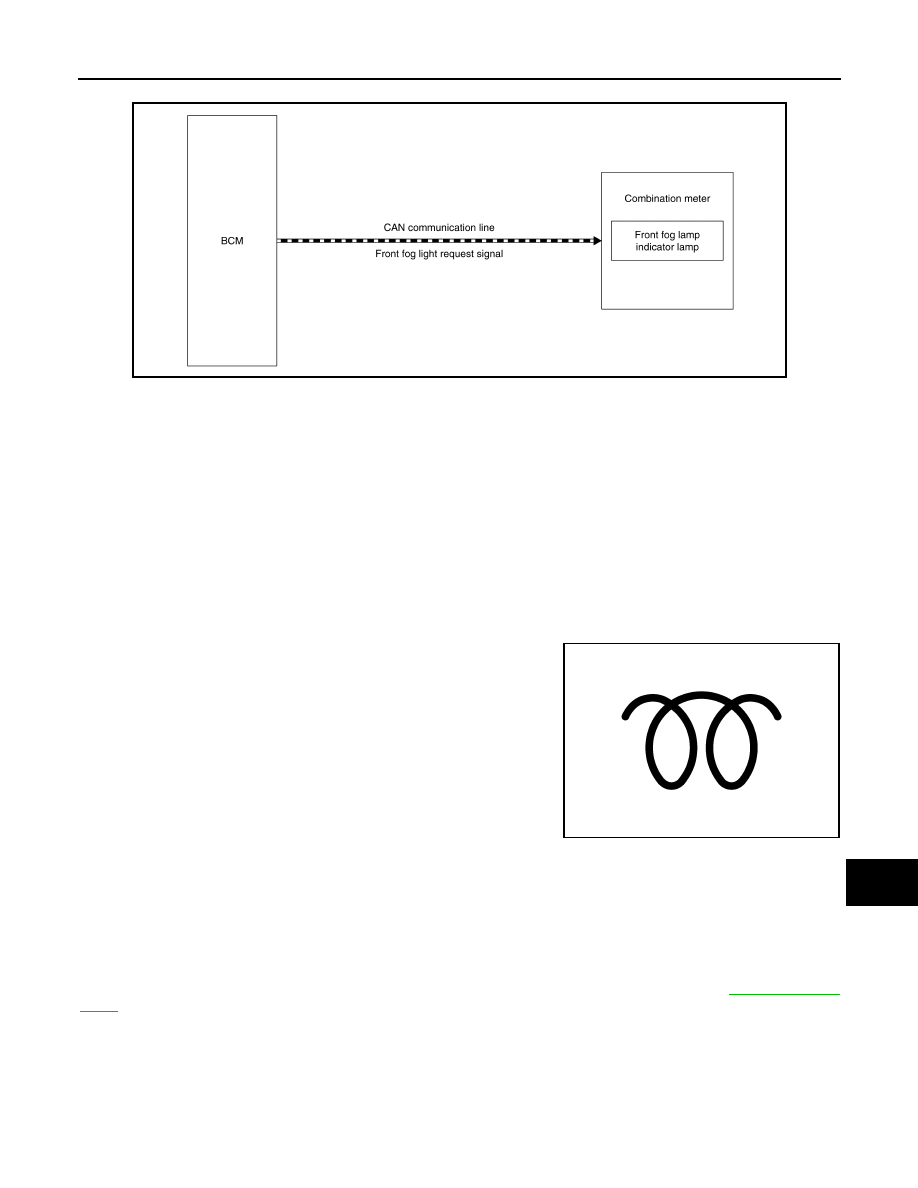

SYSTEM DIAGRAM

SIGNAL PATH

• BCM transmits front fog light request signal to combination meter via CAN communication when front fog

lamp is in ON status.

• When combination meter receives front fog light request signal, combination meter turns front fog lamp indi-

cator lamp ON.

LIGHTING CONDITION

When front fog lamp is turned ON.

SHUTOFF CONDITION

When front fog lamp is turned OFF.

WARNING LAMPS/INDICATOR LAMPS : Glow Indicator Lamp

INFOID:0000000010781001

DESIGN/PURPOSE

The glow indicator lamp turns ON in quick preheat mode and informs
the driver that the glow plug is under preheating condition.

BULB CHECK

Not applicable

SYNCHRONIZATION WITH MASTER WARNING LAMP

Not applicable

OPERATION AT COMBINATION METER CAN COMMUNICATION CUT-OFF OR UNUSUAL SIG-
NAL

For the operation for CAN communications blackout or abnormal signal reception, refer to

MWI-103, "Fail-

Safe"

.

JMLIA4102GB

JPNIA1884ZZ

MWI-40

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM DIAGRAM

SIGNAL PATH

• ECM performs the glow control, according to an IGN ON signal, water temperature signal, and engine speed

signal. ECM transmits a glow indicator lamp signal to the combination meter in quick preheat mode via CAN
communication .

• The combination meter turns ON the glow indicator lamp, according to a glow indicator lamp signal received

from ECM via CAN communication.

LIGHTING CONDITION

When any of the following conditions is satisfied:
• Ignition switch: ON
• Mode: Quick preheat mode
NOTE:
The glow indicator lamp does not turn ON in after glow mode.

SHUTOFF CONDITION

When any of the following conditions is satisfied:
• Ignition switch: OFF
• Quick preheat mode is complete.
• Engine start

TIMING CHART

WARNING LAMPS/INDICATOR LAMPS : High Beam Assist Indicator Lamp

INFOID:0000000010782916

DESIGN/PURPOSE

JPBIA6027GB

JPBIA6028GB

MWI

SYSTEM

MWI-41

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

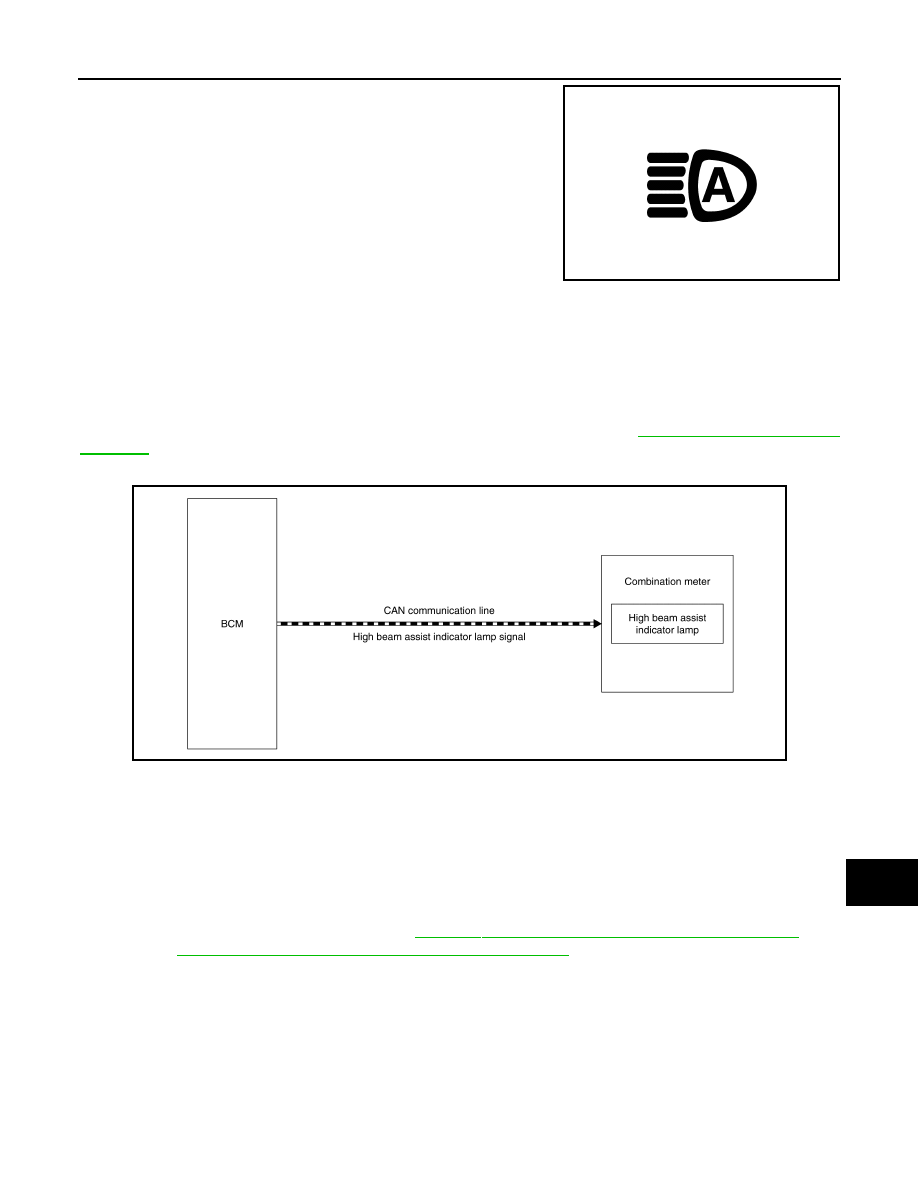

High beam assist indicator lamp informs the driver that the high
beam assist system is in operating status.

BULB CHECK

Not applicable

SYNCHRONIZATION WITH MASTER WARNING LAMP

Not applicable

OPERATION AT COMBINATION METER CAN COMMUNICATION CUT-OFF OR UNUSUAL SIG-
NAL

For actions on CAN communications blackout in the combination meter, refer to

MWI-19, "METER SYSTEM :

Fail-Safe"

.

SYSTEM DIAGRAM

SIGNAL PATH

• BCM transmits the high beam assist indicator lamp signal to the combination meter via CAN communication

when the high beam assist system operation permission conditions are satisfied.

• When combination meter receives high beam assist indicator lamp signal, combination meter turns high

beam assist indicator lamp ON.

LIGHTING CONDITION

High beam assist system operation permission conditions are satisfied.
{[Lighting switch HI with the lighting switch AUTO and ignition switch ON [Only when the illuminating judgment
by auto light function is ON. For details, refer to

EXL-24, "AUTO LIGHT SYSTEM : System Description"

 (LED

headlamp) or

EXL-228, "AUTO LIGHT SYSTEM : System Description"

 (halogen headlamp).]}

SHUTOFF CONDITION

High beam assist system operation permission conditions are not satisfied.

WARNING LAMPS/INDICATOR LAMPS : High Beam Indicator Lamp

INFOID:0000000010782907

DESIGN/PURPOSE

JMLIA4103ZZ

JMLIA4104GB
