SYSTEM

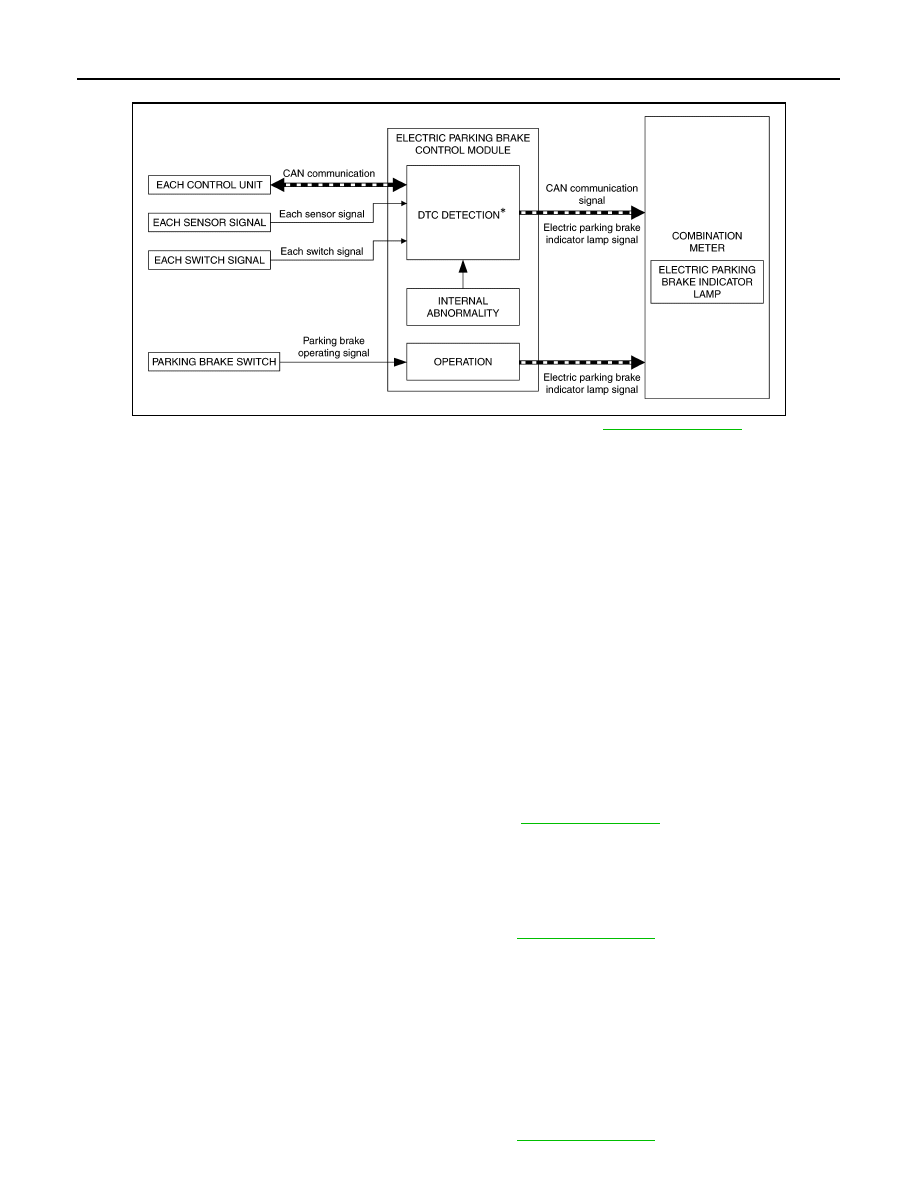

SYSTEM DIAGRAM

*: For DTCs that the electric parking brake indicator lamp turns ON, refer to

PB-36, "DTC Index"

.

SIGNAL PATH

When Operating The Parking Brake

• The electric parking brake control module receives a parking brake switch operation signal from the parking

brake switch is pulling.

• The electric parking brake control module transmits a electric parking brake indicator lamp signal to the com-

bination meter via CAN communication according to the received electric parking brake indicator lamp sig-
nal.

• The combination meter turns ON the electric parking brake indicator lamp when receiving a electric parking

brake indicator lamp signal.

When The Electric Parking Brake System Is In Abnormal State (Blinking)

• The electric parking brake control module transmits a electric parking brake indicator lamp signal to the com-

bination meter via CAN communication when detecting a malfunction (following condition) in the electric
parking brake system.

- When a status cannot be judged between applied and released.
- When the parking brake switch is operated under the condition that the parking brake switch is malfunction.
- When the parking brake switch is operated under the condition that the parking brake actuator is malfunc-

tion.

- When the initial position adjustment of the parking brake actuator is incomplete.
• The combination meter blinking the electric parking brake indicator lamp when receiving a electric parking

brake indicator lamp signal.

• For the relationship between indicator lamp and DTC, refer to

PB-36, "DTC Index"

.

LIGHTING CONDITION

When any of the condition listed below is satisfied while the engine is running:
• Electric parking brake is engaged.
• When the parking brake switch is pulled while driving the vehicle, resulting in parking brake activation.
• While measuring braking force.
• For the relationship between warning lamp and DTC, refer to

PB-36, "DTC Index"

.

BLINKING CONDITION

• When any of the condition listed below is satisfied while the engine is running:
- The combination meter not receives a signal from electric parking brake control module via CAN communi-

cation.

- When the electric parking brake system is not activated. (Unable to judge malfunction)
- When the parking brake switch is operated under the condition that the parking brake switch is malfunction.
- When the parking brake switch is operated under the condition that the parking brake actuator is malfunc-

tion.

- When the initial position adjustment of the parking brake actuator is incomplete.
• When the parking brake is not automatically activated even when the ignition switch is turned OFF.
• For the relationship between warning lamp and DTC, refer to

PB-36, "DTC Index"

.

JSFIA2451GB

MWI

SYSTEM

MWI-35

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SHUTOFF CONDITION

• When any of the condition listed below is satisfied while the ignition switch ON:
- Erase DTC
- Other control unit is normal.
• Parking brake is release status.
• Vehicle condition is sleep status.

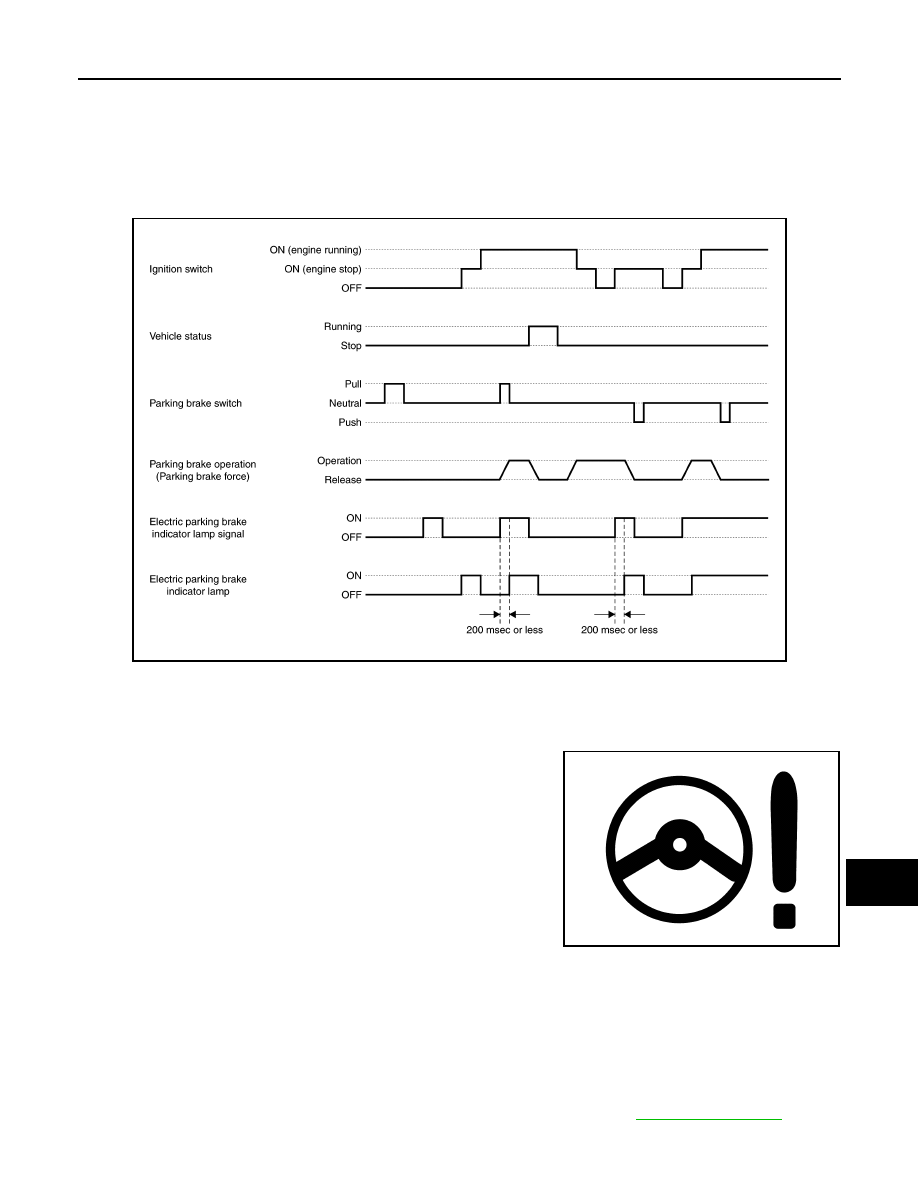

TIMING CHART

WARNING LAMPS/INDICATOR LAMPS : Electric Power Steering Warning Lamp

INFOID:0000000010691364

DESIGN/PURPOSE

It indicates that fail-safe mode is engaged and enters a manual
steering state (Control turning force steering wheel becomes heavy).

BULB CHECK

Also turns ON when ignition switch is turned ON, for purpose of lamp check. Turns OFF after the engine starts,
if system is normal.

SYNCHRONIZATION WITH MASTER WARNING LAMP

Not applicable

OPERATION AT COMBINATION METER CAN COMMUNICATION CUT-OFF OR UNUSUAL SIG-
NAL

For actions on CAN communications blackout in the combination meter, refer to

MWI-103, "Fail-Safe"

.

JSFIA2452GB

JSGIA1243ZZ

MWI-36

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM DIAGRAM

*: For DTCs that the hydraulic pump electric power steering system warning lamp turns ON, refer to

STC-21,

"DTC Index"

.

SIGNAL PATH

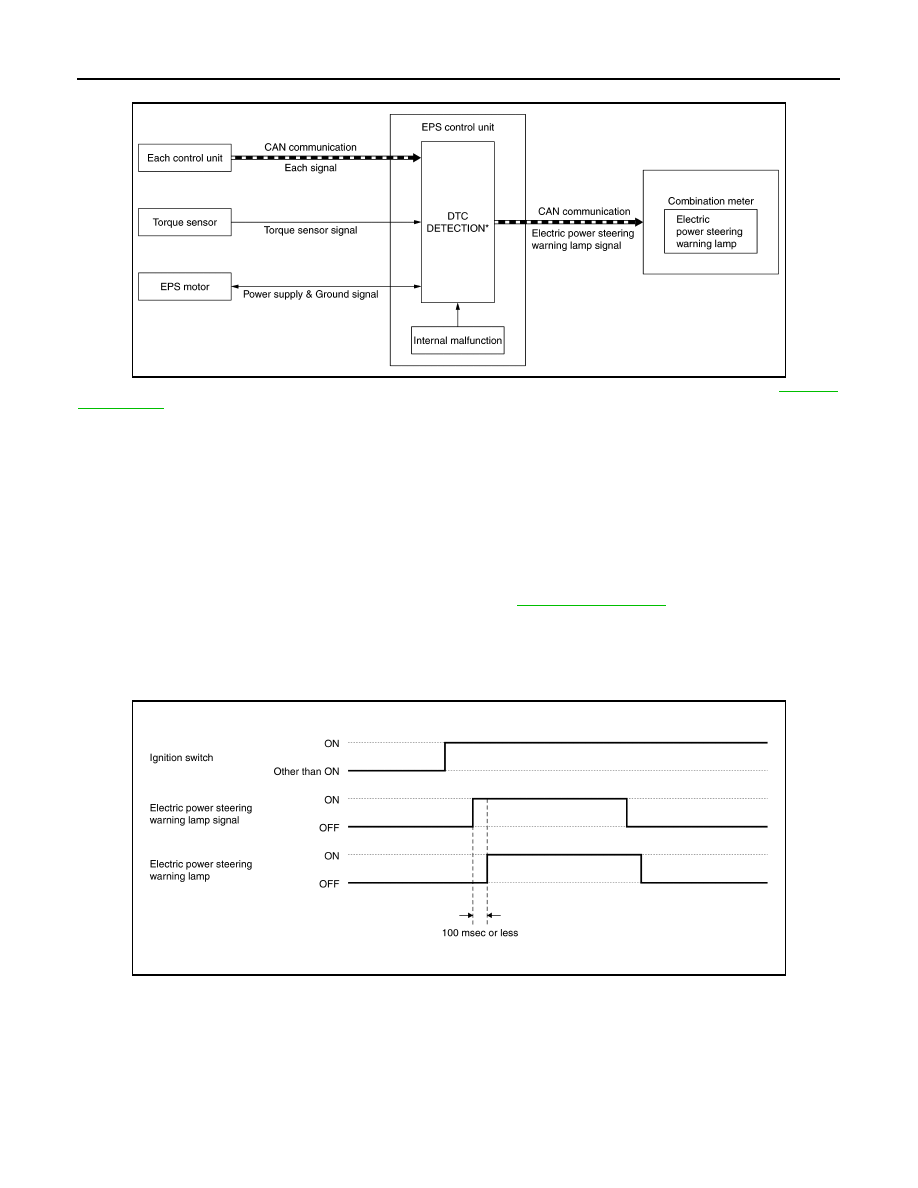

• If any malfunction occurs in the system and the system enters into a manual steering state according to fail-

safe function, power steering control module transmits hydraulic pump electric power steering system warn-
ing lamp signal to combination meter.

• Combination meter turns ON the hydraulic pump electric power steering system warning lamp according to

the hydraulic pump electric power steering system warning lamp signal.

LIGHTING CONDITION

• Any malfunction occurs in the hydraulic pump electric power steering system and steering assist torque is

not generated.

• For the relationship between warning lamp and DTC, refer to

STC-21, "DTC Index"

.

SHUTOFF CONDITION

• The ignition switch is in a position other than OFF.
• DTC is deleted.

TIMING CHART

WARNING LAMPS/INDICATOR LAMPS : FEB Warning Lamp

INFOID:0000000010824367

DESIGN/PURPOSE

• The FEB warning lamp warns the driver that FEB system is OFF.

JSGIA1542GB

JSGIA1543GB

MWI

SYSTEM

MWI-37

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• The FEB warning lamp warns the driver of a malfunction in the

FEB system.

BULB CHECK

The FEB warning lamp turns ON and stays ON for approximately one second after turning ON the ignition
switch.

SYNCHRONIZATION WITH MASTER WARNING LAMP

Not applicable

OPERATION AT COMBINATION METER CAN COMMUNICATION CUT-OFF OR UNUSUAL SIG-
NAL

For actions on CAN communications blackout in the combination meter, refer to

MWI-103, "Fail-Safe"

.

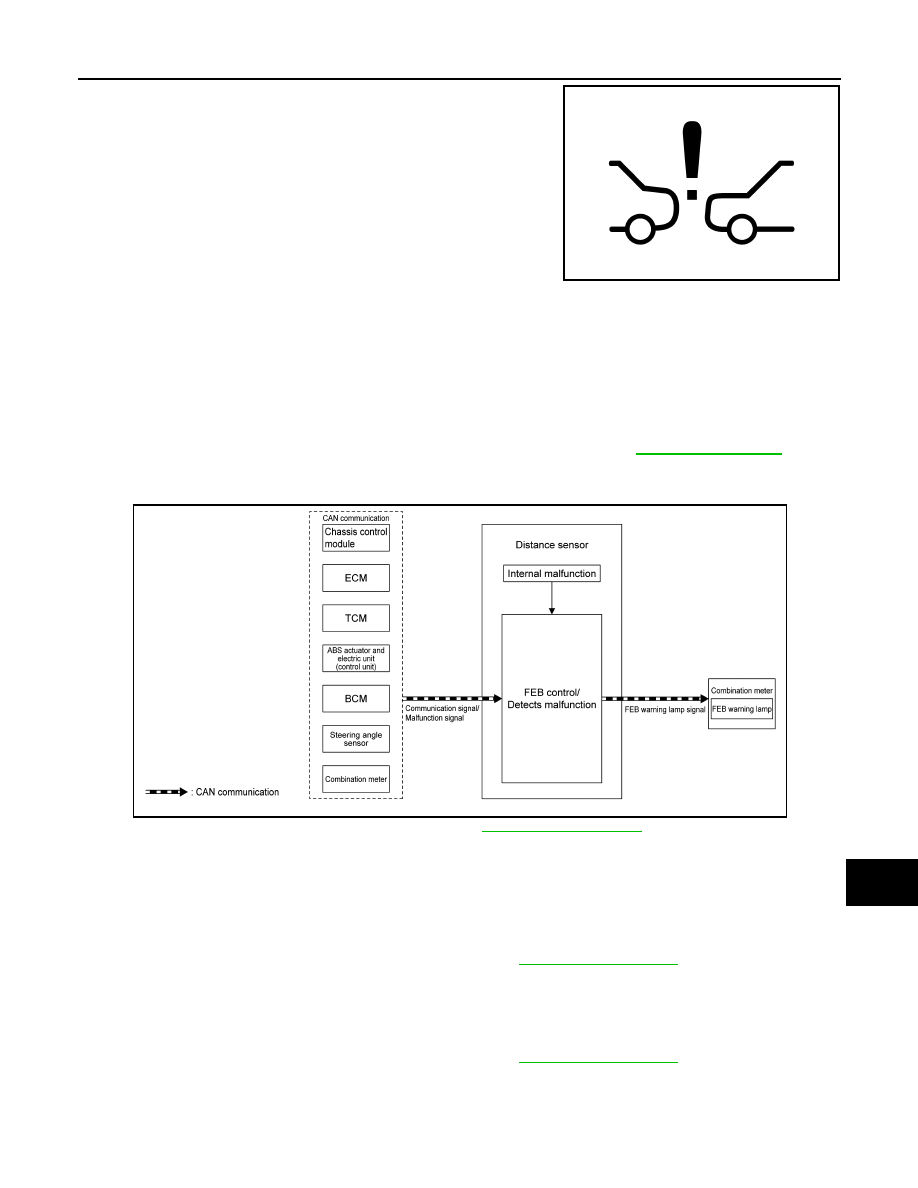

SYSTEM DIAGRAM

*: For DTCs that the FEB warning lamp turns ON, refer to

BRC-247, "DTC Index"

.

SIGNAL PATH

• The distance sensor receives a system selection signal from the combination meter via CAN communication

when FEB system ON is not selected.

• The distance sensor transmits an FEB warning lamp signal to the combination meter via CAN communica-

tion when detecting a malfunction or FEB system ON is not selected.

• The combination meter turns ON the FEB warning lamp when receiving an FEB warning lamp signal.
• For the relationship between warning lamp and DTC, refer to

BRC-247, "DTC Index"

.

LIGHTING CONDITION

The warning lamp turns ON when:
• FEB system OFF.
• A malfunction is detected in the FEB system.
• For the relationship between warning lamp and DTC, refer to

BRC-247, "DTC Index"

.

SHUTOFF CONDITION

The warning lamp turns OFF when:
• FEB system ON.
• DTC is deleted.

JSOIA0858ZZ

JSOIA1677GB
