MWI-14

< SYSTEM DESCRIPTION >

COMPONENT PARTS

METER SYSTEM : Meter Control Switch

INFOID:0000000010714981

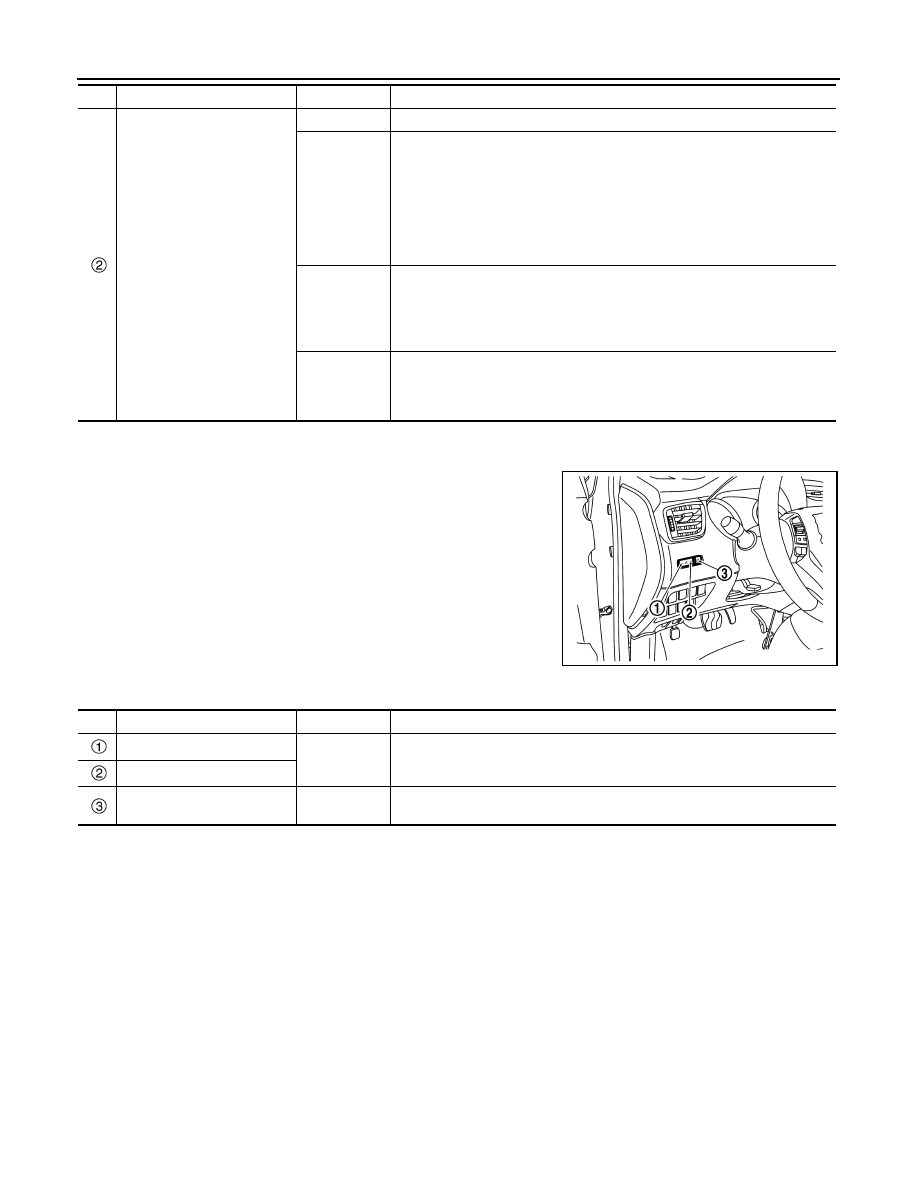

• The meter control switch is located on the instrument finisher A.
• Transmits the following signals to the combination meter.
- Trip reset switch signal
- Illumination control switch signal (+)
- Illumination control switch signal (

)

ENTER switch

Press

Confirms each item displayed on the information display.

Press and
hold

• When pressed for 1 second or more with an average vehicle speed or fuel

economy (average fuel consumption, ECO pedal guide) displayed on the in-
formation display, the displayed value (average vehicle speed or average
fuel consumption) can be reset.

• When pressed for 3 second or more with an average vehicle speed or fuel

economy (average fuel consumption, ECO pedal guide) displayed on the in-
formation display, a new screen appears and average  vehicle speed and
average fuel consumption can be simultaneously reset.

Push up

• Switches the screen shown on the information display to the previous

screen.

• Moves up the item selected on the information display.
• Increases the set value displayed on the settings screen of the information

display.

Push down

• Switches the screen shown on the information display to the next screen.
• Moves down the item selected on the information display.
• Decreases the set value displayed on the settings screen of the information

display.

No.

Switch name

Operation

Description

JSNIA7197ZZ

No.

Switch name

Operation

Description

Illumination control switch (

)

Press

An illuminance level of the back light of the combination meter can be adjusted.

Illumination control switch (+)

Trip reset switch

Press

• The trip meter can be switched between A and B.
• Trip meter A/B can be reset by pressing and holding the trip reset switch.

MWI

SYSTEM

MWI-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM

METER SYSTEM

METER SYSTEM : System Description

INFOID:0000000010714982

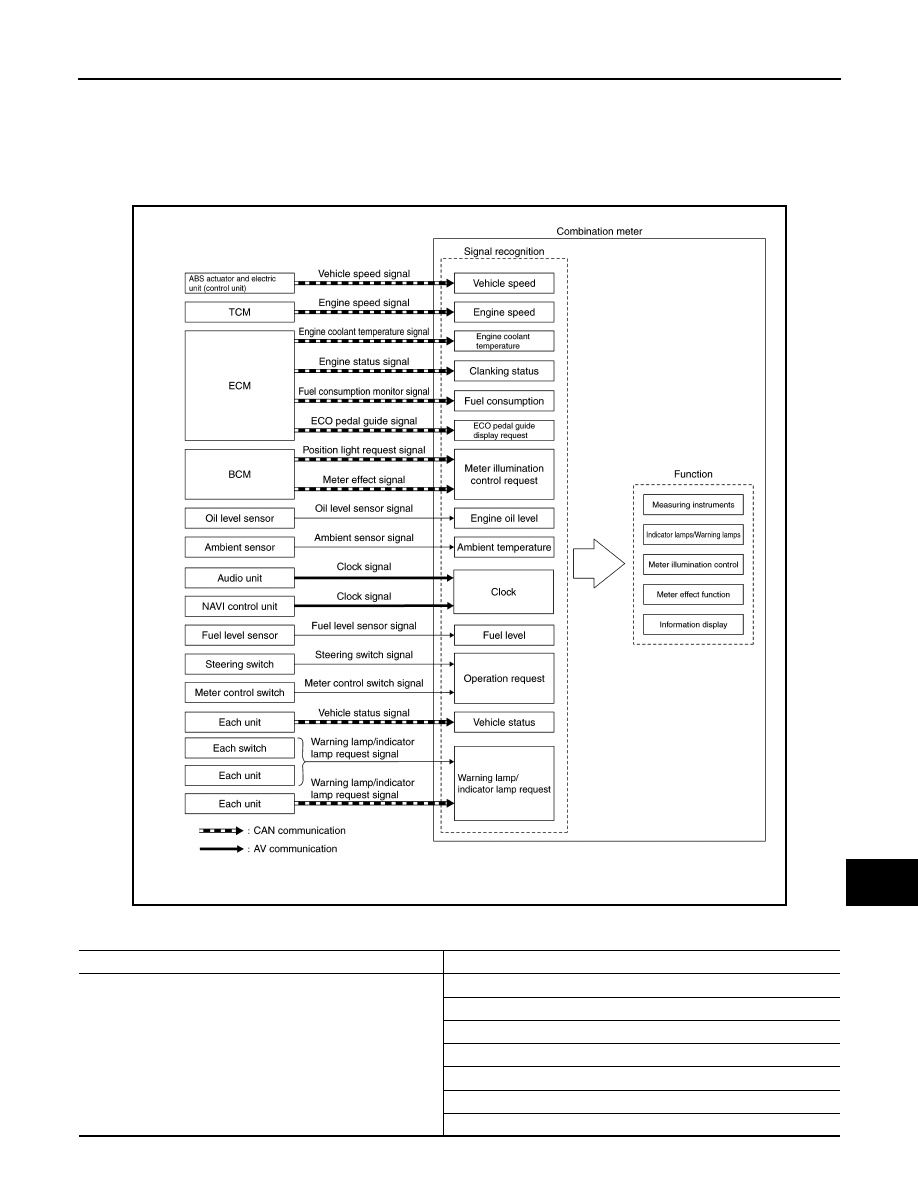

SYSTEM DIAGRAM

Combination Meter Input Signal (CAN Communication Signal)

JSNIA7303GB

Transmit unit

Signal name

ABS actuator and electric unit (control unit)

Vehicle speed signal

ABS warning lamp signal

VDC warning lamp signal

VDC OFF indicator lamp signal

Brake warning lamp signal

hill start assist indicator lamp signal

hill descent control indicator lamp signal

MWI-16

< SYSTEM DESCRIPTION >

SYSTEM

BCM

Position light request signal

Door switch signal

Front fog light request signal

High beam request signal

Key warning signal

Low beam request signal

Meter display signal

Sleep wake up signal

TPMS malfunction warning lamp signal

Low tire pressure warning lamp signal

Rear fog lamp status signal

Meter effect signal

Buzzer output signal

High beam assist indicator lamp signal

Daytime running light request signal

Low tire pressure wheel location signal

TCM

Shift position signal

Engine speed signal

Manual mode shift refusal signal

ECM

ASCD status signal

Battery warning request signal

Engine coolant temperature signal

Fuel consumption monitor signal

Malfunctioning indicator lamp signal

Engine oil pressure warning lamp signal

Engine status signal

Gear shift indicator signal

Glow indicator lamp signal

Speed limiter operation signal

Stop/start indicator lamp signal

Stop/start status signal

Water in fuel filter warning lamp signal

ECO mode indicator signal

ECO pedal guide signal

Transmit unit

Signal name

MWI

SYSTEM

MWI-17

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DESCRIPTION

Combination Meter

• The combination meter receives necessary signals from each unit, switch, and sensor to control the follow-

ing functions.

- Measuring instruments
• Speedometer
• Tachometer
• Engine coolant temperature gauge
• Fuel gauge
- Warning lamps
- Indicator lamps
- Meter illumination control
- Meter effect function
- Information display
• The combination meter incorporates a buzzer function that sounds an audible alarm with the integrated

buzzer. Refer to

WCS-7, "Combination Meter"

 for further details.

• The combination meter includes an on board diagnosis function.

Chassis control module

hill descent control display request signal

hill start assist display request signal

Active engine brake display request signal

Active engine brake setting display request signal

Active trace control display request signal

Active trace control setting display request signal

Active ride control display request signal

Chassis control malfunction display request signal

Curve display request signal

hill descent control display signal

hill start assist display signal

Tire display request signal

Meter display signal

IPDM E/R

Battery warning request signal

Headlamp warning signal

Starter relay status signal

4WD control unit

4WD warning lamp signal

Mode lamp signal

Electric parking brake control module

Brake system warning lamp signal

Electric parking brake indicator lamp signal

Electric parking brake display request signal

Master warning lamp signal

EPS control unit

Electric power steering warning lamp signal

Around view monitor control unit

Meter display signal

Buzzer output signal

Sonar control unit

Parking sensor error signal

Sonar indicator display signal

Lane camera unit

Meter display signal

Buzzer output signal

Distance sensor unit

Meter display signal

FEB warning lamp signal

Transmit unit

Signal name
