Nissan X-Trail 32. Manual - part 1582





MWI-10

< SYSTEM DESCRIPTION >

COMPONENT PARTS

*: Not applicable

METER SYSTEM : Design

INFOID:0000000010714978

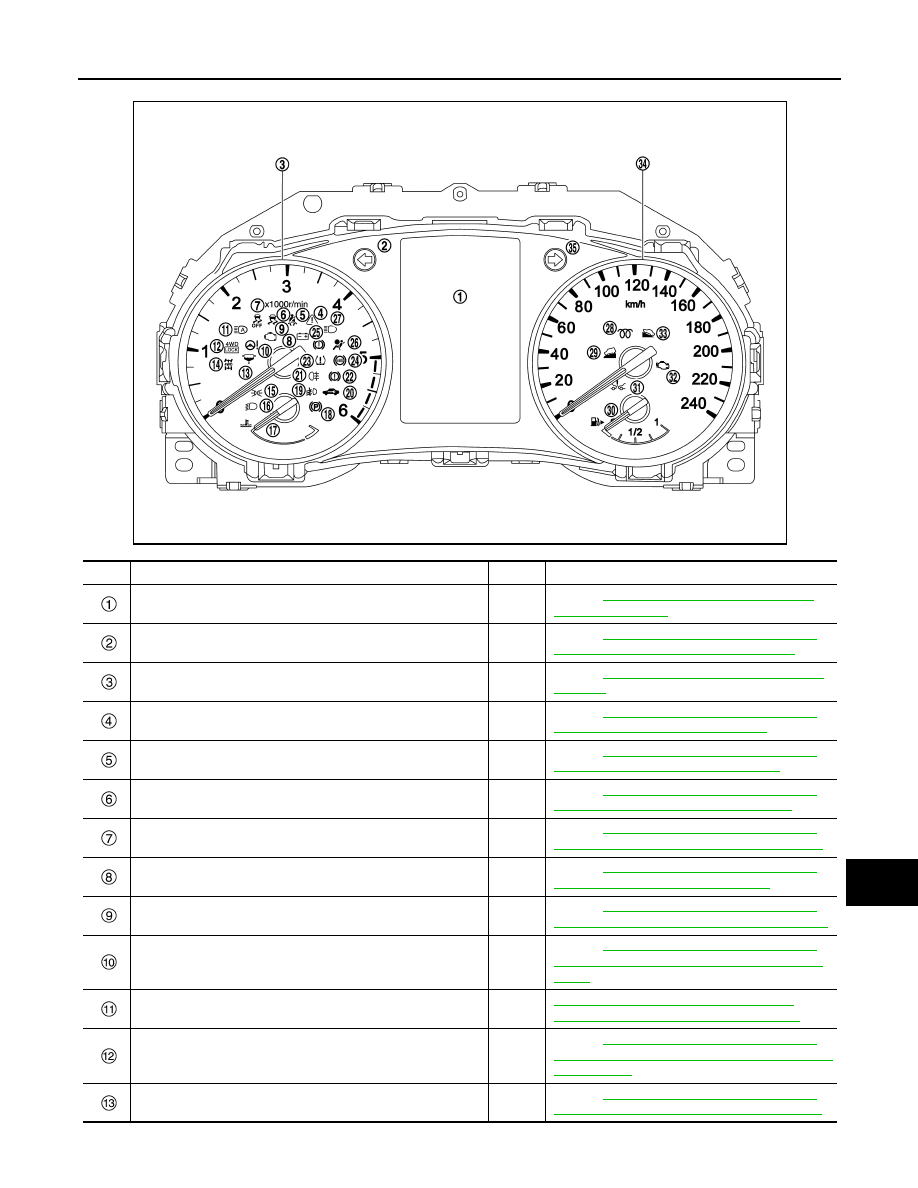

ARRANGEMENT OF COMBINATION METER

TCM (except R9M engine

models)

*

TCM (R9M engine mod-
els)

• Transmits the each signal to the combination meter via CAN communication.

Refer to

MWI-15, "METER SYSTEM : System Description"

.

• Refer  to

TM-466, "CVT CONTROL SYSTEM : Component Parts Location"

 for detailed installation

location.

Ambient sensor

Transmits the ambient sensor signal to the combination meter.

ECM

• Transmits the each signal to the combination meter via CAN communication.

Refer to

MWI-15, "METER SYSTEM : System Description"

.

• Refer  to

EC-28, "ENGINE CONTROL SYSTEM : Component Parts Location"

 (MR20DD),

EC-

440, "Component Parts Location"

 (QR25DE), or

EC-812, "Component Parts Location"

 (R9M) for

detailed installation location.

IPDM E/R

• Transmits the oil pressure switch signal to the combination meter via CAN communication.

Refer to

MWI-15, "METER SYSTEM : System Description"

.

• Refer  to

PCS-5, "Component Parts Location"

 for detailed installation location.

Fuel level sensor unit
(sub)

Transmits the fuel level sensor signal to the combination meter.

NAVI control unit

Transmits the clock signal to the combination meter via AV communication.

BCM

• Transmits the each signal to the combination meter via CAN communication.

Refer to

MWI-15, "METER SYSTEM : System Description"

.

• Refer  to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

 for detailed installation

location.

Steering switch

Transmits the steering switch signal to the combination meter.

Meter control switch

Transmits the meter control switch signal to the combination meter.

Combination meter

Refer to

MWI-13, "METER SYSTEM : Combination Meter"

.

Oil level sensor

Transmits the oil level sensor signal to the combination meter.

Engine oil pressure
switch

Transmits the oil pressure switch signal to IPDM E/R.

Fuel pump control module
(FPCM)

Transmits the fuel level sensor signal to the combination meter.

No.

Component

Function

MWI

COMPONENT PARTS

MWI-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

No.

Indicator lamp/Warning lamp

Color

Function

Information display

Refer to

MWI-71, "INFORMATION DISPLAY :

System Description"

.

Turn signal indicator lamp (LH)

Green

Refer to

MWI-59, "WARNING LAMPS/INDICA-

TOR LAMPS : Turn Signal Indicator Lamp"

.

Tachometer

Refer to

MWI-22, "TACHOMETER : System De-

scription"

.

Master warning lamp

Yellow/

Red

Refer to

MWI-47, "WARNING LAMPS/INDICA-

TOR LAMPS : Master Warning Lamp"

.

Seat belt warning lamp

Red

Refer to

MWI-54, "WARNING LAMPS/INDICA-

TOR LAMPS : Seat Belt Warning Lamp"

.

VDC (ESP) warning lamp

Yellow

Refer to

MWI-61, "WARNING LAMPS/INDICA-

TOR LAMPS : VDC (ESP) Warning Lamp"

.

VDC (ESP) OFF indicator lamp

Yellow

Refer to

MWI-60, "WARNING LAMPS/INDICA-

TOR LAMPS : VDC (ESP) OFF Indicator Lamp"

.

Charge warning lamp

Red

Refer to

MWI-30, "WARNING LAMPS/INDICA-

TOR LAMPS : Charge Warning Lamp"

.

Malfunction indicator lamp (MIL)

Yellow

Refer to

MWI-50, "WARNING LAMPS/INDICA-

TOR LAMPS : Malfunction Indicator Lamp (MIL)"

.

Electric power steering warning lamp

Yellow

Refer to

MWI-35, "WARNING LAMPS/INDICA-

TOR LAMPS : Electric Power Steering Warning
Lamp"

.

High beam assist indicator lamp

Green

MWI-40, "WARNING LAMPS/INDICATOR
LAMPS : High Beam Assist Indicator Lamp"

LOCK indicator lamp

Yellow

Refer to

MWI-23, "WARNING LAMPS/INDICA-

TOR LAMPS : 4WD Indicator Lamp and LOCK In-
dicator Lamp"

.

Water-in-fuel-filter warning lamp

Green

Refer to

MWI-63, "WARNING LAMPS/INDICA-

TOR LAMPS : Water-in-fuel-filter warning lamp"

.

JSNIA7267ZZ

MWI-12

< SYSTEM DESCRIPTION >

COMPONENT PARTS

4WD indicator lamp

Green

Refer to

MWI-23, "WARNING LAMPS/INDICA-

TOR LAMPS : 4WD Indicator Lamp and LOCK In-
dicator Lamp"

.

Position lamp indicator lamp

Green

Refer to

MWI-52, "WARNING LAMPS/INDICA-

TOR LAMPS : Position Lamp Indicator Lamp"

.

Dipped beam indicator lamp

Green

Refer to

MWI-32, "WARNING LAMPS/INDICA-

TOR LAMPS : Dipped Beam Indicator Lamp"

.

Engine coolant temperature gauge

Refer to

MWI-22, "ENGINE COOLANT TEMPER-

ATURE GAUGE : System Description"

.

Electric parking brake indicator lamp

Red

Refer to

MWI-33, "WARNING LAMPS/INDICA-

TOR LAMPS : Electric Parking Brake Indicator
Lamp"

.

Front fog lamp indicator lamp

Green

Refer to

MWI-38, "WARNING LAMPS/INDICA-

TOR LAMPS : Front Fog Lamp Indicator Lamp"

Security indicator lamp

Red

Refer to

MWI-55, "WARNING LAMPS/INDICA-

TOR LAMPS : Security Indicator Lamp (Turn ON)"



(Turn ON), or

MWI-56, "WARNING LAMPS/INDI-

CATOR LAMPS : Security Indicator Lamp
(Blinks)"

 (Blinks).

Rear fog lamp indicator lamp

Yellow

Refer to

MWI-53, "WARNING LAMPS/INDICA-

TOR LAMPS : Rear Fog Lamp Indicator Lamp"

.

Brake warning lamp

Red

Refer to

MWI-26, "WARNING LAMPS/INDICA-

TOR LAMPS : Brake Warning Lamp (Red)"

.

Low  tire pressure warning lamp

Yellow

Refer to

MWI-45, "WARNING LAMPS/INDICA-

TOR LAMPS : Low Tire Pressure Warning Lamp"

.

ABS warning lamp

Yellow

Refer to

MWI-24, "WARNING LAMPS/INDICA-

TOR LAMPS : ABS Warning Lamp"

.

Brake system warning lamp

Yellow

Refer to

MWI-28, "WARNING LAMPS/INDICA-

TOR LAMPS : Brake System Warning Lamp (Yel-
low)"

.

SRS air bag warning lamp

Red

Refer to

MWI-57, "WARNING LAMPS/INDICA-

TOR LAMPS : SRS Air Bag Warning Lamp"

 .

High beam indicator lamp

Blue

Refer to

MWI-41, "WARNING LAMPS/INDICA-

TOR LAMPS : High Beam Indicator Lamp"

.

Glow indicator lamp

Yellow

Refer to

MWI-39, "WARNING LAMPS/INDICA-

TOR LAMPS : Glow Indicator Lamp"

.

hill decent control (Downhill Drive Support) indicator lamp

Yellow

Refer to

MWI-42, "WARNING LAMPS/INDICA-

TOR LAMPS : hill descent control (Downhill Drive
Support) Indicator lamp"

.

Fuel gauge

Refer to

MWI-22, "FUEL GAUGE : System De-

scription"

.

FEB warning lamp

Yellow

Refer to

MWI-36, "WARNING LAMPS/INDICA-

TOR LAMPS : FEB Warning Lamp"

.

Malfunction indicator lamp (MIL)

Red

Refer to

MWI-50, "WARNING LAMPS/INDICA-

TOR LAMPS : Malfunction Indicator Lamp (MIL)"

.

hill start assist (Uphill Start Support) indicator lamp

Green

Refer to

MWI-44, "WARNING LAMPS/INDICA-

TOR LAMPS : hill start assist (Uphill Start Support)
Indicator lamp"

.

Speedometer

Refer to

MWI-21, "SPEEDOMETER : System De-

scription"

.

Turn signal lamp (RH)

Green

Refer to

MWI-59, "WARNING LAMPS/INDICA-

TOR LAMPS : Turn Signal Indicator Lamp"

.

No.

Indicator lamp/Warning lamp

Color

Function

MWI

COMPONENT PARTS

MWI-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

METER SYSTEM : Combination Meter

INFOID:0000000010714979

The combination meter controls the following items according to the signals received from each unit via CAN
communication and the signals from switches and sensors.
• Measuring instruments
- Speedometer
- Tachometer
- Engine coolant temperature gauge
- Fuel gauge
• Indicator lamps
• Warning lamps
• Meter illumination control
• Meter effect function
• Information display

CLOCK SPECIFICATIONS

NOTE:
The time is displayed on the information display. When a time lag of more than the above described accuracy
occurs, the combination meter battery power supply voltage may be low. In this case, check 12 V battery for
malfunction causing low power supply voltage. Models with the navigation system are free of time lag resulted
from low power supply voltage because of the synchronization with GPS signals.

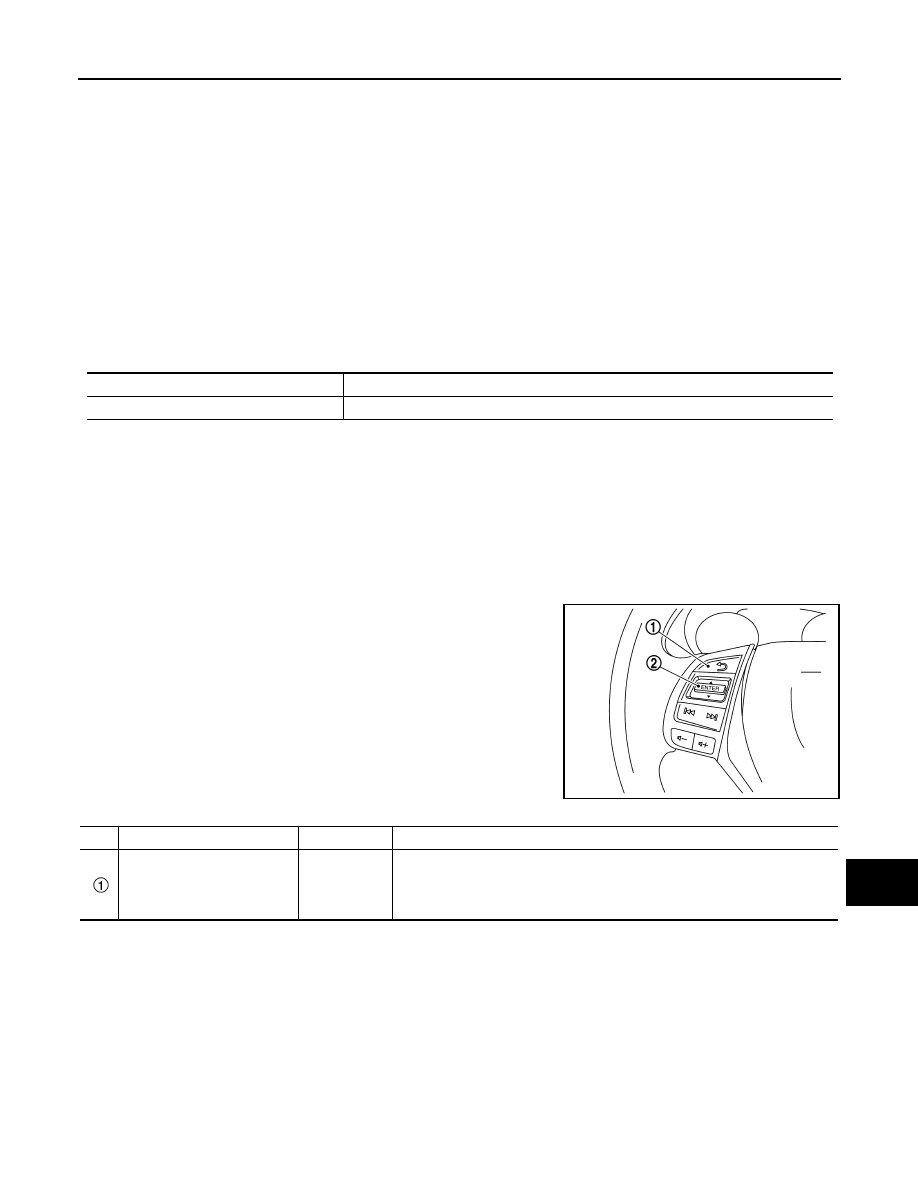

METER SYSTEM : Steering Switch

INFOID:0000000010714980

• The steering switch is located on the steering wheel.
• Transmits the steering switch signal to the combination meter.

Operating voltage

(V)

11 - 16

Accuracy

(sec./day)

Approx.

±

 6

JSNIA7195ZZ

No.

Switch name

Operation

Description

Back switch

Press

• Switches the screen shown on the information display to the previous

screen.

• Switches the screen shown on the information display to the previous

screen.
