CHASSIS MAINTENANCE

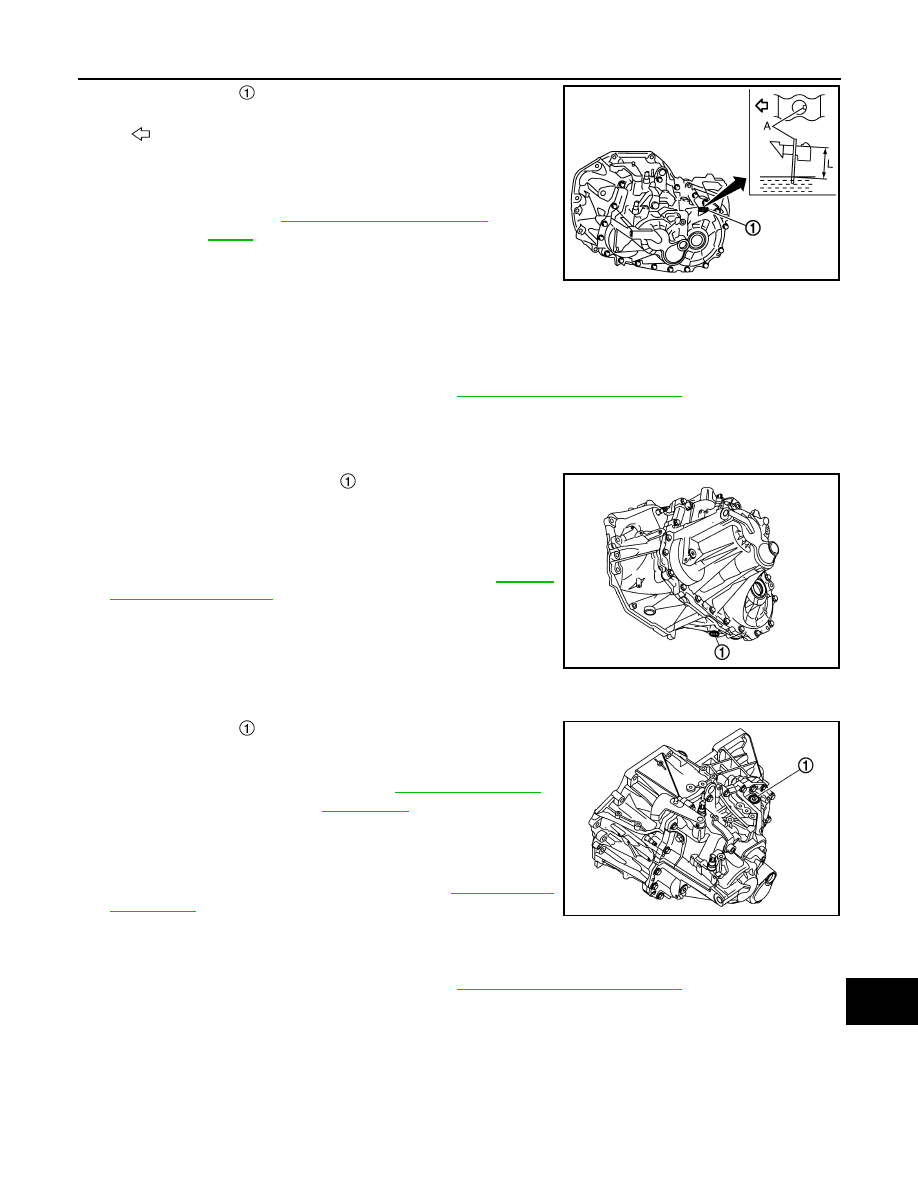

1.

Remove plug

.

2.

Measure the oil level (L) using a suitable gauge (A) as shown in
the figure and check if it is within the specifications.

CAUTION:

• Turn the ignition switch OFF while checking oil level.
• Attach the suitable gauge to the wall of the plug mounting

hole for accurate measurement.

3.

Set O-ring on plug and install it to transaxle assembly.

CAUTION:

Never reuse O-ring.

4.

Tighten plug mounting bolt to the specified torque. Refer to

TM-124, "2WD : Exploded View"

.

M/T OIL [RS6F52A (2WD)] : Draining

INFOID:0000000011004116

1.

Start engine and let it run to warm up transaxle.

2.

Stop engine. Remove drain plug

 and gasket, then drain gear

oil.

3.

Set a gasket on drain plug and install it to transaxle assembly.

CAUTION:

Never reuse gasket.

4.

Tighten drain plug to the specified torque. Refer to

TM-124,

"2WD : Exploded View"

.

M/T OIL [RS6F52A (2WD)] : Refilling

INFOID:0000000011004117

1.

Remove plug

.

2.

Fill with new gear oil.

NOTE:
Oil capacity is reference. Because oil level is controlled by oil
surface position.

3.

After refilling gear oil, check the oil level. Refer to

TM-103, "2WD

: Inspection"

.

4.

Set O-ring on plug and install it to transaxle assembly.

CAUTION:

Never reuse O-ring.

5.

Tighten plug mounting bolt to the specified torque. Refer to

TM-124, "2WD : Exploded View"

.

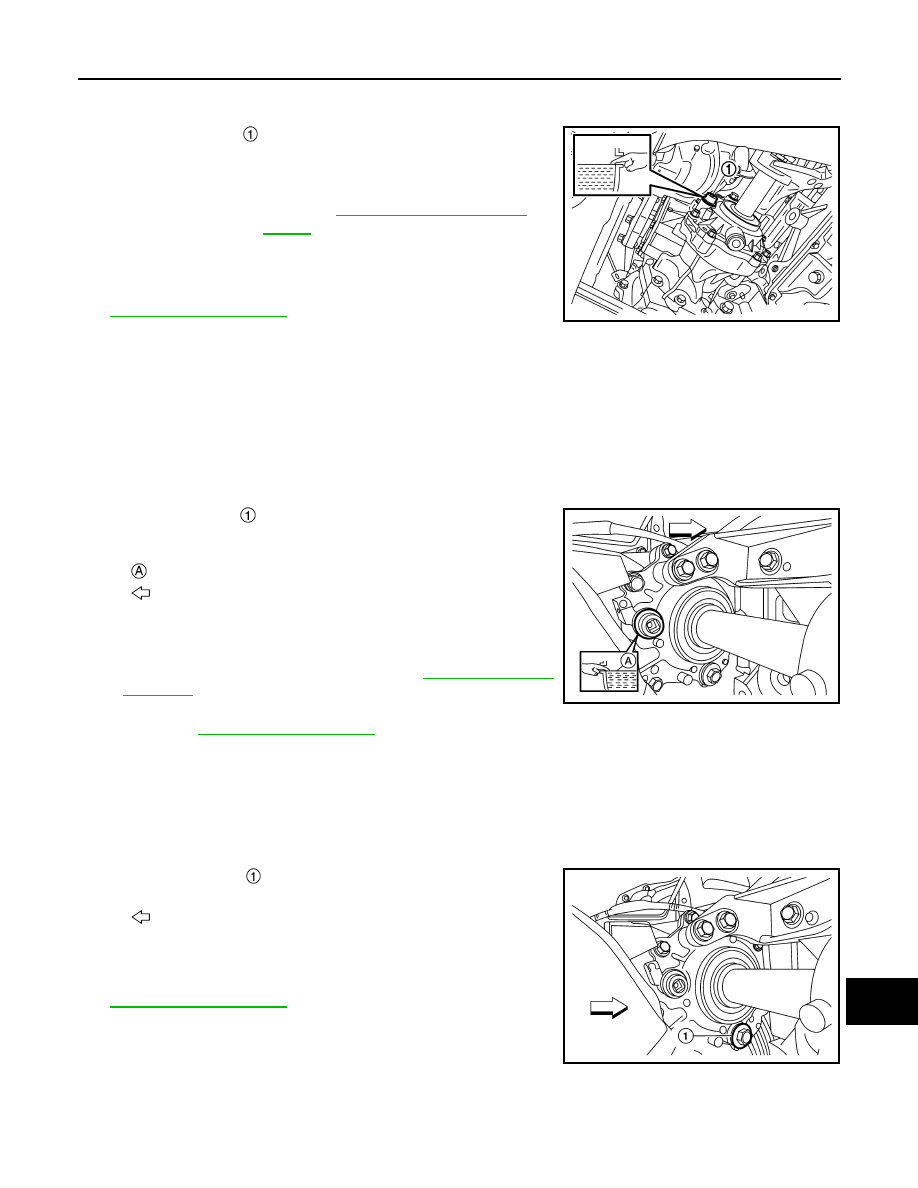

M/T OIL [RS6F52A (4WD)]

M/T OIL [RS6F52A (4WD)] : Inspection

INFOID:0000000011004118

OIL LEAKAGE

Make sure that gear oil is not leaking from transaxle or around it.

OIL LEVEL

Oil level

: Refer to

TM-223, "General Specifica-

tions"

.

JPDIC0138ZZ

JSDIA6146ZZ

Recommended oil and
capacity (reference)

: Refer to

MA-23, "Fluids and

Lubricants"

.

JSDIA6147ZZ

CHASSIS MAINTENANCE

MA-59

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

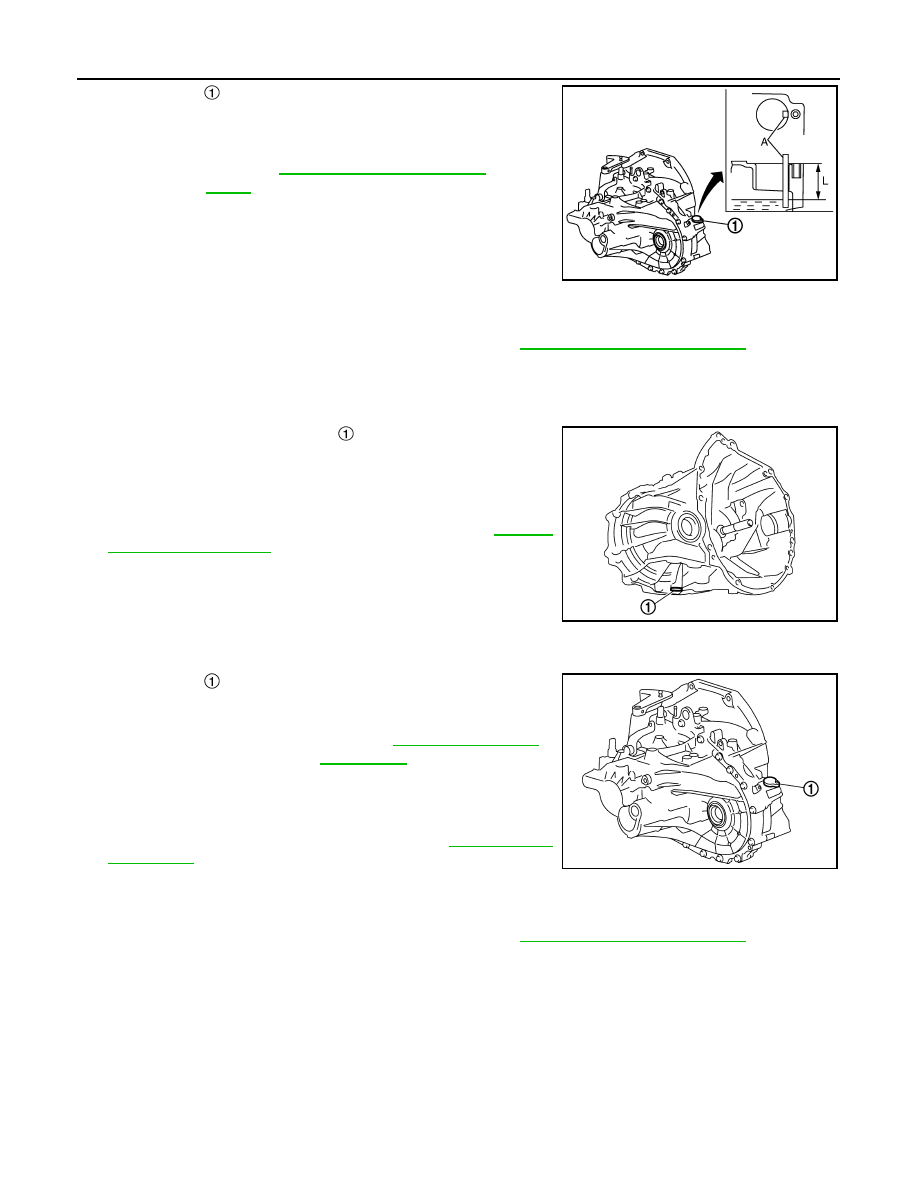

1.

Remove filler plug

.

2.

Measure the oil level (L) using a suitable gauge (A) as shown in
the figure and check if it is within the specifications.

CAUTION:

• Turn the ignition switch OFF while checking oil level.
• Attach the suitable gauge to the wall of the plug mounting

hole for accurate measurement.

3.

Set gasket on filler plug and install it to transaxle assembly.

CAUTION:

Never reuse gasket.

4.

Tighten filler plug to the specified torque. Refer to

TM-153, "4WD : Exploded View"

.

M/T OIL [RS6F52A (4WD)] : Draining

INFOID:0000000011004119

1.

Start engine and let it run to warm up transaxle.

2.

Stop engine. Remove drain plug

 and gasket, then drain gear

oil.

3.

Set a gasket on drain plug and install it to transaxle assembly.

CAUTION:

Never reuse gasket.

4.

Tighten drain plug to the specified torque. Refer to

TM-153,

"4WD : Exploded View"

.

M/T OIL [RS6F52A (4WD)] : Refilling

INFOID:0000000011004120

1.

Remove filler plug

.

2.

Fill with new gear oil.

NOTE:
Oil capacity is reference. Because oil level is controlled by oil
surface position.

3.

After refilling gear oil, check the oil level. Refer to

TM-104, "4WD

: Inspection"

.

4.

Set gasket on filler plug and install it to transaxle assembly.

CAUTION:

Never reuse gasket.

5.

Tighten filler plug to the specified torque. Refer to

TM-153, "4WD : Exploded View"

.

CLUTCH FLUID

CLUTCH FLUID : Inspection

INFOID:0000000010828062

FLUID LEAKAGE

• Check clutch line for cracks, deterioration or other damage. Replace any damaged parts.
• Check for fluid leakage by fully depressing clutch pedal while engine is running.

CAUTION:

: Vehicle front

Oil level

: Refer to

TM-223, "General Specifica-

tions"

.

JPDIC0139ZZ

JSDIA6154ZZ

Recommended oil and
capacity (reference)

: Refer to

MA-23, "Fluids and

Lubricants"

.

JSDIA6155ZZ

MA-60

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

If leakage occurs around joints, reinstall the joints or, if necessary, replace damaged parts.

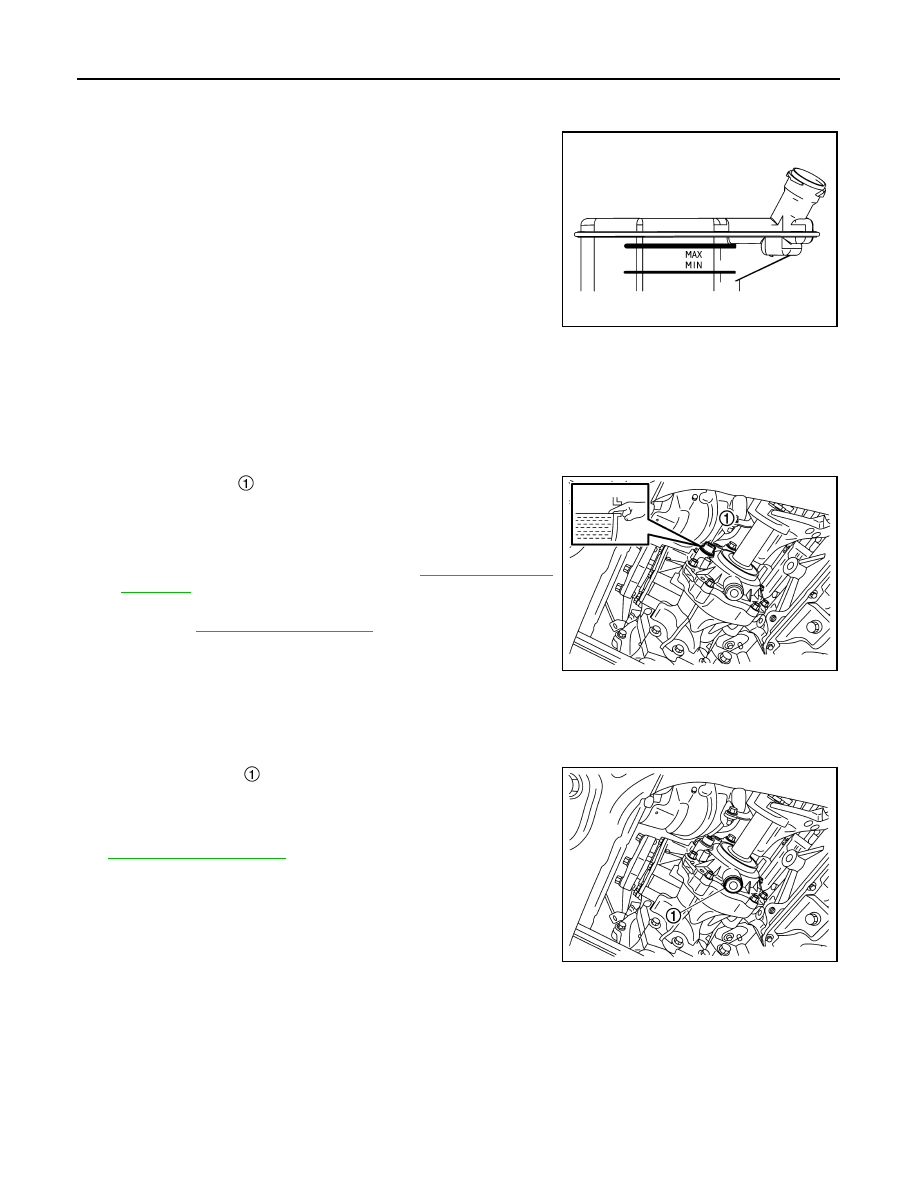

FLUID LEVEL

• Check that the fluid level in the reservoir tank is within the specified

range (MAX – MIN lines).

• Visually check for any clutch fluid leakage around the reservoir

tank.

• Check the clutch system for any leakage if the fluid level is

extremely low (lower than MIN).

TRANSFER OIL [TY21C (MR20DD)]

TRANSFER OIL [TY21C (MR20DD)] : Inspection

INFOID:0000000011008824

OIL LEAKAGE

Check transfer surrounding area (oil seal, drain plug, and filler plug etc.) for oil leakage.

OIL LEVEL

1.

Remove filler plug

 and gasket. Then check that oil is filled up

from mounting hole for filler plug.

CAUTION:

Turn the ignition switch OFF while checking oil level.
• Oil level should be level with bottom of filler plug mounting

hole. Add transfer oil if necessary. Refer to

DLN-74, "MR20DD

: Refilling"

.

2.

Set a new gasket on filler plug and install it on transfer assem-
bly. Refer to

DLN-83, "Exploded View"

.

CAUTION:

Never reuse gasket.

TRANSFER OIL [TY21C (MR20DD)] : Draining

INFOID:0000000011008825

1.

Run the vehicle to warm up the transfer unit sufficiently.

2.

Turn the ignition switch OFF.

3.

Remove drain plug

 and gasket.

4.

Drain transfer oil.

5.

Before installing drain plug, set a new gasket. Install drain plug
to transfer assembly and tighten to the specified torque. Refer to

DLN-83, "Exploded View"

.

CAUTION:

Never reuse gasket.

SFIA2634J

JSDIA5349ZZ

JSDIA5350ZZ

CHASSIS MAINTENANCE

MA-61

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

TRANSFER OIL [TY21C (MR20DD)] : Refilling

INFOID:0000000011008826

1.

Remove filler plug

 and gasket. Then fill with new transfer oil

until oil level reaches the specified level near filler plug mounting
hole.

2.

Leave the vehicle for 3 minutes, and check the oil level again.

3.

Before installing filler plug, set a new gasket. Install filler plug to
transfer assembly and tighten to the specified torque. Refer to

DLN-83, "Exploded View"

.

CAUTION:

Never reuse gasket.

TRANSFER OIL [TY21C (QR25DE)]

TRANSFER OIL [TY21C (QR25DE)] : Inspection

INFOID:0000000011008827

OIL LEAKAGE

Check transfer surrounding area (oil seal, drain plug, and filler plug etc.) for oil leakage.

OIL LEVEL

1.

Remove filler plug

 and gasket. Then check that oil is filled up

from mounting hole for filler plug.

CAUTION:

Turn the ignition switch OFF while checking oil level.
• Oil level should be level with bottom of filler plug mounting

hole. Add transfer oil if necessary. Refer to

DLN-75, "QR25DE

: Refilling"

.

2.

Set a new gasket on filler plug and install it on transfer assem-
bly. Refer to

DLN-83, "Exploded View"

.

CAUTION:

Never reuse gasket.

TRANSFER OIL [TY21C (QR25DE)] : Draining

INFOID:0000000011008828

1.

Run the vehicle to warm up the transfer unit sufficiently.

2.

Turn the ignition switch OFF.

3.

Remove drain plug

 and gasket.

4.

Drain transfer oil.

5.

Before installing drain plug, set a new gasket. Install drain plug
to transfer assembly and tighten to the specified torque. Refer to

DLN-83, "Exploded View"

.

CAUTION:

Never reuse gasket.

Recommended
oil and capacity

: Refer to

MA-23, "Fluids and Lubri-

cants"

.

JSDIA5349ZZ

: Oil level

: Vehicle front

ALDIA0503ZZ

: Vehicle front

AWDIA1153ZZ
