ENGINE MAINTENANCE (R9M)

5.

Remove oil pan drain plug

 using a square driver [8 mm (0.315

in)]. Drain engine oil.

ENGINE OIL : Refilling

INFOID:0000000010828041

1.

Install drain plug with new washer. Refer to

EM-330, "Exploded View"

.

CAUTION:

Be sure to clean drain plug and install with new washer.

2.

Refill with new engine oil.
Engine oil specification and viscosity: Refer to

MA-23, "Fluids and Lubricants"

.

CAUTION:

• The refill capacity depends on the engine oil temperature and drain time. Use these specifica-

tions for reference only.

• Always use oil level gauge to determine the proper amount of engine oil in the engine.

3.

Warm up engine and check area around drain plug and oil filter body for engine oil leakage.

4.

Stop engine and wait for 10 minutes.

5.

Check the engine oil level. Refer to

LU-38, "Inspection"

.

6.

Perform "Engine oil data reset". Refer to

EC-959, "Work Procedure"

.

OIL FILTER

OIL FILTER : Removal and Installation

INFOID:0000000010828043

REMOVAL

WARNING:

Be careful not to get burned when engine and engine oil may be hot.

CAUTION:

• When removing, prepare a shop cloth to absorb any engine oil leakage or spillage.
• Completely wipe off any engine oil that adheres to engine and vehicle.
1.

Remove engine under cover. Refer to

EXT-39, "ENGINE UNDER COVER : Exploded View"

.

2.

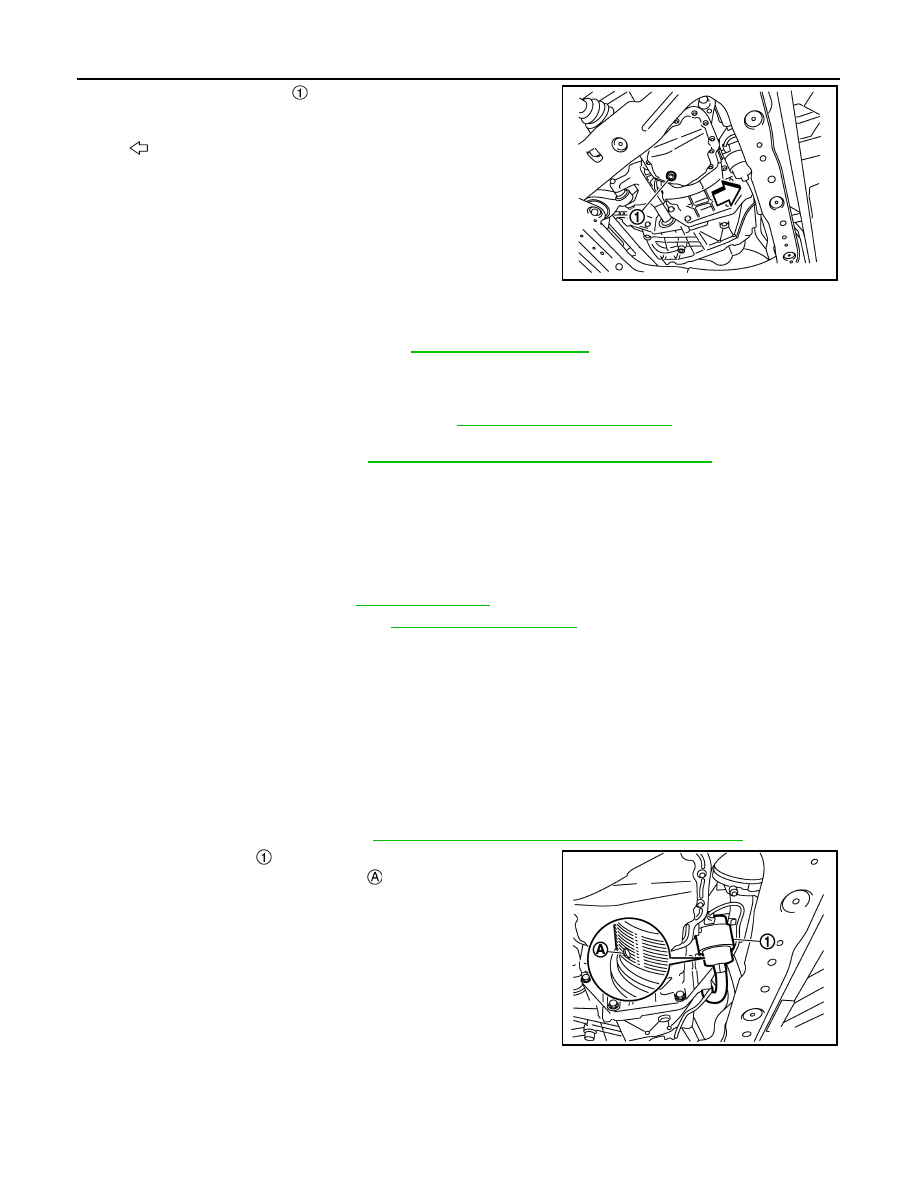

Loosen oil filter body

 using a socket [27 mm (1.06 in)].

• Loosen oil filter body until orifice

 of the oil filter body is

exposed, and then drain engine oil.

• Catch the engine oil drip, using a tray or waste.

CAUTION:

Completely wipe clean any engine oil remaining on oil fil-
ter body or vehicle.

: Vehicle front

E1BIA0601ZZ

Engine oil capacity

: Refer to

LU-46, "Periodical Maintenance Specification"

.

E1BIA0602ZZ

ENGINE MAINTENANCE (R9M)

MA-55

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

3.

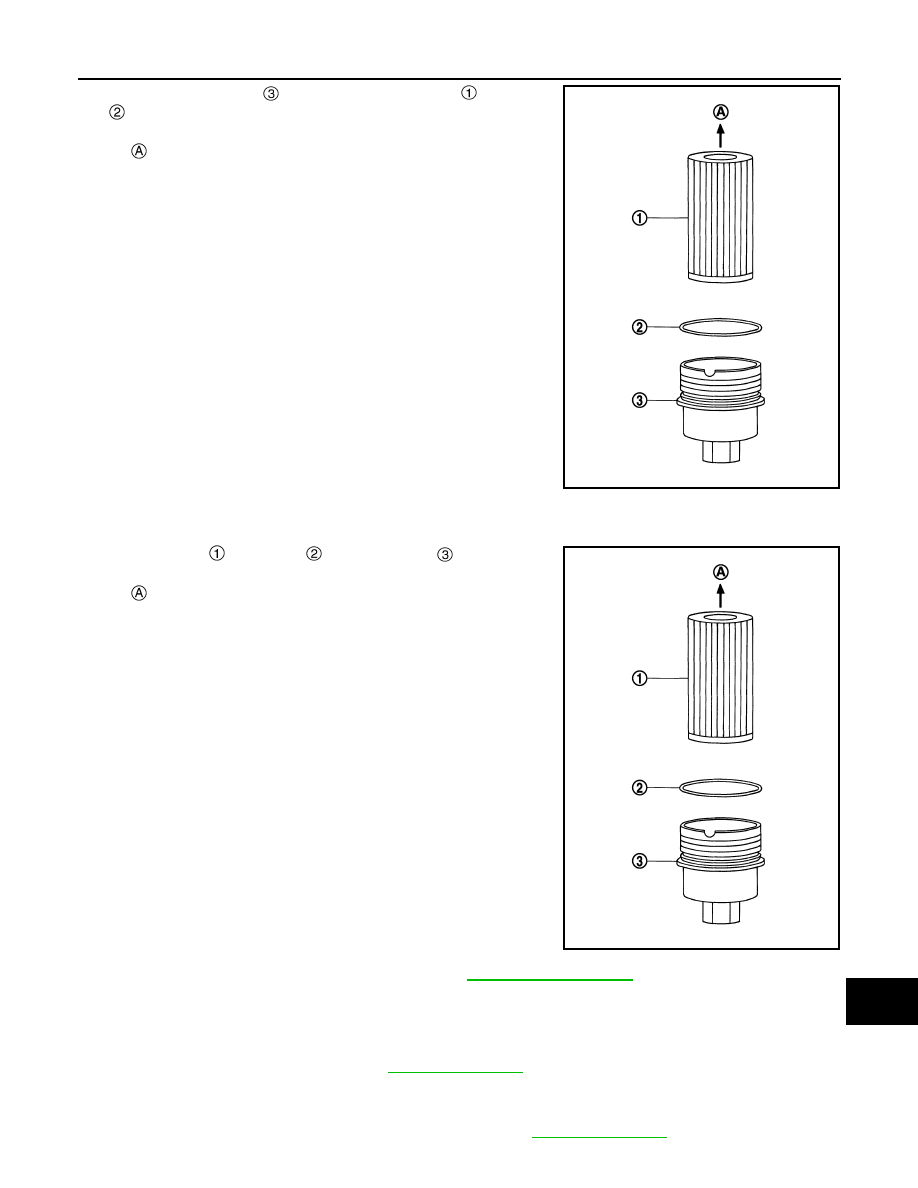

Remove oil filter body

, and then remove oil filter

 and O-ring

.

• Push the O-ring in the one direction by hand, and then pick a

pushed out-part with fingers to remove the O-ring.

CAUTION:

Never use wires or screwdrivers to prevent the oil filter
body from damage.

INSTALLATION

1.

Completely remove all foreign objects adhering to the inside of oil filter body or O-ring mounting area.

2.

Install oil filter

 and O-ring

 to oil filter body

.

CAUTION:

Be sure to use a new O-ring.
• Securely press the oil filter into the oil filter body.
• When installing an O-ring, apply engine oil all around the O-

ring.

3.

Install oil filter body assembly to oil cooler. Refer to

LU-42, "Exploded View"

.

OIL FILTER : Inspection

INFOID:0000000010828044

INSPECTION AFTER INSTALLATION

1.

Check that the engine oil level. Refer to

LU-38, "Inspection"

.

2.

Start the engine, and check that there is no leak of engine oil.

3.

Stop the engine and wait for 10 minutes.

4.

Check that the engine oil level, and adjust the level. Refer to

LU-38, "Inspection"

.

: Oil cooler side

E1BIA0600ZZ

: Oil cooler side

E1BIA0600ZZ

MA-56

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

CHASSIS MAINTENANCE

EXHAUST SYSTEM

EXHAUST SYSTEM : Inspection

INFOID:0000000011009196

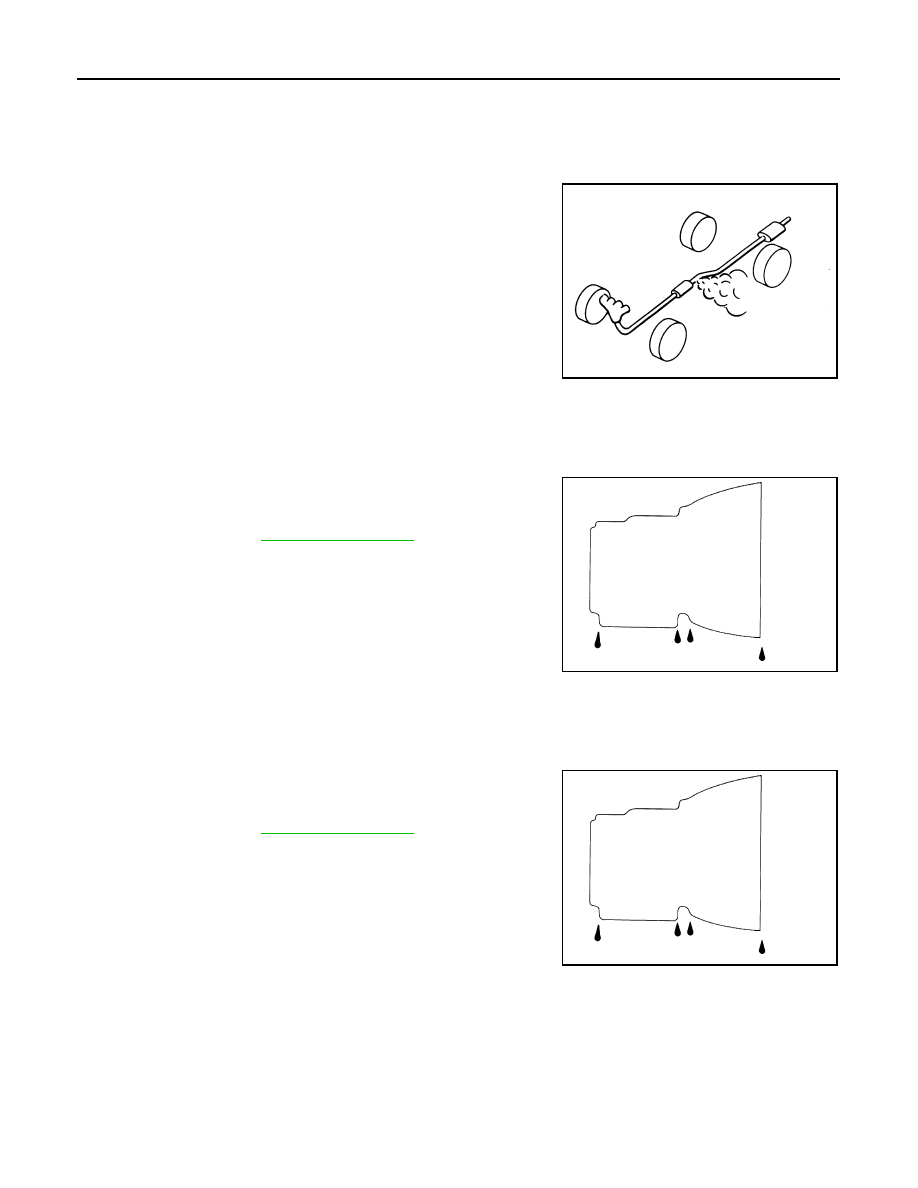

Check exhaust pipes, muffler, and mounting for improper attach-
ment, leakage, cracks, damage or deterioration.
• If anything is found, repair or replace damaged parts.

CVT FLUID (RE0F10D)

CVT FLUID (RE0F10D) : Inspection

INFOID:0000000010828065

FLUID LEAKAGE

• Check transaxle surrounding area (oil seal and plug etc.)for fluid

leakage.

• If anything is found, repair or replace damaged parts and adjust

CVT fluid level. Refer to

TM-665, "Adjustment"

.

CVT FLUID (RE0F10G)

CVT FLUID (RE0F10G) : Inspection

INFOID:0000000010828066

FLUID LEAKAGE

• Check transaxle surrounding area (oil seal and plug etc.)for fluid

leakage.

• If anything is found, repair or replace damaged parts and adjust

CVT fluid level. Refer to

TM-665, "Adjustment"

.

M/T OIL (RS6F94R)

M/T OIL (RS6F94R) : Inspection

INFOID:0000000011008837

OIL LEAKAGE

Make sure that gear oil is not leaking from transaxle or around it.

OIL LEVEL

SMA211A

SMA146B

SMA146B

CHASSIS MAINTENANCE

MA-57

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

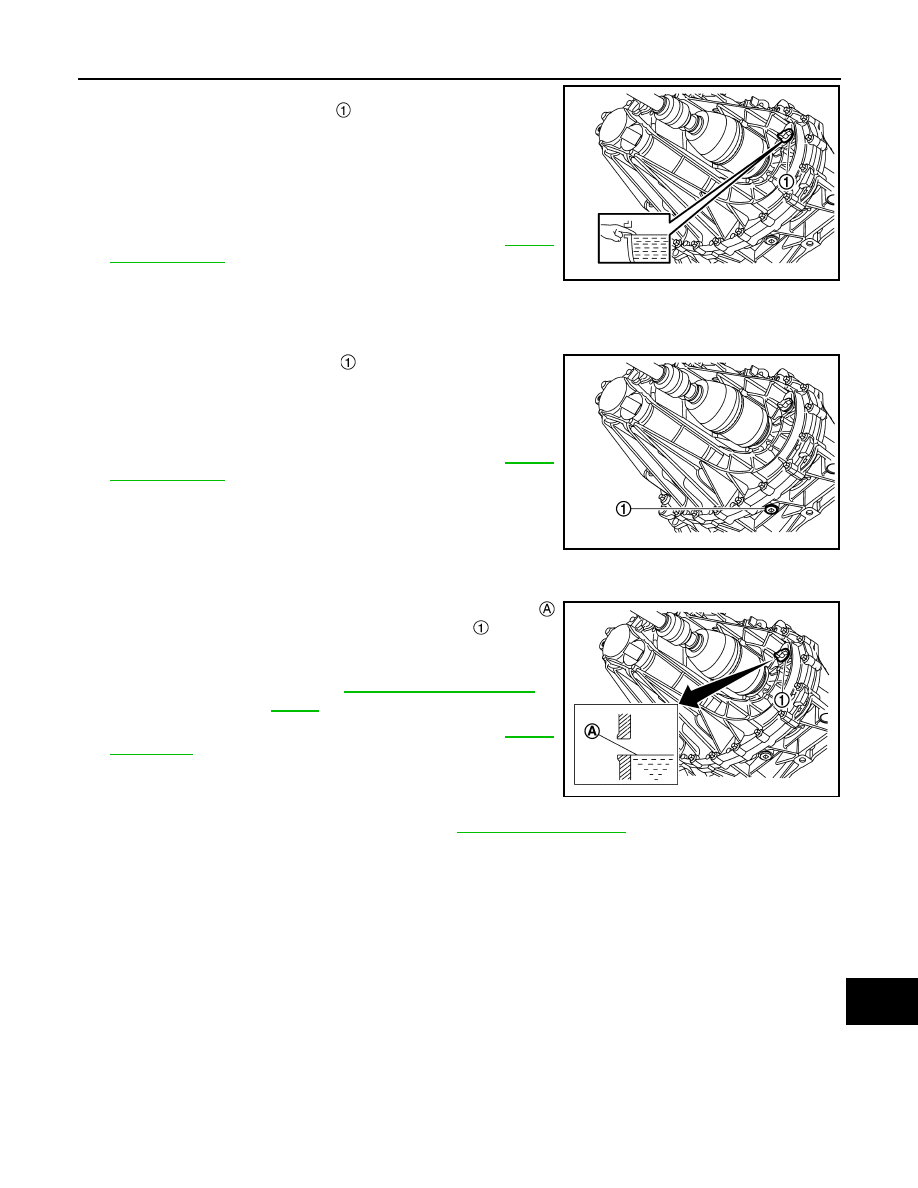

1.

Check oil level from filler plug mounting hole as shown in the fig-
ure, after removing filler plug

 and gasket from transaxle

assembly.

CAUTION:

Turn the ignition switch OFF while checking oil level.

2.

Set a gasket on filler plug and install it on transaxle assembly.

CAUTION:

Never reuse gasket.

3.

Tighten filler plug to the specified torque. Refer to

TM-43,

"Exploded View"

.

M/T OIL (RS6F94R) : Draining

INFOID:0000000011008838

1.

Start engine and let it run to warm up transaxle.

2.

Stop engine. Remove drain plug

 and gasket, then drain gear

oil.

3.

Set a gasket on drain plug and install it to transaxle assembly.

CAUTION:

Never reuse gasket.

4.

Tighten drain plug to the specified torque. Refer to

TM-43,

"Exploded View"

.

M/T OIL (RS6F94R) : Refilling

INFOID:0000000011008839

1.

Fill with new gear oil until oil level reaches the specified level
at filler plug mounting hole, after removing filler plug

 and gas-

ket from transaxle assembly.

2.

After refilling gear oil, check the oil level. Refer to

TM-27,

"Inspection"

.

3.

Set a gasket on filler plug, and install it to transaxle assembly.

CAUTION:

Never reuse gasket.

4.

Tighten filler plug to the specified torque. Refer to

TM-43, "Exploded View"

.

M/T OIL [RS6F52A (2WD)]

M/T OIL [RS6F52A (2WD)] : Inspection

INFOID:0000000011004115

OIL LEAKAGE

Make sure that gear oil is not leaking from transaxle or around it.

OIL LEVEL

JSDIA5819ZZ

JSDIA5820ZZ

Recommended
oil and capacity

: Refer to

MA-23, "Fluids and Lubri-

cants"

.

JSDIA6128ZZ
