OIL PUMP

OIL PUMP

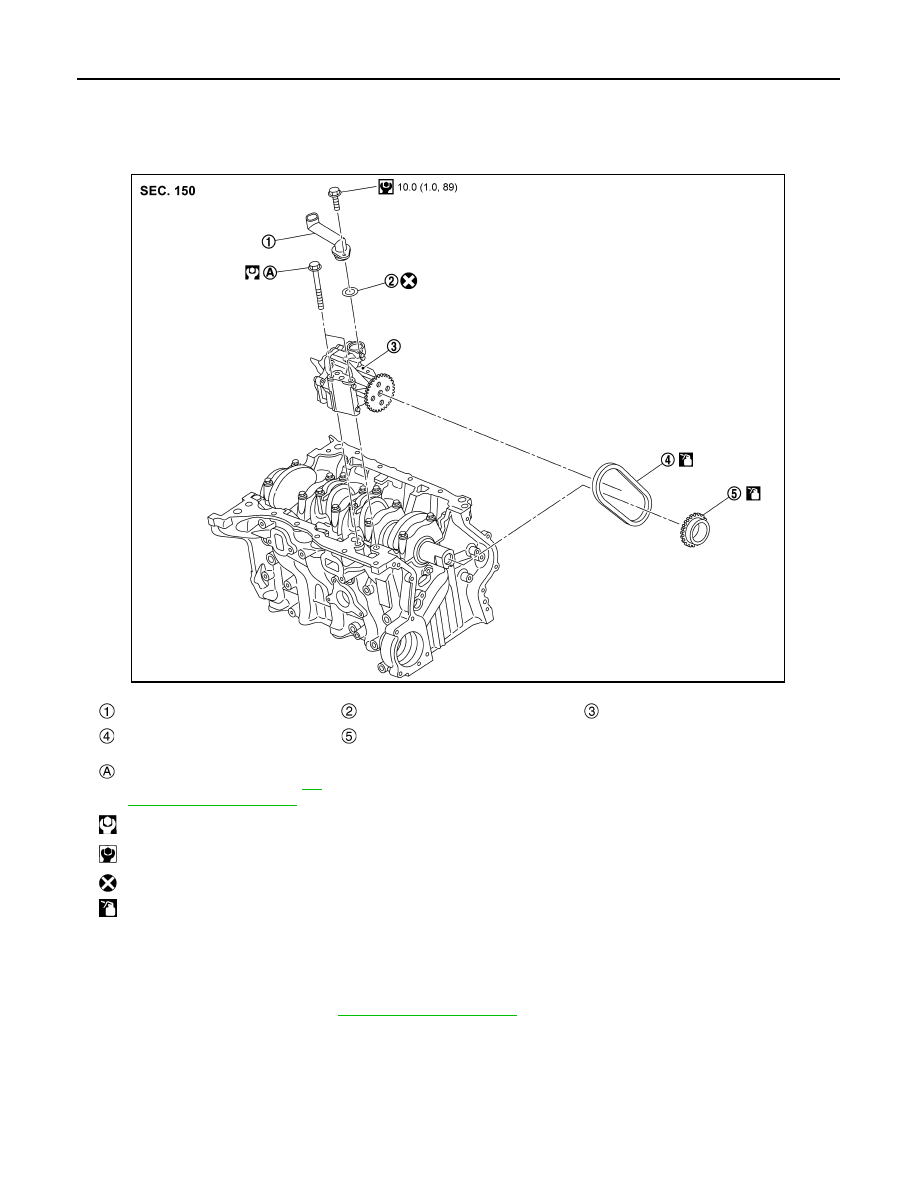

Exploded View

INFOID:0000000010994267

Removal and Installation

INFOID:0000000010994268

REMOVAL

1.

Remove oil pan (lower). Refer to

EM-330, "Exploded View"

.

Oil strainer

O-ring

Oil pump

Oil pump drive chain

Crankshaft sprocket (oil pump drive
chain)

. Comply with the installation proce-

dure when tightening. Refer to

LU-

44, "Removal and Installation"

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

: Always replace after every disassembly.

: Should be lubricated with oil.

JPBIA6962GB

OIL PUMP

LU-45

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

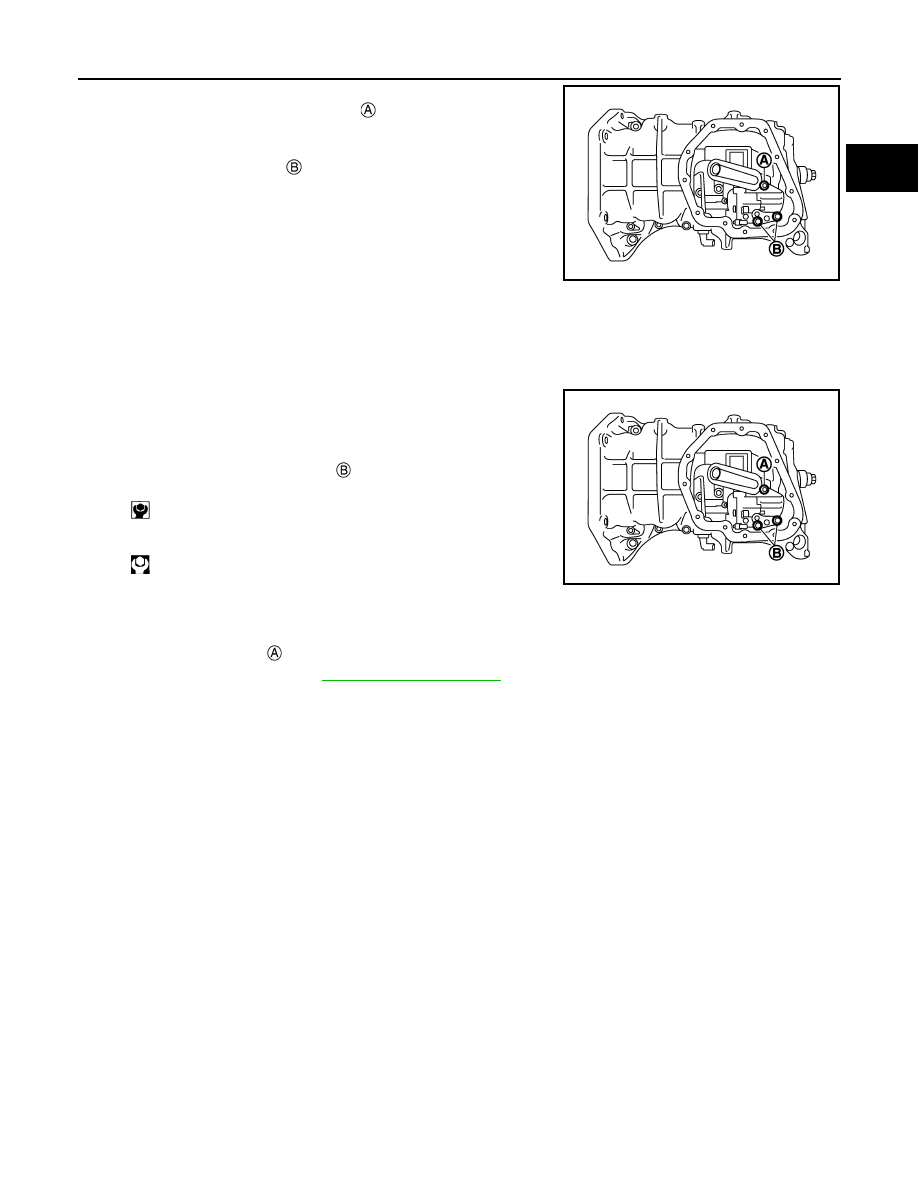

2.

Remove oil strainer with the following procedure:
• Remove oil strainer mounting bolt

.

• Remove oil strainer

3.

Remove oil pump with the following procedure:
• Remove oil pump bolts

.

• Disengage oil pump with sprocket assembly from oil pump

drive chain.

• Remove oil pump.

INSTALLATION

CAUTION:

• Before crank the engine, rotate crankshaft by hand to be sure that oil pump chain is correctly install

on the oil pump sprocket.

1.

Install oil pump with the following procedure:

a.

Install oil pump.

CAUTION:

Check that oil pump chain is correctly install on the oil
pump sprocket.

b.

Tighten oil pump mounting bolts

 in two steps.

c.

Install oil strainer.

CAUTION:

Never reuse oil strainer gasket.

d.

Tighten oil stainer bolt

.

2.

Install oil pan (lower). Refer to

EM-330, "Exploded View"

a.

E1BIA0659ZZ

1st step: 5.0 N·m (0.51 kg-m, 44 in-lb)

2nd step: 25.0 N·m (2.6 kg-m, 18 ft-lb)

E1BIA0659ZZ

LU-46

< SERVICE DATA AND SPECIFICATIONS (SDS)

[R9M]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Periodical Maintenance Specification

INFOID:0000000010783331

ENGINE OIL CAPACITY (APPROXIMATE)

Unit:

 (lmp qt)

Engine Oil Pressure

INFOID:0000000010783332

Unit: kPa (bar, kg/cm

2

, psi)

*: Engine oil temperature at 80

°

C (176

°

F)

Drain and refill

With oil filter change

5.5 (4-7/8)

Without oil filter change

5.1 (4-1/2)

Dry engine (Overhaul)

6.6 (5-7/8)

Engine speed

Approximate discharge pressure*

Idle speed

More than 70 (0.7, 0.7, 10)

1,750 rpm

More than 150 (1.5, 1.5 , 22)

4,000 rpm

More than 360 (3.6, 3.7 , 52)
