Nissan X-Trail 32. Manual - part 1551

LU-40

< PERIODIC MAINTENANCE >

[R9M]

OIL FILTER

OIL FILTER

Removal and Installation

INFOID:0000000010783326

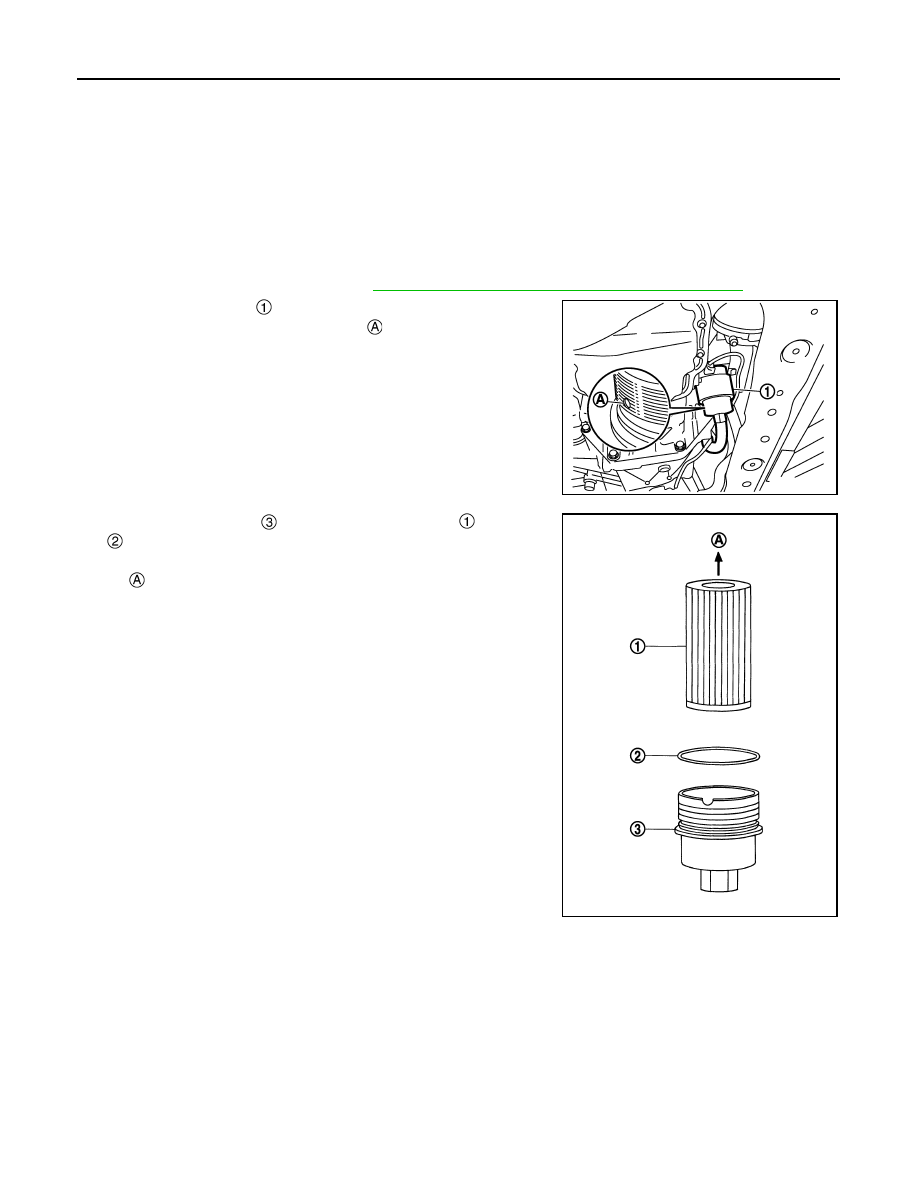

REMOVAL

WARNING:

Be careful not to get burned when engine and engine oil may be hot.

CAUTION:

• When removing, prepare a shop cloth to absorb any engine oil leakage or spillage.
• Completely wipe off any engine oil that adheres to engine and vehicle.

1.

Remove engine under cover. Refer to

EXT-39, "ENGINE UNDER COVER : Exploded View"

.

2.

Loosen oil filter body

 using a socket [27 mm (1.06 in)].

• Loosen oil filter body until orifice

 of the oil filter body is

exposed, and then drain engine oil.

• Catch the engine oil drip, using a tray or waste.

CAUTION:

Completely wipe clean any engine oil remaining on oil fil-
ter body or vehicle.

3.

Remove oil filter body

, and then remove oil filter

 and O-ring

.

• Push the O-ring in the one direction by hand, and then pick a

pushed out-part with fingers to remove the O-ring.

CAUTION:

Never use wires or screwdrivers to prevent the oil filter
body from damage.

INSTALLATION

1.

Completely remove all foreign objects adhering to the inside of oil filter body or O-ring mounting area.

E1BIA0602ZZ

: Oil cooler side

E1BIA0600ZZ

OIL FILTER

LU-41

< PERIODIC MAINTENANCE >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

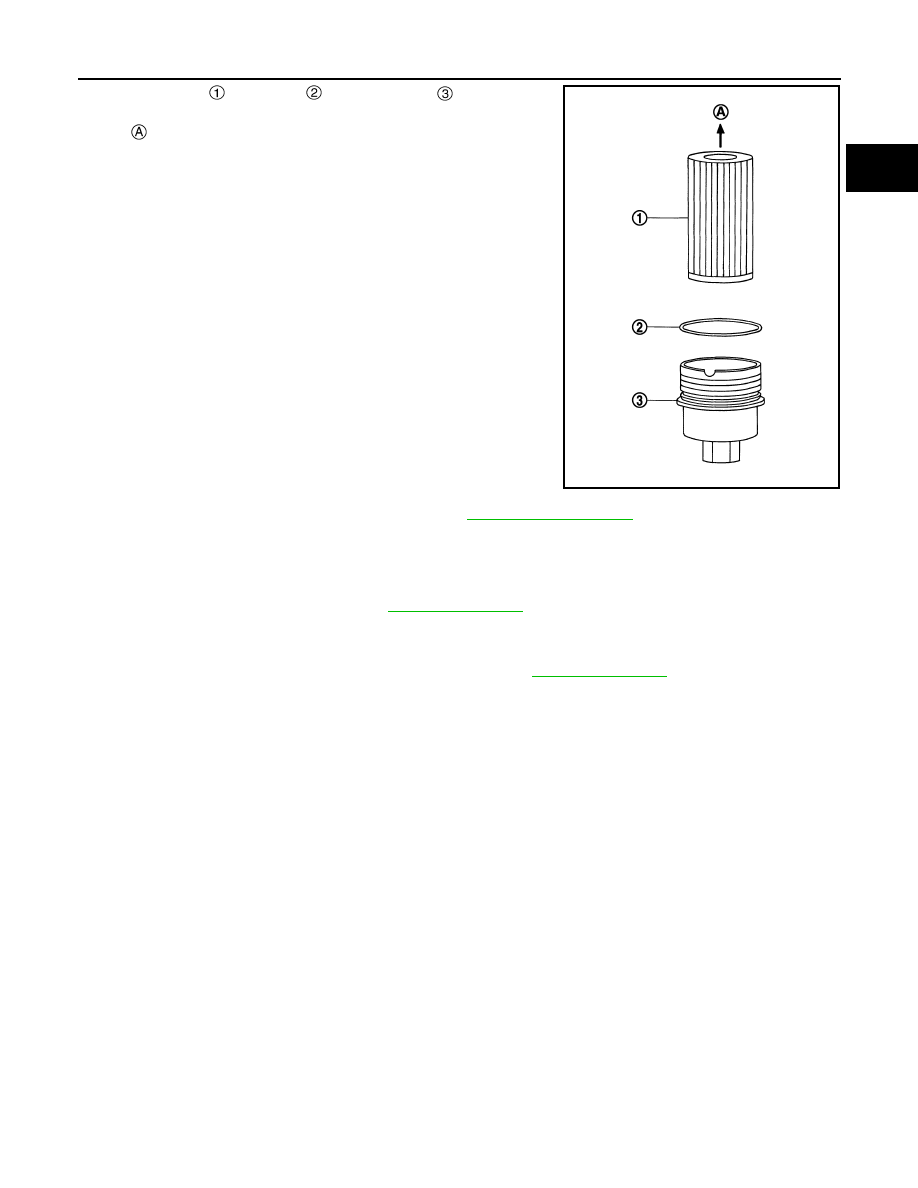

2.

Install oil filter

 and O-ring

 to oil filter body

.

CAUTION:

Be sure to use a new O-ring.
• Securely press the oil filter into the oil filter body.
• When installing an O-ring, apply engine oil all around the O-

ring.

3.

Install oil filter body assembly to oil cooler. Refer to

LU-42, "Exploded View"

.

Inspection

INFOID:0000000010783327

INSPECTION AFTER INSTALLATION

1.

Check that the engine oil level. Refer to

LU-38, "Inspection"

.

2.

Start the engine, and check that there is no leak of engine oil.

3.

Stop the engine and wait for 10 minutes.

4.

Check that the engine oil level, and adjust the level. Refer to

LU-38, "Inspection"

.

: Oil cooler side

E1BIA0600ZZ

LU-42

< REMOVAL AND INSTALLATION >

[R9M]

OIL COOLER

REMOVAL AND INSTALLATION

OIL COOLER

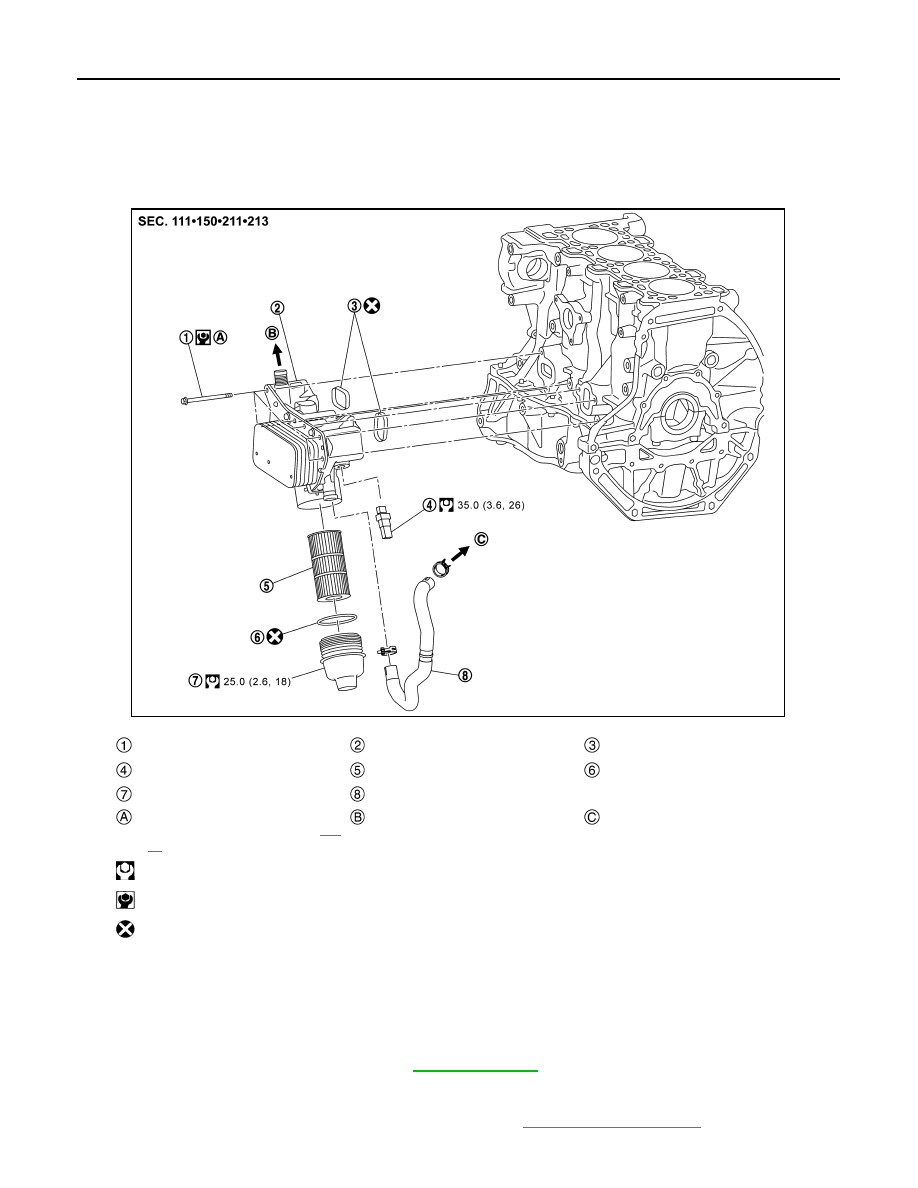

Exploded View

INFOID:0000000010783328

Removal and Installation

INFOID:0000000010783329

REMOVAL

WARNING:

Be careful not to get burn yourself, as engine oil and engine coolant may be hot.

1.

Drain engine coolant from radiator. Refer to

CO-64, "Draining"

.

CAUTION:

Perform this step when the engine is cold.

2.

Disconnect air inlet tube 2 (charge air cooler side). Refer to

EM-310, "Exploded View"

.

Oil cooler bolt

Oil cooler

Gasket

Oil pressure sensor

Oil filter

O-ring

Oil filter body

Water hose

.

Comply with the installation proce-
dure when tightening. Refer to

LU-

42

To thermoplunger

To water inlet

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

: Always replace after every disassembly.

JPBIA6961GB

OIL COOLER

LU-43

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

3.

Remove A/C compressor from bracket with piping connected, and temporarily secure it aside. Refer to

HA-167, "Exploded View"

 (for RUSSIA) or

HA-30, "Exploded View"

 (except for RUSSIA).

4.

Disconnect oil level sensor and oil pressure switch harness connectors.

5.

Disconnect water hose from oil cooler. (To water inlet)

CAUTION:

Never adhere the engine coolant to electronic equipments. (alternator etc.)

6.

Remove oil pressure switch, if necessary.

CAUTION:

Handle oil pressure switch carefully and avoid impacts.

7.

Remove oil cooler.

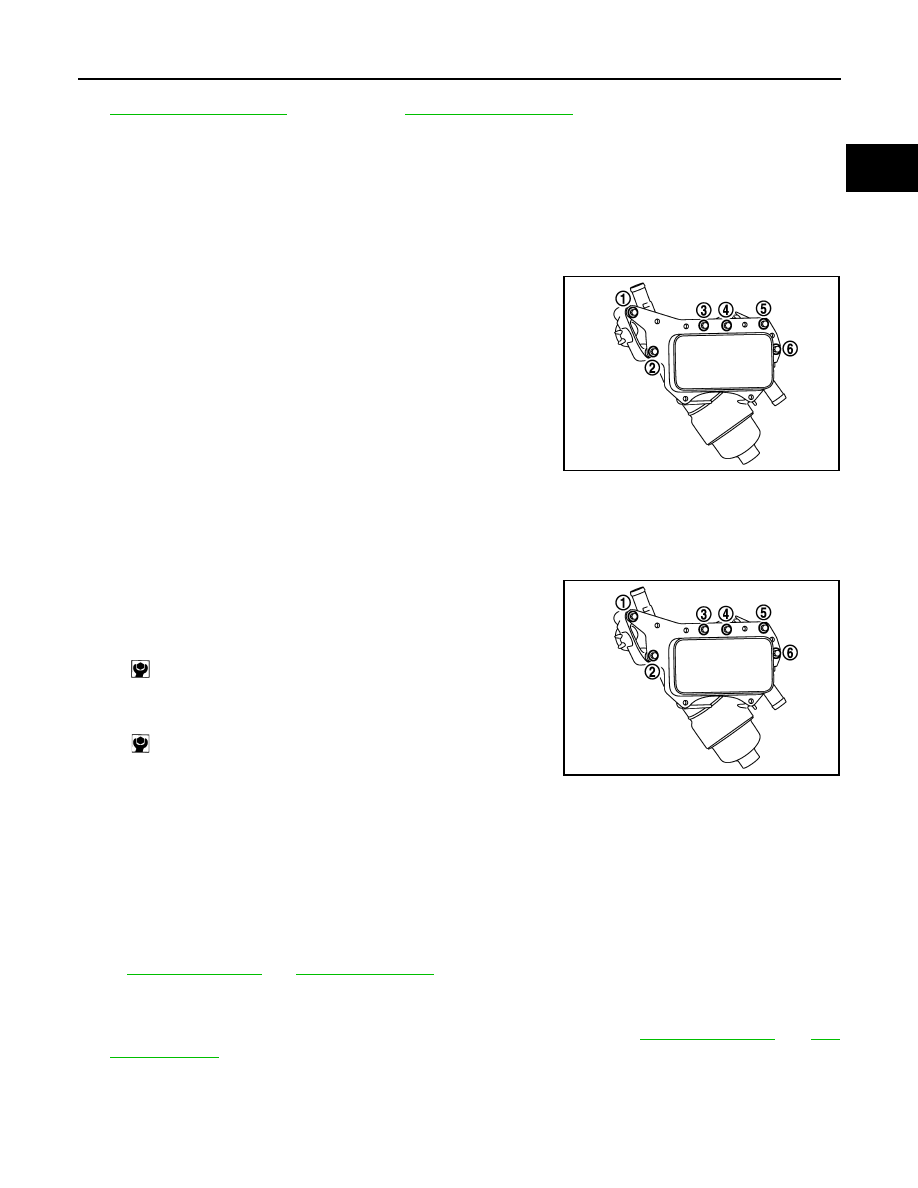

• Loosen mounting bolts in reverse order as shown in the figure.

8.

Disconnect water hose from oil cooler. (To thermoplunger)

INSTALLATION

Note the following, and install in the reverse order of removal.

Oil Cooler

• Tighten mounting bolts in the following steps in numerical order as

shown in the figure.

1.

Tighten mounting bolts No.1 and 6.

2.

Tighten all mounting bolts.

Inspection

INFOID:0000000010783330

INSPECTION AFTER REMOVAL

Oil Cooler

Check that oil cooler for cracks. Check that oil cooler for clogging by blowing through engine coolant inlet. If
necessary, replace oil cooler.

INSPECTION AFTER INSTALLATION

1.

Check that the engine oil level and the engine coolant level and add engine oil and engine coolant. Refer
to

LU-38, "Inspection"

 and

CO-64, "Inspection"

.

2.

Start the engine, and check that there is no leakage of engine oil or engine coolant.

3.

Stop the engine and wait for 10 minutes.

4.

Check that the engine oil level and the engine coolant level again. Refer to

LU-38, "Inspection"

 and

CO-

64, "Inspection"

.

E1BIA0599ZZ

: 10.0 N·m (1.0 kg-m, 89 in-lb)

: 10.0 N·m (1.0 kg-m, 89 in-lb)

E1BIA0599ZZ
