INSTRUMENT PANEL ASSEMBLY

IP-23

< REMOVAL AND INSTALLATION >

[LHD MODELS]

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never use the steering wheel mounting bolt after removal, replace with the new bolt.
• Never use the passenger air bag module mounting bolts after removal, replace with the new bolts.

IP-24

< REMOVAL AND INSTALLATION >

[LHD MODELS]

CENTER CONSOLE ASSEMBLY

CENTER CONSOLE ASSEMBLY

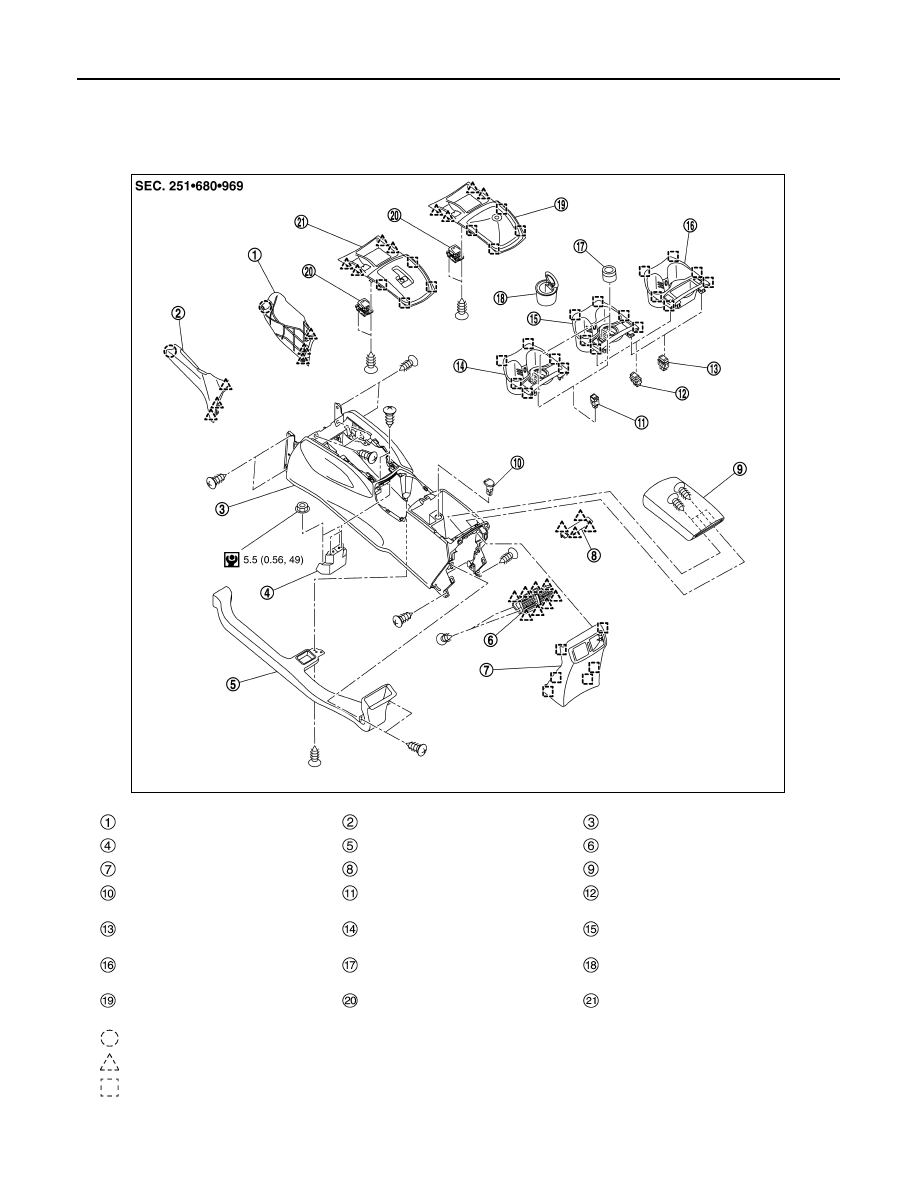

Exploded View

INFOID:0000000010981700

Instrument lower cover RH

Instrument lower cover LH

Center console assembly

Console bracket (M/T models)

Rear ventilator duct 2 (if equipped)

Rear ventilator grille (if equipped)

Console rear finisher

Console mask

Console lid

Power socket (if equipped)

Hill descent control switch
(if equipped)

Heated seat switch LH
(if equipped)

Heated seat switch RH
(if equipped)

Console switch panel

Console switch panel

Console switch panel

4WD mode switch
(if equipped)

Ashtray

Console boot assembly
(M/T models)

Parking brake switch

A/T console finisher
(CVT models)

: Clip

: Pawl

: Metal clip

JMJIB0238GB

CENTER CONSOLE ASSEMBLY

IP-25

< REMOVAL AND INSTALLATION >

[LHD MODELS]

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

Removal and Installation

INFOID:0000000010981701

WARNING:

Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait for 3 minutes
or more.

REMOVAL

CAUTION:

When removing, always use a remover tool that is made of plastic.

1.

Put selector lever in

N

 position (CVT models).

2.

Remove selector lever knob. Refer to

TM-403, "Removal and Installation"

. (CVT models)

3.

Remove shift lever knob. Refer to

TM-28, "Removal and Installation"

. (M/T models)

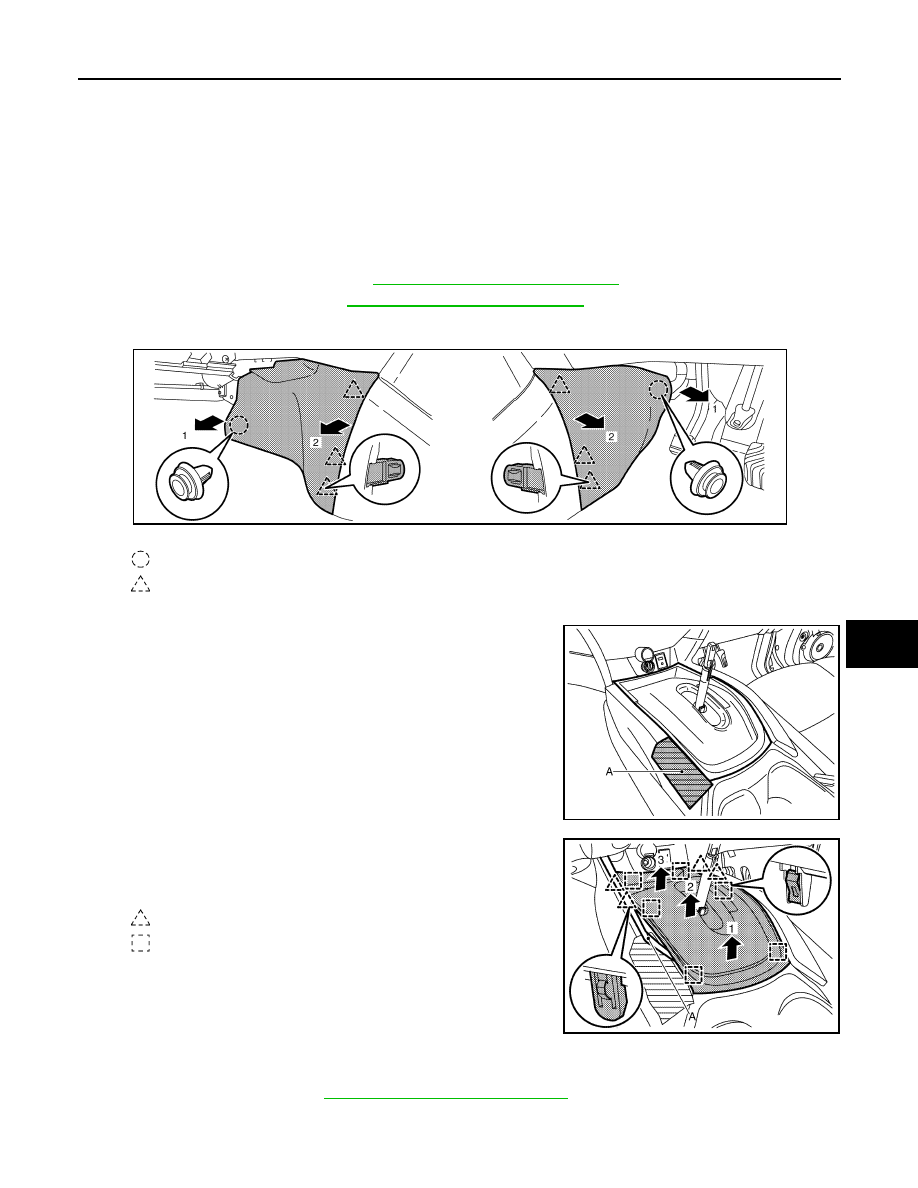

4.

Disengage fixing clip and pawls, and then remove instrument lower cover LH and RH according to numer-
ical order 1

2 indicated by arrows as shown in the figure.

5.

Remove A/T console finisher. (CVT models)

a.

Apply protective tape (A) on the part to protect it from damage.

b.

Disengage fixing metal clips and pawls using a remover tool (A),
and then remove A/T console finisher according to numerical
order 1

3 indicated by arrows as shown in the figure.

c.

Disconnect harness connector.

d.

Remove the following part after removing A/T console finisher.
Parking brake switch: Refer to

PB-156, "Removal and Installation"

.

6.

Remove console boot assembly. (M/T models)

: Clip

: Pawl

JMJIA9741ZZ

JMJIA9740ZZ

: Pawl

: Metal clip

JMJIA9775ZZ

IP-26

< REMOVAL AND INSTALLATION >

[LHD MODELS]

CENTER CONSOLE ASSEMBLY

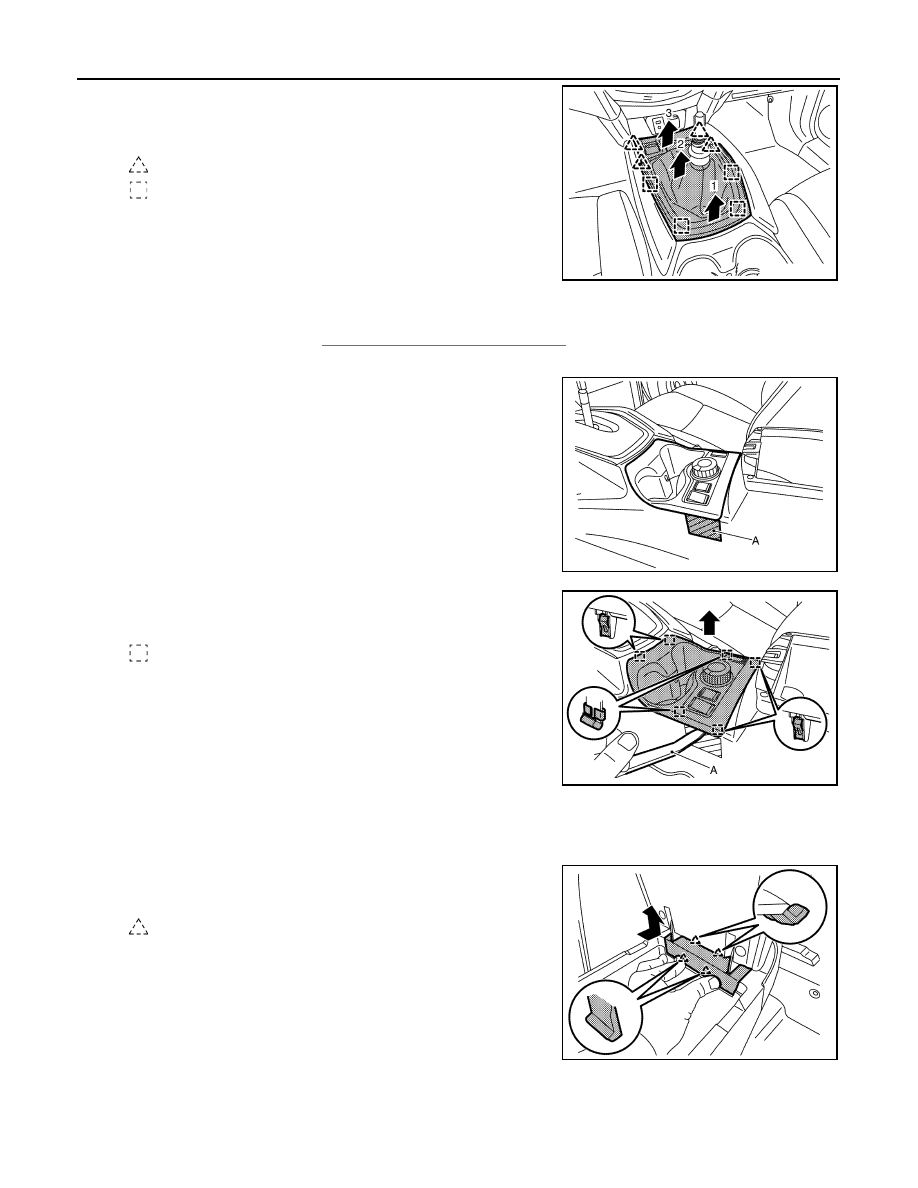

a.

Disengage fixing metal clips and pawls, and then remove con-
sole boot assembly according to numerical order 1

3 indicated

by arrows as shown in the figure.

b.

Disconnect harness connector.

c.

Remove the following part after removing console boot assembly.
Parking brake switch: Refer to

PB-156, "Removal and Installation"

.

7.

Remove console switch panel.

a.

Apply protective tape (A) on the part to protect it from damage.

b.

Disengage fixing metal clips using a remover tool (A), and then
remove console switch panel from center console assembly.

c.

Disconnect harness connectors.

8.

Remove console mask.

a.

Open the console lid.

b.

Disengage fixing pawls, and then remove console mask by
arrow as shown in the figure.

9.

Remove console rear finisher assembly.

: Pawl

: Metal clip

JMJIB0239ZZ

JMJIA9816ZZ

: Metal clip

JMJIA9818ZZ

: Pawl

JMJIA9815ZZ
