PRECAUTIONS

INL-5

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

NOTE:
At this moment, ACC power is supplied.

2.

Open the driver side door.

3.

Open the hood.

4.

Close the driver side door.

5.

Wait at least 3 minutes.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INL-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

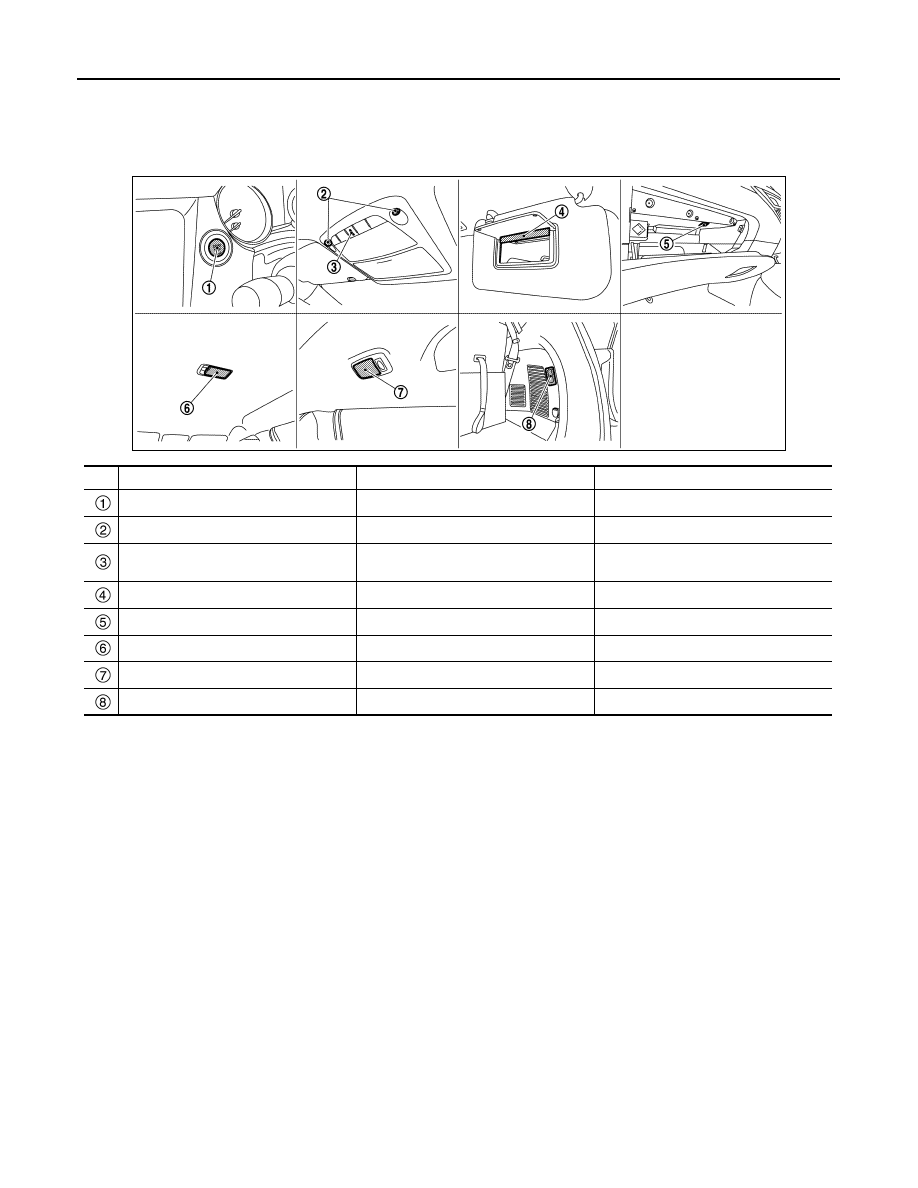

Interior Lamp Appearance and Bulb Specifications

INFOID:0000000010755133

*1

: Without sunroof

*2

: With sunroof

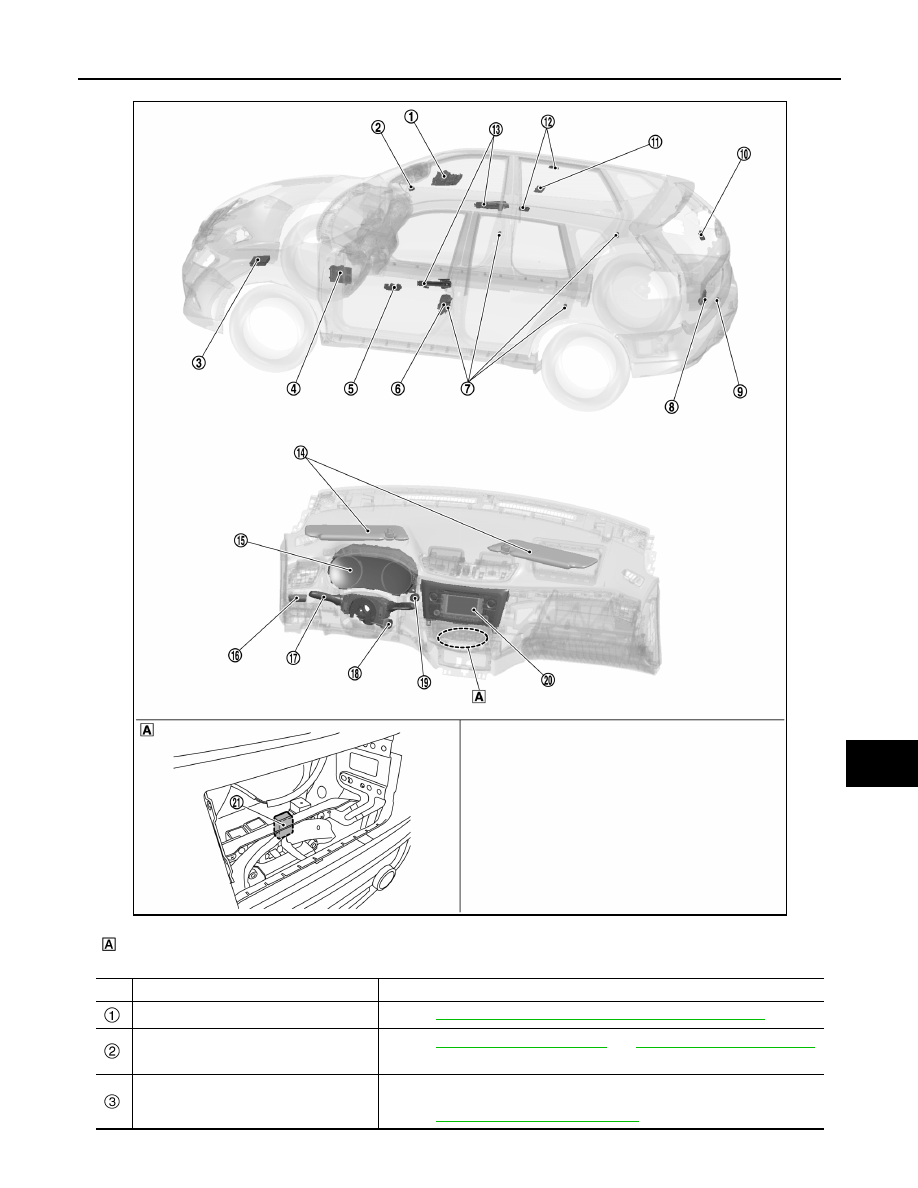

Component Parts Location

INFOID:0000000010755134

LHD MODELS

JMLIA5117ZZ

No.

Item

Type

Wattage (W)

Push-button ignition switch illumination

LED

—

Map lamp

LED

—

Map lamp illumination
(Integrated into map lamp assembly)

LED

—

Vanity mirror lamp

—

1.8

Glove box lamp

Wedge

1.4

Room lamp

*1

—

8.0

Personal lamp

*2

Wedge

8.0

Luggage room lamp

—

3.4

COMPONENT PARTS

INL-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

Behind A/C control

No.

Component

Function

Map lamp

Refer to

INL-6, "Interior Lamp Appearance and Bulb Specifications"

.

Light & rain sensor*

1

Refer to

EXL-20, "Light & Rain Sensor"

*

2

 or

EXL-224, "Light & Rain Sensor"



*

3

.

IPDM E/R

Controls the integrated smart FET, and supplies voltage to the load according
to the request from BCM via CAN communication.
Refer to

PCS-5, "Component Parts Location"

 for detailed installation location.

JMLIA5540ZZ

INL-8

< SYSTEM DESCRIPTION >

COMPONENT PARTS

*

1

: For models with auto light system.

*

2

: For models with LED headlamp.

*

3

: For models with halogen headlamp.

*

4

: For models with Intelligent Key system.

*

5

: For models without Intelligent Key system.

*

6

: For models with room lamp.

*

7

: For models with personal lamp.

*

8

: For models with NAVI.

RHD MODELS

BCM

• Activates the interior room lamp timer depending on the vehicle condition to

turn the interior room lamps ON/OFF.

• Operates the interior room lamp battery saver depending on the vehicle

condition to turn interior room lamps OFF.

• Detects each switch condition by the combination switch reading function.
• Judges the illumination lamp ON/OFF status depending on the vehicle con-

dition. And then transmits request signal to combination meter (via CAN
communication).

Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

 for

detailed installation location.

Power window main switch
(Door lock and unlock switch)

Refer to

DLK-341, "DOOR LOCK SYSTEM : Door Lock and Unlock Switch"



(Type 2*

4

) or

DLK-796, "Door Lock and Unlock Switch"

 (Type 4*

5

).

Front door lock assembly (driver side)
(Unlock sensor)

Refer to

DLK-341, "DOOR LOCK SYSTEM : Door Lock Assembly"

 (Type 2*

4

)

or

DLK-795, "Door Lock Assembly"

 (Type 4*

5

).

Door switch

Refer to

DLK-342, "DOOR LOCK SYSTEM : Door Switch"

 (Type 2*

4

) or

DLK-

796, "Door Switch"

 (Type 4*

5

).

Back door lock assembly
(Back door switch)

Refer to

DLK-340, "DOOR LOCK SYSTEM : Back Door Lock Assembly"

 (Type

2*

4

) or

DLK-795, "Back Door Lock Assembly"

 (Type 4*

5

).

Back door opener switch assembly*

4

(Door request switch)

Refer to

DLK-340, "DOOR LOCK SYSTEM : Back Door Opener Switch As-

sembly"

.

Luggage room lamp

Refer to

INL-6, "Interior Lamp Appearance and Bulb Specifications"

.

Room lamp*

6

Refer to

INL-6, "Interior Lamp Appearance and Bulb Specifications"

.

Personal lamp*

7

Refer to

INL-6, "Interior Lamp Appearance and Bulb Specifications"

.

Front door outside handle assembly*

4

(Door request switch)

Refer to

DLK-341, "DOOR LOCK SYSTEM : Door Request Switch"

.

Vanity mirror lamp

Refer to

INL-6, "Interior Lamp Appearance and Bulb Specifications"

.

Combination meter

Controls the illumination according to the request signal from BCM (via CAN
communication).

Meter control switch
(Illumination control switch)

Refer to

MWI-14, "METER SYSTEM : Meter Control Switch"

.

Combination switch
(Lighting & turn signal switch)

Refer to

BCS-13, "COMBINATION SWITCH READING SYSTEM : System

Description"

.

Key switch*

5

Refer to

DLK-796, "Ignition Key Cylinder"

.

Push-button ignition switch*

4

(Push-button ignition switch illumination)

Refer to

INL-6, "Interior Lamp Appearance and Bulb Specifications"

.

NAVI control unit*

8

Controls the brightness of display according to the request signal from BCM.

Interior room lamp relay

Interior room lamp relay is controlled by BCM and supplies power to each in-
terior room lamp.

No.

Component

Function
