HORN

HRN-5

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

HRN

N

O

P

JRLWD5762GB

HRN-6

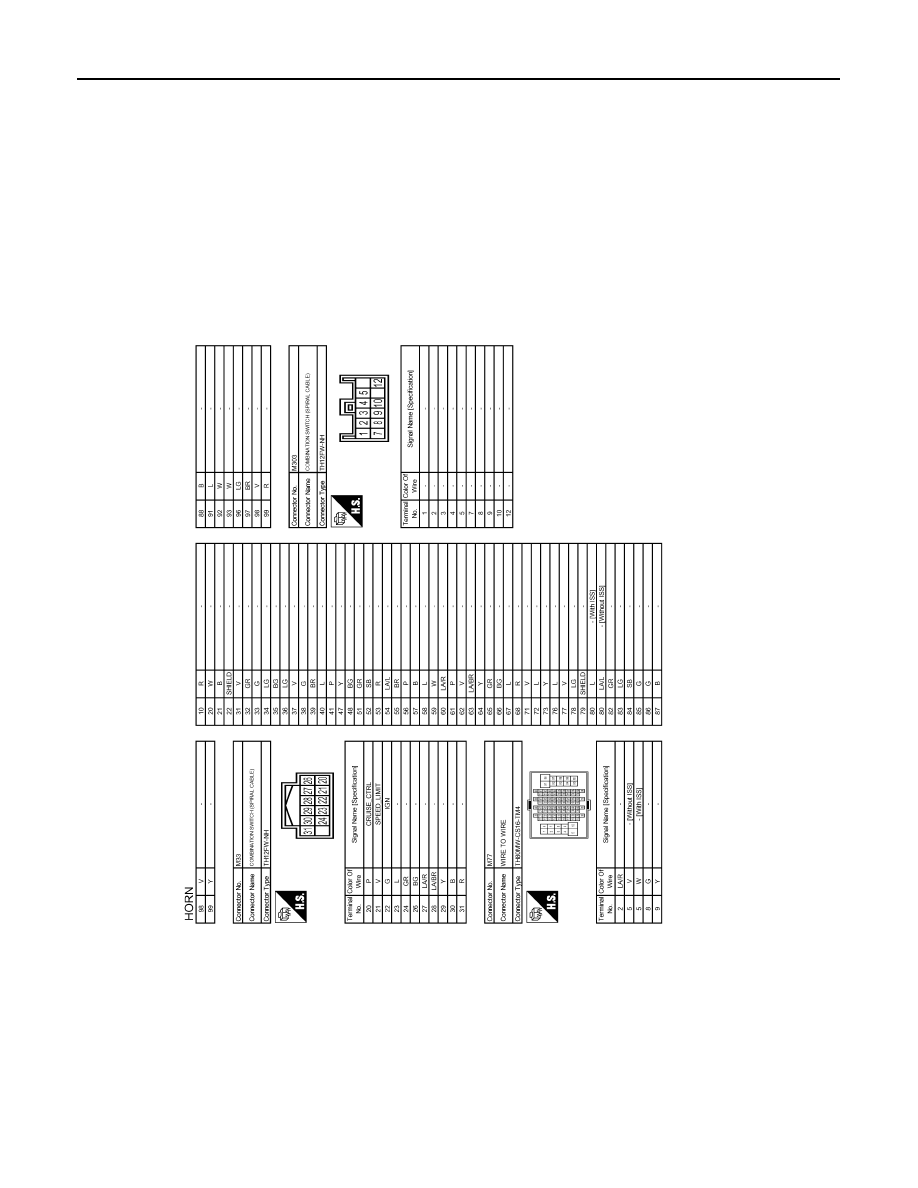

< WIRING DIAGRAM >

HORN

JRLWD5763GB

HORN

HRN-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

HRN

N

O

P

REMOVAL AND INSTALLATION

HORN

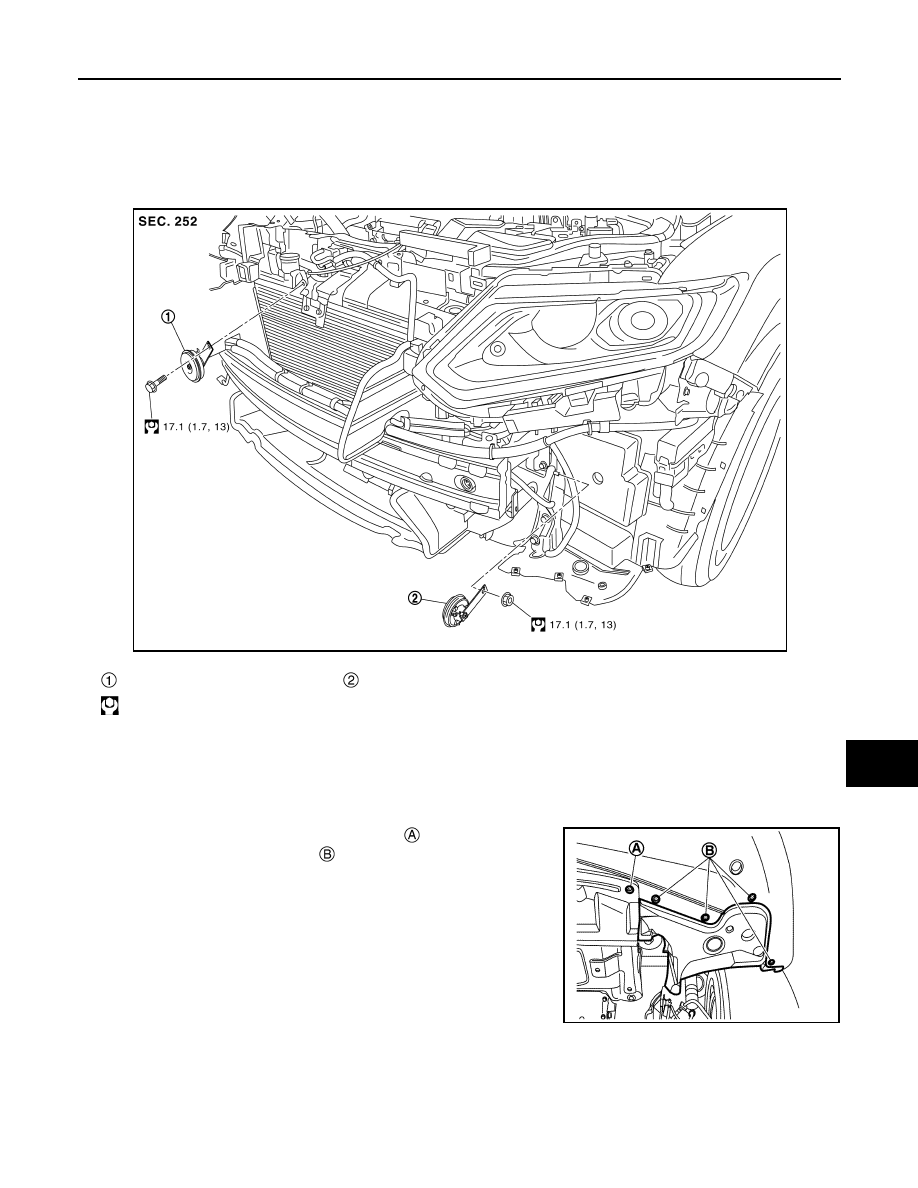

Exploded View

INFOID:0000000011008283

Removal and Installation

INFOID:0000000011008284

REMOVAL

Horn (high)

1.

Disengage front under cover fixing clip

 and remove front

fender protector fixing screws

 to make work space.

2.

Disconnect horn (high) connectors.

3.

Remove horn (high) mounting nut, and then remove horn (high).

Horn (low)

1.

Disconnect horn (low) connectors.

Horn (low)

Horn (high)

: N·m (kg-m, ft-lb)

JMLIA4844GB

JMLIA4846ZZ

HRN-8

< REMOVAL AND INSTALLATION >

HORN

2.

Remove horn (low) mounting nut, and then remove horn (low).

INSTALLATION

Note the following item, install in the reverse order of removal.

CAUTION:

Be careful to connect power supply harness connector and ground harness connector normally.

Harness connector

Horn

Brown

Power supply

Black

Ground
