FAN CONTROL AMPLIFIER

Exploded View

INFOID:0000000010939882

Refer to following items..
• R9M (EXCEPT FOR RUSSIA) : Refer to

HA-40, "Exploded View"

.

• MR20DD : Refer to

HA-86, "Exploded View"

.

• QR25DE : Refer to

HA-131, "Exploded View"

.

• R9M (FOR RUSSIA) : Refer to

HA-177, "Exploded View"

.

Removal and Installation

INFOID:0000000010939883

REMOVAL

1.

Remove instrument lower panel LH (LHD models) or glove box cover (RHD models). Refer to

IP-14,

"Removal and Installation"

 (LHD models) or

IP-41, "Removal and Installation"

 (RHD models).

2.

Disconnect power transistor harness connector.

3.

Remove fixing screws

, and then remove fan control amplifier.

INSTALLATION

Install in the reverse order of removal.

JMIIA3400ZZ

HAC-228

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

DOOR MOTOR

DOOR MOTOR

Exploded View

INFOID:0000000010939884

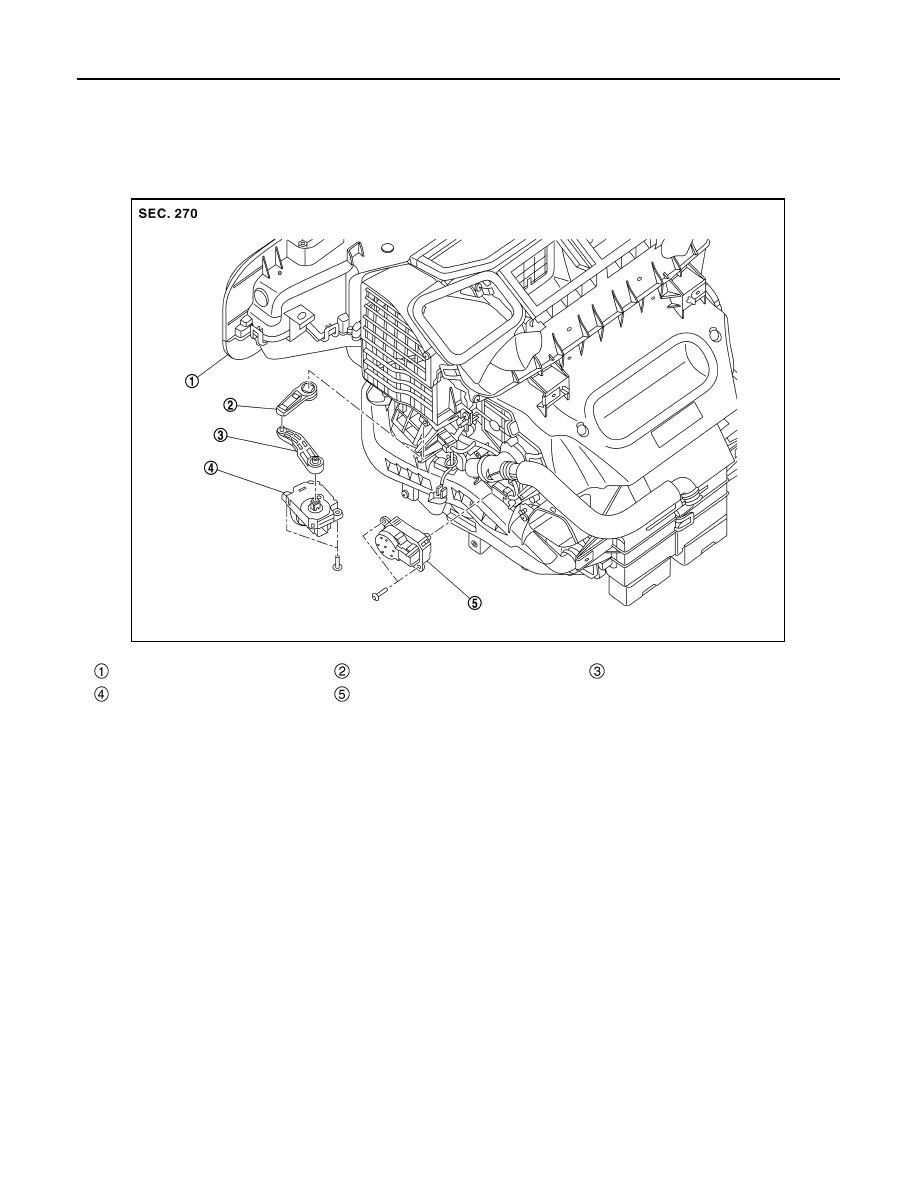

LEFT SIDE

RIGHT SIDE

A/C unit assembly

Intake door lever

Intake door link

Intake door motor

Air mix door motor LH

JMIIA3368GB

DOOR MOTOR

HAC-229

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

AIR MIX DOOR MOTOR

AIR MIX DOOR MOTOR : Removal and Installation

INFOID:0000000010939885

REMOVAL

Air Mix Door Motor LH

1.

Set the temperature at 18

°

C (64

°

F).

CAUTION:

Always perform the above procedure when removing air mix door motor. Otherwise, air mix door
may interfere in A/C unit assembly may be damaged.

2.

Remove instrument lower panel LH (LHD models) or glove box cover (RHD models). Refer to

IP-14,

"Removal and Installation"

 (LHD models) or

IP-41, "Removal and Installation"

 (RHD models).

3.

Remove foot duct LH. Refer to

VTL-12, "FOOT DUCT : Removal and Installation"

.

4.

Disconnect air mix door motor harness connector.

5.

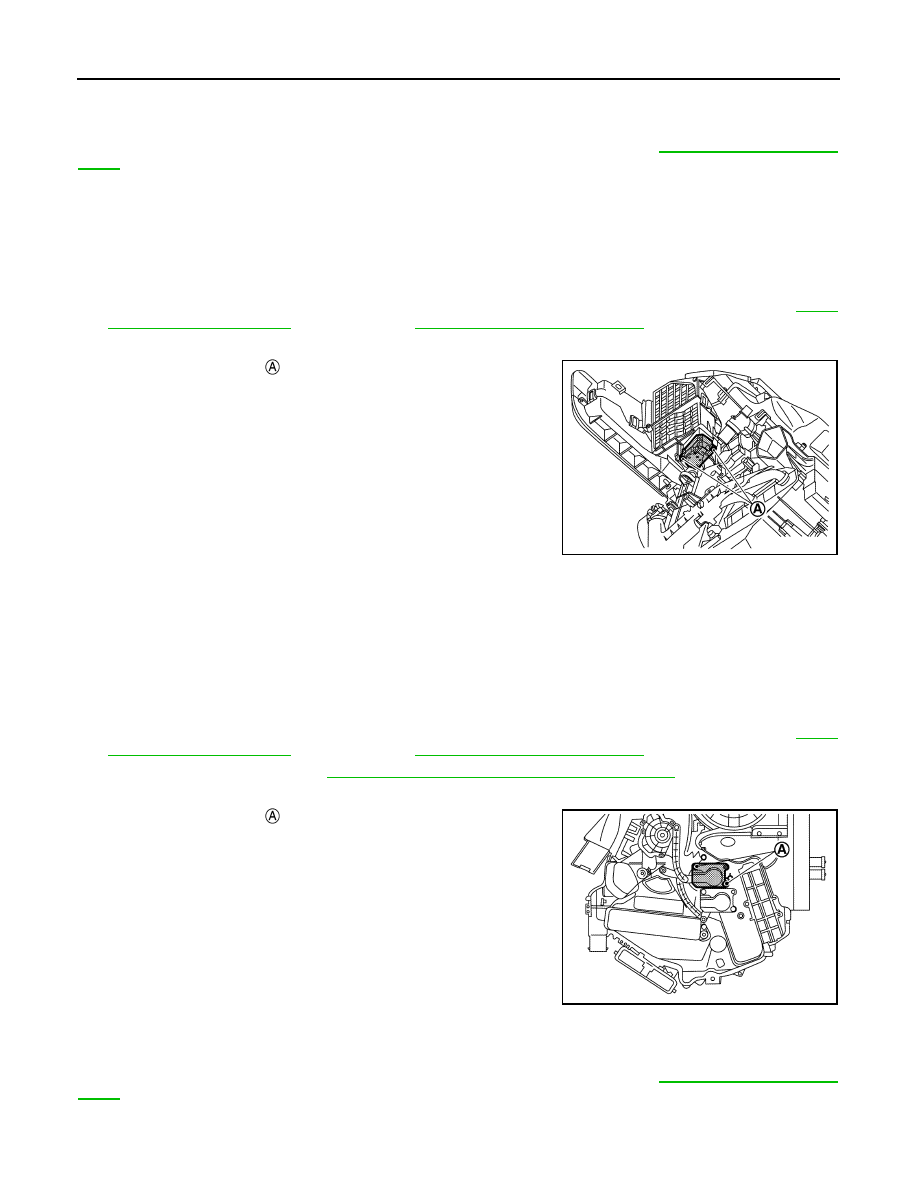

Remove fixing screws

, and then remove air mix door motor

LH.

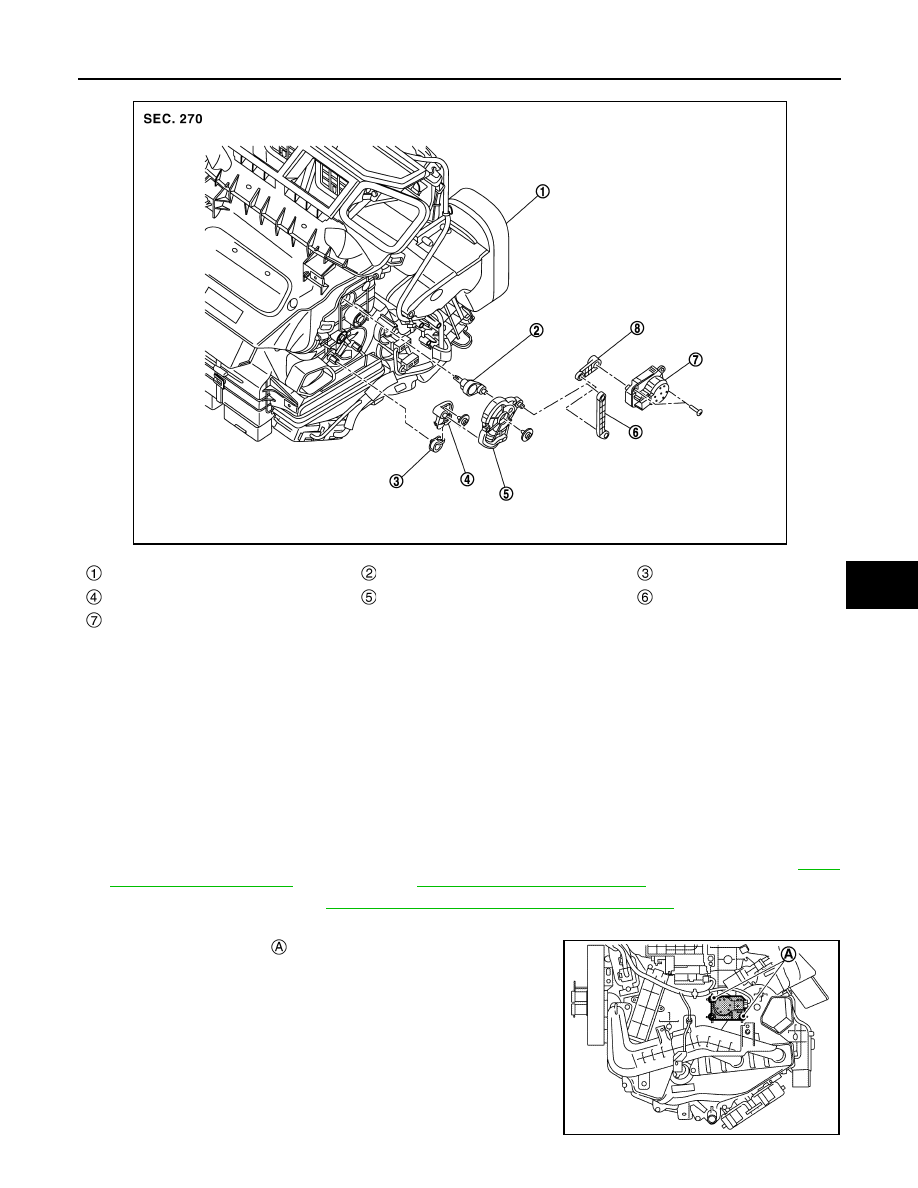

A/C unit assembly

Side ventilator door lever

Foot door link

Foot door link

Main link

Mode door link

Mode door motor

JMIIA3531ZZ

JMIIA3395ZZ

HAC-230

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

DOOR MOTOR

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installing door motor, perform door motor starting position. Refer to

HAC-189, "Work Proce-

dure"

.

INTAKE DOOR MOTOR

INTAKE DOOR MOTOR : Removal and Installation

INFOID:0000000010939886

REMOVAL

1.

Remove instrument lower panel LH (LHD models) or glove box cover (RHD models). Refer to

IP-14,

"Removal and Installation"

 (LHD models) or

IP-41, "Removal and Installation"

 (RHD models).

2.

Disconnect intake door motor harness connector.

3.

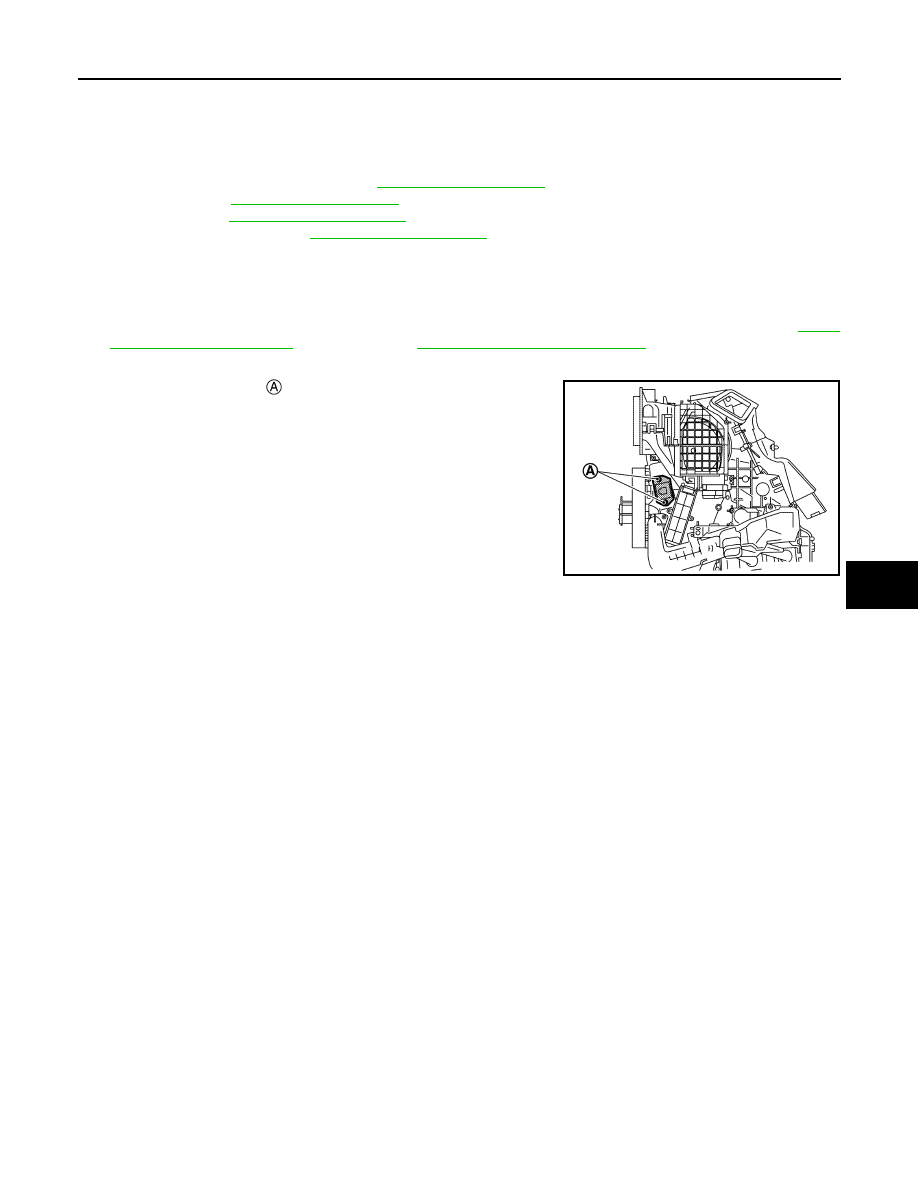

Remove fixing screws

, and then remove intake door motor.

INSTALLATION

Install in the reverse order of removal.

MODE DOOR MOTOR

MODE DOOR MOTOR : Removal and Installation

INFOID:0000000010939887

REMOVAL

1.

Remove instrument lower panel RH (RHD models) or glove box cover (LHD models). Refer to

IP-14,

"Removal and Installation"

 (LHD models) or

IP-41, "Removal and Installation"

 (RHD models).

2.

Remove foot duct RH. Refer to

VTL-12, "FOOT DUCT : Removal and Installation"

.

3.

Disconnect mode door motor harness connector.

4.

Remove fixing screws

, mode door motor.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installing door motor, perform door motor starting position. Refer to

HAC-189, "Work Proce-

dure"

.

JMIIA3394ZZ

JMIIA3396ZZ
