Nissan X-Trail 32. Manual - part 1437





AMBIENT SENSOR

HAC-223

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

AMBIENT SENSOR

Removal and Installation

INFOID:0000000010939876

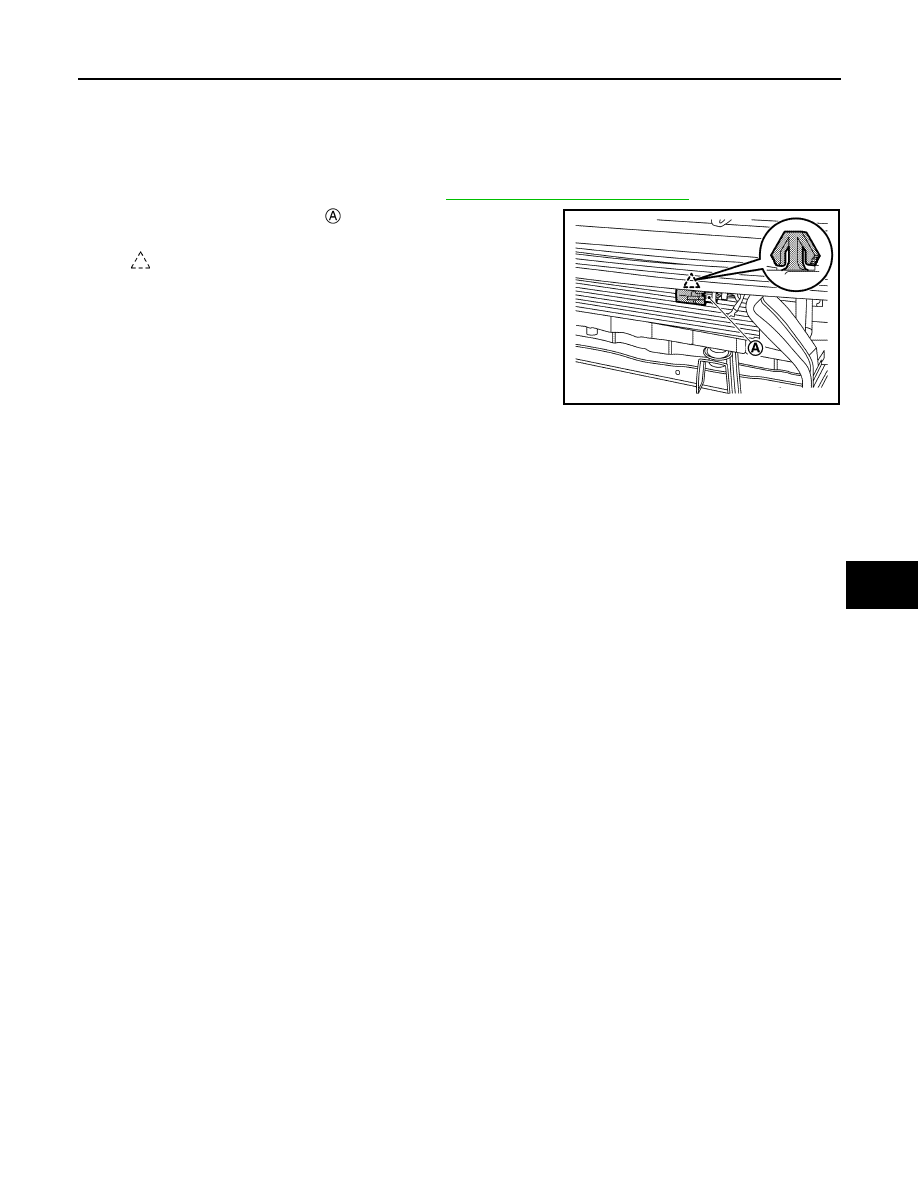

REMOVAL

1.

Remove front bumper fascia assembly. Refer to

EXT-15, "Removal and Installation"

.

2.

Disconnect harness connector

.

3.

Disengage fixing pawl, and then remove ambient sensor.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMIIA3393ZZ

HAC-224

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

INTAKE SENSOR

INTAKE SENSOR

Exploded View

INFOID:0000000010939877

Refer to

HA-40, "Exploded View"

.

Removal and Installation

INFOID:0000000010939878

REMOVAL

1.

Remove instrument lower cover LH. Refer to

IP-14, "Removal and Installation"

 (LHD models) or

IP-41,

"Removal and Installation"

 (RHD models).

2.

Remove intake sensor from A/C unit assembly.

3.

Disconnect harness connector from intake sensor.

CAUTION:

If disconnect harness connector from intake sensor, replace intake sensor with new one.

INSTALLATION

Note the following item, and then install in the order of removal.

CAUTION:

If disconnect harness connector from intake sensor, replace intake sensor with new one.

REFRIGERANT PRESSURE SENSOR

HAC-225

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

REFRIGERANT PRESSURE SENSOR

Exploded View

INFOID:0000000010939879

Refer to following items..
• R9M (EXCEPT FOR RUSSIA) : Refer to

HA-32, "Exploded View"

.

• MR20DD : Refer to

HA-82, "Exploded View"

.

• QR25DE : Refer to

HA-127, "Exploded View"

.

• R9M (FOR RUSSIA) : Refer to

HA-169, "Exploded View"

.

Removal and Installation

INFOID:0000000010939880

REMOVAL

Refer to  following items.
• R9M (EXCEPT FOR RUSSIA) : Refer to

HA-36, "REFRIGERANT PRESSURE SENSOR : Removal and

Installation"

.

• MR20DD : Refer to

HA-84, "REFRIGERANT PRESSURE SENSOR : Removal and Installation"

.

• QR25DE : Refer to

HA-129, "REFRIGERANT PRESSURE SENSOR : Removal and Installation"

.

• R9M (FOR RUSSIA) : Refer to

HA-174, "REFRIGERANT PRESSURE SENSOR : Removal and Installa-

tion"

.

INSTALLATION

Install in the reverse order of removal.

HAC-226

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

PTC HEATER

PTC HEATER

Removal and Installation

INFOID:0000000010939881

REMOVAL

1.

Remove glove box coverinstrument lower cover RH (LHD models) or instrument lower cover RH (RHD
models). Refer to

IP-14, "Removal and Installation"

 (LHD models) or

IP-41, "Removal and Installation"

(RHD models).

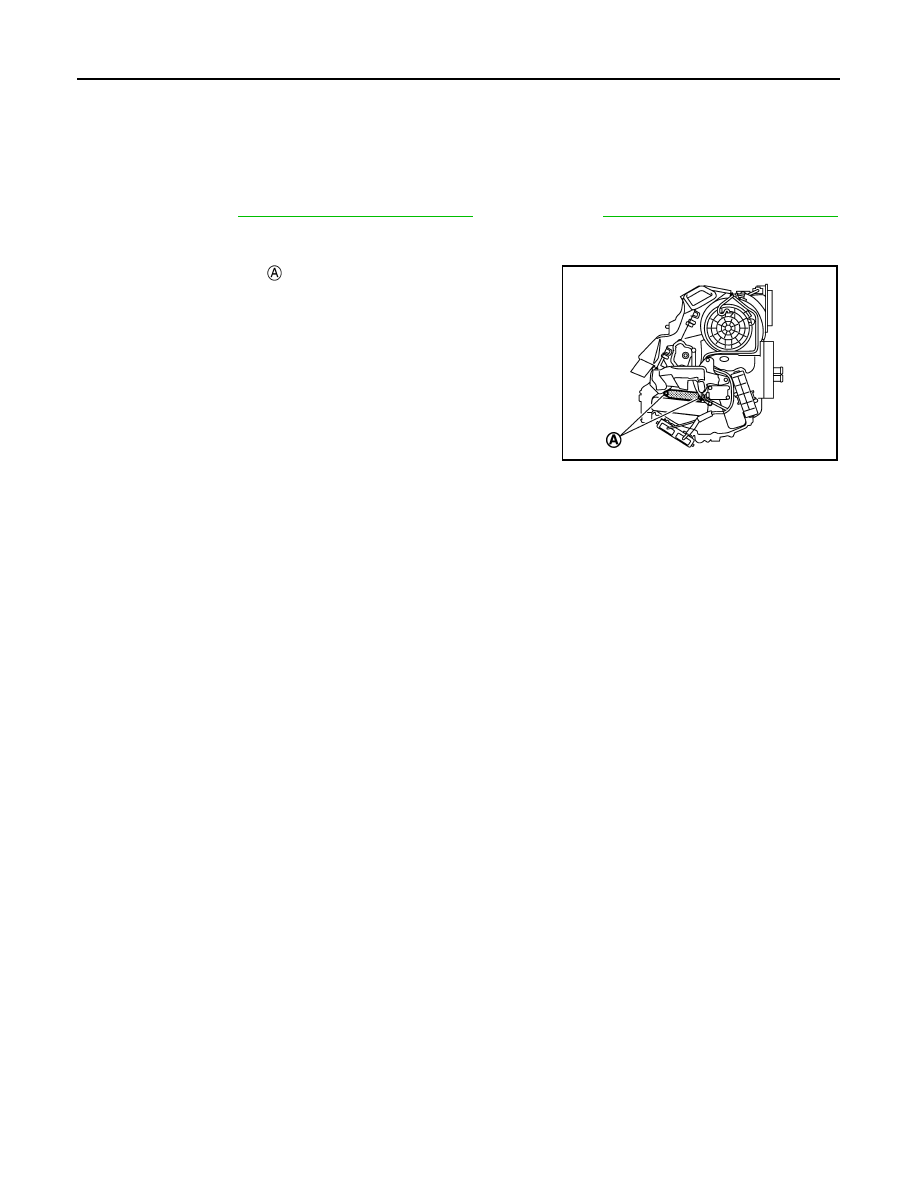

2.

Disconnect PTC heater connector.

3.

Remove fixing screws

, and then remove PTC heater from A/

C unit assembly.

INSTALLATION

Install in the reverse order of removal.

JMIIA3532ZZ
