FRONT DOOR GLASS

FRONT DOOR GLASS

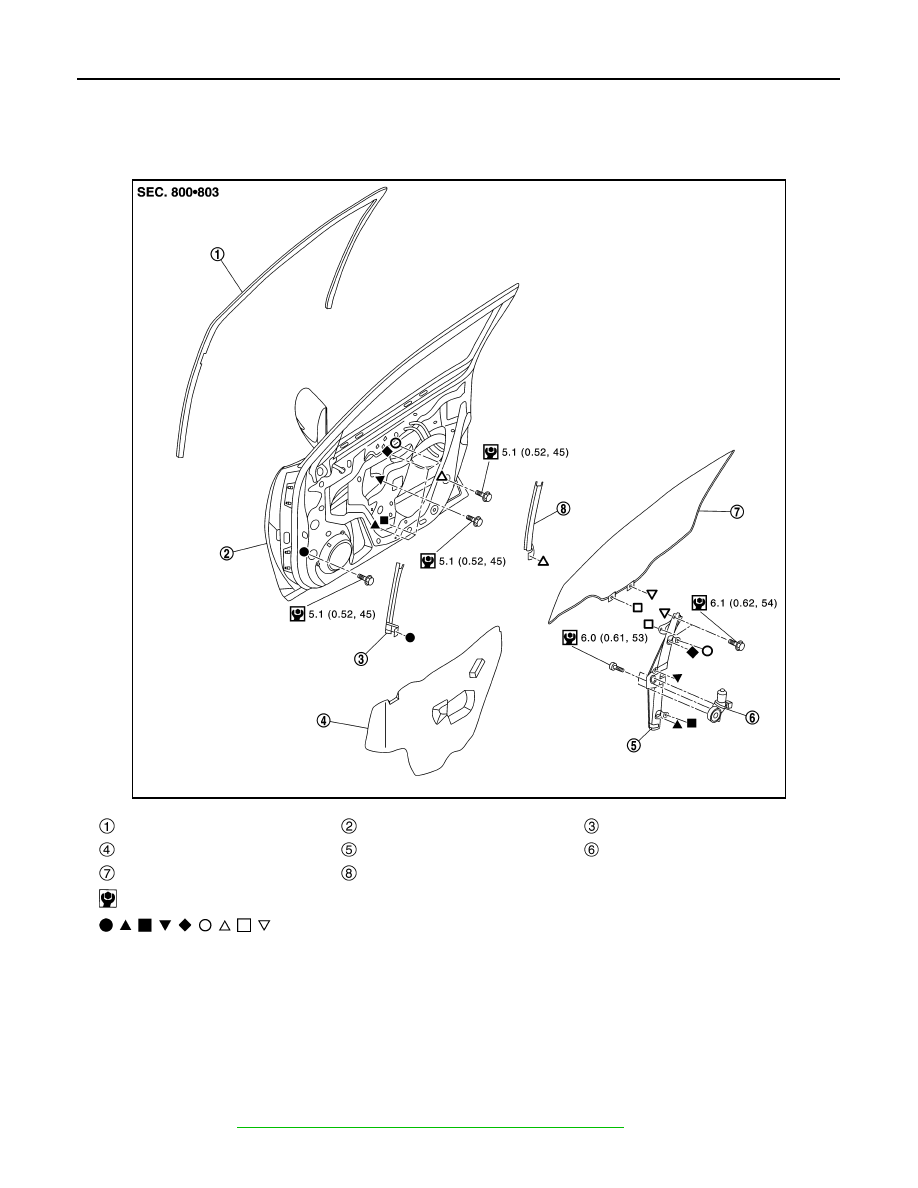

Exploded View

INFOID:0000000010755106

RHD models

FRONT DOOR GLASS

FRONT DOOR GLASS : Removal and Installation

INFOID:0000000010755107

REMOVAL

CAUTION:

Never damage front door glass and front door panel.

1.

Remove front door inside handle. Refer to the following.
• Type 1: Refer to

DLK-303, "INSIDE HANDLE : Removal and Installation"

.

JMKIB3180GB

Front door glass run

Front door panel

Front door lower sash

Front door sealing screen

Front door regulator

Front door power window motor

Front door glass

Front door glass run lower sash

: N·m (kg-m, in-lb)

, , , , , , , , :

Indicates

that

the

part

is

connected at points with same symbol in actual vehicle.

FRONT DOOR GLASS

GW-39

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

• Type 2: Refer to

DLK-611, "INSIDE HANDLE : Removal and Installation"

.

• Type 3: Refer to

DLK-774, "INSIDE HANDLE : Removal and Installation"

.

• Type 4: Refer to

DLK-916, "INSIDE HANDLE : Removal and Installation"

.

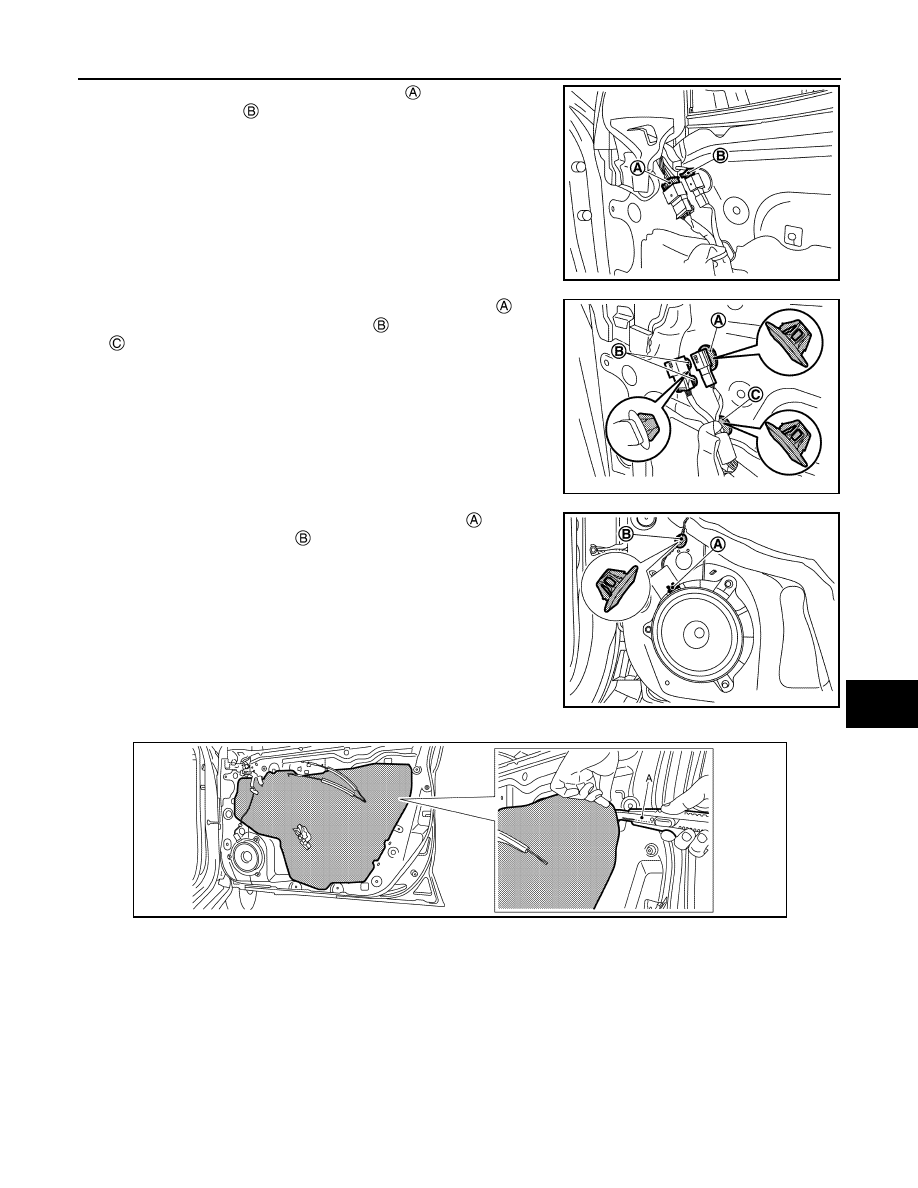

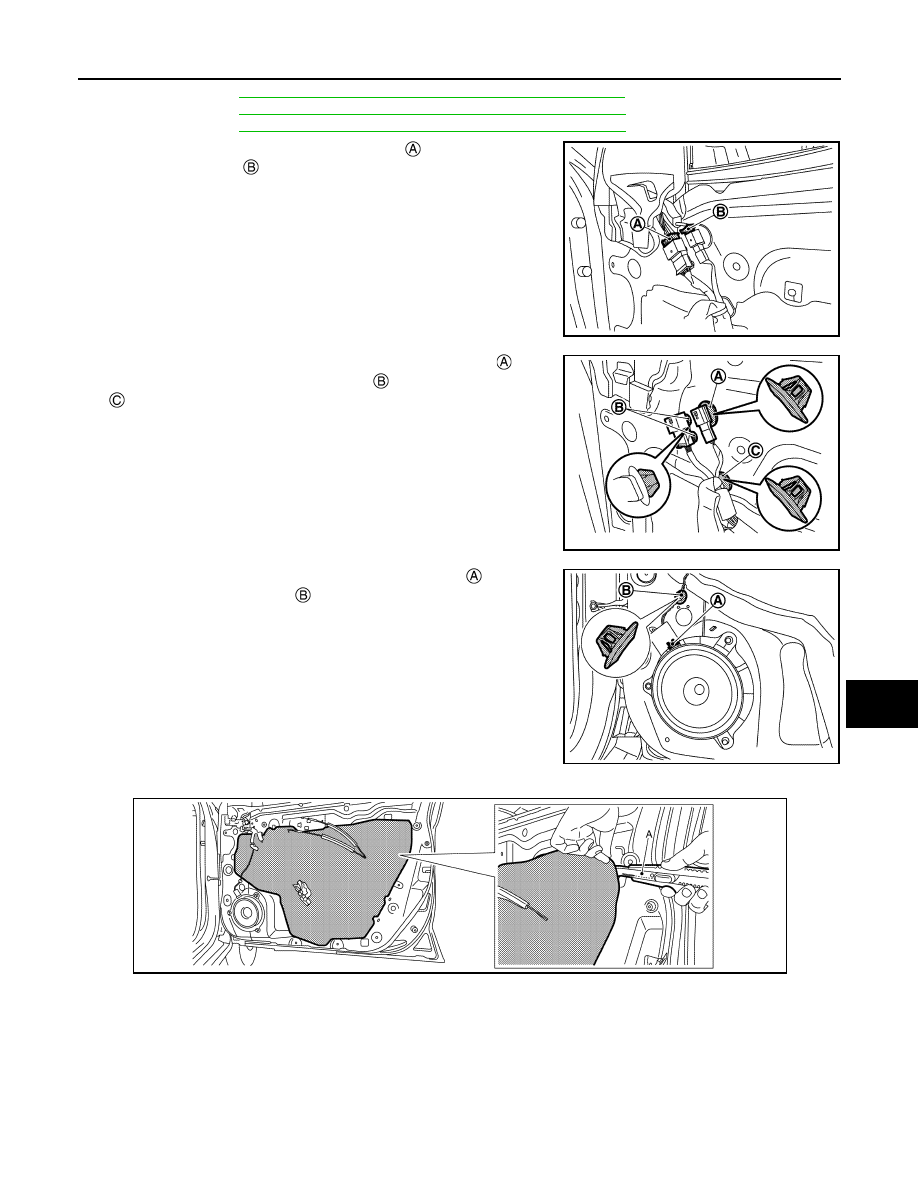

2.

Disconnect door mirror harness connector

 and BSW indicator

harness connector

.

NOTE:
As per BSW indicator harness connector, only with BSW indica-
tor can be applied.

3.

Remove BSW indicator harness connector fixing clip

, door

mirror harness connector fixing clips

 and harness fixing clip

.

NOTE:
As per BSW indicator harness connector, only with BSW indica-
tor can be applied.

4.

Disconnect front door speaker harness connector

, and then

remove harness fixing clip

.

5.

Cut butyl-tape inside of front door sealing screen by using cutter knife (A).

CAUTION:

Cut the butyl-tape so that remain on front door sealing screen, if the front door sealing screen is
reused.

JMKIB3127ZZ

JMKIB3128ZZ

JMKIB3129ZZ

JMKIB3130ZZ

GW-40

< REMOVAL AND INSTALLATION >

FRONT DOOR GLASS

6.

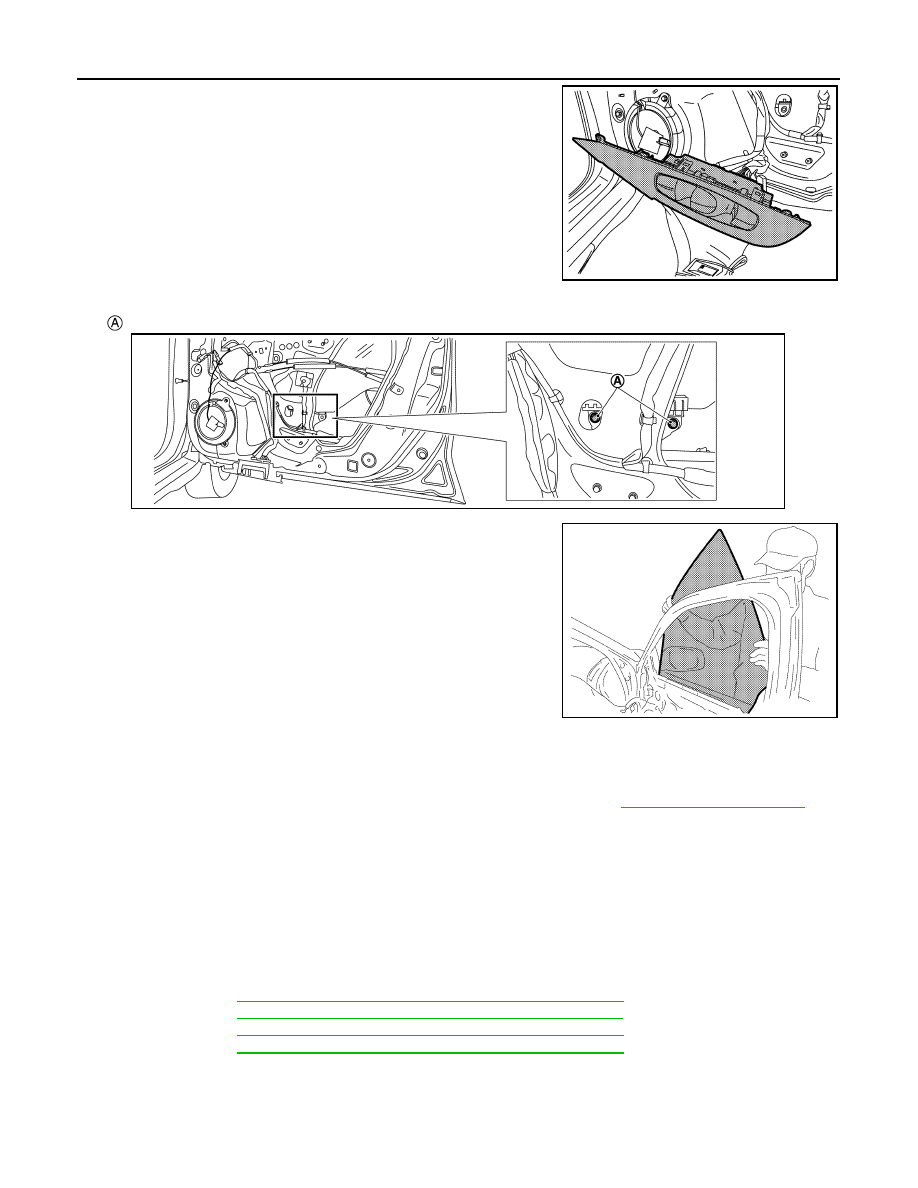

Reconnect power window main switch.

7.

Operate power window main switch to raise or lower front door glass until front door glass mounting bolts

 can be seen, and then remove front door glass mounting bolts.

8.

Hold securely front door glass and pull it out of front door panel
to remove front door glass.

CAUTION:

Never damage front door glass, front door glass run and
front door panel.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Tighten front door glass mounting bolts to the specified torque. Refer to

GW-38, "Exploded View"

.

FRONT DOOR LOWER SASH

FRONT DOOR LOWER SASH : Removal and Installation

INFOID:0000000010755108

REMOVAL

CAUTION:

Never damage front door glass and front door panel.

1.

Remove front door inside handle. Refer to the following.
• Type 1: Refer to

DLK-303, "INSIDE HANDLE : Removal and Installation"

.

• Type 2: Refer to

DLK-611, "INSIDE HANDLE : Removal and Installation"

.

• Type 3: Refer to

DLK-774, "INSIDE HANDLE : Removal and Installation"

.

• Type 4: Refer to

DLK-916, "INSIDE HANDLE : Removal and Installation"

.

JMKIB3131ZZ

JMKIB3132ZZ

JMKIB1956ZZ

FRONT DOOR GLASS

GW-41

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

2.

Disconnect door mirror harness connector

 and BSW indicator

harness connector

.

NOTE:
As per BSW indicator harness connector, only with BSW indica-
tor can be applied.

3.

Remove BSW indicator harness connector fixing clip

, door

mirror harness connector fixing clips

 and harness fixing clip

.

NOTE:
As per BSW indicator harness connector, only with BSW indica-
tor can be applied.

4.

Disconnect front door speaker harness connector

, and then

remove harness fixing clip

.

5.

Cut butyl-tape inside of front door sealing screen by using cutter knife (A).

CAUTION:

Cut the butyl-tape so that remain on front door sealing screen, if the front door sealing screen is
reused.

JMKIB3127ZZ

JMKIB3128ZZ

JMKIB3129ZZ

JMKIB3130ZZ
