HOW TO USE THIS MANUAL

HOW TO USE THIS MANUAL

Description

INFOID:0000000010727531

This volume explains “Removal, Disassembly, Installation, Inspection and Adjustment” and “Trouble Diag-
noses”.

Terms

INFOID:0000000010727532

• The captions WARNING and CAUTION warn you of steps that must be followed to prevent personal injury

and/or damage to some part of the vehicle.
WARNING indicates the possibility of personal injury if instructions are not followed.
CAUTION indicates the possibility of component damage if instructions are not followed.
BOLD TYPED STATEMENTS except WARNING and CAUTION give you helpful information.
Standard value: Tolerance at inspection and adjustment.
Limit value: The maximum or minimum limit value that should not be exceeded at inspection and adjust-
ment.

Units

INFOID:0000000010727533

• The UNITS given in this manual are primarily expressed as the SI UNIT (International System of Unit), and

alternatively expressed in the metric system and in the yard/pound system.
Also with regard to tightening torque of bolts and nuts, there are descriptions both about range and about the
standard tightening torque.

“Example”
Range

Standard

Contents

INFOID:0000000010727534

• A QUICK REFERENCE INDEX, a black tab (e.g.

) is provided on the first page. You can quickly find the

first page of each section by matching it to the section's black tab.

• THE CONTENTS are listed on the first page of each section.
• THE TITLE is indicated on the upper portion of each page and shows the part or system.
• THE PAGE NUMBER of each section consists of two or three letters which designate the particular section

and a number (e.g. “BR-5”).

• THE SMALL ILLUSTRATIONS show the important steps such as inspection, use of special tools, knacks of

work and hidden or tricky steps which are not shown in the previous large illustrations.
Assembly, inspection and adjustment procedures for the complicated units such as the automatic transaxle
or transmission, etc. are presented in a step-by-step format where necessary.

Outer Socket Lock Nut

: 59 - 78 N·m (6.0 - 8.0 kg-m, 43 - 58 ft-lb)

Drive Shaft Installation Bolt

: 44.3 N·m (4.5 kg-m, 33 ft-lb)

GI-4

< HOW TO USE THIS MANUAL >

HOW TO USE THIS MANUAL

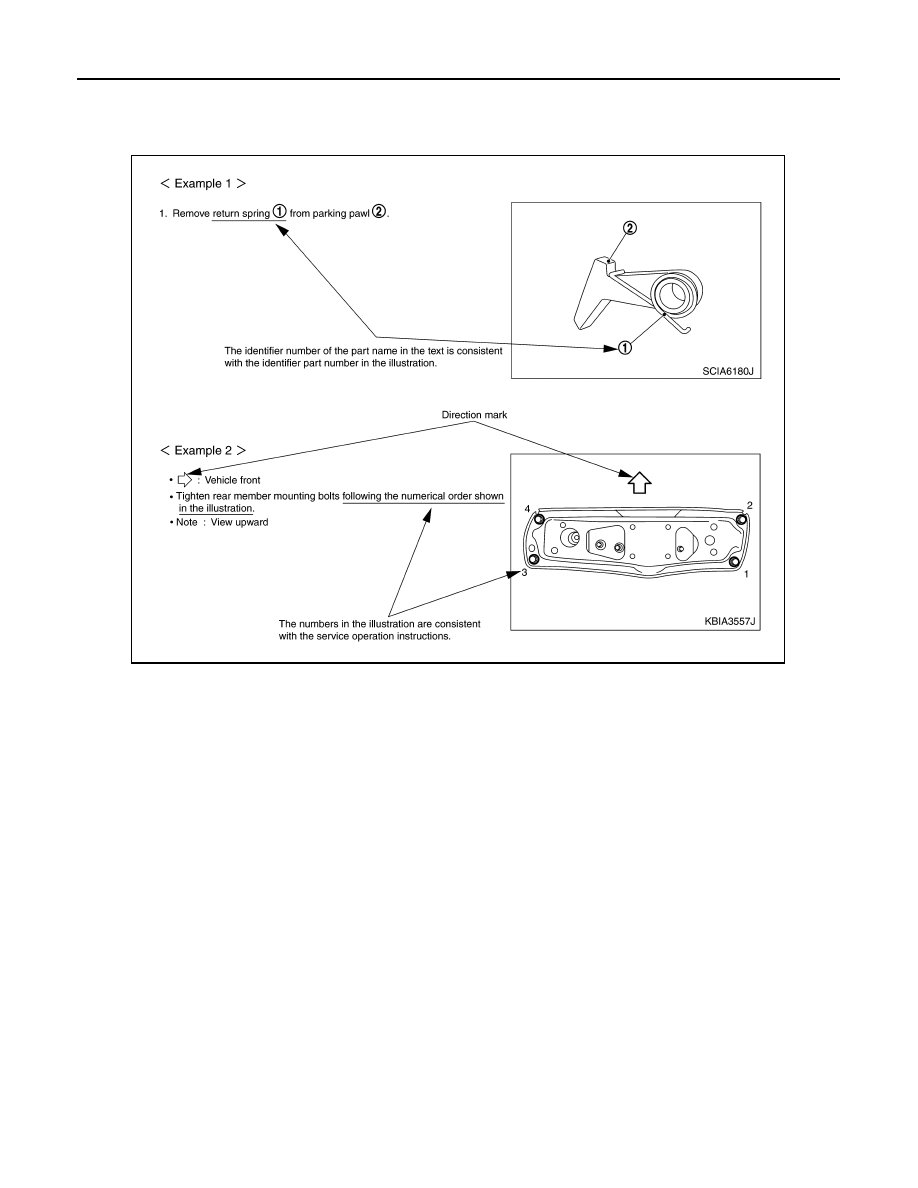

Relation between Illustrations and Descriptions

INFOID:0000000010727535

The following sample explains the relationship between the part description in an illustration, the part name in
the text and the service procedures.

Components

INFOID:0000000010727536

• THE LARGE ILLUSTRATIONS are exploded views (see the following) and contain tightening torques, lubri-

cation points, section number of the PARTS CATALOG (e.g. SEC. 440) and other information necessary to
perform repairs.
The illustrations should be used in reference to service matters only. When ordering parts, refer to the appro-
priate PARTS CATALOG.
Components shown in an illustration may be identified by a circled number. When this style of illustration is
used, the text description of the components will follow the illustration.

JSAIA2307GB

HOW TO USE THIS MANUAL

GI-5

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

SYMBOLS

Cap

Bleeder valve

Cylinder body

Piston seal

Piston

Piston boot

Sliding pin

Sliding pin boot

Bushing

Torque member

: Apply rubber grease.

: Apply brake fluid.

: N·m (kg-m, in-lb)

: Always replace after every disassembly

JPFIA0511GB

SYMBOL

DESCRIPTION

SYMBOL

DESCRIPTION

N·m (kg-m, ft-lb)

Tightening torque
The tightening torque specifications of bolts and
nuts may be presented as either a range or a
standard tightening torque.

Always replace after every disassembly.

N·m (kg-m, ft-lb)

Select with proper thickness.

Should be lubricated with oil.

Adjustment is required.

Sealing point

Direction

Should be lubricated with grease. Unless otherwise indicated, use
recommended multi-purpose grease.

Metal clip

Apply petroleum jelly.

Clip

Sealing point with locking sealant.

Pawl

Apply ATF.

GI-6

< HOW TO USE THIS MANUAL >

HOW TO FOLLOW TROUBLE DIAGNOSES

HOW TO FOLLOW TROUBLE DIAGNOSES

Description

INFOID:0000000010727537

NOTICE:
Trouble diagnoses indicate work procedures required to diagnose problems effectively. Observe the following
instructions before diagnosing.
• Before performing trouble diagnoses, read the “Work Flow” in each section.
• After repairs, re-check that the problem has been completely eliminated.
• Refer to Component Parts and Harness Connector Location for the Systems described in each section for

identification/location of components and harness connectors.

• When checking circuit continuity, ignition switch should be OFF.
• Refer to the Circuit Diagram for quick pinpoint check.

If you need to check circuit continuity between harness connectors in more detail, such as when a sub-har-
ness is used, refer to Wiring Diagram in each individual section and Harness Layout in PG section for identi-
fication of harness connectors.

• Before checking voltage at connectors, check battery voltage.
• After accomplishing the Diagnosis Procedures and Electrical Components Inspection, check that all harness

connectors are reconnected as they were.

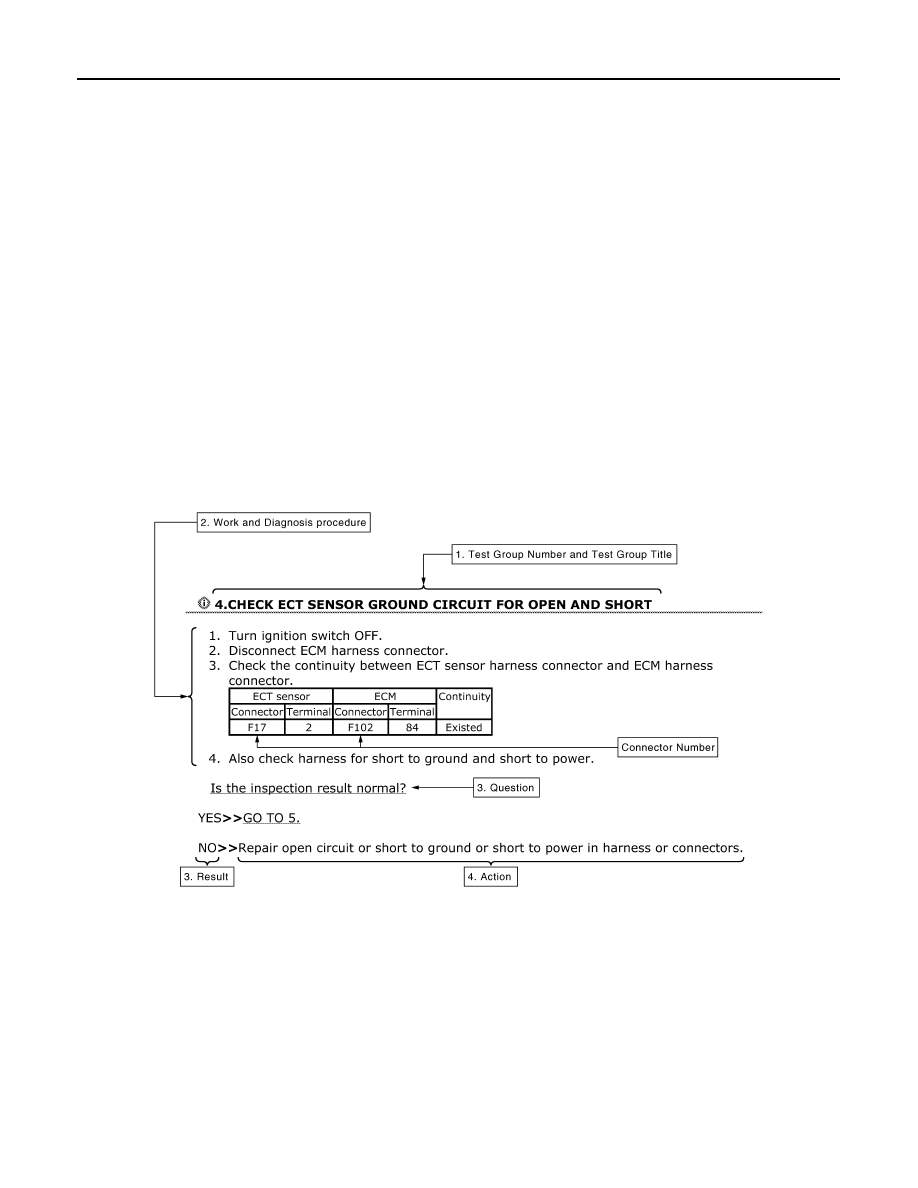

How to Follow Test Groups in Trouble Diagnosis

INFOID:0000000010727538

1.

Test group number and test group title
• Test group number and test group title are shown in the upper portion of each test group.

2.

Work and diagnosis procedure
• Start to diagnose a problem using procedures indicated in enclosed test groups.

3.

Questions and results
• Questions and required results are indicated in test group.

4.

Action
• Next action for each test group is indicated based on result of each question.

JPAIA0021GB
