FSU-20

< REMOVAL AND INSTALLATION >

FRONT STABILIZER

8.

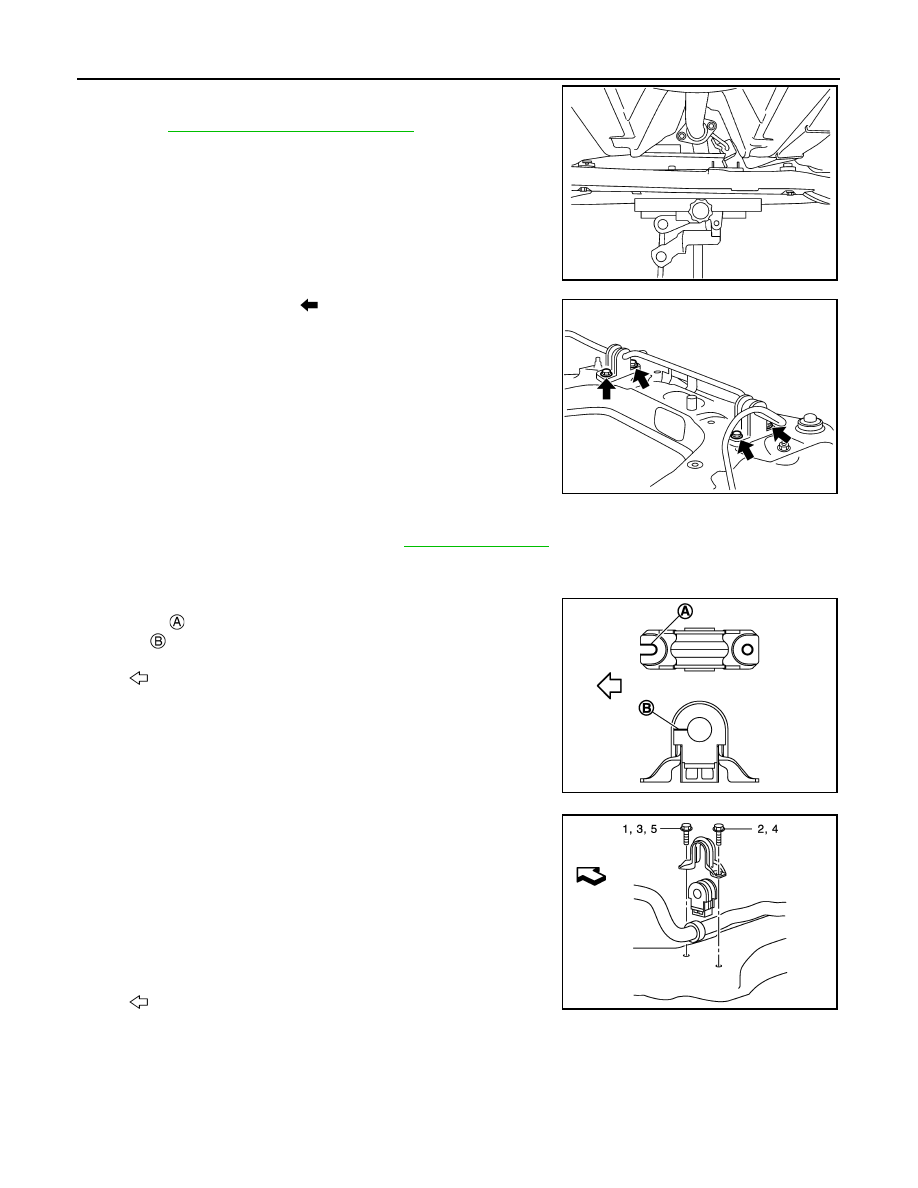

Using jack, lower front suspension member to the position
where the mounting bolts of stabilizer clamp can be removed.
Refer to

FSU-22, "Removal and Installation"

.

9.

Remove mounting bolts (

) of stabilizer clamp, and then

remove stabilizer clamp and stabilizer bushing from front sus-
pension member.

10. Remove stabilizer bar.

11. Perform inspection after removal. Refer to

FSU-21, "Inspection"

.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Install stabilizer clamp and stabilizer bush as follows.
-  The notch

 is facing front of the vehicle.

-  The slit

 is facing rear of the vehicle.

• When installing the stabilizer clamp mounting bolts, tighten in

numerical order.

WEIA0181E

WEIA0182E

: Vehicle front

JPEIA0058ZZ

Temporary tightening
(by hand)

: 1

Temporary tightening
(by tool)

: 2

3

Final tightening
(Specified torque)

: 4

5

: Vehicle front

JPEIA0245GB

FRONT STABILIZER

FSU-21

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

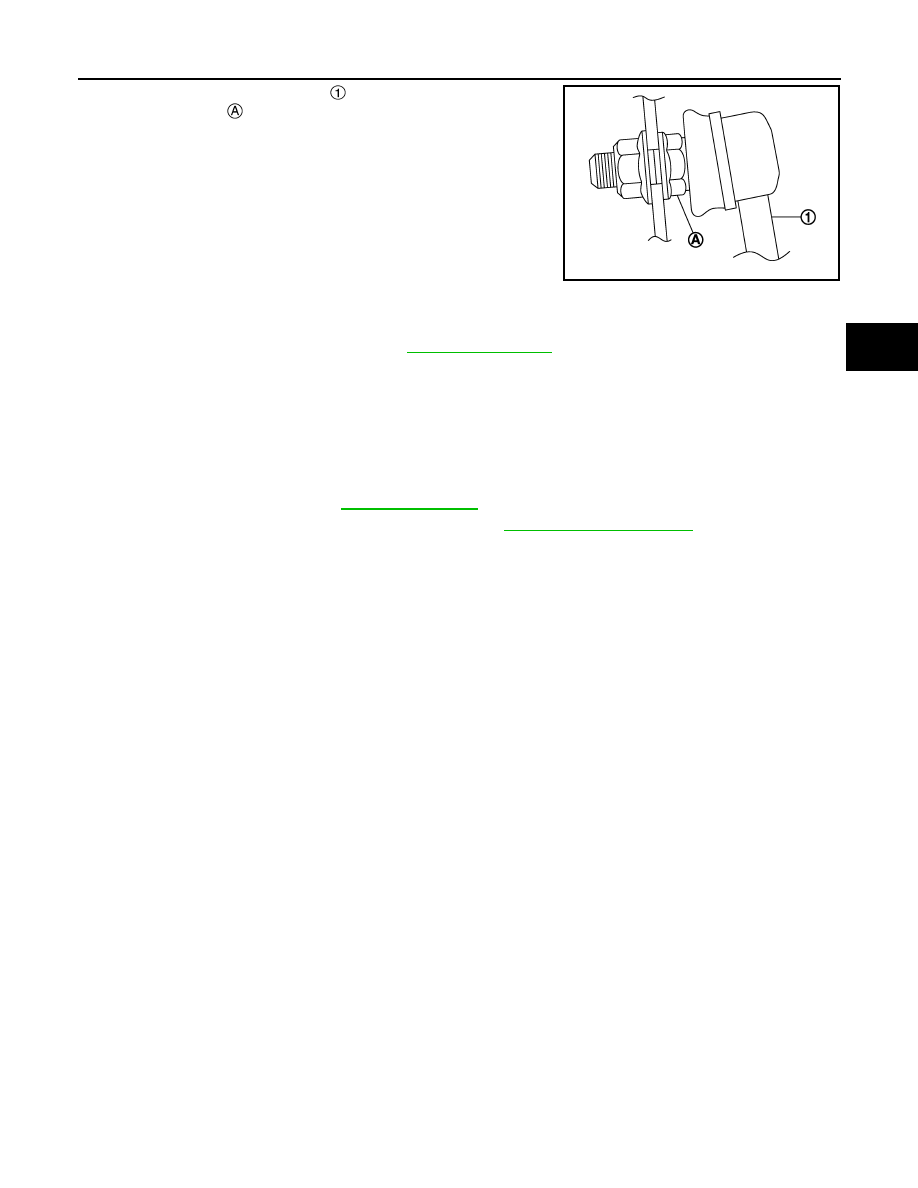

• To install stabilizer connecting rod

, tighten the mounting nut with

the hexagonal part

 on the stabilizer connecting rod side fixed.

• Perform final tightening of bolts and nuts at the vehicle installation position (rubber bushing), under unladen

conditions with tires on level ground.

• Perform inspection after installation. Refer to

FSU-18, "Inspection"

.

Inspection

INFOID:0000000010822763

INSPECTION AFTER REMOVAL

Check stabilizer bar, stabilizer connecting rod, stabilizer bushing and stabilizer clamp for deformation, cracks
or damage. Replace it if necessary.

INSPECTION AFTER INSTALLATION

1.

Check wheel alignment. Refer to

FSU-8, "Inspection"

.

2.

Adjust neutral position of steering angle sensor. Refer to

BRC-99, "Work Procedure"

.

JPEIA0252ZZ

FSU-22

< REMOVAL AND INSTALLATION >

FRONT SUSPENSION MEMBER

FRONT SUSPENSION MEMBER

Exploded View

INFOID:0000000010822764

Removal and Installation

INFOID:0000000010822765

REMOVAL

1.

Remove tires. Refer to

WT-61, "Removal and Installation"

.

2.

Remove under cover. Refer to

EXT-39, "ENGINE UNDER COVER : Exploded View"

.

3.

Remove wheel sensor. Refer to

BRC-212, "FRONT WHEEL SENSOR : Removal and Installation"

.

4.

Separate stabilizer connecting rod (strut side) from strut. Refer to

FSU-19, "Removal and Installation"

.

5.

Remove steering outer socket from steering knuckle. Refer to

ST-22, "Removal and Installation"

.

6.

Remove steering gear assembly. Hang steering gear assembly not to interfere with work. Refer to

ST-22,

"Removal and Installation"

.

7.

Separate transverse link from steering knuckle. Refer to

FSU-17, "Removal and Installation"

.

8.

Remove rear torque rod.
• MR20DD: Refer to

EM-56, "Removal and Installation"

 .

• QR25DE: Refer to

EM-200, "Removal and Installation"

.

• R9M: Refer to

EM-366, "Removal and Installation"

.

9.

Set suitable jack under front suspension member.

CAUTION:

• At this step, the jack must be set only for supporting the removal procedure. For details on jack-

ing up the vehicle, refer to

GI-31, "Garage Jack and Safety Stand and 2-Pole Lift"

.

• Never damage the front suspension member with a jack.
• Check the stable condition when using a jack.

10. Remove member stay.
11. Remove front suspension member mounting bolts and rebound stopper rubber.

12. Gradually lower the jack to remove front suspension member from vehicle body.

CAUTION:

Operate while checking that jack supporting status is stable.
NOTE:

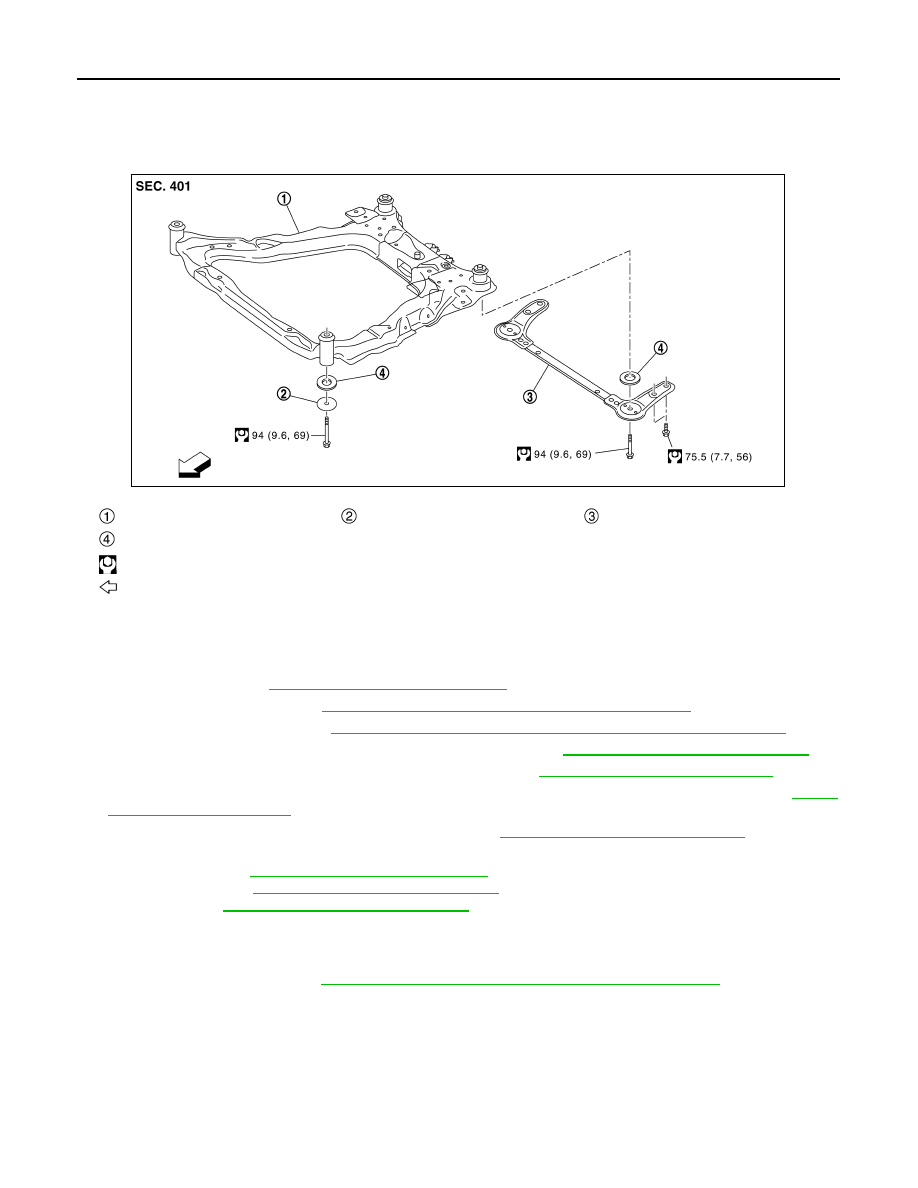

Front suspension member

Rebound stopper

Member stay

Rebound stopper

: N·m (kg-m, ft-lb)

: Vehicle front

JSEIA0898GB

FRONT SUSPENSION MEMBER

FSU-23

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

Remove suspension member with stabilizer bar and transverse link.

13. Remove the following parts.

• Stabilizer bar: Refer to

FSU-19, "Removal and Installation"

.

• Transverse link: Refer to

FSU-17, "Removal and Installation"

.

14. Perform inspection after removal. Refer to

FSU-18, "Inspection"

.

INSTALLATION

Note the following, and install in the reverse order of removal.

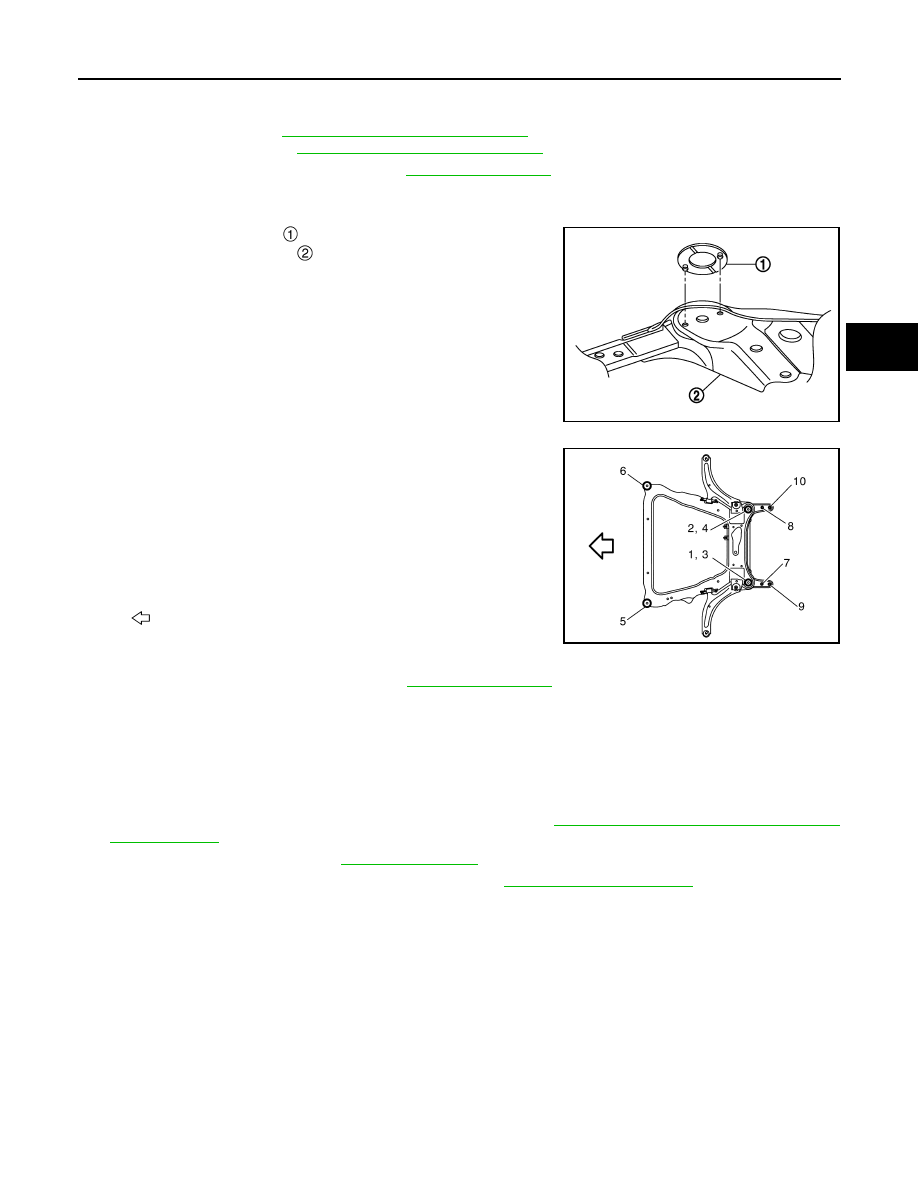

• To install rebound stopper

, insert it with the protrusion aligned

with the hole of member stay

.

• To install member stay and mounting bolts of front suspension

member, temporarily tighten the bolts before tightening to the
specified torque, referring to the tightening method and the numer-
ical order shown below:

• Perform final tightening of bolts and nuts at the vehicle installation

position (rubber bushing), under unladen conditions with tires on level ground.

• Perform inspection after installation. Refer to

FSU-18, "Inspection"

.

Inspection

INFOID:0000000010822766

INSPECTION AFTER REMOVAL

Check front suspension member for cracks, wear or damage. Replace it if necessary.

INSPECTION AFTER INSTALLATION

1.

Check wheel sensor harness for proper connector. Refer to

BRC-212, "FRONT WHEEL SENSOR :

Exploded View"

.

2.

Check wheel alignment. Refer to

FSU-8, "Inspection"

.

3.

Adjust neutral position of steering angle sensor. Refer to

BRC-99, "Work Procedure"

.

JPEIA0248ZZ

Temporary tightening

: 1

 2

Final tightening
(Specified torque)

: 3

 4

 5

 6

 7

 8

 9

 10

: Vehicle front

JMEIA0226GB
