Nissan X-Trail 32. Manual - part 1303





FSU-16

< REMOVAL AND INSTALLATION >

FRONT COIL SPRING AND STRUT

2.

Check wheel alignment. Refer to

FSU-7, "Inspection"

.

3.

Adjust neutral position of steering angle sensor. Refer to

BRC-99, "Work Procedure"

.

Disposal

INFOID:0000000010822757

1.

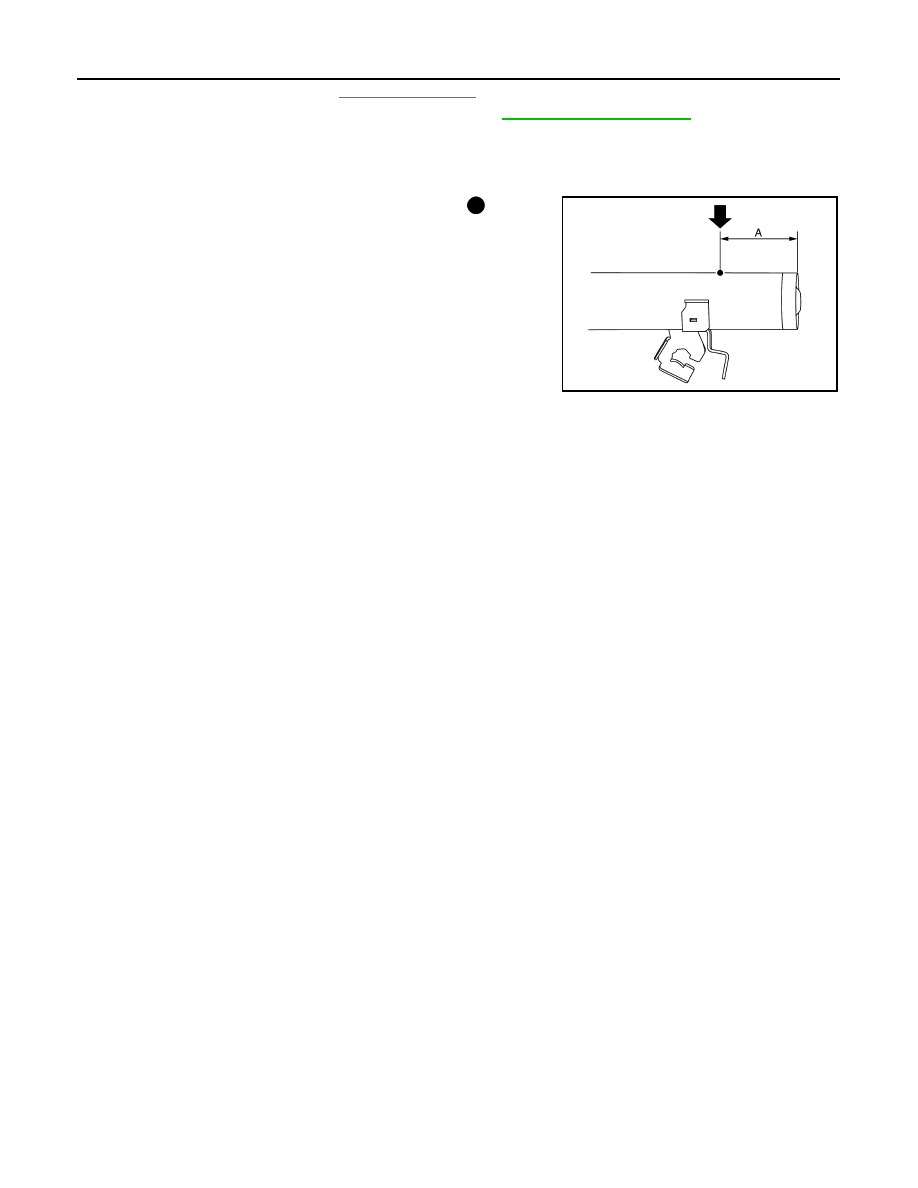

Set strut assembly horizontally to the ground with the piston rod fully extracted.

2.

Drill 2 – 3 mm (0.08 – 0.12 in) hole at the position (

) from top

as shown in the figure to release gas gradually.

CAUTION:

• Wear eye protection (safety glasses).
• Wear gloves.
• Be careful with metal chips or oil blown out by the com-

pressed gas.

NOTE:
• Drill vertically in this direction show by arrow.
• Directly to the outer tube avoiding brackets.
• The gas is clear, colorless, odorless, and harmless.

3.

Position the drilled hole downward and drain oil by moving the piston rod several times.

CAUTION:

Dispose of drained oil according to the law and local regulations.

A

: 20 – 30 mm (0.79 – 1.18 in)

JMEIA0225ZZ

TRANSVERSE LINK

FSU-17

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

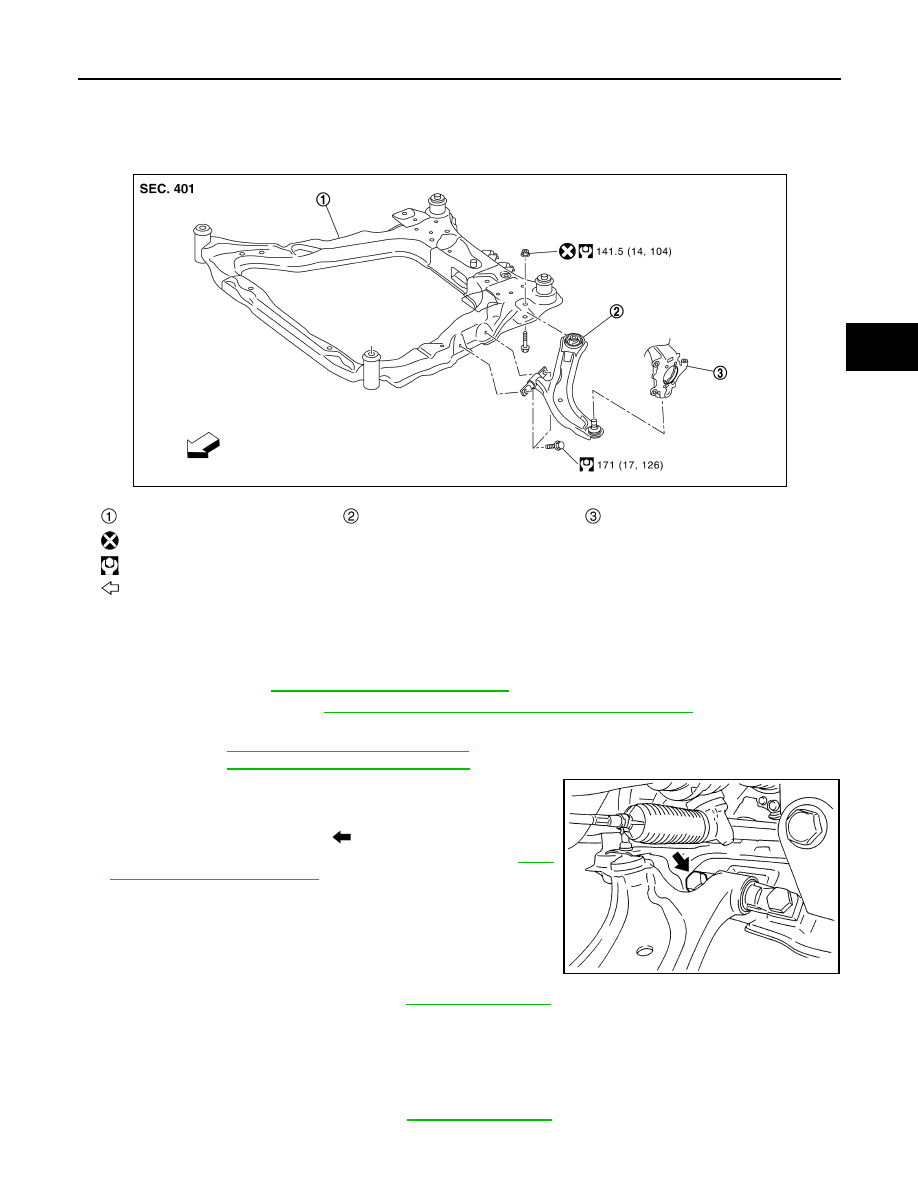

TRANSVERSE LINK

Exploded View

INFOID:0000000010822758

Removal and Installation

INFOID:0000000010822759

REMOVAL

1.

Remove tires. Refer to

WT-61, "Removal and Installation"

.

2.

Remove under cover. Refer to

EXT-39, "ENGINE UNDER COVER : Exploded View"

.

3.

Separate transverse link from steering knuckle.
• 2WD: Refer to

FAX-11, "Removal and Installation"

.

• 4WD: Refer to

FAX-72, "Removal and Installation"

.

4.

Remove transverse link from suspension member.
NOTE:
When removing transverse link, the stabilizer interferes with the
transverse link mounting bolt (

). Move the stabilizer to the

position where the mounting bolt can be removed. Refer to

FSU-

19, "Removal and Installation"

.

5.

Perform inspection after removal. Refer to

FSU-18, "Inspection"

.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Never reuse transverse link mounting nut.
• Perform final tightening of bolts and nuts at the vehicle installation position (rubber bushing), under unladen

conditions with tires on level ground.

• Perform inspection after installation. Refer to

FSU-18, "Inspection"

.

Front suspension member

Transverse link

Steering knuckle

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: Vehicle front

JSEIA0895GB

SEIA0633J

FSU-18

< REMOVAL AND INSTALLATION >

TRANSVERSE LINK

Inspection

INFOID:0000000010822760

INSPECTION AFTER REMOVAL

Check the following items, and replace the parts if necessary.

Transverse Link

• Transverse link and bushing for deformation, cracks or damage.
• Ball joint boot for cracks or other damage, and also for grease leakage.

Swing Torque

1.

Manually move ball stud to confirm it moves smoothly with no binding.

2.

Move ball stud at least ten times by hand to check for smooth movement.

3.

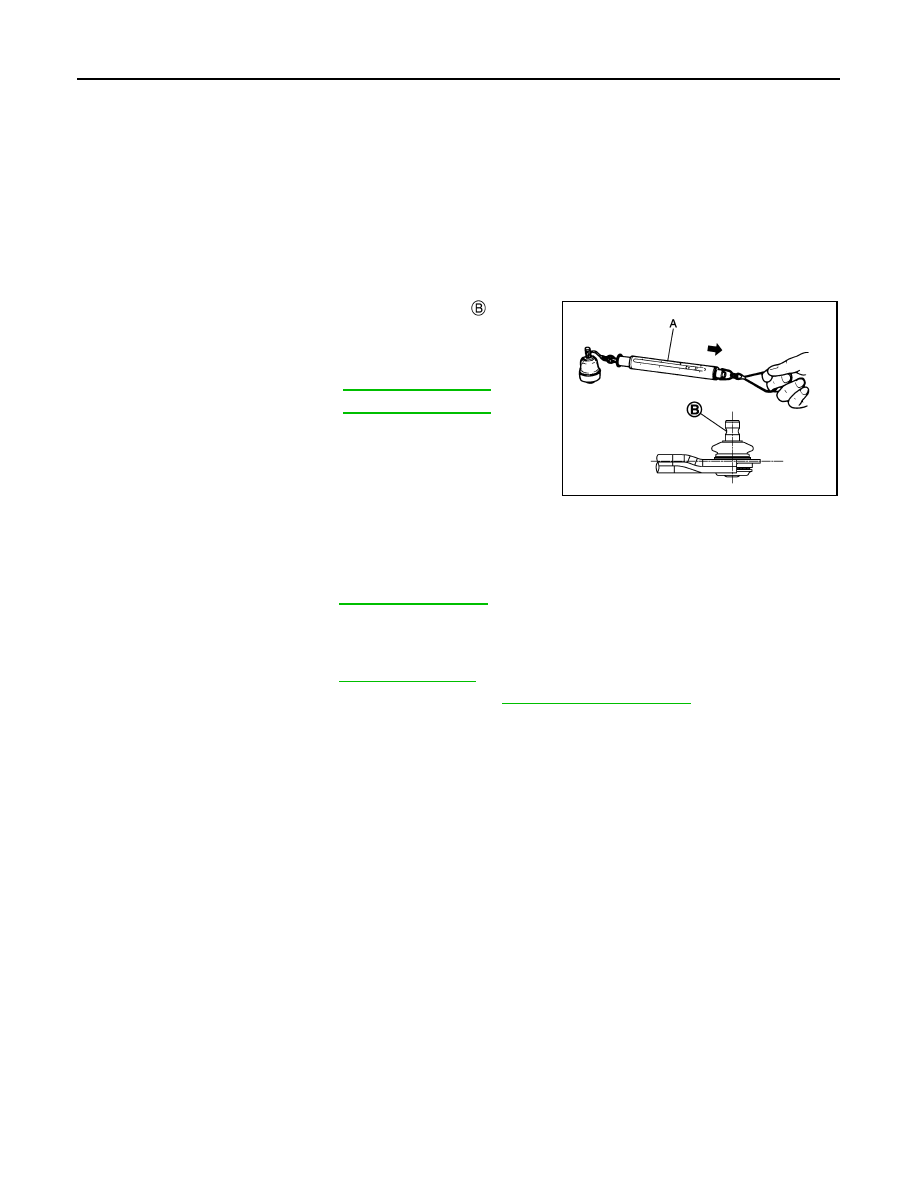

Hook a spring balance (A) at cutout on ball stud

. Confirm

spring balance measurement value is within specifications when
ball stud begins moving.

• If swing torque exceeds standard range, replace transverse link

assembly.

Axial End Play

1.

Move ball stud at least ten times by hand to check for smooth movement.

2.

Move tip of ball stud in axial direction to check for looseness.

• If axial end play exceeds the standard value, replace transverse link assembly.

INSPECTION AFTER INSTALLATION

1.

Check wheel alignment. Refer to

FSU-8, "Inspection"

.

2.

Adjust neutral position of steering angle sensor. Refer to

BRC-99, "Work Procedure"

.

Swing torque

: Refer to

FSU-24, "Ball Joint"

.

Measurement on
spring balance

: Refer to

FSU-24, "Ball Joint"

JPEIA0138ZZ

Axial end play

: Refer to

FSU-24, "Ball Joint"

.

FRONT STABILIZER

FSU-19

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

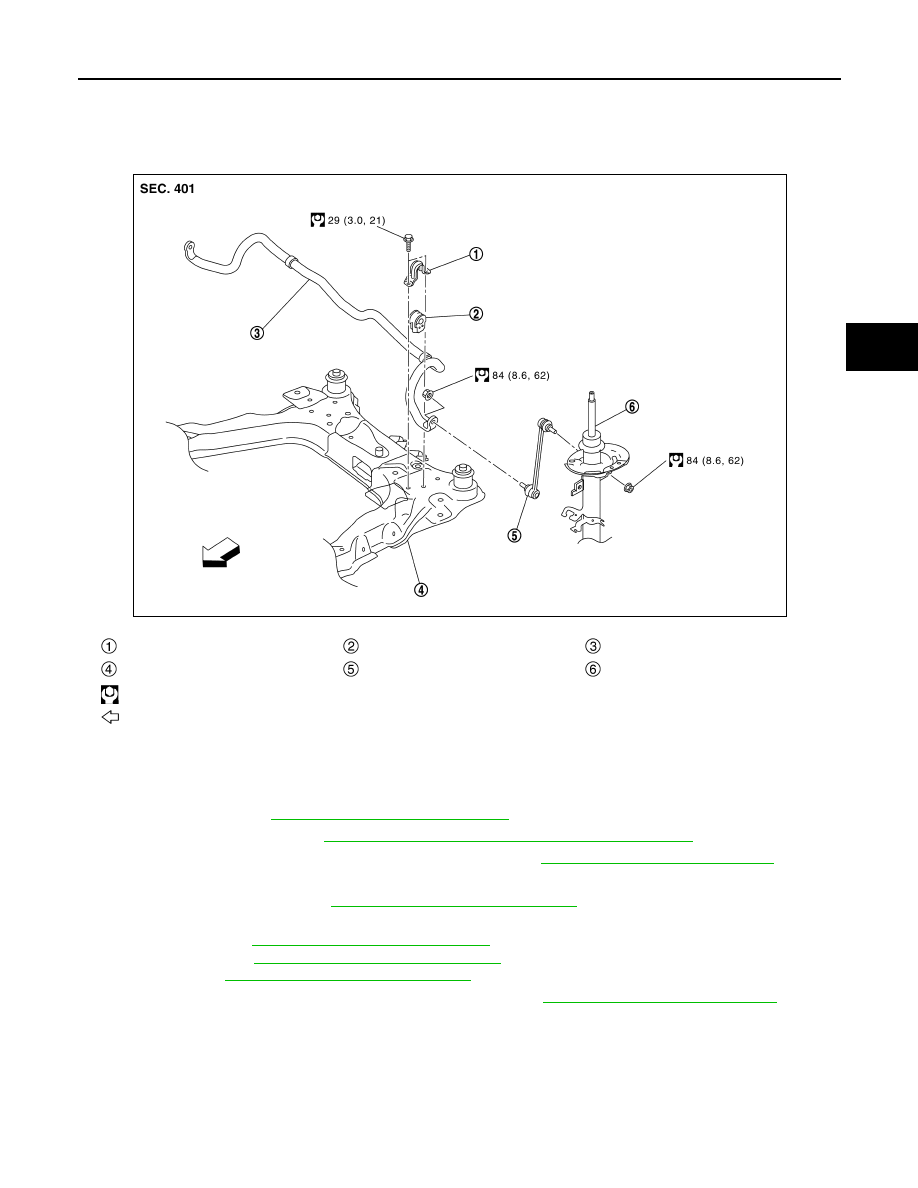

FRONT STABILIZER

Exploded View

INFOID:0000000010822761

Removal and Installation

INFOID:0000000010822762

REMOVAL

1.

Remove tires. Refer to

WT-61, "Removal and Installation"

.

2.

Remove under cover. Refer to

EXT-39, "ENGINE UNDER COVER : Exploded View"

.

3.

Remove steering outer socket from steering knuckle. Refer to

ST-22, "Removal and Installation"

.

4.

Remove stabilizer connecting rod.

5.

Remove member stay. Refer to

FSU-22, "Removal and Installation"

6.

Remove rear torque rod.
• MR20DD: Refer to

EM-56, "Removal and Installation"

 .

• QR25DE: Refer to

EM-200, "Removal and Installation"

.

• R9M: Refer to

EM-366, "Removal and Installation"

.

7.

Separate steering gear assembly from steering shaft. Refer to

ST-22, "Removal and Installation"

.

Stabilizer clamp

Stabilizer bushing

Stabilizer bar

Front suspension member

Stabilizer connecting rod

Strut

: N·m (kg-m, ft-lb)

: Vehicle front

JSEIA0897GB
