Nissan X-Trail 32. Manual - part 1276

FAX-96

< REMOVAL AND INSTALLATION >

[4WD]

FRONT DRIVE SHAFT BOOT

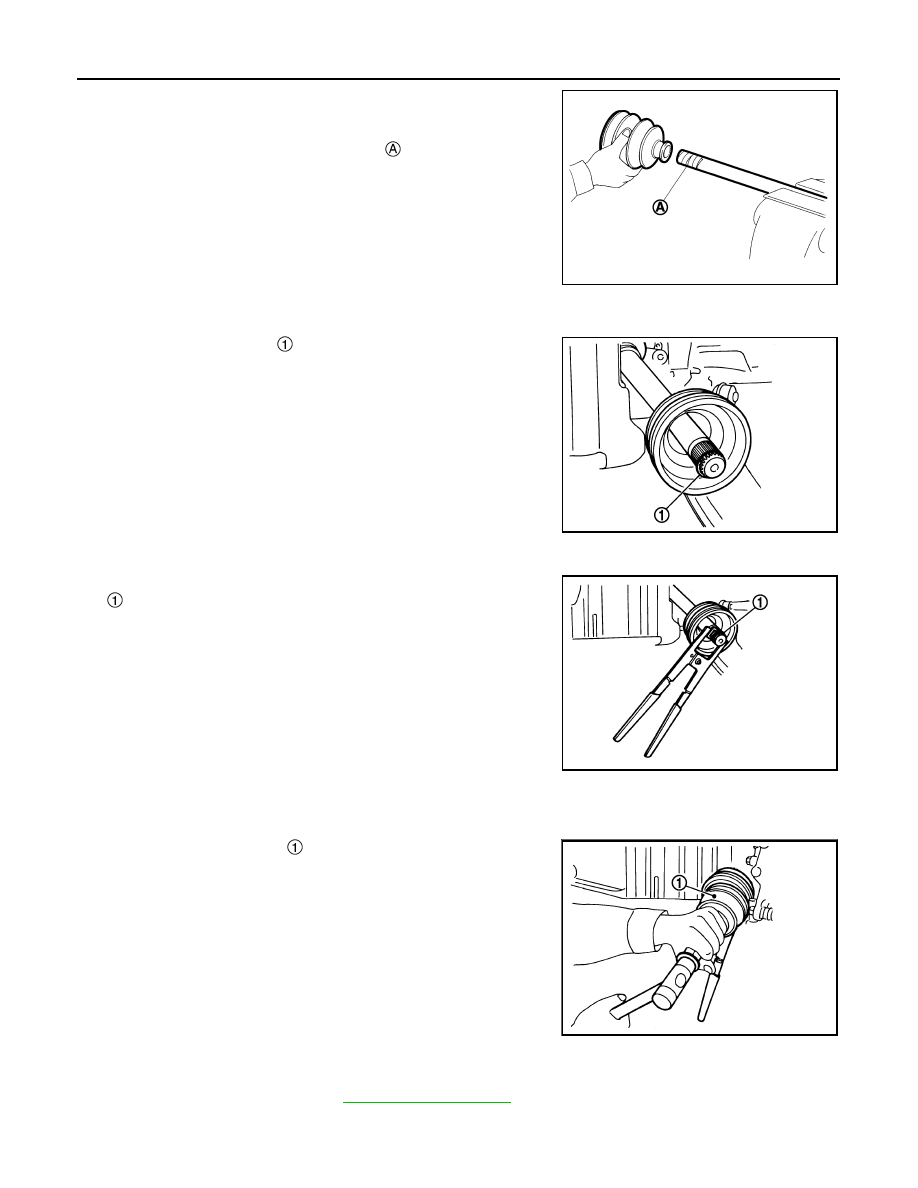

3.

Install boot and boot bands to shaft.

CAUTION:

• Never reuse boot and boot band.
• Wrap serration on shaft with tape

 to protect the boot

from damage.

4.

Remove the tape wrapped around the serration on shaft.

5.

Position the circular clip

 on groove at the shaft edge.

CAUTION:

Never reuse circular clip.

NOTE:
Drive joint inserter is recommended when installing circular clip

.

6.

Align both center axles of the shaft edge and joint sub-assembly. Then assemble shaft with joint sub-
assembly holding circular clip.

7.

Install joint sub-assembly

 to shaft using plastic hammer.

CAUTION:

• Check circular clip is properly positioned on groove of the

joint sub-assembly.

• Confirm that joint sub-assembly is correctly engaged

while rotating drive shaft.

8.

Fill into the boot inside with the specified amount of grease from large diameter side of boot.

JPDIF0009ZZ

JPDIF0007ZZ

JPDIF0010ZZ

JPDIF0011ZZ

Grease amount

: Refer to

FAX-137, "Drive Shaft"

.

FRONT DRIVE SHAFT BOOT

FAX-97

< REMOVAL AND INSTALLATION >

[4WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

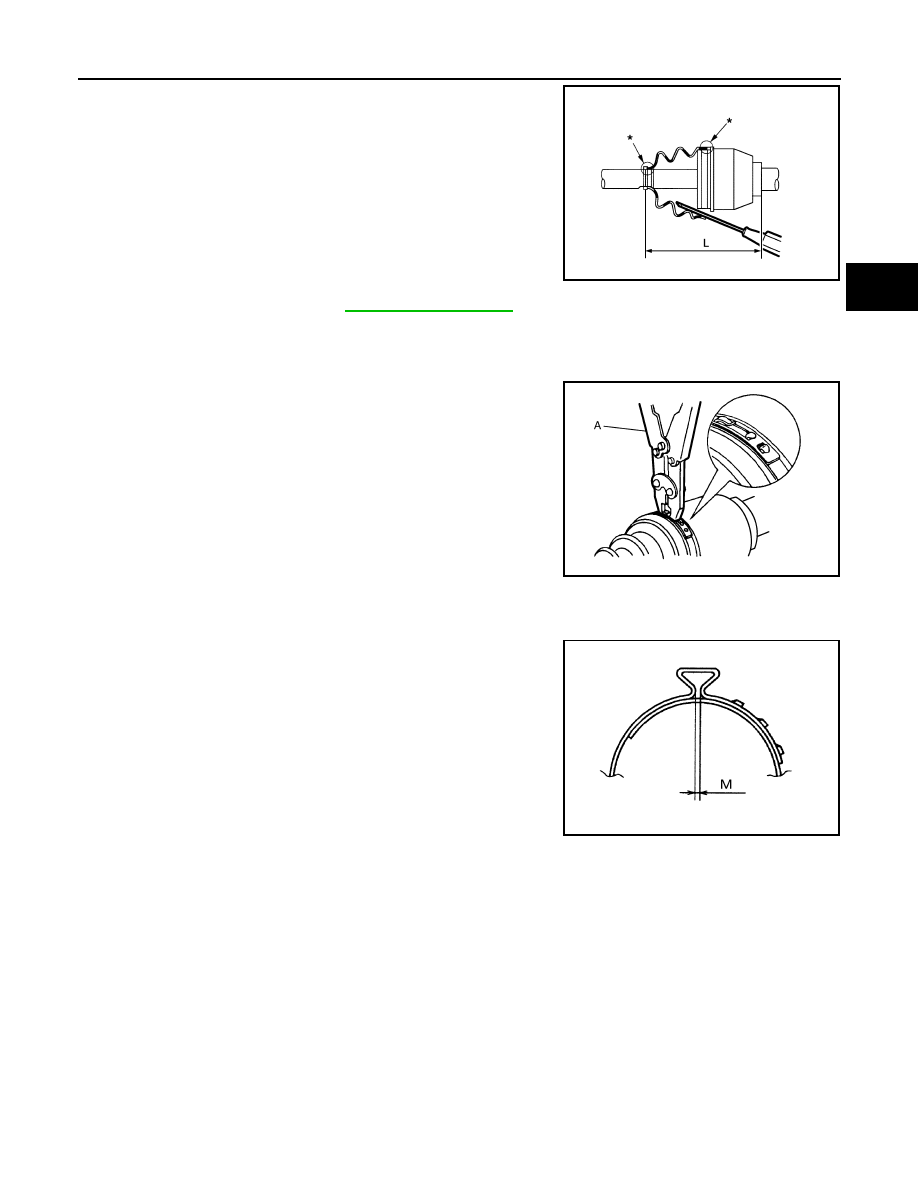

9.

Install the boot securely into grooves (indicated by “*” marks)
shown in the figure.

CAUTION:

If grease adheres to the boot mounting surface (indicated
by “*” mark) on the shaft or joint subassembly. boot may be
removed. Remove all grease from the boot mounting sur-
face.

10. To prevent the deformation of the boot, adjust the boot installa-

tion length (L) to the specified value shown below by inserting
the suitable tool into the inside of the boot from the large diame-
ter side of the boot and discharging the inside air.

CAUTION:

• If the boot mounting length exceeds the standard, it may cause breakage in the boot.
• Be careful not to touch the inside of the boot with a tip of tool.

11. Secure the large and small ends of the boot with boot bands

using the boot band crimping tool (A) (SST: KV40107300).

CAUTION:

Never reuse boot band.

NOTE:
Secure boot band so that dimension (M) meets the specification as shown in the figure.

12. Check that displacement does not occur when boot is rotated with the joint sub-assembly and shaft fixed.

CAUTION:

• Reinstall them using boot bands when boot installation positions become incorrect.
• Never reuse boot band.

13. Clean the matching surface of wheel hub lock nut and wheel hub and bearing assembly.

CAUTION:

Never apply lubricating oil to these matching surface.

L

: Refer to

FAX-137, "Drive Shaft"

.

JPDIG0136ZZ

JPDIF0012ZZ

M

: 1.0 – 4.0 mm (0.039 – 0.157 in)

DSF0047D

FAX-98

< REMOVAL AND INSTALLATION >

[4WD]

FRONT DRIVE SHAFT BOOT

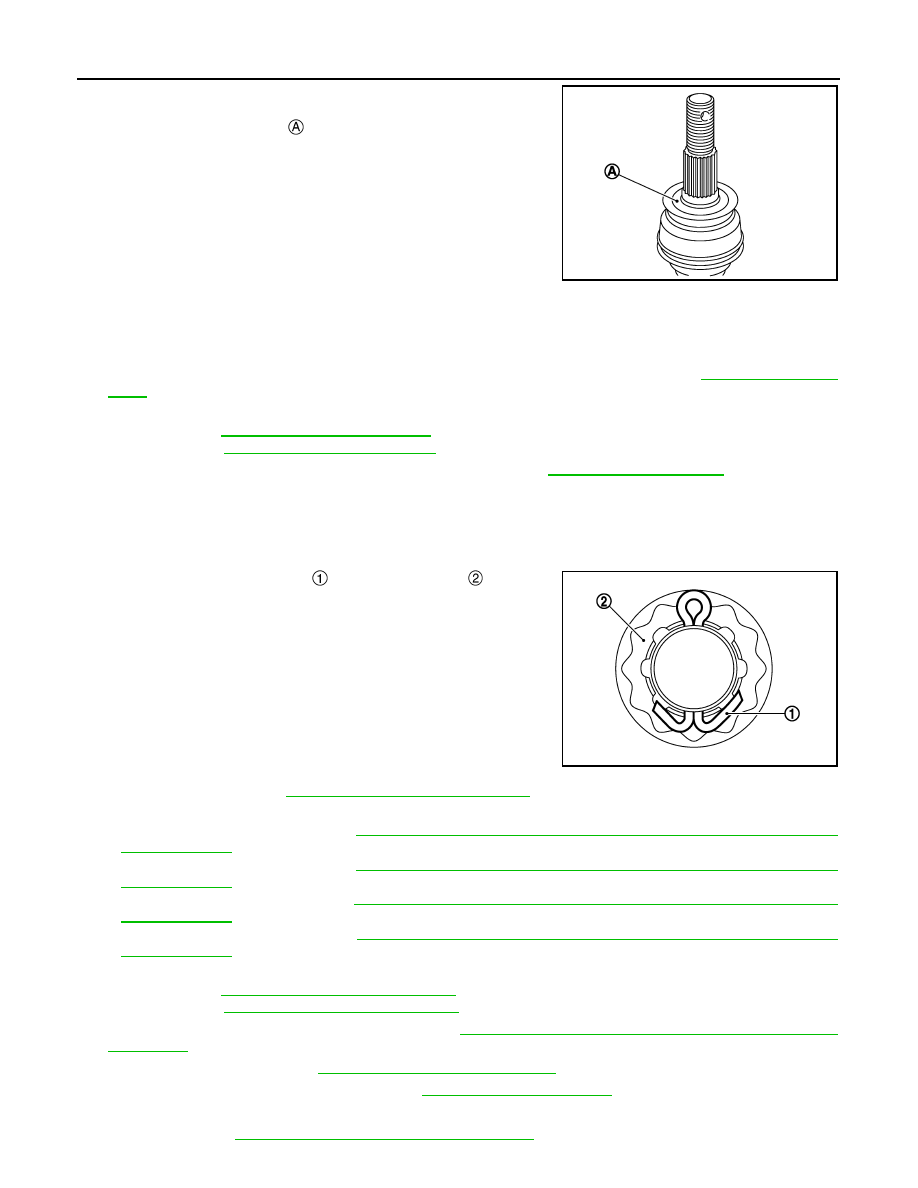

14. Clean the matching surface of drive shaft and wheel hub and

bearing assembly. And then apply paste [service parts
(440037S000)] to surface

 of joint sub-assembly of drive shaft.

CAUTION:

Apply paste to cover entire flat surface of joint sub-assem-
bly of drive shaft.

15. Insert drive shaft to wheel hub and bearing assembly, and then temporarily tighten wheel hub lock nut.

CAUTION:

• Be sure to use torque wrench to tighten the wheel hub lock nut. Never use a power tool.
• Never reuse wheel hub lock nut.

16. Install transverse link to steering knuckle and front suspention member. Refer to

FSU-17, "Exploded

View"

.

17. Install steering outer socket to steering knuckle.

• LHD: Refer to

ST-20, "LHD : Exploded View"

.

• RHD: Refer to

ST-21, "RHD : Exploded View"

.

18. Tighten the wheel hub lock nut to the specified torque. Refer to

FAX-72, "Exploded View"

.

CAUTION:

• Since the drive shaft is assembled by press-fitting, use the tightening torque range for the wheel

hub lock nut.

• Be sure to use torque wrench to tighten the wheel hub lock nut. Never use a power tool.
• Never reuse wheel hub lock nut.

19. When installing a cotter pin

 and adjusting cap

, securely

bend the basal portion to prevent rattles.

CAUTION:

Never reuse cotter pin.

20. Install disc rotor. Refer to

FAX-72, "Removal and Installation"

.

21. Install caliper assembly to steering knuckle.

• LHD (1 PISTON TYPE): Refer to

BR-51, "BRAKE CALIPER ASSEMBLY (1 PISTON TYPE) : Removal

and Installation"

.

• LHD (2 PISTON TYPE): Refer to

BR-56, "BRAKE CALIPER ASSEMBLY (2 PISTON TYPE) : Removal

and Installation"

.

• RHD (1 PISTON TYPE): Refer to

BR-111, "BRAKE CALIPER ASSEMBLY (1 PISTON TYPE) : Removal

and Installation"

.

• RHD (2 PISTON TYPE): Refer to

BR-56, "BRAKE CALIPER ASSEMBLY (2 PISTON TYPE) : Removal

and Installation"

.

22. Install lock plate to strut assembly.

• LHD: Refer to

BR-24, "FRONT : Exploded View"

.

• RHD: Refer to

BR-88, "FRONT : Exploded View"

.

23. Install wheel sensor to steering knuckle. Refer to

BRC-212, "FRONT WHEEL SENSOR : Removal and

Installation"

.

24. Install tires to vehicle.Refer to

WT-61, "Removal and Installation"

.

25. Perform inspection after installation. Refer to

FAX-99, "R9M : Inspection"

.

Transaxle Side

• Installation: Refer to

FAX-125, "R9M : Removal and Installation"

.

Amount paste

: 1.0 – 3.0 g (0.04 – 0.10 oz)

JPDIG0122ZZ

JPDIF0295ZZ

FRONT DRIVE SHAFT BOOT

FAX-99

< REMOVAL AND INSTALLATION >

[4WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

• Assembly: Refer to

FAX-131, "R9M : Disassembly and Assembly"

.

R9M : Inspection

INFOID:0000000010826889

INSPECTION AFTER REMOVAL

Check the following items, and replace the part if necessary.
• Check components for deformation, cracks, and other damage.
• Check boots of transverse link and steering outer socket ball joint for breakage, axial end play, and swing

torque.

- Transverse link: Refer to

FSU-18, "Inspection"

.

- Steering outer socket: Refer to

ST-26, "Inspection"

.

INSPECTION AFTER INSTALLATION

1.

Check wheel sensor harness for proper connection. Refer to

BRC-212, "FRONT WHEEL SENSOR :

Exploded View"

.

2.

Check the wheel alignment. Refer to

FSU-8, "Inspection"

.

3.

Adjust neutral position of steering angle sensor. Refer to

BRC-99, "Work Procedure"

.
