Nissan X-Trail 32. Manual - part 1275





FAX-92

< REMOVAL AND INSTALLATION >

[4WD]

FRONT DRIVE SHAFT BOOT

• Assembly: Refer to

FAX-119, "QR25DE : Disassembly and Assembly"

.

QR25DE : Inspection

INFOID:0000000010824415

INSPECTION AFTER REMOVAL

Check the following items, and replace the part if necessary.
• Check components for deformation, cracks, and other damage.
• Check boots of transverse link and steering outer socket ball joint for breakage, axial end play, and swing

torque.

- Transverse link: Refer to

FSU-18, "Inspection"

.

- Steering outer socket: Refer to

ST-26, "Inspection"

.

INSPECTION AFTER INSTALLATION

1.

Check wheel sensor harness for proper connection. Refer to

BRC-212, "FRONT WHEEL SENSOR :

Exploded View"

2.

Check the wheel alignment. Refer to

FSU-8, "Inspection"

.

3.

Adjust neutral position of steering angle sensor. Refer to

BRC-99, "Work Procedure"

.

R9M

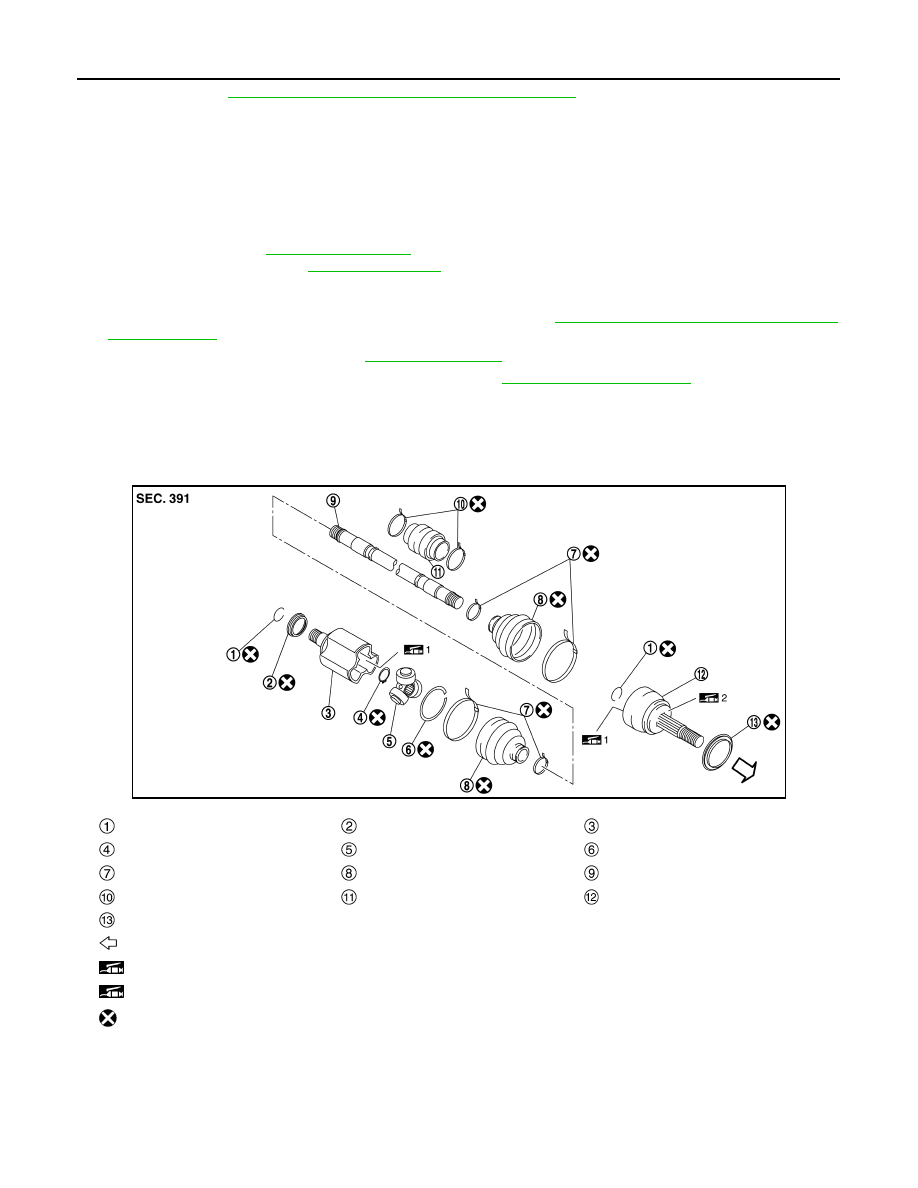

R9M : Exploded View

INFOID:0000000010827937

LEFT SIDE

JSDIA5389ZZ

Circular clip

Dust shield

Housing

Snap ring

Spider assembly

Stopper ring

Boot band

Boot

Shaft

Damper band

Dynamic damper

Joint sub-assembly

Dust shield

: Wheel side

1: Fill NISSAN Genuine grease or equivalent.

2: Apply paste [service parts (440037S000)]

: Always replace after every disassembly.

FRONT DRIVE SHAFT BOOT

FAX-93

< REMOVAL AND INSTALLATION >

[4WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

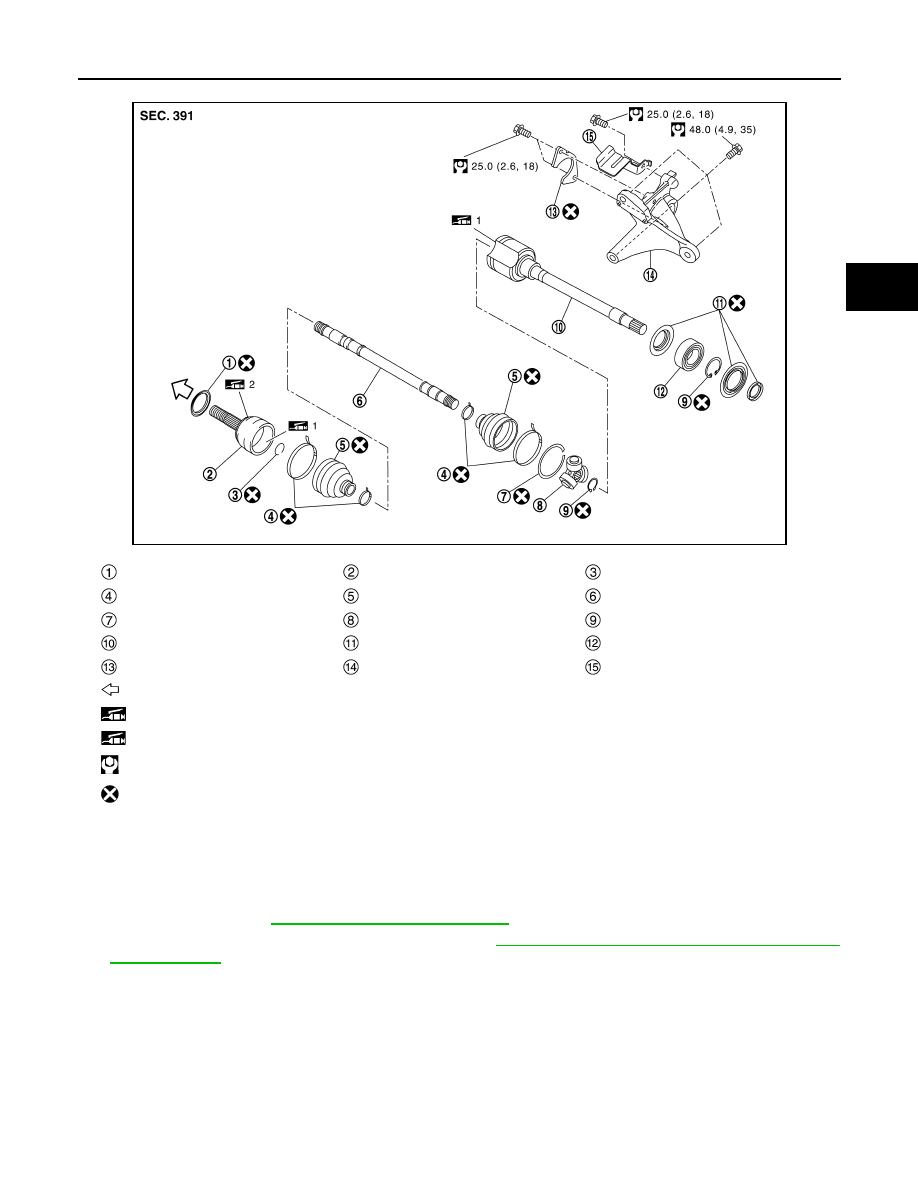

RIGHT SIDE

R9M : Removal and Installation

INFOID:0000000010826888

REMOVAL

Wheel Side

1.

Remove tires. Refer to

WT-61, "Removal and Installation"

.

2.

Remove wheel sensor from steering knuckle. Refer to

BRC-212, "FRONT WHEEL SENSOR : Removal

and Installation"

.

JSDIA6125GB

Dust shield

Joint sub-assembly

Circular clip

Boot band

Boot

Shaft

Stopper ring

Spider assembly

Snap ring

Housing

Dust shield

Support bearing

Retainer

Support bearing bracket

Heat insulator

: Wheel side

1: Fill NISSAN Genuine grease or equivalent.

2: Apply paste [service parts (440037S000)].

: N·m (kg-m, ft-lb)

: Always replace after every disassembly.

FAX-94

< REMOVAL AND INSTALLATION >

[4WD]

FRONT DRIVE SHAFT BOOT

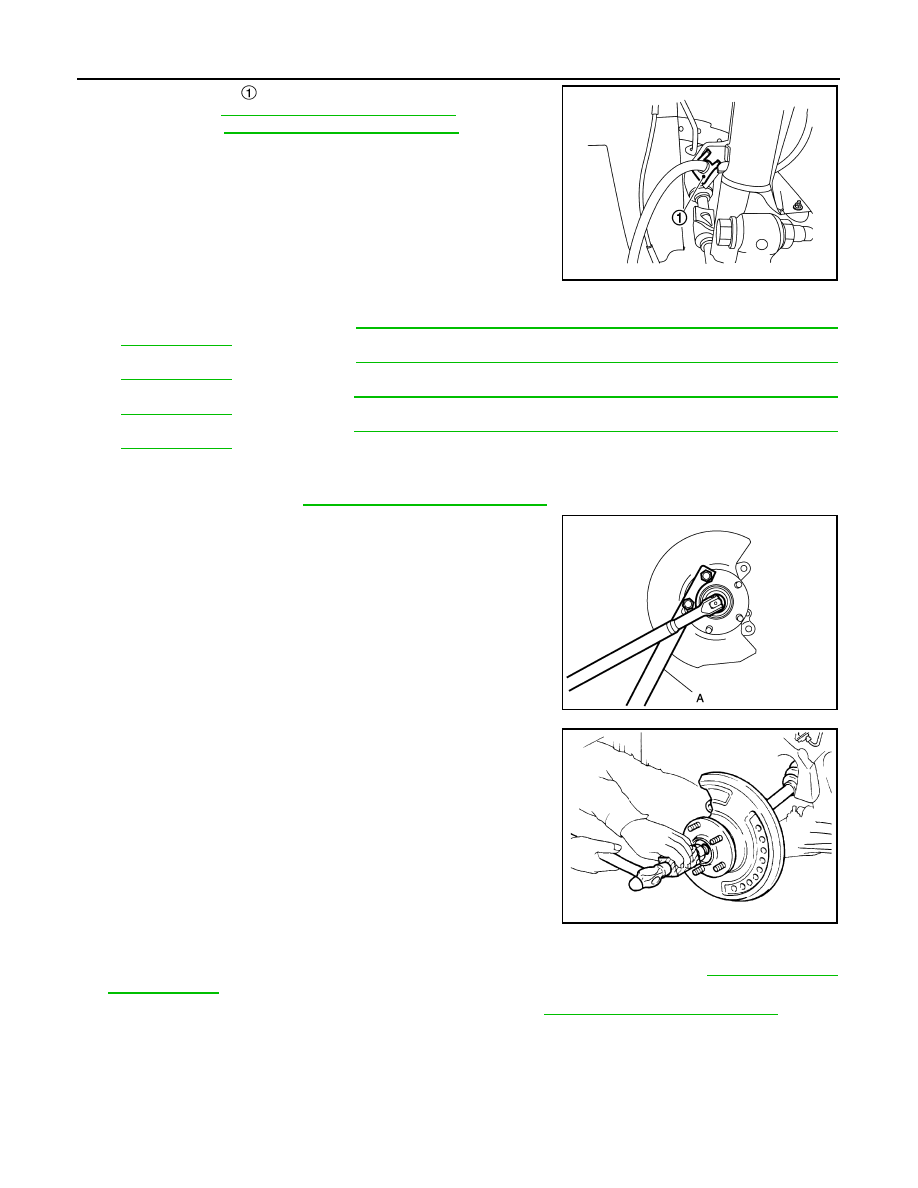

3.

Remove lock plate

 from strut assembly.

• LHD: Refer to

BR-24, "FRONT : Exploded View"

.

• RHD: Refer to

BR-88, "FRONT : Exploded View"

.

4.

Remove caliper assembly. Hang caliper assembly in a place where it will not interfere with work.
• LHD (1 PISTON TYPE): Refer to

BR-51, "BRAKE CALIPER ASSEMBLY (1 PISTON TYPE) : Removal

and Installation"

.

• LHD (2 PISTON TYPE): Refer to

BR-56, "BRAKE CALIPER ASSEMBLY (2 PISTON TYPE) : Removal

and Installation"

.

• RHD (1 PISTON TYPE): Refer to

BR-111, "BRAKE CALIPER ASSEMBLY (1 PISTON TYPE) : Removal

and Installation"

.

• RHD (2 PISTON TYPE): Refer to

BR-116, "BRAKE CALIPER ASSEMBLY (2 PISTON TYPE) : Removal

and Installation"

.

CAUTION:

Never depress brake pedal while brake caliper is removed.

5.

Remove disc rotor. Refer to

FAX-72, "Removal and Installation"

.

6.

Remove cotter pin, adjusting cap and then loosen wheel hub
lock nut, using a hub lock nut wrench (A) (SST: KV40104000).

7.

Patch wheel hub lock nut with a piece of wood. Hammer the
wood to disengage wheel hub and bearing assembly from drive
shaft.
NOTE:
Use suitable puller, if wheel hub and bearing assembly and drive
shaft cannot be separated even after performing the above pro-
cedure.

8.

Remove wheel hub lock nut.

9.

Remove transverse link from steering knuckle and front suspension member. Refer to

FSU-17, "Removal

and Installation"

.

10. Separate steering outer socket from steering knuckle. Refer to

ST-22, "Removal and Installation"

.

JSDIA3795ZZ

JSDIA2708ZZ

JPDIG0070ZZ

FRONT DRIVE SHAFT BOOT

FAX-95

< REMOVAL AND INSTALLATION >

[4WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

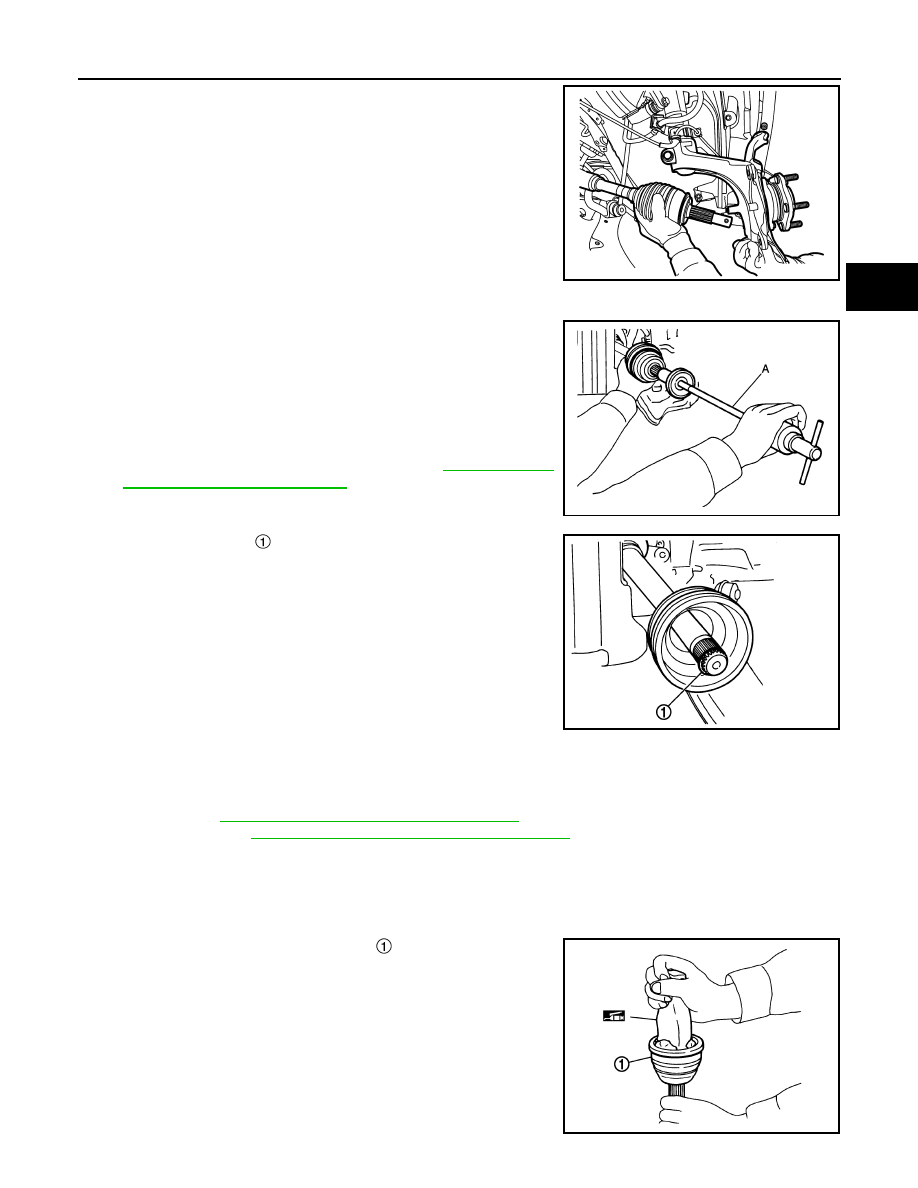

11. Remove drive shaft from wheel hub and bearing assembly.

CAUTION:

• Never place drive shaft joint at an extreme angle.
• Be careful not to overextend slide joint.

12. Remove boot bands, and then separate boot from joint sub-assembly.
13. Screw drive shaft puller (A) (commercial service tool) into joint

sub-assembly screw part to a length of 30 mm (1.18 in) or more.
Support drive shaft with one hand and pull out joint sub-assem-
bly from shaft.

CAUTION:

• Align sliding hammer and drive shaft and remove them by

pulling directory.

• If joint sub-assembly cannot be pulled out, try after

removing drive shaft from vehicle. Refer to

FAX-131, "R9M

: Disassembly and Assembly"

.

14. Remove circular clip

 from shaft.

15. Remove boot from shaft.

Transaxle Side

Remove boot after removing drive shaft.
• Remove: Refer to

FAX-125, "R9M : Removal and Installation"

.

• Disassembly: Refer to

FAX-131, "R9M : Disassembly and Assembly"

.

INSTALLATION

Wheel Side

1.

Clean the old grease on joint sub-assembly with paper waste.

2.

Fill serration slot joint sub-assembly

 with NISSAN genuine

grease or equivalent until the serration slot and ball groove
become full to the brim.

CAUTION:

After applying grease, use a shop cloth to wipe off old
grease that has oozed out.

JSDIA5562ZZ

JPDIF0258ZZ

JPDIF0007ZZ

JPDIF0008ZZ
