Nissan X-Trail 32. Manual - part 1264





FAX-48

< REMOVAL AND INSTALLATION >

[2WD]

FRONT DRIVE SHAFT

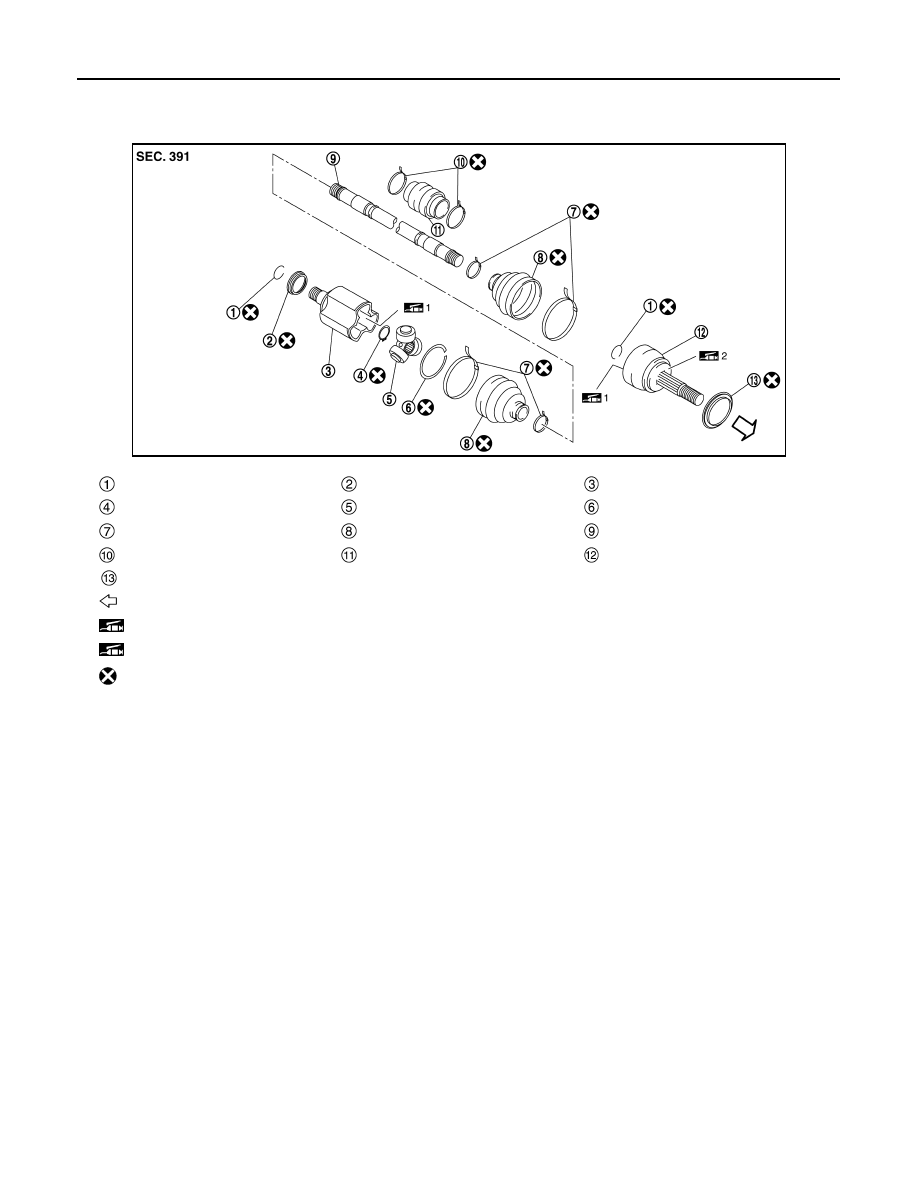

R9M : Exploded View

INFOID:0000000010824391

LEFT SIDE

JSDIA5389ZZ

Circular clip

Dust shield

Housing

Snap ring

Spider assembly

Stopper ring

Boot band

Boot

Shaft

Damper band

Dynamic damper

Joint sub-assembly

Dust shield

: Wheel side

1: Fill NISSAN Genuine grease or equivalent.

2: Apply paste [service parts (440037S000)].

: Always replace after every disassembly.

FRONT DRIVE SHAFT

FAX-49

< REMOVAL AND INSTALLATION >

[2WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

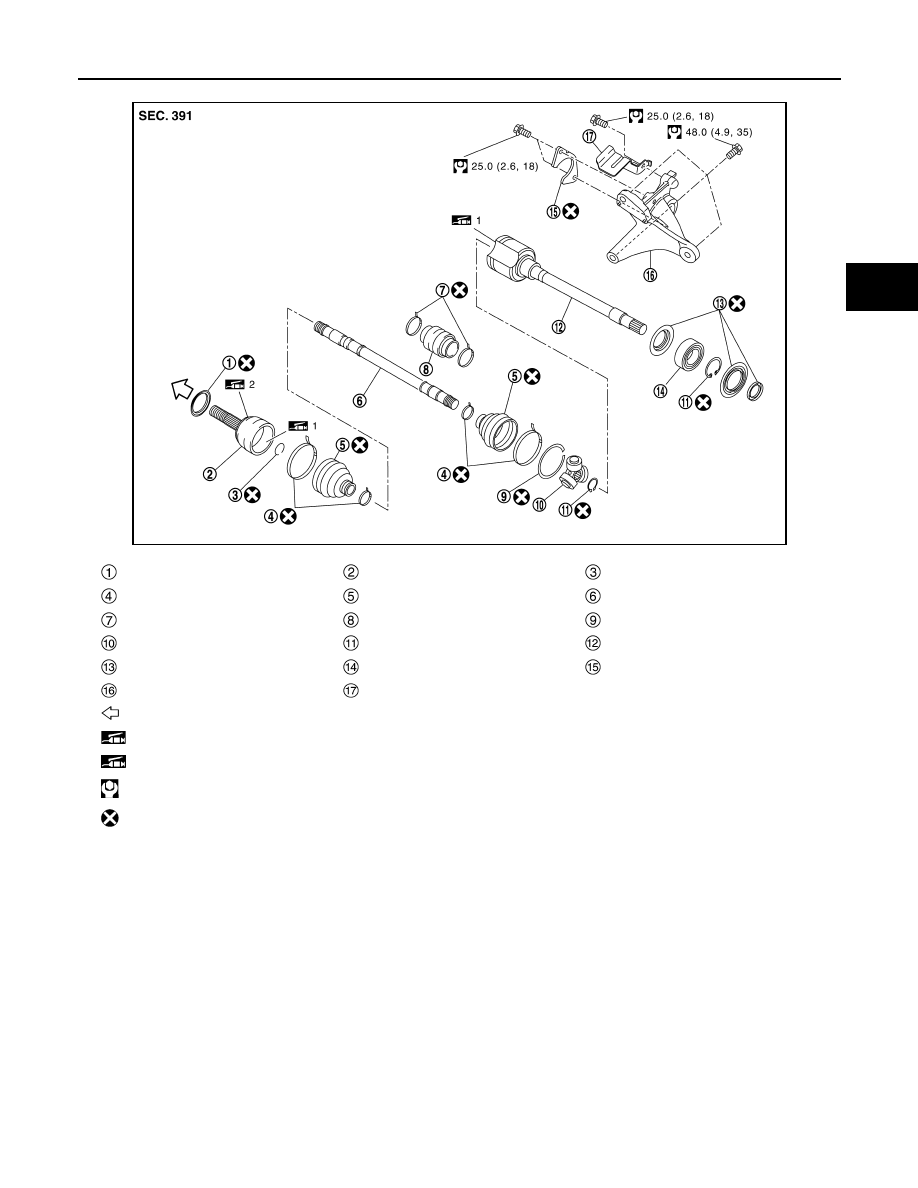

RIGHT SIDE (CVT)

JSDIA6127GB

Dust shield

Joint sub-assembly

Circular clip

Boot band

Boot

Shaft

Damper band

Dynamic damper

Stopper ring

Spider assembly

Snap ring

Housing

Dust shield

Support bearing

Retainer

Support bearing bracket

Heat insulator

: Wheel side

1: Fill NISSAN Genuine grease or equivalent.

2: Apply paste [service parts (440037S000)].

: N·m (kg-m, ft-lb)

: Always replace after every disassembly.

FAX-50

< REMOVAL AND INSTALLATION >

[2WD]

FRONT DRIVE SHAFT

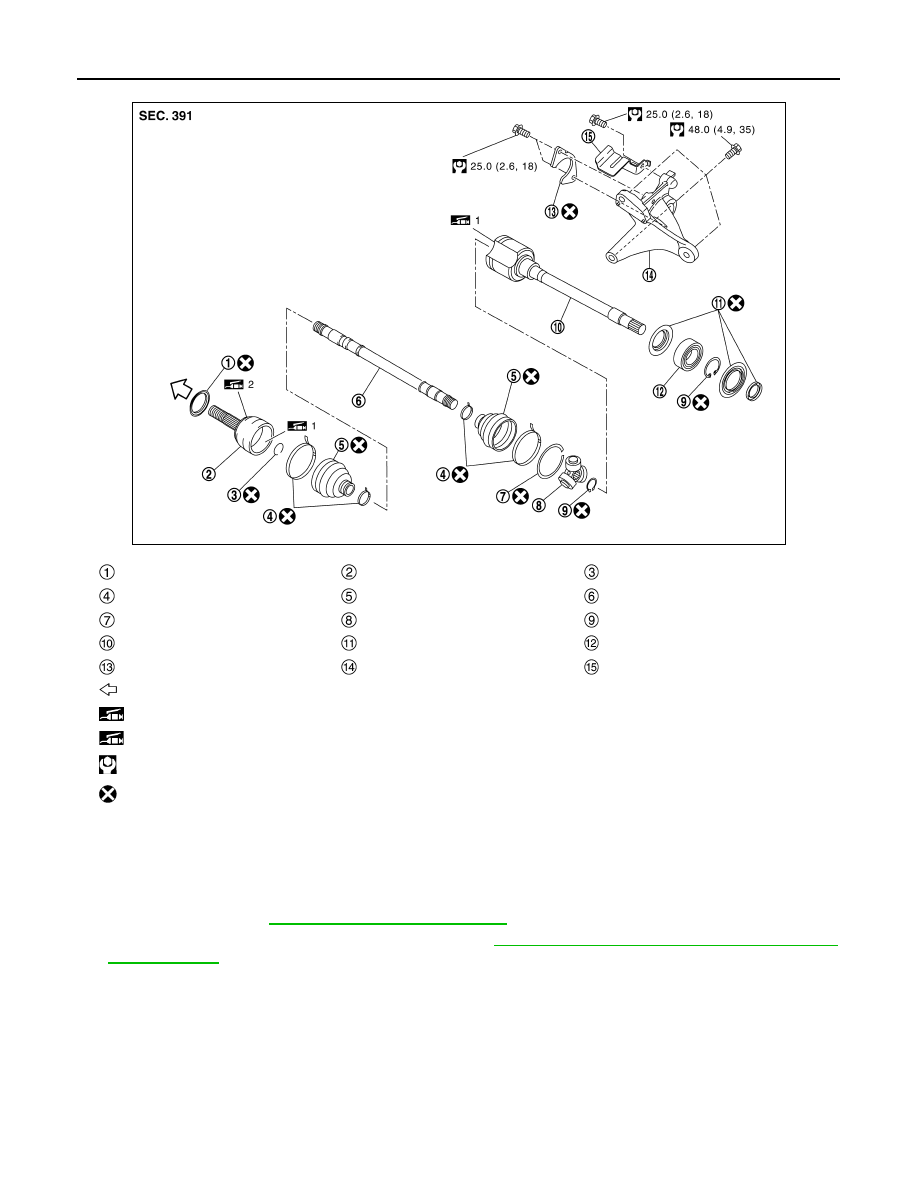

RIGHT SIDE (M/T)

R9M : Removal and Installation

INFOID:0000000010824392

REMOVAL

Left Side

1.

Remove tires. Refer to

WT-61, "Removal and Installation"

.

2.

Remove wheel sensor from steering knuckle. Refer to

BRC-212, "FRONT WHEEL SENSOR : Removal

and Installation"

.

JSDIA6125GB

Dust shield

Joint sub-assembly

Circular clip

Boot band

Boot

Shaft

Stopper ring

Spider assembly

Snap ring

Housing

Dust shield

Support bearing

Retainer

Support bearing bracket

Heat insulator

: Wheel side

1: Fill NISSAN Genuine grease or equivalent.

2: Apply paste [service parts (440037S000)].

: N·m (kg-m, ft-lb)

: Always replace after every disassembly.

FRONT DRIVE SHAFT

FAX-51

< REMOVAL AND INSTALLATION >

[2WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

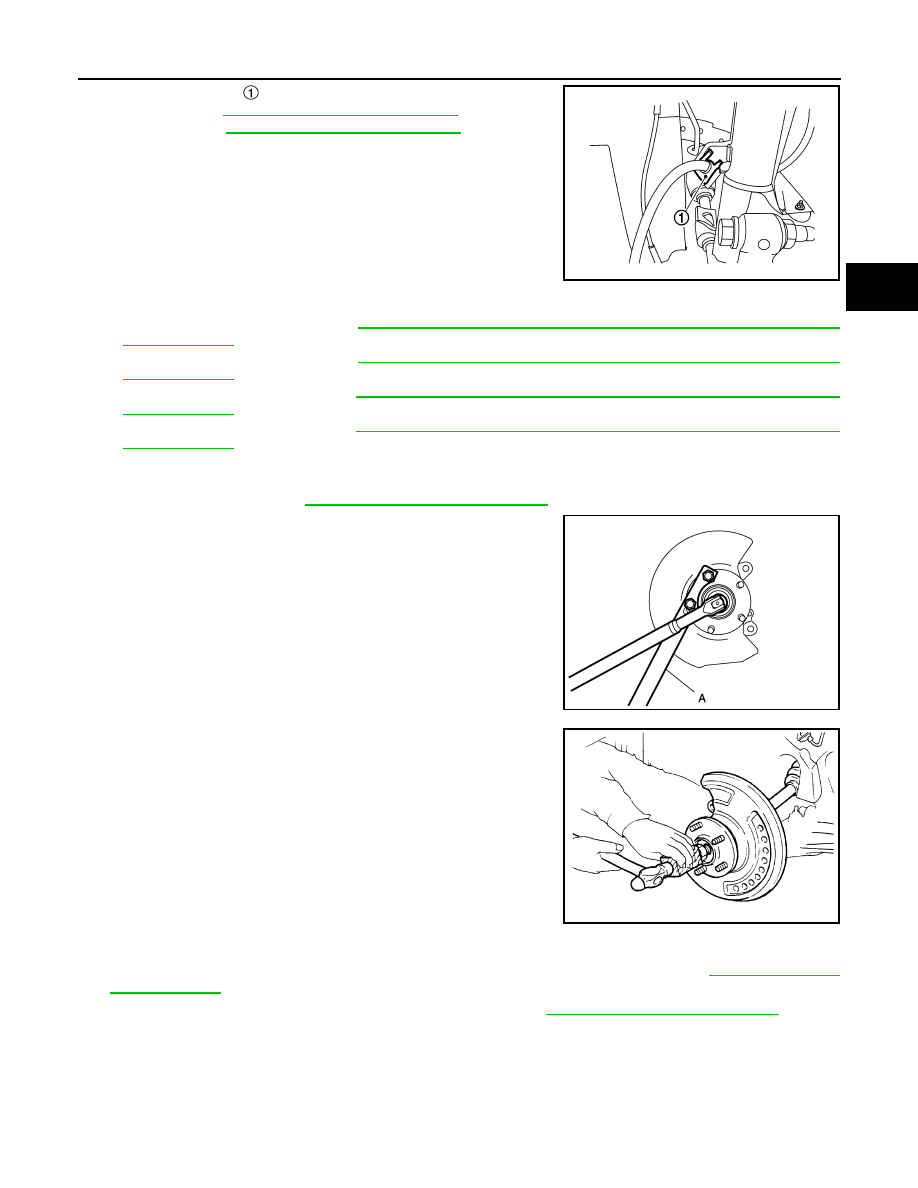

3.

Remove lock plate

 from strut assembly.

• LHD: Refer to

BR-24, "FRONT : Exploded View"

.

• RHD: Refer to

BR-88, "FRONT : Exploded View"

.

4.

Remove caliper assembly. Hang caliper assembly in a place where it will not interfere with work.
• LHD (1 PISTON TYPE): Refer to

BR-51, "BRAKE CALIPER ASSEMBLY (1 PISTON TYPE) : Removal

and Installation"

.

• LHD (2 PISTON TYPE): Refer to

BR-56, "BRAKE CALIPER ASSEMBLY (2 PISTON TYPE) : Removal

and Installation"

.

• RHD (1 PISTON TYPE): Refer to

BR-111, "BRAKE CALIPER ASSEMBLY (1 PISTON TYPE) : Removal

and Installation"

.

• RHD (2 PISTON TYPE): Refer to

BR-116, "BRAKE CALIPER ASSEMBLY (2 PISTON TYPE) : Removal

and Installation"

.

CAUTION:

Never depress brake pedal while brake caliper is removed.

5.

Remove disc rotor. Refer to

FAX-11, "Removal and Installation"

.

6.

Remove cotter pin, adjusting cap and then loosen wheel hub
lock nut, using a hub lock nut wrench (A) (SST: KV40104000).

7.

Patch wheel hub lock nut with a piece of wood. Hammer the
wood to disengage wheel hub and bearing assembly from drive
shaft.
NOTE:
Use suitable puller, if wheel hub and bearing assembly and drive
shaft cannot be separated even after performing the above pro-
cedure.

8.

Remove wheel hub lock nut.

9.

Remove transverse link from steering knuckle and front suspension member. Refer to

FSU-17, "Removal

and Installation"

.

10. Separate steering outer socket from steering knuckle. Refer to

ST-22, "Removal and Installation"

.

JSDIA3795ZZ

JSDIA2708ZZ

JPDIG0070ZZ
