FRONT GRILLE

EXT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

2.

Remove front grille fixing clips

 of front grille upper side.

3.

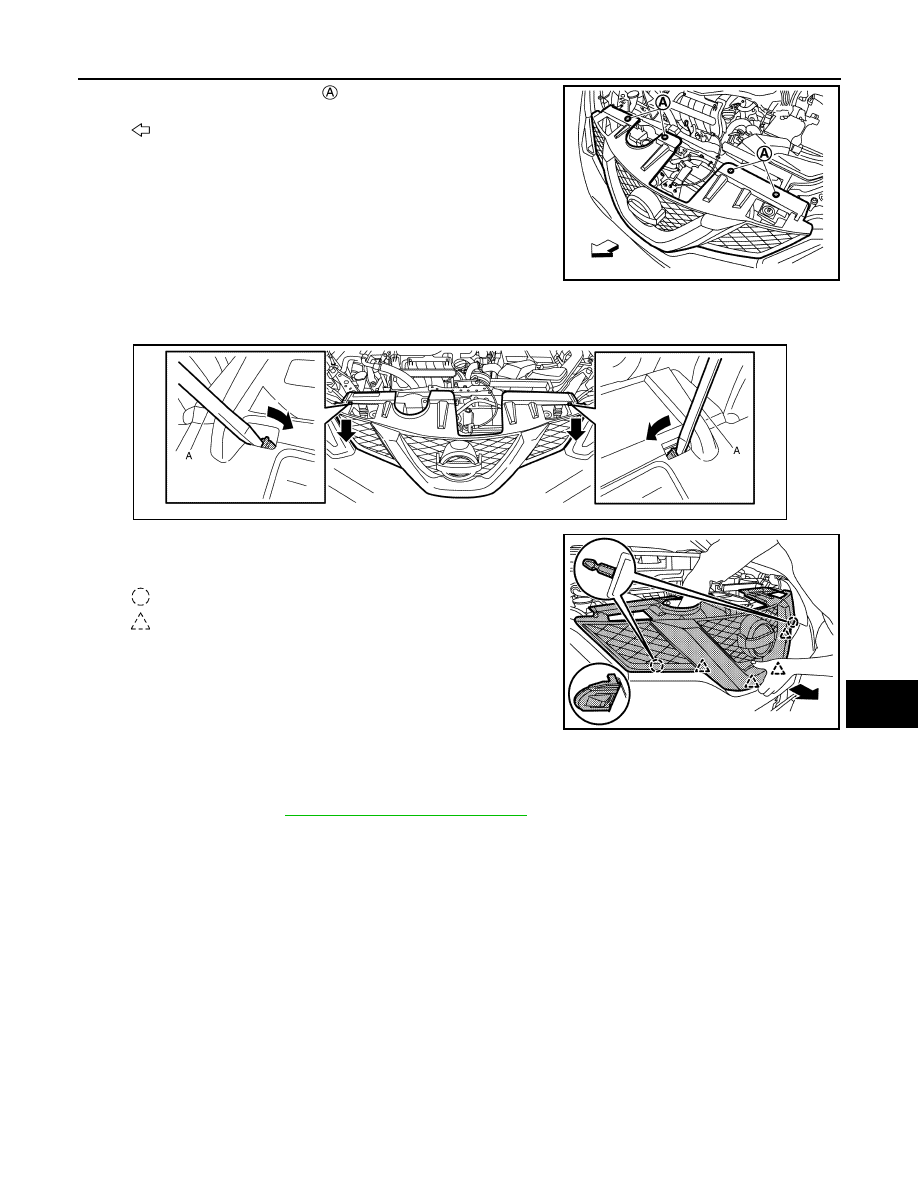

To disengage fasteners, locate the service holes top position of front grille. Insert a flat-bladed screwdriver
(A) into the service hole on vehicle left side and rotate turn fastener counterclockwise. Insert the flat-
bladed screwdriver into the service hole on vehicle right side and rotate turn fastener clockwise.

4.

Disengage front grille fixing clips and pawls from back side while
pulling front grille toward vehicle front.

5.

Disconnect front camera harness connector. (if equipped)

6.

Remove front grille.

7.

Remove the following parts after removing front grille.
• Front camera. Refer to

AV-269, "Removal and Installation"

. (if equipped)

• Front emblem.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

When installing front grille, install turn fastener to back of front grille, and then install front grille.

: Vehicle front

JMKIB2845ZZ

JMKIB2846ZZ

: Clip

: Pawl

JMKIB2847ZZ

EXT-24

< REMOVAL AND INSTALLATION >

COWL TOP

COWL TOP

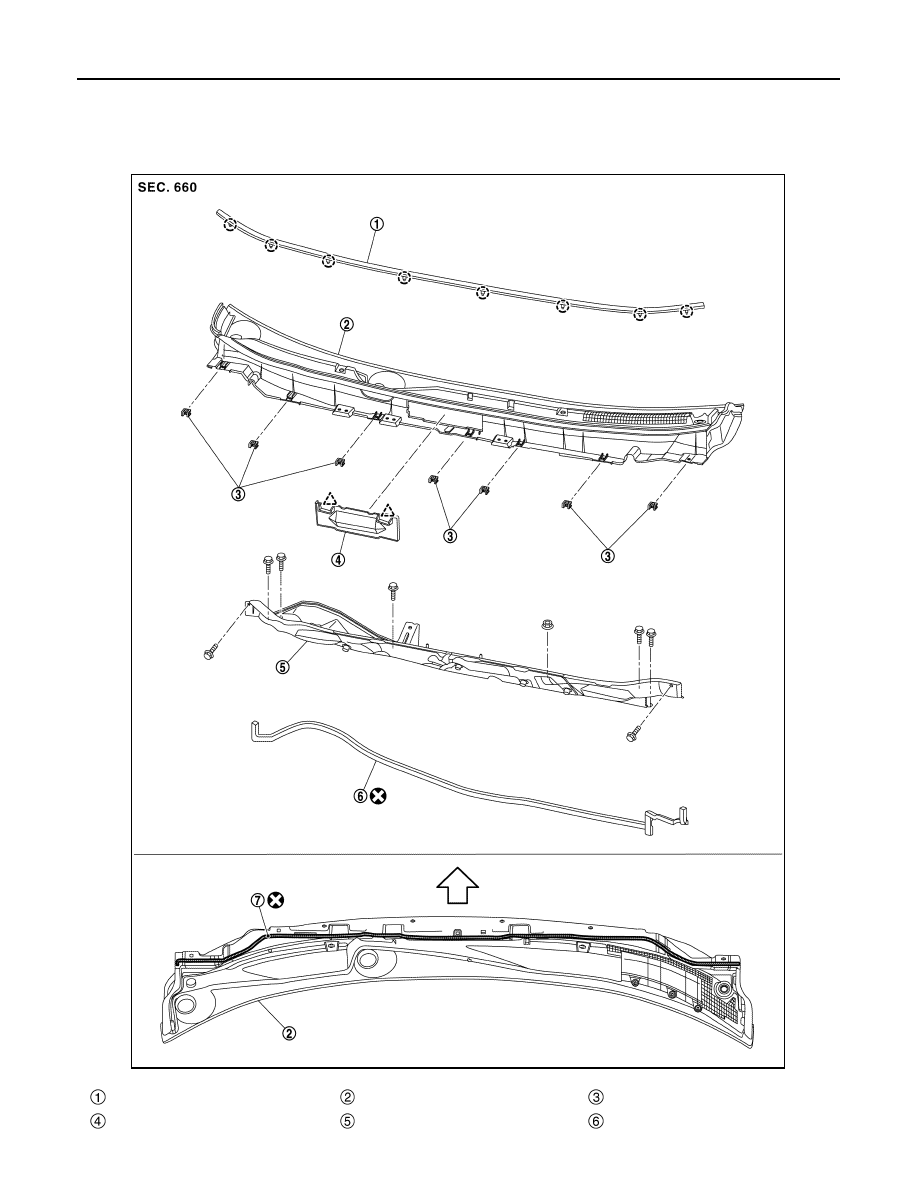

Exploded View

INFOID:0000000010787442

Cowl top seal

Cowl top cover

Cowl top grille clip

Cowl top cover cap

Cowl top extension

EPT seal [t: 10.0 mm (0.394 in)]

JMKIB2962ZZ

COWL TOP

EXT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Removal and Installation

INFOID:0000000010787443

REMOVAL

1.

Remove front wiper arm (LH and RH). Refer to

WW-82, "WIPER ARM : Removal and Installation"

.

2.

Remove fender cover (LH and RH). Refer to

DLK-272, "FENDER COVER : Removal and Installation"

.

3.

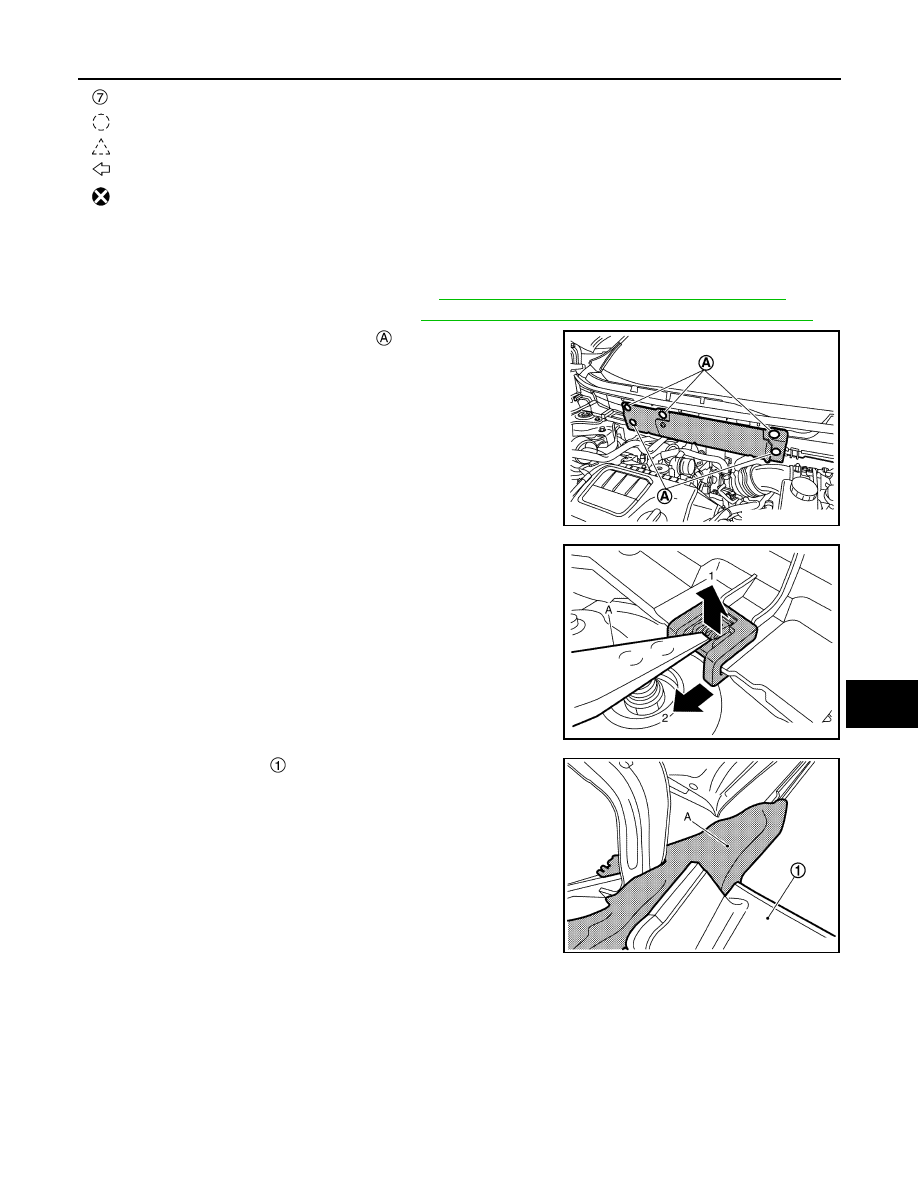

Remove cowl top insulator fixing clips

, and then remove cowl

top insulator (R9M engine models only).

4.

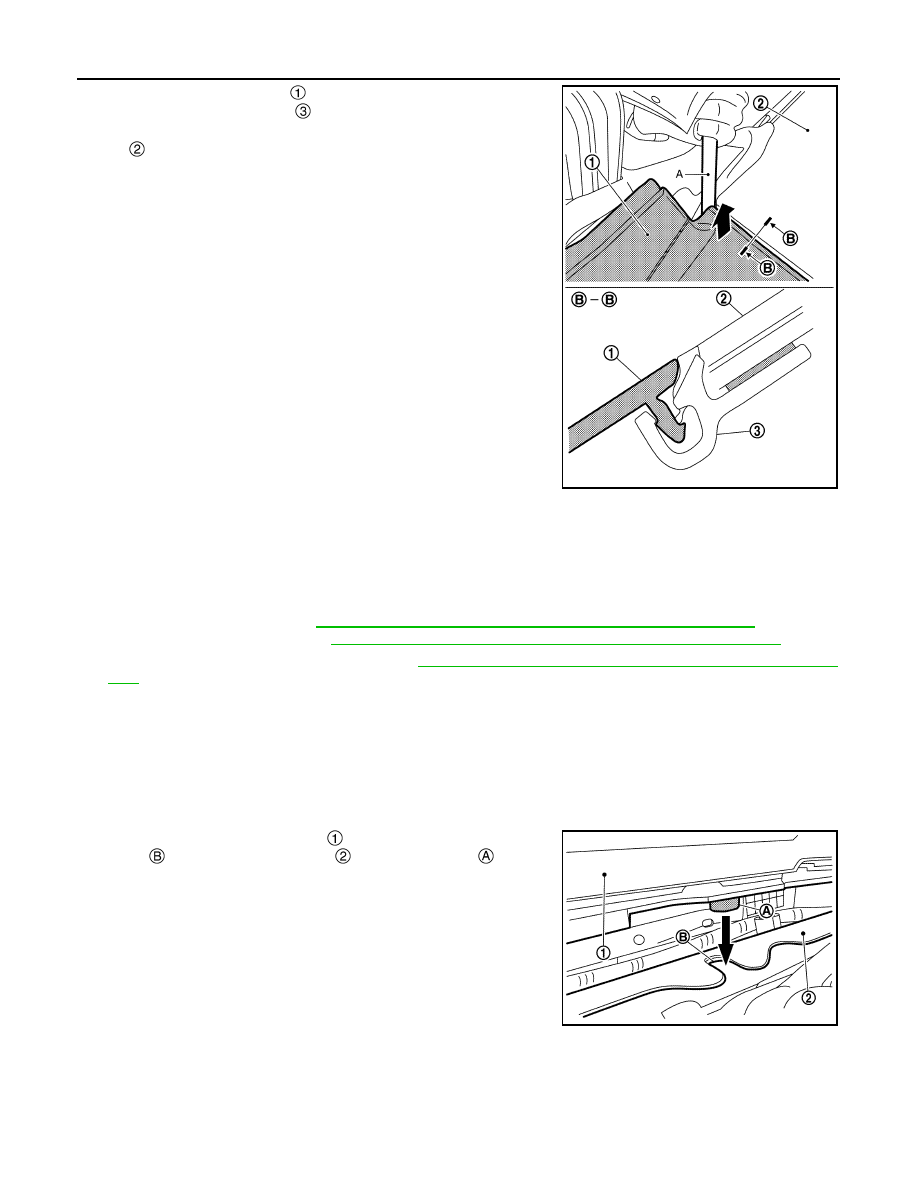

Remove cowl top grille clip using a remover tool (A) according to
the numerical order 1

2 as shown by the arrows in the figure.

5.

Cover cowl top cover

 and upper side of front fender panel

with a shop cloth (A) to prevent damage.

EPT seal [t: 3.0 mm (0.118 in)]

: Clip

: Pawl

: Vehicle front

: Always replace after every disassembly.

JMKIB3755ZZ

JMKIB2848ZZ

JMKIB2849ZZ

EXT-26

< REMOVAL AND INSTALLATION >

COWL TOP

6.

Disengage cowl top cover

 using a remover tool (A) from wind-

shield glass lower molding

.

7.

Remove joint of front washer tube.

8.

Remove cowl top cover.

9.

Remove the following parts after removing cowl top cover.
• EPT seal.
• Cowl top seal.
• Cowl top cover cap.
• Front washer tube. Refer to

WW-101, "FRONT WASHER TUBE : Removal and Installation"

.

• Front washer nozzle. Refer to

WW-97, "FRONT WASHER NOZZLE : Removal and Installation"

.

10. Remove front wiper drive assembly. Refer to

WW-85, "WIPER DRIVE ASSEMBLY : Removal and Installa-

tion"

.

11. Remove cowl top extension mounting bolts and nut, and then remove cowl top extension.

12. Remove EPT seal after removing cowl top extension.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Clean the joint between the cowl top cover and the windshield, and then install them.
• Replace the EPT seal on the back surface with new EPT seal when reusing the cowl top cover.
• When installing cowl top cover

, always match perfectly the

portion

 of cowl top extension

 with the portion

 of cowl

top cover.

: Windshield glass

JMKIB2850ZZ

JMKIB2851ZZ
