REAR BUMPER

EXT-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

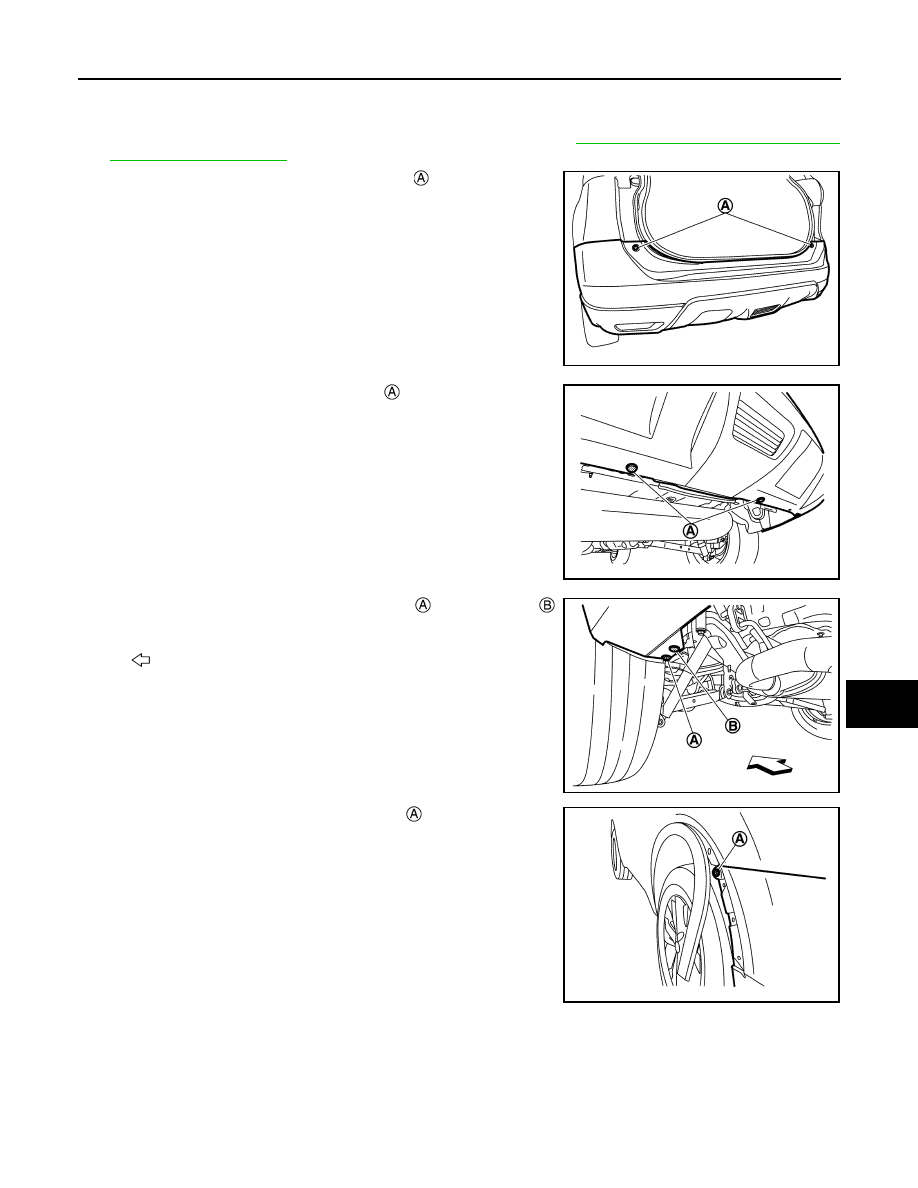

REMOVAL

1.

Fully open back door.

2.

Remove back side of rear fillet molding (LH and RH). Refer to

EXT-33, "REAR FILLET MOLDING :

Removal and Installation"

.

3.

Remove rear bumper fascia fixing screws

 of bumper upper

side.

4.

Remove rear bumper fascia fixing clips

 of bumper lower side.

5.

Remove rear bumper fascia mounting bolt

 and fixing clip

lower side of bumper both end.

6.

Remove rear bumper fascia mounting bolt

 (LH and RH).

JMKIB2798ZZ

JMKIB2799ZZ

: Vehicle front

JMKIB2800ZZ

JMKIB2801ZZ

EXT-20

< REMOVAL AND INSTALLATION >

REAR BUMPER

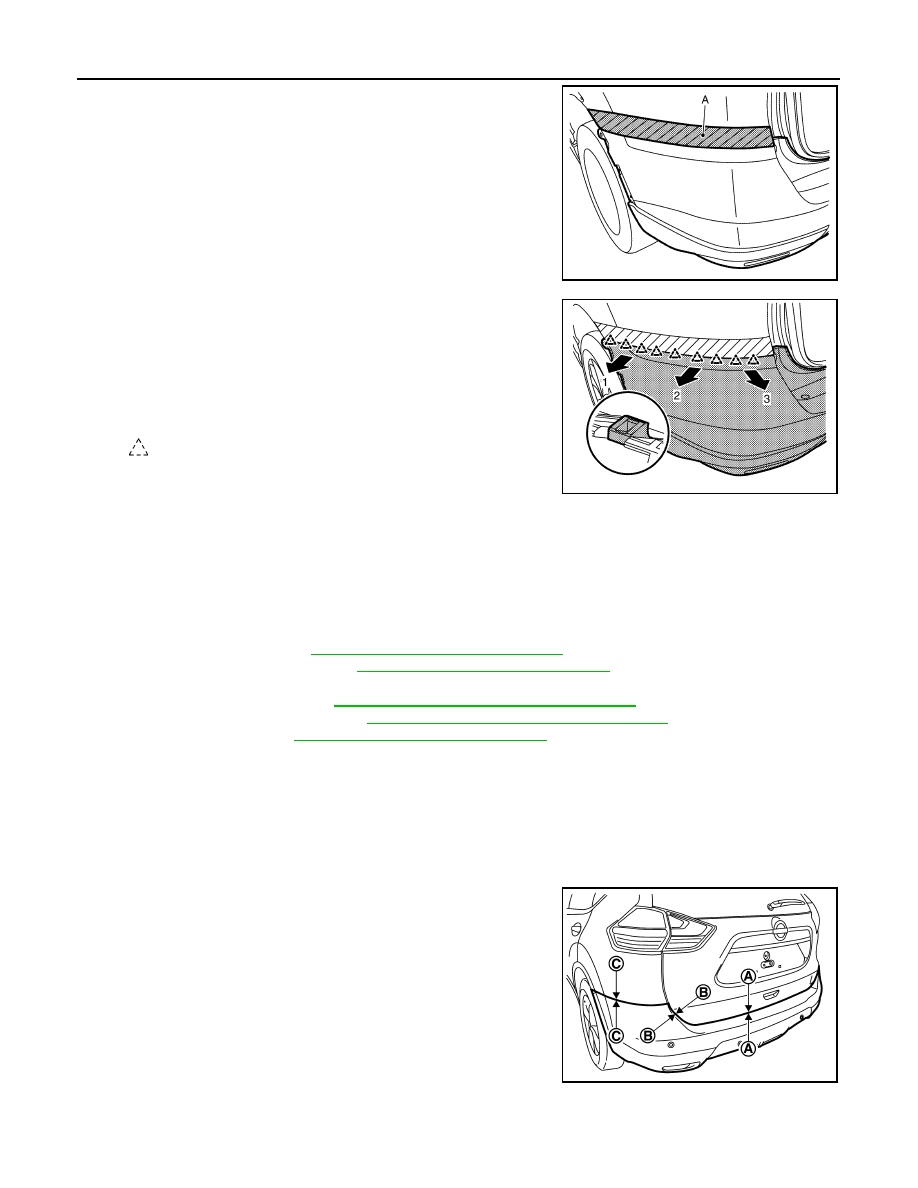

7.

Apply protective tape (A) on the part to protect it from damage.

8.

Pull rear bumper fascia side toward the vehicle side to disen-
gage the fitting of rear bumper side bracket and rear bumper
fascia side according to the numerical order 1

→

3 as shown by

the arrows in the figure.

CAUTION:

When removing bumper fascia, 2 workers are required so
as to prevent it from dropping.

9.

Disconnect rear fog lamp harness connector. (if equipped)

10. Disconnect rear sonar sensor harness connector. (if equipped)
11. Remove rear bumper fascia assembly.

CAUTION:

When removing bumper fascia, 2 workers are required so as to prevent it from dropping.

12. Remove the following parts after removing rear bumper fascia assembly.

• Rear fog lamp. Refer to the following. (if equipped)
- LED HEADLAMP: Refer to

EXL-211, "Removal and Installation"

.

- HALOGEN HEADLAMP: Refer to

EXL-396, "Removal and Installation"

.

• Rear sonar sensor. Refer to the following. (if equipped)
- WITH PARK ASSIST: Refer to

SN-240, "REAR : Removal and Installation"

.

- WITHOUT PARK ASSIST: Refer to

SN-114, "REAR : Removal and Installation"

.

• Reflex reflector. Refer to

EXL-212, "Removal and Installation"

.

• Rear bumper finisher. (if equipped)

13. Remove rear bumper reinforcement mounting nuts, and then remove rear bumper reinforcement.

14. Remove rear bumper stay mounting bolts, and then remove rear bumper stay (LH and RH).

INSTALLATION

Note the following items, and then install in the reverse order of removal.
NOTE:
• The following table shows the specified values for checking normal installation status.
• Fitting adjustment cannot be performed.

JMKIB2802ZZ

: Pawl

JMKIB2803ZZ

JMKIB2804ZZ

REAR BUMPER

EXT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Portion

Clearance

Surface height difference

Rear bumper fascia – Back door
panel

 –

5.5 – 9.5 mm

(0.217 – 0.374 in)

—

 –

3.0 – 7.0 mm

(0.118 – 0.276 in)

(

−

1.8) – (+2.4) mm

[(

−

0.071) – (+0.094) in]

Rear bumper fascia – Rear fender
panel

 –

0.1 – 1.0 mm

(0.004 – 0.039 in)

(

−

0.3) – (+1.7) mm

[(

−

0.012) – (+0.067) in]

EXT-22

< REMOVAL AND INSTALLATION >

FRONT GRILLE

FRONT GRILLE

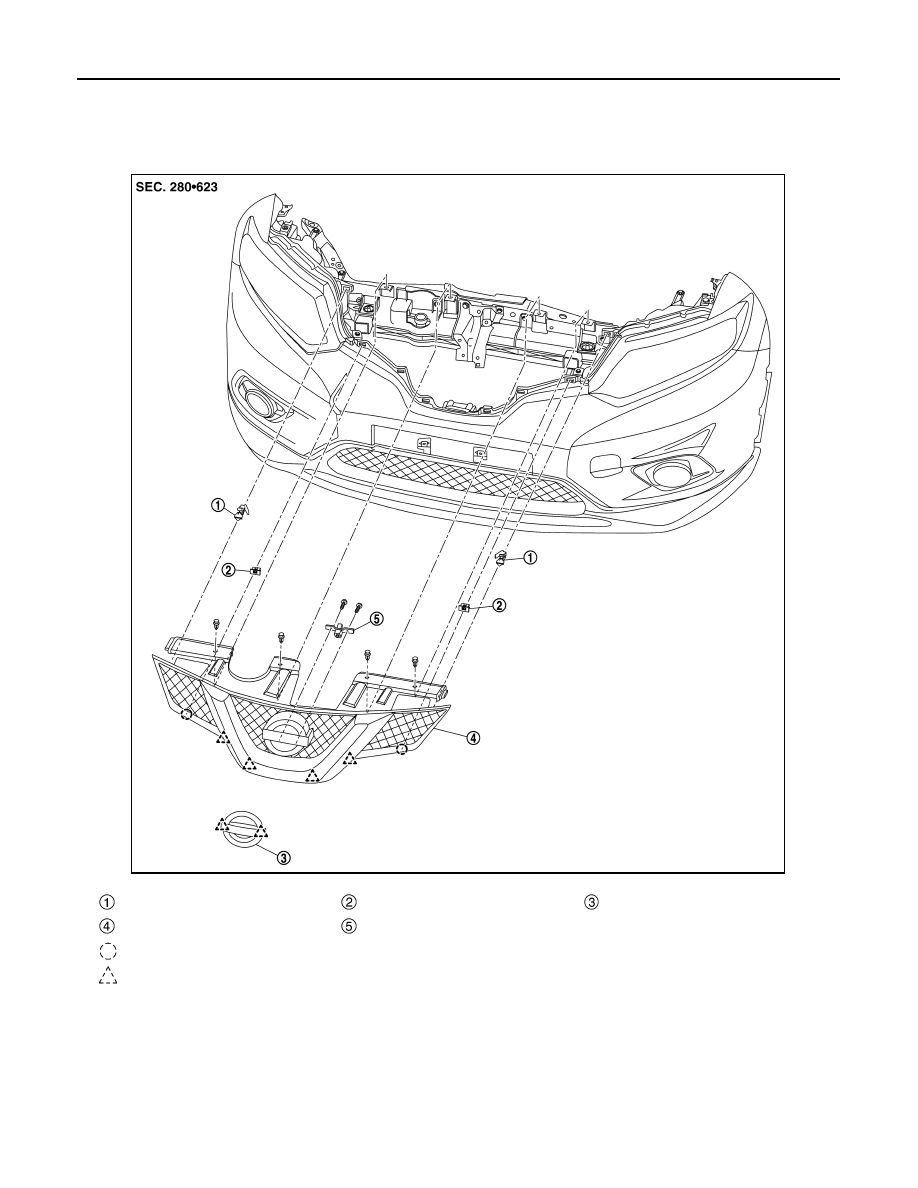

Exploded View

INFOID:0000000010787440

Removal and Installation

INFOID:0000000010787441

REMOVAL

1.

Fully open hood assembly.

Turn fastener

Grommet

Front emblem

Front grille

Front camera (if equipped)

: Clip

: Pawl

JMKIB2961ZZ
