CYLINDER BLOCK

EM-393

< UNIT DISASSEMBLY AND ASSEMBLY >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

c.

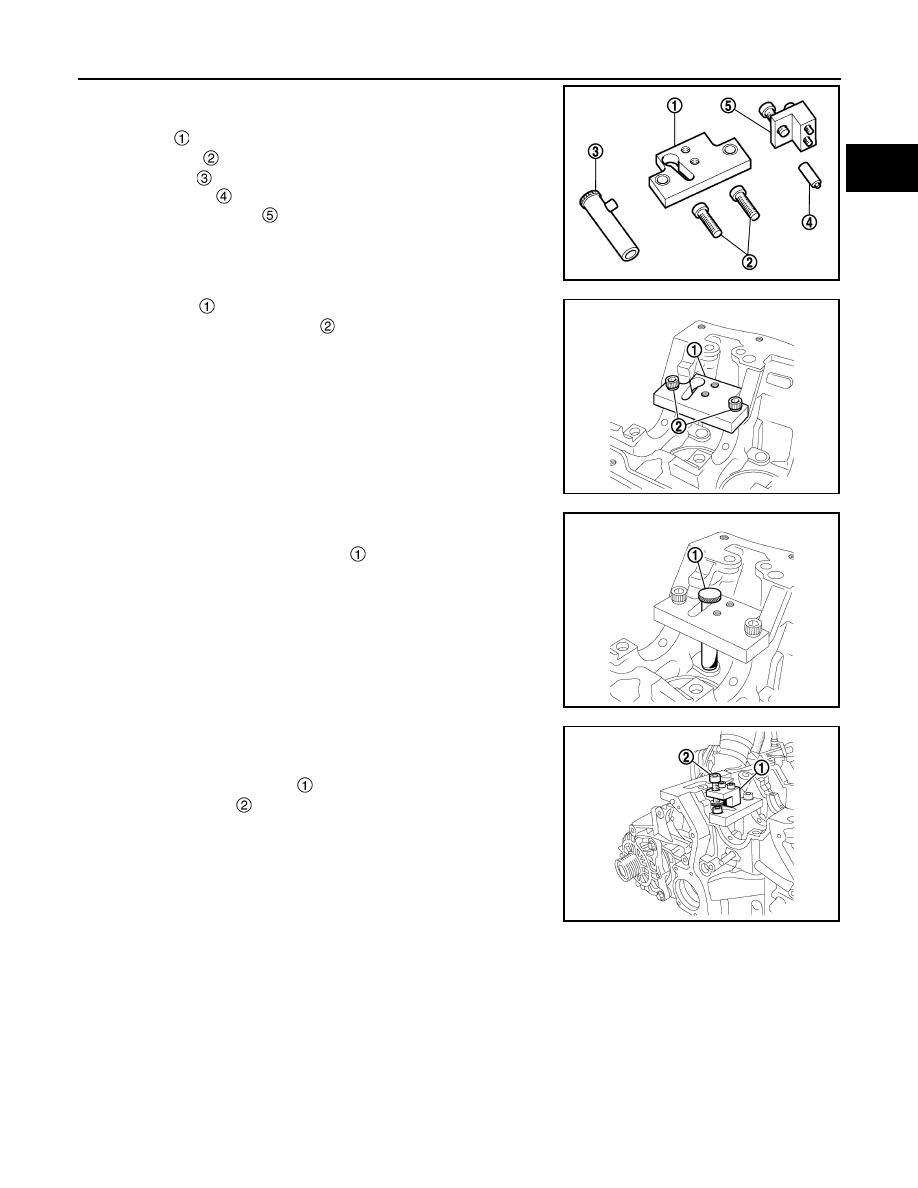

Description of the tool [SST: — (Mot. 1972)]

The tool [SST: — (Mot. 1972)] consists of:

• a plate

,

• a plate bolt

,

• a pushrod

,

• an end piece

,

• a system nut-screw

.

d.

Fit the plate

 of the tool [SST: — (Mot. 1972)] on the cylinder

block without tighten the bolts

e.

Fit the piece of the tool [SST: — (Mot. 1972)] in the push-rod of
the tool [SST: — (Mot. 1972)].
• Place the “end piece - pushrod”

 assembly of the tool [SST:

— (Mot. 1972)] in the plate to centre the plate above the open-
ing of the oil jet.

• Tighten the plate bolts.
• Remove the “end piece - pushrod” assembly from the plate.

f.

Insert the oil jet in the pushrod.
• Place the “pushrod - oil jet” assembly in the plate by present-

ing the jet in front of its opening.

• Fit the system nut-screw

 on the plate.

• Tighten the bolt

 to has retaining wall of the pushrod on the

plate.

• Remove the tool [SST: — (Mot. 1972)].

3.

Install main bearings and thrust bearings with the following procedure:

a.

Remove dust, dirt, and engine oil from the bearing mating surfaces of the cylinder block and main bearing
cap.

b.

Center the grooved bearing shell on bearing No.1 of the cylinder block while aligning the groove of the
bearing shell with the hole of the bearing.

E1BIA0559ZZ

E1BIA0560ZZ

E1BIA0561ZZ

E1BIA0562ZZ

EM-394

< UNIT DISASSEMBLY AND ASSEMBLY >

[R9M]

CYLINDER BLOCK

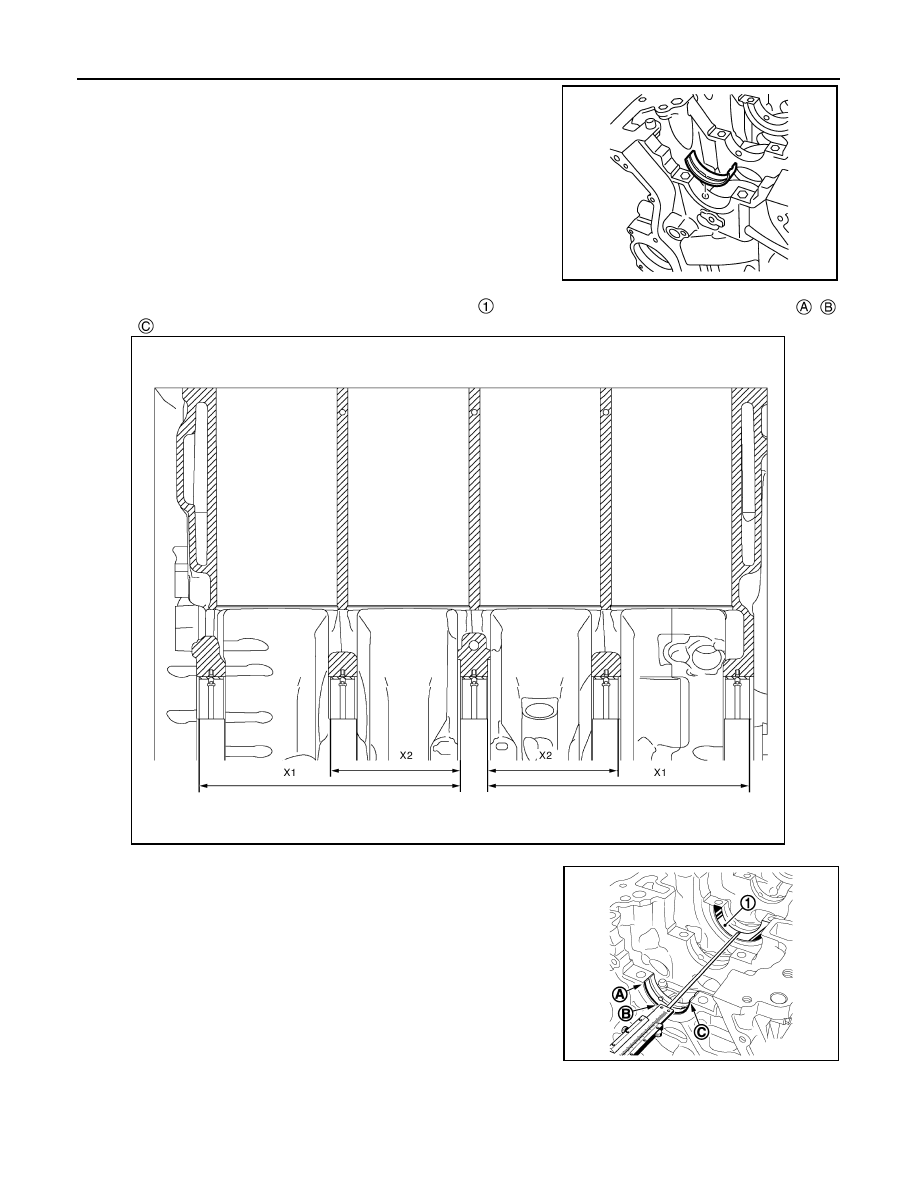

• Secure the flush bearing shell and push from the opposite side

the position of the bearing shell flush with the bearing.

c.

Measure the distance (X1) between the bearing face

 and the edge of the bearing shell at points

,

and

 using a depth gauge.

d.

If necessary, adjust the position of the bearing shell to the value (X1) = [179 mm (7.0 in)].

e.

Repeat the previous operations for the bearing shells of the bearings No 2, 4 and 5.

f.

If necessary, adjust the position of the bearing shells:
- of bearings No. 2 and 4 to the value (X2) = [88 mm (3.5 in)].

E1BIA0532ZZ

E1BIA0534GB

E1BIA0533ZZ

CYLINDER BLOCK

EM-395

< UNIT DISASSEMBLY AND ASSEMBLY >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

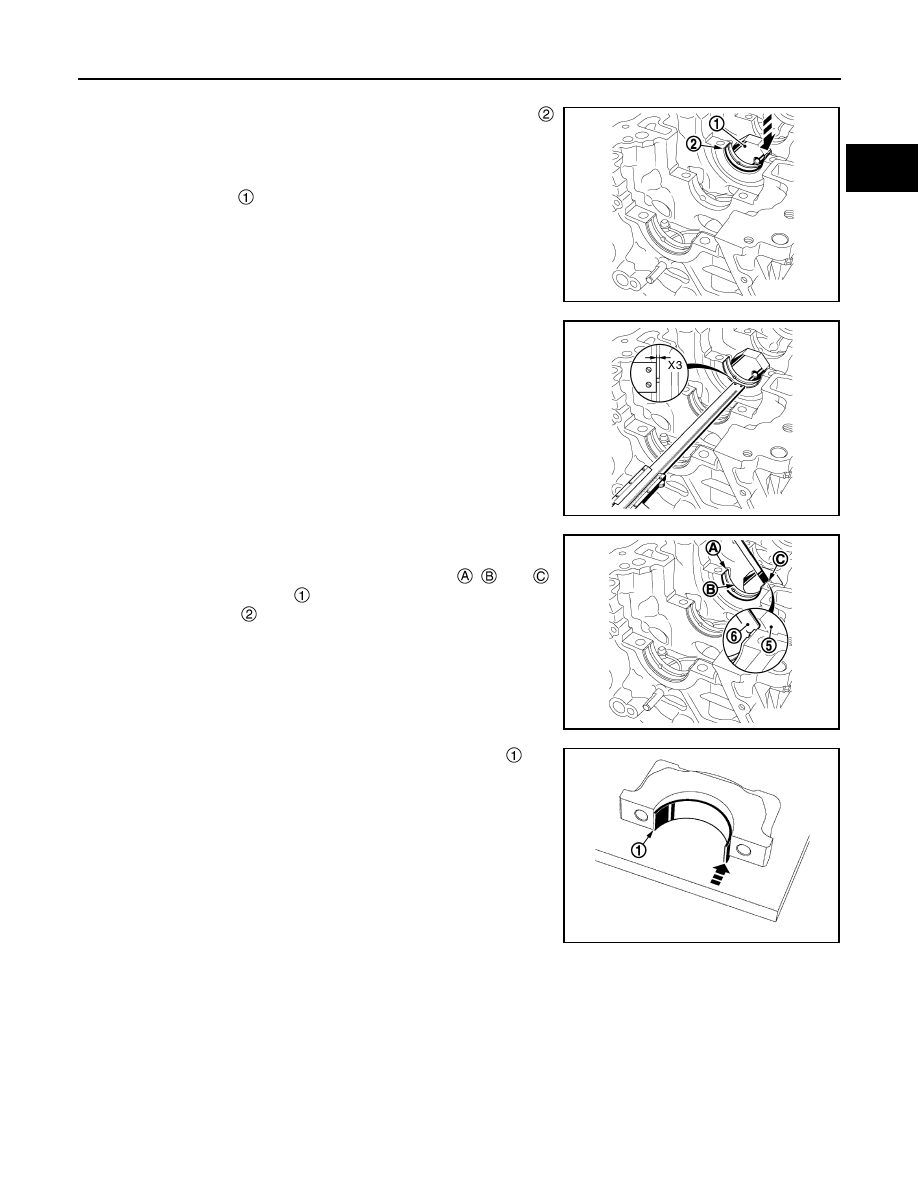

- of the bearing No. 5 to the value (X1) = [176 mm (6.9 in)].

g.

Secure the flush bearing shell against the rectified shimat
and push from the opposite side to position the bearing shell
flush with the bearing.

Place:

• a rectified shim

 against the mating face of the crankshaft

thrust washer on bearing No.3

• the grooved bearing shell against the rectified shim.

h.

Measure the distance (X3) between the bearing face of the
thrust washer and the bearing shell edge using a depth gauge.

i.

Center the grooved bearing shell on the bearing, aligning the
shell with the hole groove.
• Adjust the position of the bearing shell at points

,

 and

using the rectified shim

 and a set of feeler gauges (thick-

ness of the shim

 = (X3): [2 mm (0.1 in)].

j.

Secure the flush bearing shell with the bearing cap at

 and

push from the opposite side to bring the bearing shell flush with
the bearing cap.

Place:

• the bearing cap on a bench,
• a non-grooved bearing shell against the bench.

E1BIA0535ZZ

E1BIA0536GB

E1BIA0537ZZ

E1BIA0538ZZ

EM-396

< UNIT DISASSEMBLY AND ASSEMBLY >

[R9M]

CYLINDER BLOCK

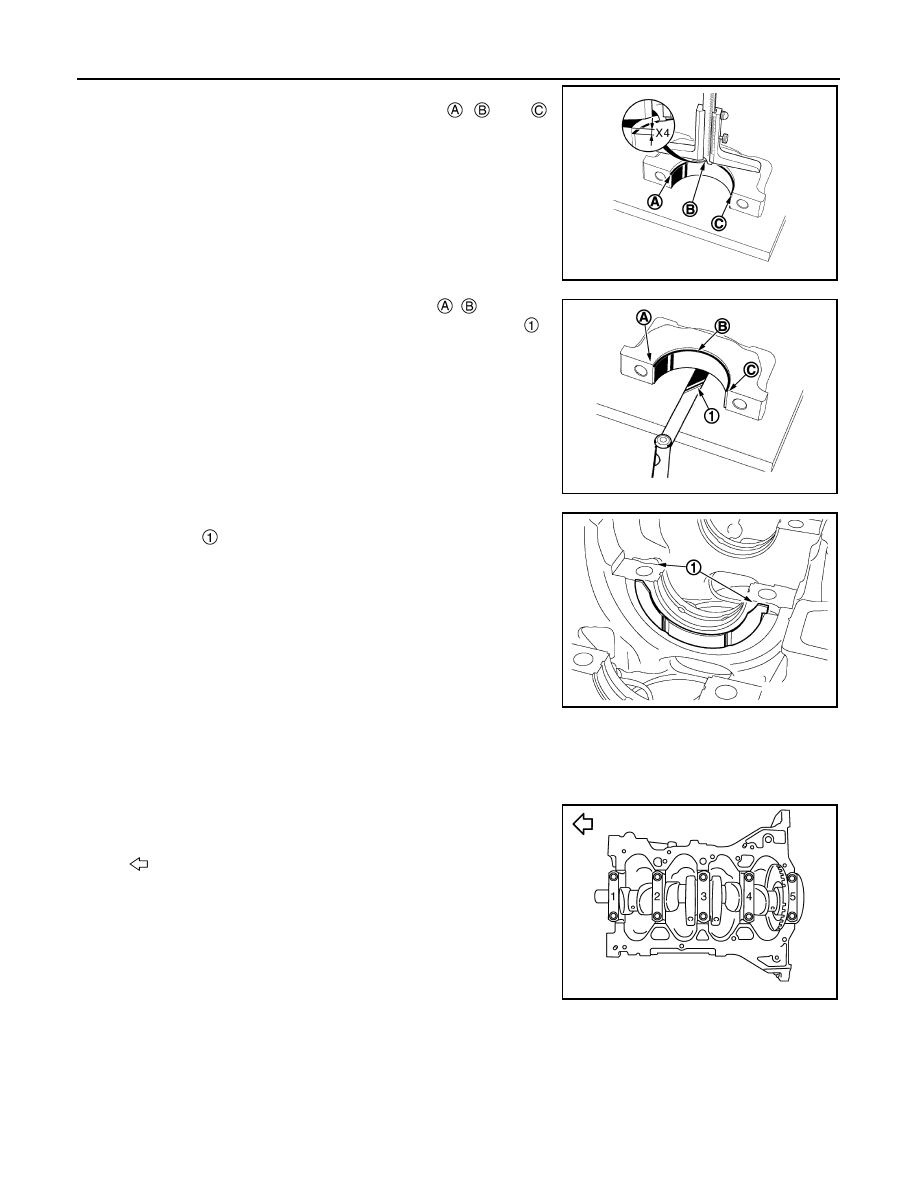

k.

Measure the distance (X4) between the edge of the bearing
shell and the wall of the bearing cap at points

,

 and

using a depth gauge.

l.

Adjust the position of the bearing shell at point

,

 and using

a set of feeler gauges (feeler gauges (thickness of the shim

 =

X4: [2 mm (0.1 in)]
• Repeat the previous operations for the other bearing caps.

m. Position the crankshaft thrust washers on the cylinder block

(washer plug

 in the cylinder block notch)

• Use engine oil to lubricate the crankshaft journal bearing

shells and thrust washers (only the face making contact with
the crankshaft).

NOTE:
Ensure the bearing shells and the thrust washers do not move
when refitting the crankshaft and bearing caps.

4.

Install crankshaft, the bearing caps and the crankshaft bearing bolts.
NOTE:
Check that the bearing caps are in contact with the cylinder block before tightening the bearing cap bolts.

5.

Install main bearing caps with the following procedure:

a.

Align the identification number to the journal position to install as
shown in the figure.

E1BIA0539GB

E1BIA0540ZZ

E1BIA0541ZZ

: Engine front
