CYLINDER BLOCK

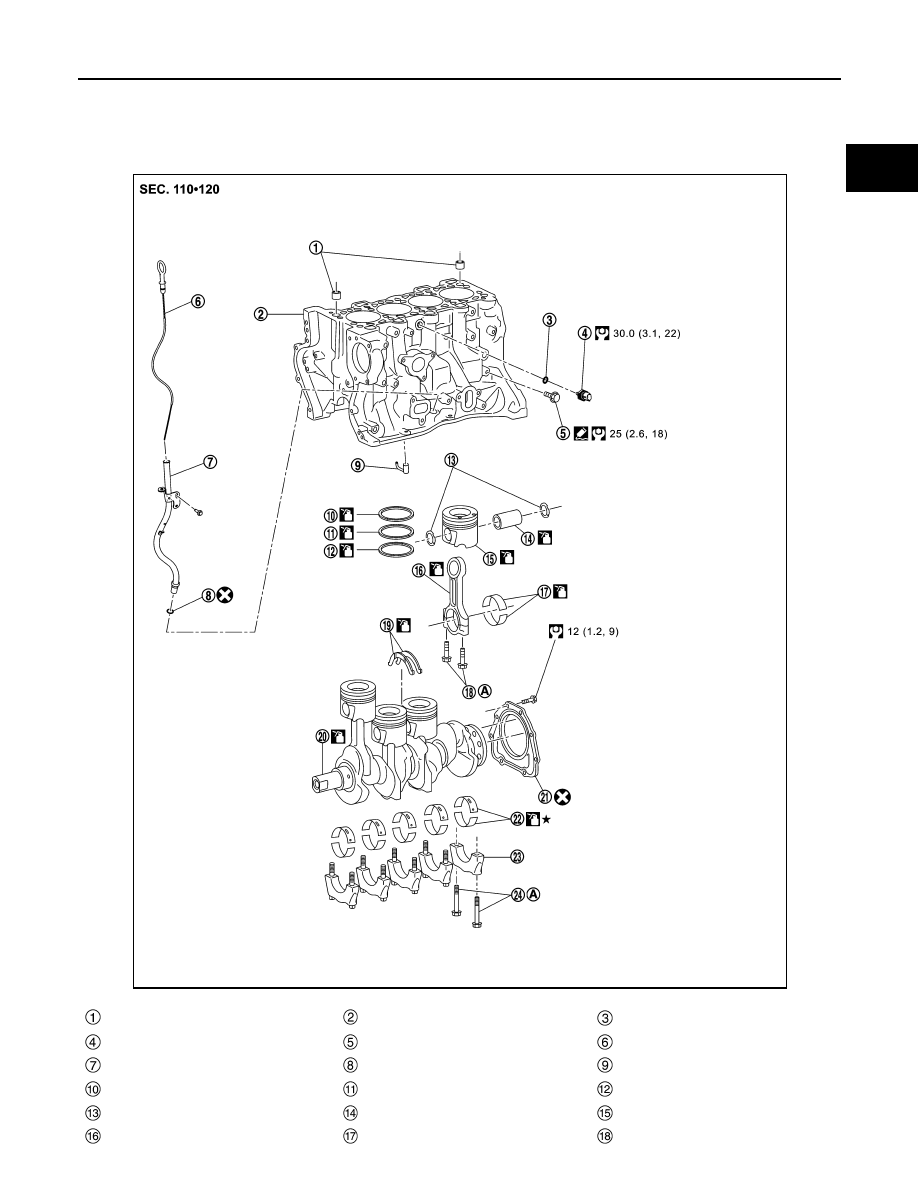

Exploded View

INFOID:0000000010784364

Centering dowel

Cylinder block

O-ring

Engine coolant temperature sensor

TDC hole plug

Oil level gauge

Oil level gauge guide

O-ring

Oil jet

Compression ring

Sealing ring

Scraper ring

Snap ring

Piston pin

Piston

Connecting rod

Connecting rod bearing shell

Connecting rod bolt

JPBIA6957GB

EM-390

< UNIT DISASSEMBLY AND ASSEMBLY >

[R9M]

CYLINDER BLOCK

Disassembly and Assembly

INFOID:0000000010784365

Disassembly

1.

Remove rear oil seal retainer. Refer to

EM-363, "REAR OIL SEAL : Removal and Installation"

.

2.

Remove oil pan (upper). Refer to

EM-380, "Exploded View"

.

3.

Remove oil pump related parts. Refer to

LU-44, "Exploded View"

.

4.

Remove piston and connecting rod assembly with the following procedure:
• Before removing piston and connecting rod assembly, check the connecting rod side clearance. Refer to

EM-401, "Inspection"

.

a.

Position crankshaft pin corresponding to connecting rod to be removed onto the bottom dead center.

b.

Remove connecting rod cap.
• Put a paint mark on cap to identify each cylinder.

c.

Using a hammer handle or similar tool, push piston and connect-
ing rod assembly out to the cylinder head side.

CAUTION:

• Be careful not to damage oil jets

, cylinder wall and

crankshaft pin, resulting from an interference of the con-
necting rod big end.

• Never disassemble oil jets.

5.

Remove connecting rod bearing shells.

CAUTION:

Crankshaft thrust washer

Crankshaft

Crankshaft seal on gearbox end

Crankshaft bearing shell

Crankshaft bearing cap

Crankshaft bearing cap bolt

Engine coolant temperature sensor har-
ness

Comply with the assembly procedure
when tightening. Refer to

EM-390, "Dis-

assembly and Assembly"

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

: Always replace after every disassembly.

: Should be lubricated with oil.

: Sealing point

: Select with proper thickness.

PBIC0259E

JPBIA1817ZZ

CYLINDER BLOCK

EM-391

< UNIT DISASSEMBLY AND ASSEMBLY >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

When removing them, note the installation position. Keep them in the correct.

6.

Remove piston rings from piston.
• Before removing piston rings, check the piston ring side clearance. Refer to

EM-401, "Inspection"

.

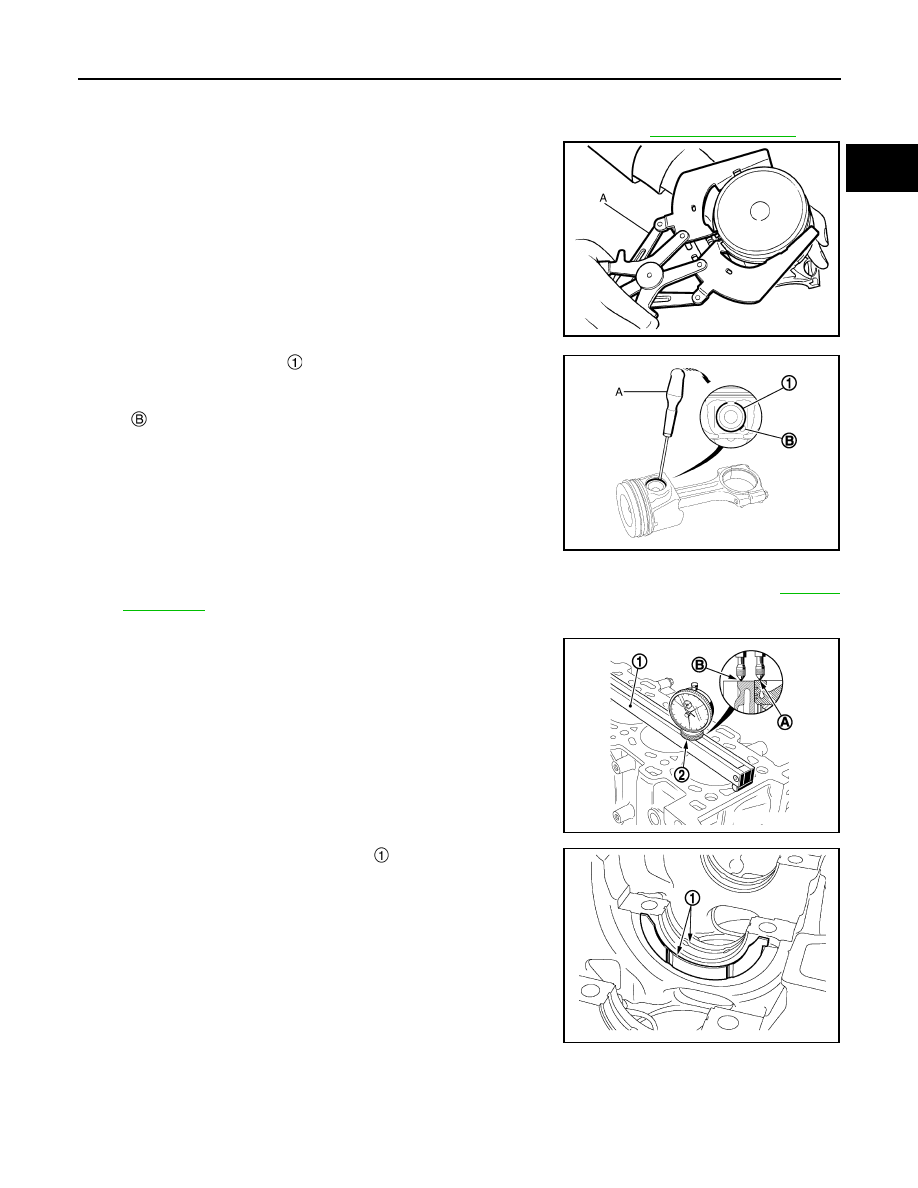

• Use a piston ring expander (commercial service tool) (A).

CAUTION:

• When removing piston rings, be careful not to damage

the piston.

• Be careful not to damage piston rings by expanding

them excessively.

7.

Remove the snap rings

 using a screwdriver (A), and then

release the piston pin.

8.

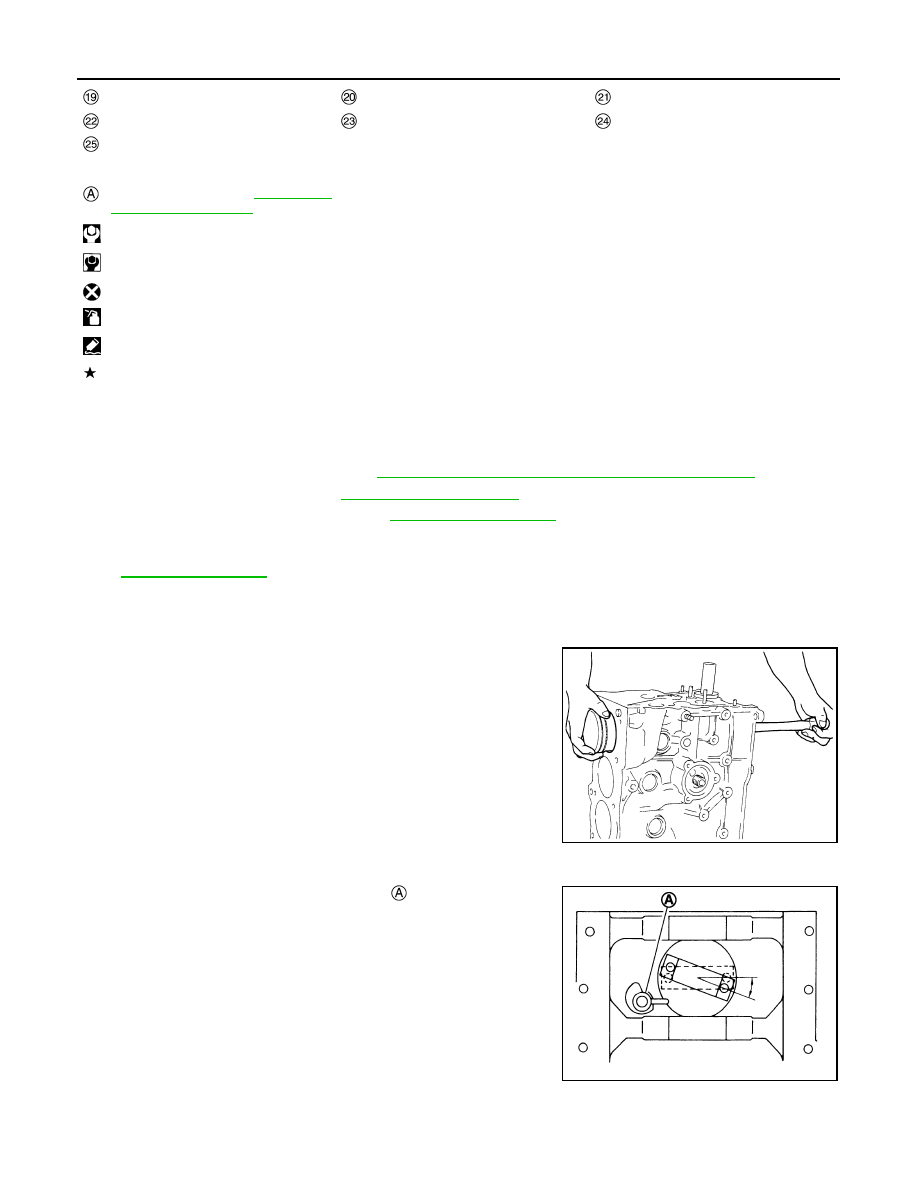

Remove main bearing cap mounting bolts with the following procedure:
• Measure crankshaft end play before loosening main bearing cap mounting bolts. Refer to

EM-401,

"Inspection"

.

a.

NOTE:
Always mark the position of each crankshaft bearing shell using
an indelible marker pen, in relation to the crankshaft bearing
number

Remove:

• the crankshaft bearing cap bolts,
• the crankshaft bearing caps,
• the crankshaft,
• the crankshaft bearing shells.

NOTE:
Always mark the position of each crankshaft bearing shell using an
indelible marker pen, in relation to the crankshaft bearing number

9.

Remove the crankshaft thrust washer

JPBIA0194ZZ

: Channel

JPBIA0639ZZ

E1BIA0530ZZ

E1BIA0531ZZ

EM-392

< UNIT DISASSEMBLY AND ASSEMBLY >

[R9M]

CYLINDER BLOCK

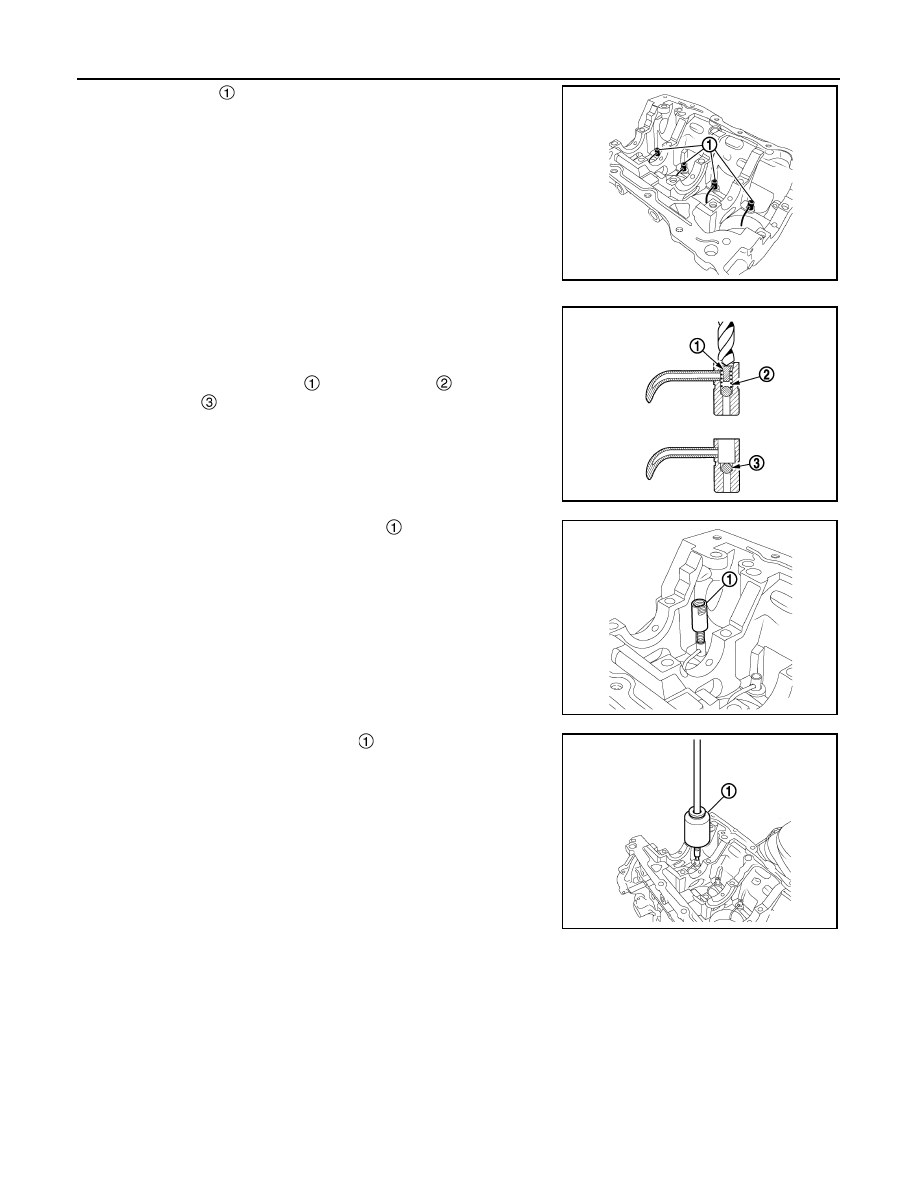

10. Remove oil jets

 following this procedure:

CAUTION:

Wear goggles with side protectors for this operation.

a.

Drill the oil jets using a [7 mm (0.3in)] diameter drill bit.
NOTE:
Do not take out the ball from the oil jet, otherwise swarf may
enter the lubrication circuit.
• Remove the spring tappet

 and the springs

 without taking

out the ball

.

• Remove any swarf present with a brush with non abrasive

bristles and a compressed air nozzle.

b.

Screw the tool [SST: — (Mot. 1485-01)]

 into the drilled oil jets

using a [6 mm (0.2 in)] Allen key, which slides into the tool [SST:
——Mot. 1485-01)].

c.

Screw the tool [SST: — (Emb. 880)]

 on the tool [SST: — (Mot.

1485-01)].

d.

Remove the oil jets.

e.

Fit a blanking plug whenever a oil jet is removed.

Assembly

1.

Fully air-blow engine coolant and engine oil passages in the cylinder block, cylinder bore and crankcase
to remove any foreign matter.

CAUTION:

Use a goggles to protect your eye.

2.

Install the new oil jet following procedure:

a.

Remove the blanking plugs.

b.

Use pressurized air and clean cloths to clean the oil circuit, the cylinders and the joint faces to ensure
there is no swarf present.

E1BIA0555ZZ

E1BIA0556ZZ

E1BIA0557ZZ

E1BIA0558ZZ
