CAMSHAFT

EM-225

< UNIT DISASSEMBLY AND ASSEMBLY >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

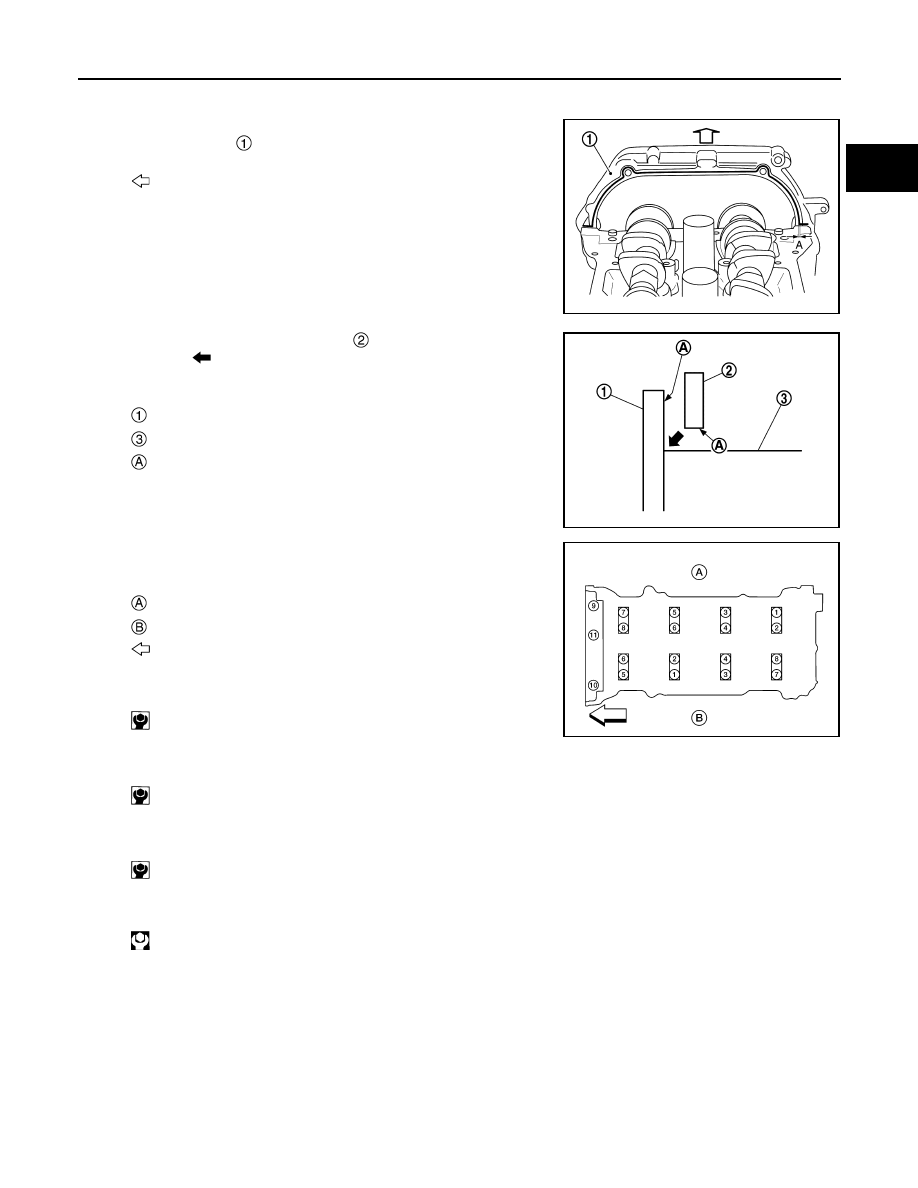

After installation, be sure to wipe off any excessive liquid gasket leaking.

ii.

Apply liquid gasket to camshaft bracket (No. 1) contact surface
on the front cover

 backside.

Use Genuine Liquid Gasket or equivalent.
• Apply liquid gasket to the outside of bolt hole on front cover.

iii.

Locate camshaft bracket (No. 1)

 near installation position,

and install (

) it without disturbing the liquid gasket applied to

the surfaces.

4.

Tighten mounting bolts of camshaft brackets in the following
steps, in numerical order as shown in the figure.

a.

Tighten No. 9 to 11 in numerical order.

b.

Tighten No. 1 to 8 in numerical order.

c.

Tighten all bolts in numerical order.

d.

Tighten all bolts in numerical order.

CAUTION:

After tightening mounting bolts of camshaft brackets, be sure to wipe off excessive liquid gasket
from the parts listed below.
• Mating surface of rocker cover.
• Mating surface of front cover. (When installed without front cover)

5.

Install the camshaft sprocket to the camshaft with the following procedure.

: Engine front

A :

φ

2.6 - 3.6 mm

JSBIA2442ZZ

: Front cover

: Cylinder head

: Liquid gasket application face

JSBIA2443ZZ

: Intake side

: Exhaust side

: Engene front

: 1.96 N·m (0.2 kg-m, 17 in-lb)

: 1.96 N·m (0.2 kg-m, 17 in-lb)

: 5.88 N·m (0.6 kg-m, 52 in-lb)

: 10.5 N·m (1.1 kg-m, 8 ft-lb)

ALBIA0846GB

EM-226

< UNIT DISASSEMBLY AND ASSEMBLY >

[QR25DE]

CAMSHAFT

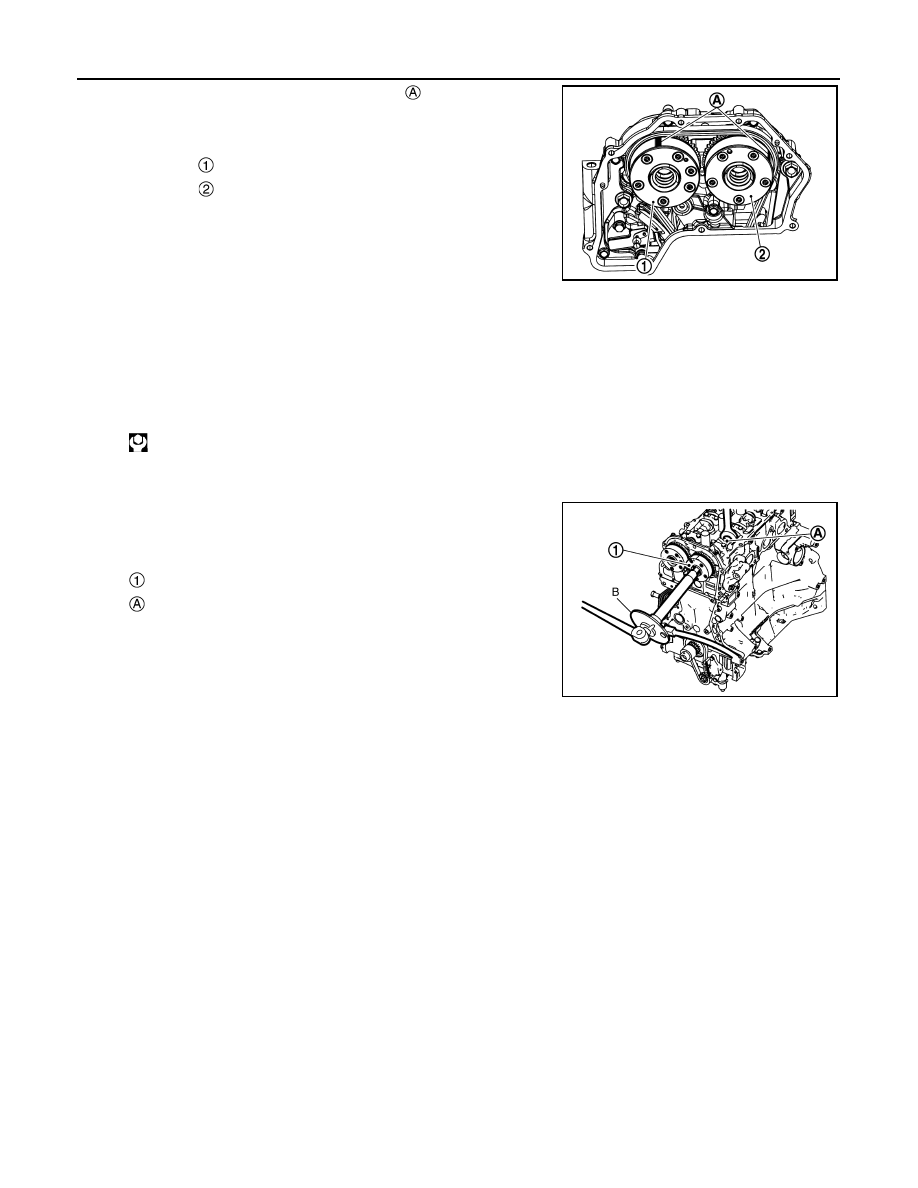

a.

Install them by aligning the mating marks

 on each camshaft

sprocket with the ones painted on timing chain link plate during
removal.

CAUTION:

• Aligned mating marks could slip. Therefore, after match-

ing them, hold the timing chain in place by hand.

• Before and after installing chain tensioner, check again

that mating marks have not slipped.

NOTE:
Before installation of chain tensioner, it is possible to re-match the marks on timing chain with the ones on
each sprocket.

b.

Tighten bolts in the following steps.
• Secure the hexagonal part of camshaft using wrench to tighten mounting bolt.

i.

Tighten camshaft mounting bolt.

ii.

Turn 45 degrees clockwise (angle tightening).

CAUTION:

Check the tightening angle by using an angle wrench [SST:
KV10112100](B) or protractor. Never judge by visual inspec-
tion without an angle wrench.

6.

Install chain tensioner.

CAUTION:

After installation, pull the stopper pin off completely, and check that chain tensioner plunger is
released.

7.

Install chain guide.

8.

Install intake valve timing control cover with the following procedure:

a.

Install intake valve timing control solenoid valve to intake valve timing control cover if removed.

b.

Install new O-rings to the camshaft sprocket (INT) insertion points on backside of intake valve timing con-
trol cover.

c.

Install new O-ring to front cover.

: Camshaft sprocket (INT)

: Camshaft sprocket (EXH)

: 50.0 N·m (5.1 kg-m, 36.8 ft-lb)

: Camshaft sprocket

: Camshaft hexagonal part

JSBIA3357ZZ

JSBIA3461ZZ

CAMSHAFT

EM-227

< UNIT DISASSEMBLY AND ASSEMBLY >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

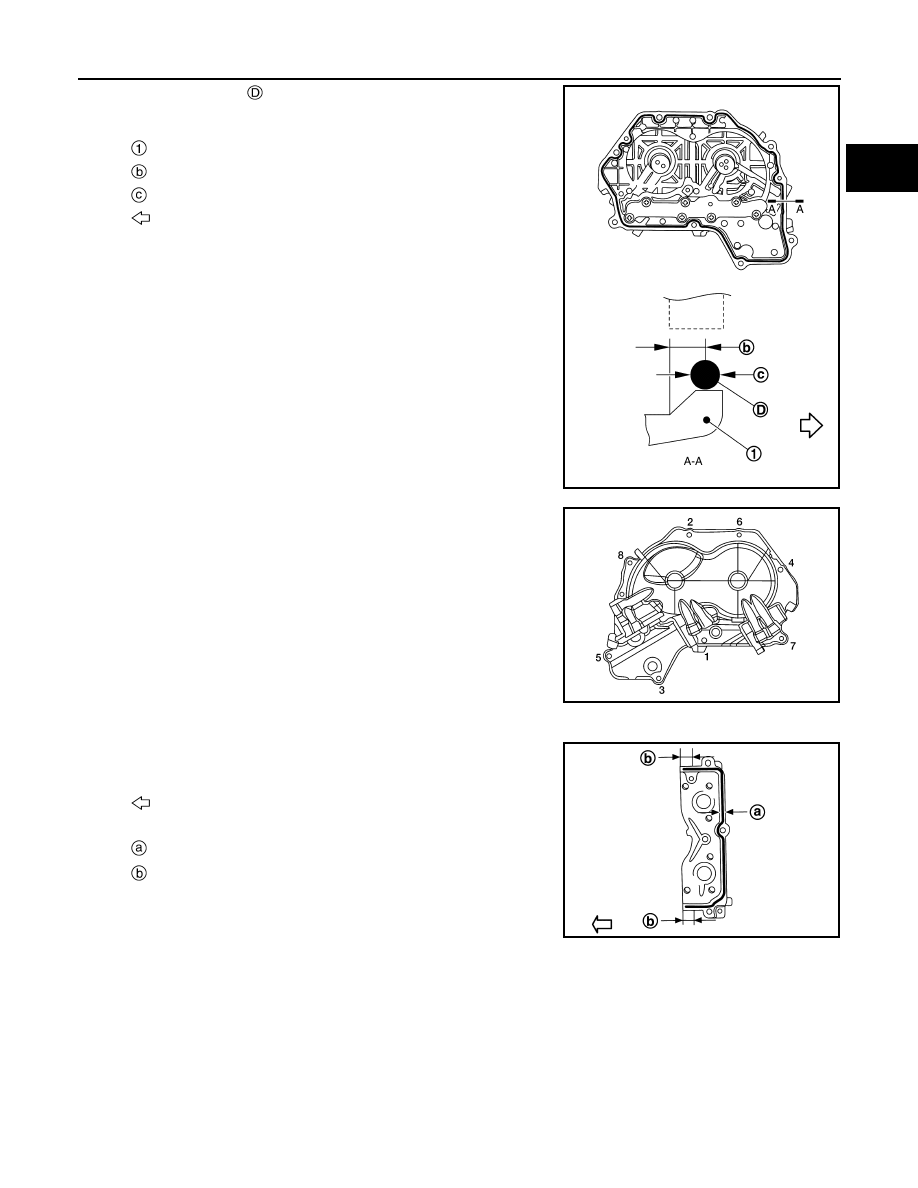

d.

Apply liquid gasket

 with a tube presser (Commercial Service

Tool) to intake valve timing control cover as shown in the figure.

Use Genuine Liquid Gasket or equivalent.

CAUTION:

Attaching should be done within 5 minutes after liquid gas-
ket application.

e.

Tighten mounting bolts in numerical order as shown in the fig-
ure.

9.

Install camshaft position sensor bracket.

a.

Apply liquid gasket with a tube presser (commercial service tool)
to camshaft position sensor bracket as shown in the figure.

Use Genuine Liquid Gasket or equivalent.

CAUTION:

• After installation, be sure to wipe off any excessive liquid

gasket leaking from part “b”

• Attaching should be done within 5 minutes after liquid gasket application.

: Valve timing control cover

: 4.3 - 5.3 mm (0.169 - 0.208 in)

:

φ

 3.4 - 4.4 mm (0.134 - 0.173 in)

: Engine outside

JSBIA3383ZZ

ALBIA0839GB

: Engine front

: 2.0 – 3.0 mm (0.079 – 0.118 in)

: 10.5 mm (0.413 in)

JSBIA3387ZZ

EM-228

< UNIT DISASSEMBLY AND ASSEMBLY >

[QR25DE]

CAMSHAFT

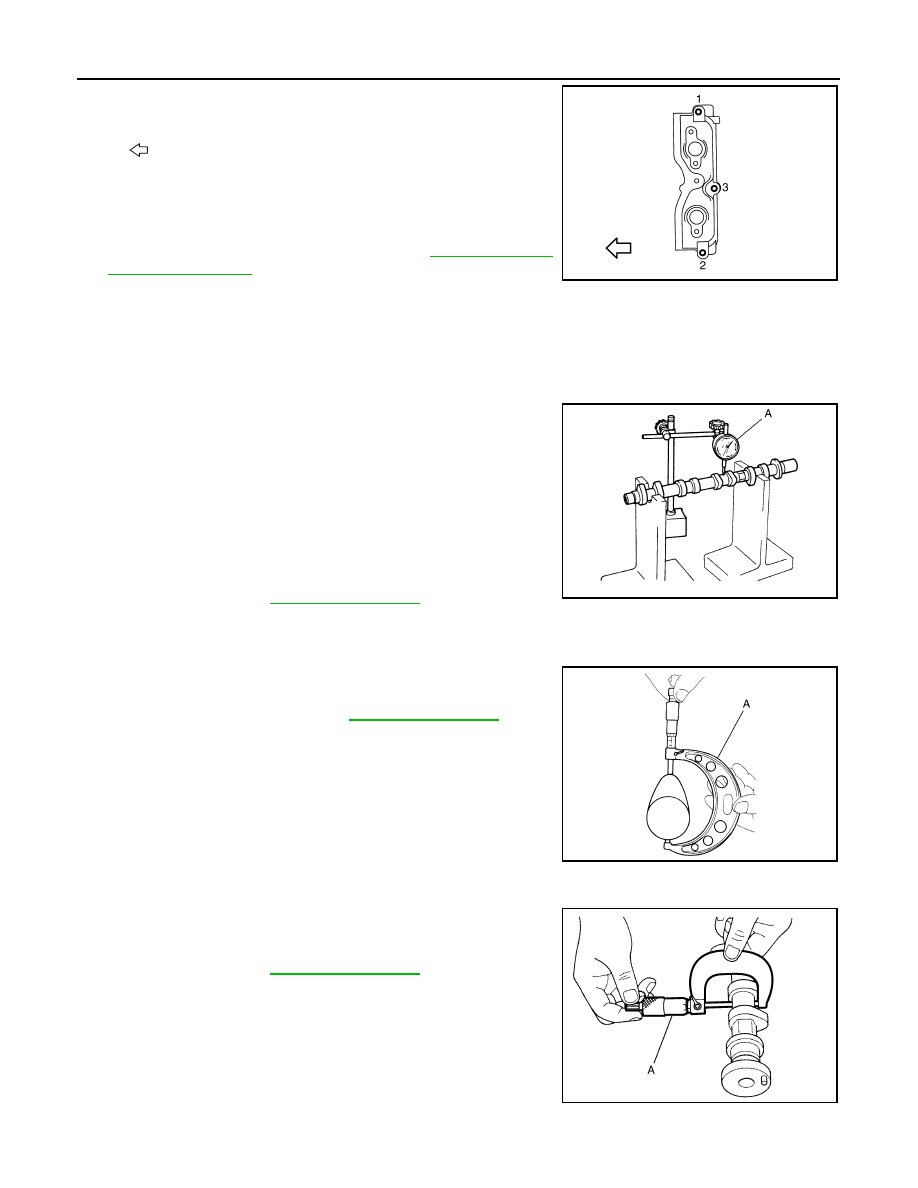

b.

Tighten mounting bolts in numerical order as shown in the fig-
ure.

10. Install camshaft position sensor (PHASE) and exhaust valve

timing cont position sensor.

CAUTION:

Do not reuse O-ring.

11. Inspect and adjust valve clearance. Refer to

EM-159, "Inspec-

tion and Adjustment"

.

12. Install in the reverse order of removal after this step.

Inspection

INFOID:0000000010783814

INSPECTION AFTER REMOVAL

Camshaft Runout

1.

Put V-block on a precise flat table, and support No. 2 and 5 jour-
nal of camshaft.

CAUTION:

Never support No. 1 journal (on the side of camshaft
sprocket) because it has a different diameter from the other
four locations.

2.

Set dial indicator (A) vertically to No. 3 journal.

3.

Turn camshaft to one direction with hands, and measure the
camshaft runout on dial indicator. (Total indicator reading)

4.

If out of the standard, replace camshaft.

Camshaft Cam Height

1.

Measure the camshaft cam height with a micrometer (A).

2.

If it exceeds the limit, replace camshaft.

Camshaft Journal Oil Clearance

CAMSHAFT JOURNAL DIAMETER
Measure the outer diameter of camshaft journal with a micrometer
(A).

CAMSHAFT BRACKET INNER DIAMETER

: Engine front

JSBIA3385ZZ

Standard: Refer to

EM-275, "Camshaft"

.

JSBIA2445ZZ

Standard and Limit : Refer to

EM-275, "Camshaft"

.

JSBIA2447ZZ

Standard: Refer to

EM-275, "Camshaft"

.

JPBIA0122ZZ
