TIMING CHAIN

EM-217

< UNIT DISASSEMBLY AND ASSEMBLY >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

6.

Install front oil seal to front cover. Refer to

EM-197, "FRONT OIL SEAL : Removal and Installation"

.

7.

Install front cover with the following procedure:

CAUTION:

Do not reuse O-rings.

a.

Install O-rings to cylinder head and cylinder block.

b.

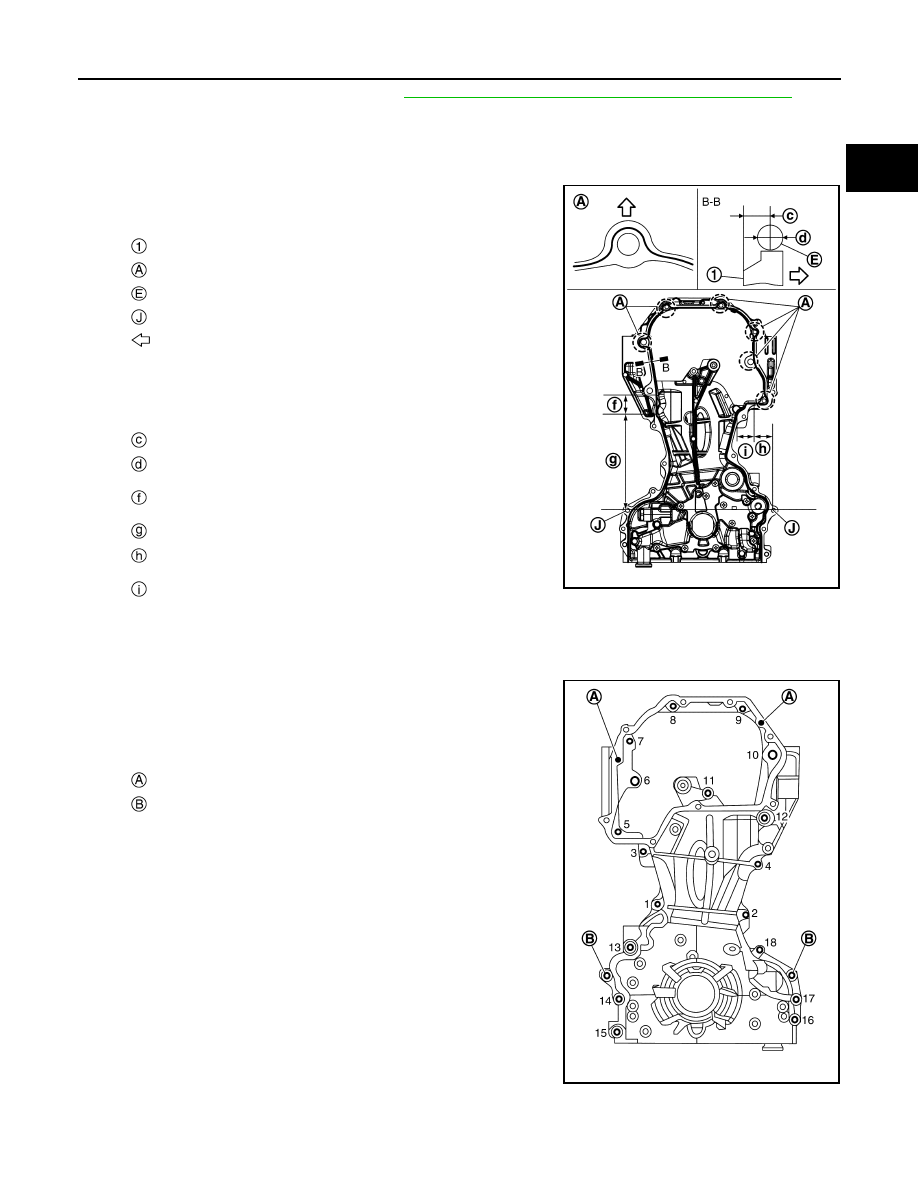

Apply a continuous bead of liquid gasket with the tube presser
(commercial service tool) to front cover as shown in the figure.

Use Genuine Liquid Gasket or equivalent.
NOTE:
Application instruction differs depending on the position.

c.

Check that mating marks of timing chain and each sprocket are still aligned. Then install front cover.

CAUTION:

Be careful not to damage front oil seal by interference with front end of crankshaft.

d.

Tighten mounting bolts in numerical order as shown in the fig-
ure.

e.

After all bolts are tightened, retighten them to specified torque in
numerical order as shown in the figure.

CAUTION:

Be sure to wipe off any excessive liquid gasket leaking to
surface for fitting oil pan.

8.

Install chain guide between camshaft sprockets.

9.

Install valve timing control cover with the following procedure:

: Front cover

: Apply liquid gasket outside the bolt holes

: Liquid gasket

: Dowel pin hole

: Engine outside

: 4.0 - 5.6 mm (0.157 - 0.220 in)

:

φ

 3.4 - 4.4 mm (0.134 - 0.173 in)

:

35.7 mm (1.406 in) Apply liquid gasket

φ

 6.0 - 7.0

mm (0.236 - 0.275 in) between this area.

: 179.6 mm (7.07 in)

: 35.5 mm (1.398 in)

:

31.3 mm (1.232 in) Apply liquid gasket

φ

 6.0 - 7.0

mm (0.236 - 0.275 in) between this area.

JSBIA3382ZZ

: Dowel pin

: Dowel pin hole

Tightening torque

M10 bolt

: 49.0 N·m (5.0 kg-m, 36 ft-lb)

M6 bolt

: 12.7 N·m (1.3 kg-m, 9 ft-lb)

JSBIA3374ZZ

EM-218

< UNIT DISASSEMBLY AND ASSEMBLY >

[QR25DE]

TIMING CHAIN

a.

Install valve timing control solenoid valves to valve timing control cover if removed.

b.

Install new oil rings to the camshaft sprocket (INT) insertion points on backside of valve timing control
cover.

c.

Install new O-ring to front cover.

d.

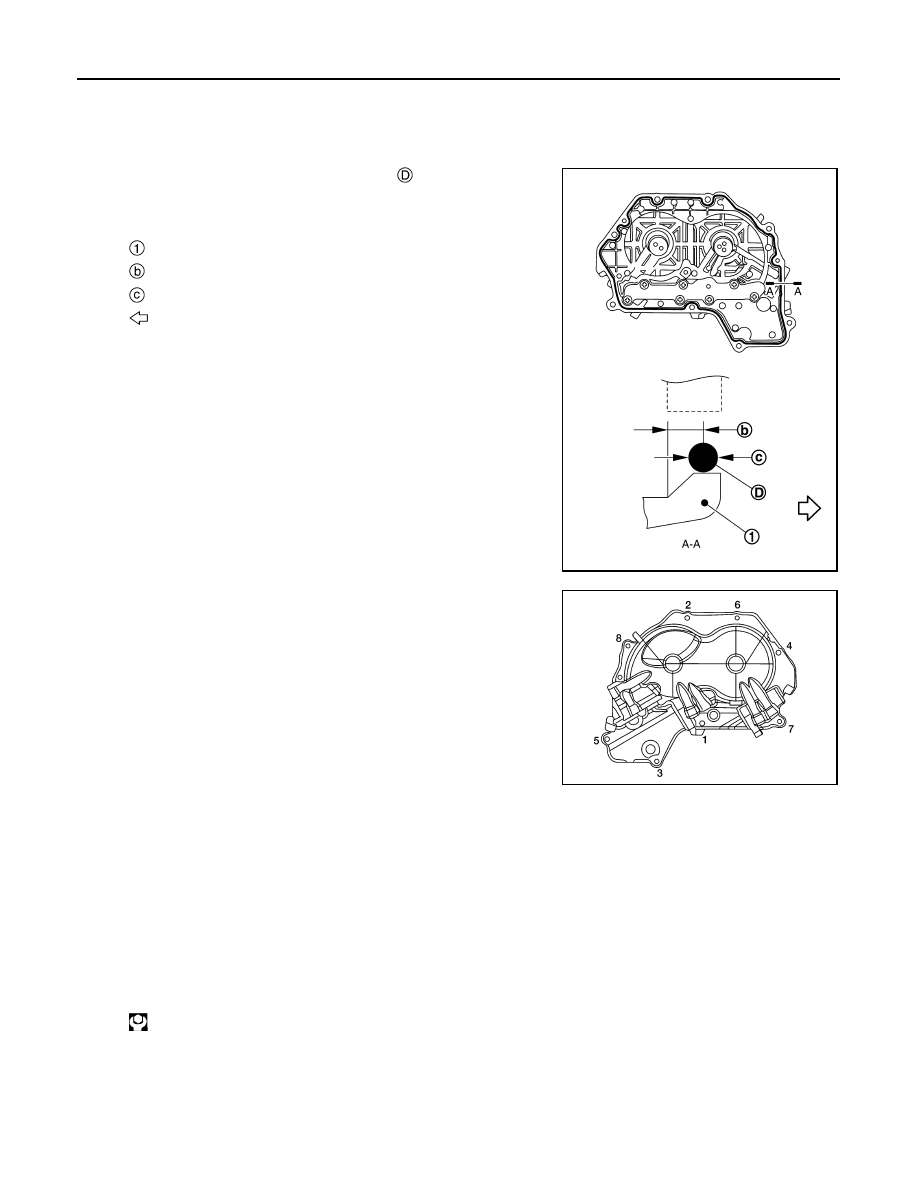

Apply a continuous bead of liquid gasket

 with a tube presser

(commercial service tool) to valve timing control cover as shown
in the figure.

Use Genuine Liquid Gasket or equivalent.

CAUTION:

• Attaching should be done within 5 minutes after liquid

gasket application.

• Do not reuse O-ring.

e.

Tighten mounting bolts in numerical order as shown in the fig-
ure.

10. Insert crankshaft pulley by aligning with crankshaft key.

• When inserting crankshaft pulley with a plastic hammer, tap on its center portion (not circumference).

CAUTION:

Install protecting front oil seal lip section from any damage.

11. Tighten crankshaft pulley bolt.

• Secure crankshaft pulley with a pulley holder (commercial service tool), and tighten crankshaft pulley

bolt.

• Perform angle tightening with the following procedure:

a.

Apply new engine oil to thread and seat surfaces of crankshaft pulley bolt.

b.

Tighten crankshaft pulley bolt.

: Valve timing control cover

: 4.3 - 5.3 mm (0.169 - 0.208 in)

φ

 3.4 - 4.4 mm (0.134 - 0.173 in)

: Engine outside

JSBIA3383ZZ

ALBIA0839GB

: 42.1 N·m (4.3 kg-m, 31 ft-lb)

TIMING CHAIN

EM-219

< UNIT DISASSEMBLY AND ASSEMBLY >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

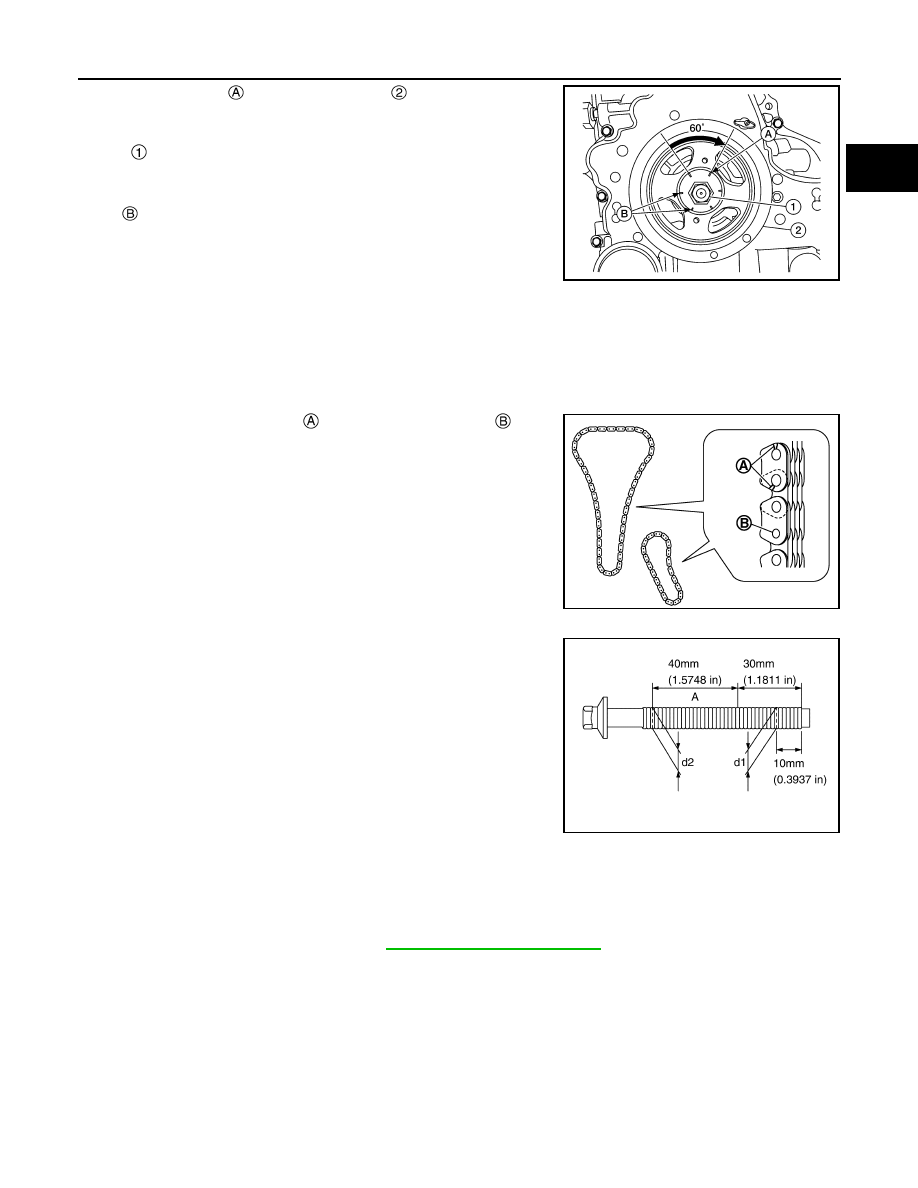

c.

Put a paint mark

 on crankshaft pulley

, mating with any one

of six easy to recognize angle marks on bolt flange.

d.

Turn another 60 degrees clockwise (angle tightening).
• Check the tightening angle with movement of one angle mark

.

12. Install all removed parts in the reverse order of removal.

Inspection

INFOID:0000000010783811

INSPECTION AFTER REMOVAL

Timing Chain

• Check timing chain for cracks

 and any excessive wear

 at the

roller links of timing chain. Replace timing chain if necessary.

Balancer Unit Mounting Bolt Outer Diameter

• Measure the outer diameters (“d1”, “d2”) at two positions as shown

in the figure.

• If reduction appears in “A” range, regard it as “d2 ”.

• If it exceeds the limit (large difference in dimensions), replace it

with a new one.

INSPECTION AFTER INSTALLATION

Inspection for Leaks

The following are procedures for checking fluids leak, lubricates leak.

• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required

quantity, fill to the specified level. Refer to

MA-23, "Fluids and Lubricants"

.

• Use procedure below to check for fuel leakage.
- Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak-

age at connection points.

- Start engine. With engine speed increased, check again for fuel leakage at connection points.
• Run engine to check for unusual noise and vibration.
• Warm up engine thoroughly to check there is no leakage of fuel, or any oil/fluids including engine oil and

engine coolant.

• Bleed air from lines and hoses of applicable lines, such as in cooling system.
• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the

specified level, if necessary.

: Crankshaft pulley bolt

ALBIA0862GB

PBIC3169J

Limit (“d1”–“d2”)

: 0.15 mm (0.0059 in)

JSBIA2568GB

EM-220

< UNIT DISASSEMBLY AND ASSEMBLY >

[QR25DE]

TIMING CHAIN

Summary of the inspection items:

*: Power steering fluid, brake fluid, etc.

Items

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

Transmission /
transaxle fluid

AT & CVT Models

Leakage

Level / Leakage

Leakage

MT Models

Level / Leakage

Leakage

Level / Leakage

Other oils and fluids*

Level

Leakage

Level

Fuel

Leakage

Leakage

Leakage

Exhaust gases

Leakage
